0.91 Inch I2C SSD1306 OLED Display Module – White/Blue
Add a crisp, compact display to your next Arduino or microcontroller project with this 0.91-inch I2C OLED Display Module. Powered by the reliable SSD1306 driver chip, this tiny screen delivers sharp graphics output with minimal wiring — just four pins (GND, VCC, SCL, SDA) and you're up and running. Compatible with a wide range of development boards and operating across 3.3V to 5V, it's the go-to choice for makers, hobbyists, and engineers alike. Made in Mainland China.
Key Features
- Compact 0.91" Screen – Fits neatly into enclosures and wearable builds without sacrificing readability.
- SSD1306 Driver Chip – Industry-standard, well-documented chip with broad library support for Arduino, ESP32, Raspberry Pi, and more.
- I2C Interface (IIC) – Simple 4-pin connection frees up GPIO pins on your board.
- Wide Voltage Range – Operates at 3.3V or 5V DC, compatible with 3.3V and 5V logic systems.
- Wide Temperature Range – Reliable operation from -30°C to 70°C for indoor and controlled outdoor environments.
- No Backlight Required – OLED pixels emit their own light for excellent contrast and low power consumption.
Technical Specifications
| Model | SH-S091 |
| Screen Size | 0.91 inch |
| Driver Chip | SSD1306 |
| Interface | I2C (IIC) |
| Operating Voltage | DC 3.3V – 5.0V |
| Working Temperature | -30°C ~ 70°C |
| Display Area | 22.384 × 5.584 mm |
| Physical Size | 38 × 12 mm |
| Pixel Size | 0.159 × 0.159 mm |
| Pixel Pitch | 0.175 × 0.175 mm |
| Number of Pins | 4 Pin (GND, VCC, SCL, SDA) |
| Display Function | Graphics |
| Usage | Indoor |
| Country of Origin | Made in Mainland China |

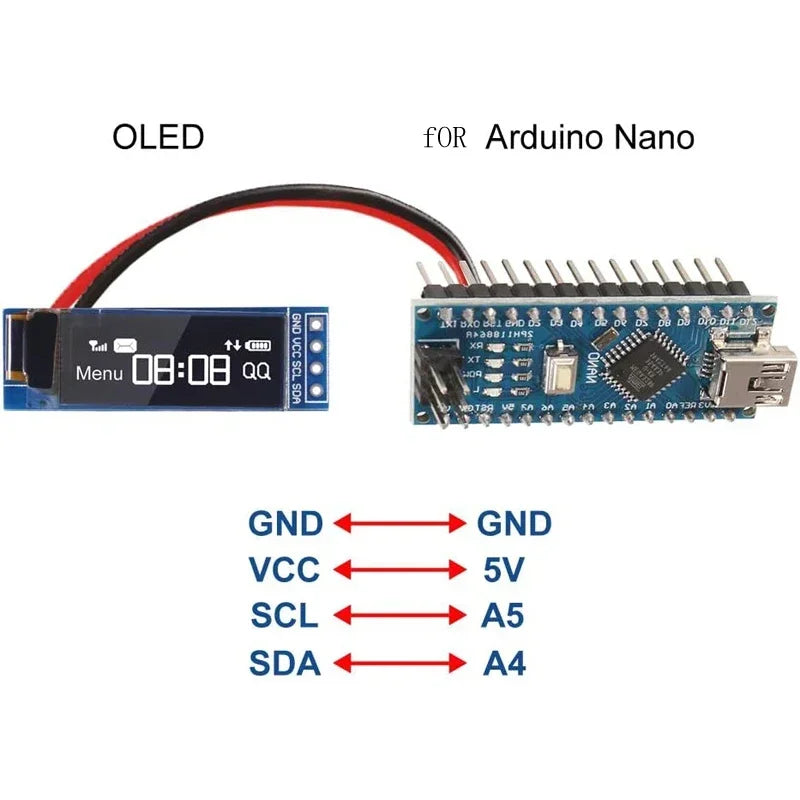

Pin Description
- GND – Power Ground
- VCC – Power + (DC 3.3V ~ 5V)
- SCL – Clock Line
- SDA – Data Line
⚠️ Important Note: Do NOT reverse the VCC and GND pins. Incorrect polarity will permanently damage the OLED display.
What's in the Box
- 1 × 0.91 Inch I2C SSD1306 OLED Display Module
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this I2C OLED display module compatible with Arduino boards?
A: Yes, the 0.91-inch I2C SSD1306 OLED display module is fully compatible with Arduino (Uno, Nano, Mega, etc.), as well as ESP8266, ESP32, Raspberry Pi, and other microcontrollers that support I2C communication. Popular libraries such as Adafruit SSD1306 and U8g2 work seamlessly with this module.
Q: Can this OLED module run on 3.3V logic systems?
A: Absolutely. The module supports an operating voltage of 3.3V to 5.0V DC, making it compatible with both 3.3V and 5V logic systems without the need for a level shifter in most applications.
Q: What is the I2C address for this SSD1306 OLED module?
A: The default I2C address for this SSD1306-based OLED display module is typically 0x3C. Some boards may allow address switching to 0x3D via a solder jumper. Always check your specific module's datasheet or test with an I2C scanner sketch to confirm the address.
Q: What display types are available for this module?
A: This OLED display module is available in White and Blue pixel color variants. Both versions use the same SSD1306 driver and I2C interface, so they are functionally identical — the difference is purely the color of the emitted light from the OLED pixels.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
