1.3" OLED Display Module 128x64 I2C SSD1306 for Arduino
1.3" OLED Display Module 128x64 I2C SSD1306 for Arduino
1.3 Inch OLED Display Module 128×64 – I2C / IIC SSD1306 for Arduino & Microcontrollers
Upgrade your electronics projects with this crisp, high-contrast 1.3-inch OLED display module. Featuring a 128×64 pixel resolution and the reliable SSD1306 driver chip, this screen delivers sharp white or blue text and graphics with no backlight required — making it incredibly power-efficient for embedded systems, prototyping, and DIY builds.
Compatible with Arduino, Raspberry Pi, ESP8266, ESP32, and virtually any microcontroller that supports the I2C (IIC) serial interface. The simple 4-pin connection (VDD, GND, SCK, SDA) means you can get up and running in minutes with minimal wiring.
Made in Mainland China.
Key Features
- Display Size: 1.3 inches diagonal
- Resolution: 128 × 64 pixels (12864)
- Driver IC: SSD1306
- Interface: I2C / IIC Serial (4-pin: VDD, GND, SCK, SDA)

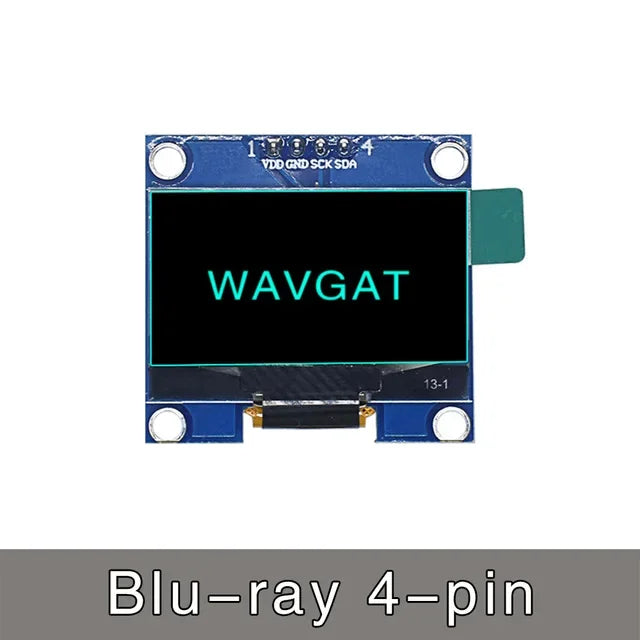

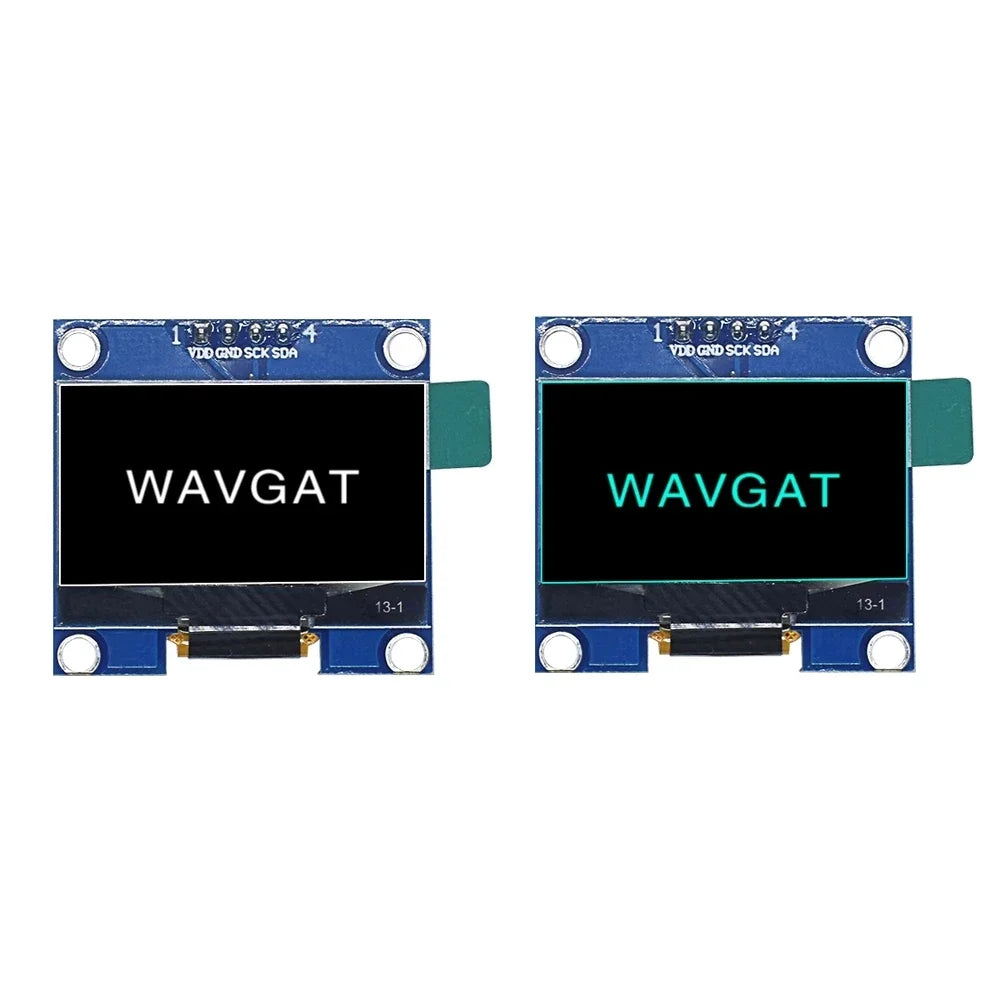

- Display Colors Available: White or Blue
- Display Type: OLED (no backlight needed — self-illuminating pixels)
- Low Power Consumption: Ideal for battery-powered projects
- Wide Compatibility: Arduino UNO, Nano, Mega, ESP8266, ESP32, STM32, Raspberry Pi, and more
- Condition: Brand New
- Customizable: Yes
What's in the Box
- 1 × 1.3" OLED Display Module (128×64, SSD1306, I2C)
Who Is This For?
Whether you're building a weather station, smart clock, sensor dashboard, wearable device, or any custom electronics project, this OLED module is the perfect compact display solution. Its plug-and-play I2C interface and wide library support (including the popular Adafruit SSD1306 library) make it beginner-friendly yet powerful enough for advanced makers.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this OLED display module compatible with Arduino Uno and Nano?
A: Yes! This 1.3-inch SSD1306 OLED display module is fully compatible with Arduino Uno, Nano, Mega, and most other Arduino boards. Simply connect VDD to 3.3V or 5V, GND to ground, SCK to the I2C clock pin, and SDA to the I2C data pin. Use the Adafruit SSD1306 or U8g2 library to get started quickly.
Q: What is the difference between the white and blue display options?
A: Both versions use the same SSD1306 driver and 128×64 resolution — the only difference is the color of the emitted pixel light. White displays emit white pixels on a black background, while blue displays emit blue pixels. Both offer excellent contrast and visibility in most lighting conditions.
Q: Does this module work with 3.3V and 5V systems?
A: Yes, this OLED module supports both 3.3V and 5V power supplies, making it compatible with a wide range of microcontrollers including Arduino (5V), ESP8266, ESP32, and Raspberry Pi (3.3V logic).
Q: What libraries can I use to program this display?
A: This SSD1306 128×64 OLED module is supported by several popular libraries, including the Adafruit SSD1306 library, Adafruit GFX library, and the U8g2 library. All are freely available through the Arduino IDE Library Manager.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
