XY-J02 1-Channel 5V Relay Timer Delay Switch Module
XY-J02 1-Channel 5V Relay Timer Delay Switch Module

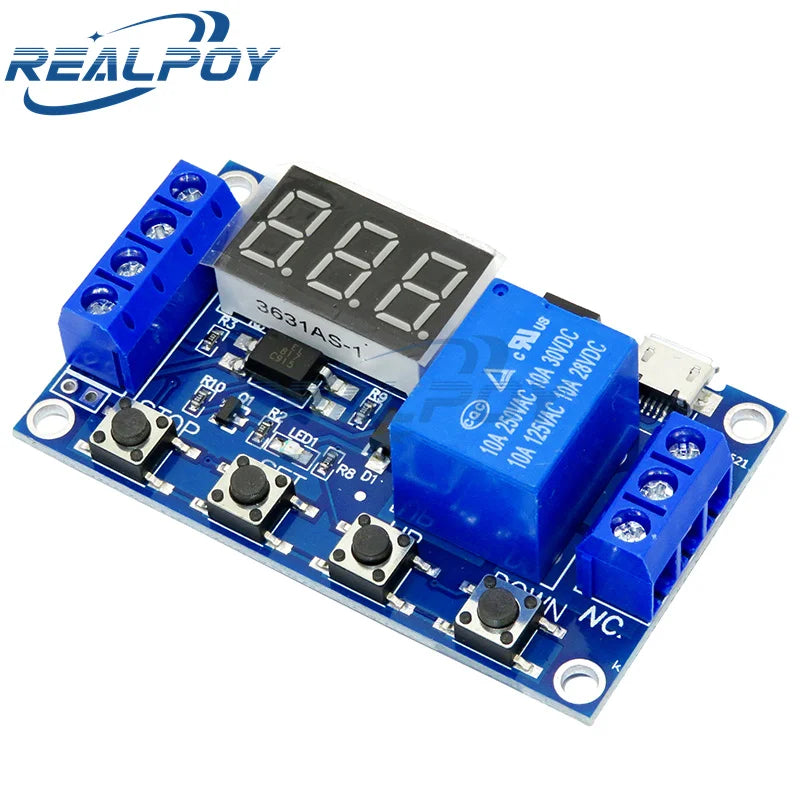

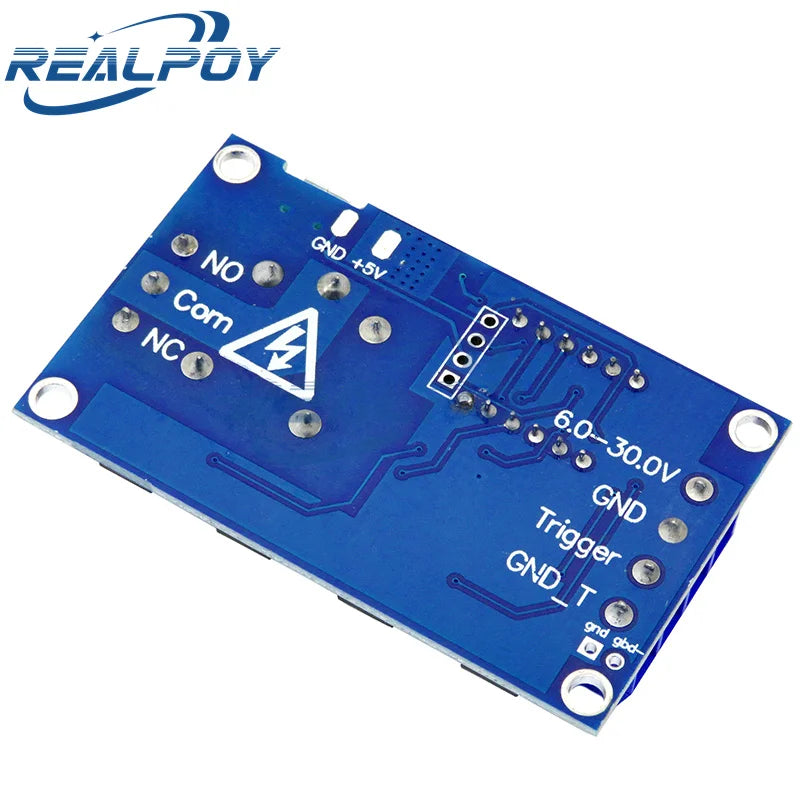

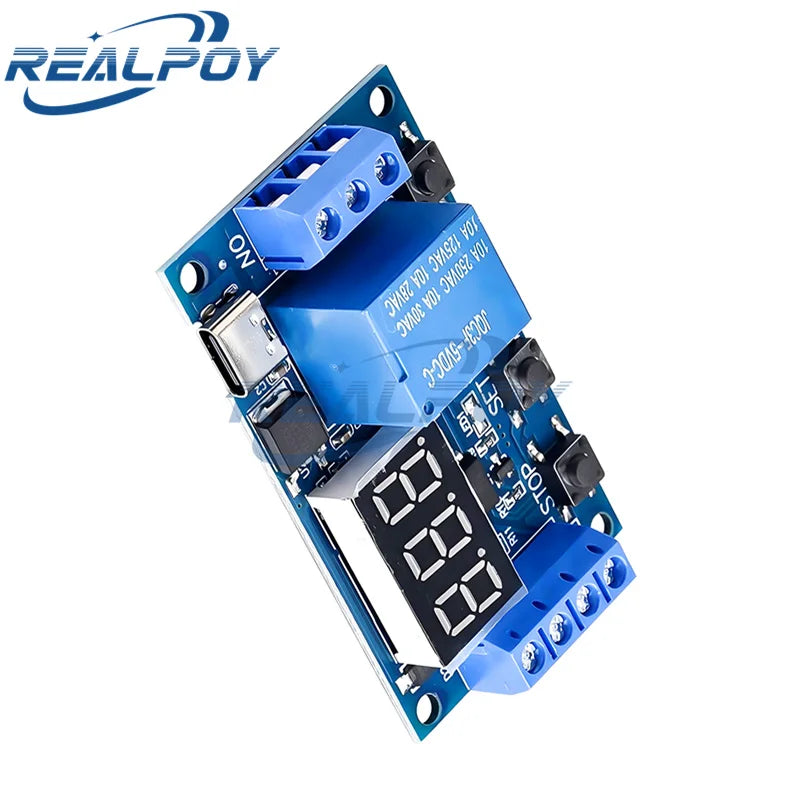

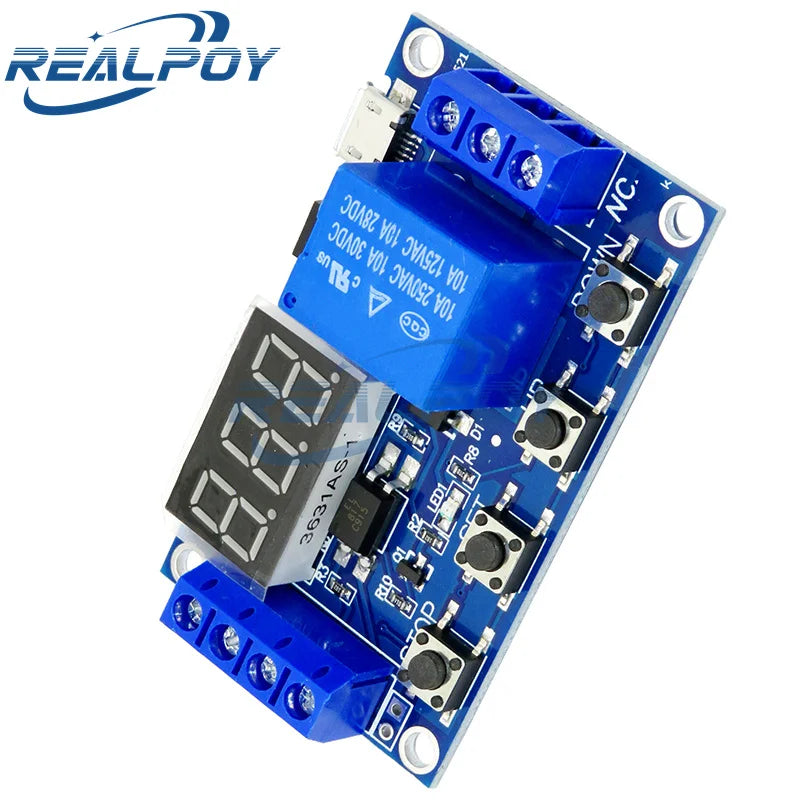

1-Channel 5V Relay Module with Adjustable Time Delay Timer — XY-J02
Take precise control of your electronics projects with the XY-J02 1-Channel Relay Module. Designed for makers, hobbyists, and engineers alike, this compact relay board features an adjustable time delay cycle of up to 999 minutes, making it ideal for automating ON/OFF switching in a wide range of circuits and DIY builds.
Key Features
- Wide Input Voltage Range: Accepts 6V–30V trigger input with a 5V relay coil for flexible integration into various systems.
- Adjustable Time Delay: Dial in your delay cycle from seconds up to 999 minutes — perfect for automation, scheduling, and timed switching applications.
- Single-Channel (1-CH) Design: Controls one load circuit at a time with a clean, reliable ON/OFF switching signal.
- Trigger Delay Circuit Timer: Supports both delay-on and delay-off trigger modes for versatile circuit control.
- Compact & Modular: Small form factor integrates easily into enclosures, panels, or breadboard setups.
- Screw Terminal Connectors: Tool-free wiring with clearly labeled terminals for quick and secure connections.
- Model: XY-J02
- No High-Concern Chemicals: Manufactured without high-concern chemical substances.
Specifications
| Model | XY-J02 |
| Relay Coil Voltage | 5V DC |
| Trigger Input Voltage | 6V – 30V DC |
| Channels | 1 |
| Timer Range | Adjustable, up to 999 minutes |
| Switch Modes | OFF/ON Trigger Time Delay Cycle |
| High-Concern Chemicals | None |
| Condition | New |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Home automation and smart switching projects
- Timed motor or pump control
- LED lighting automation
- Arduino, Raspberry Pi, and microcontroller projects
- Industrial timer relay circuits
- Irrigation and aquarium automation
What's in the Box
- 1 × XY-J02 1-Channel 5V Relay Time Delay Module
