10-Pack KW12-3 Micro Roller Lever Arm Limit Switch — PCB Mount
Get reliable, snap-action switching performance with this set of 10 KW12-3 Micro Roller Lever Limit Switches. Compact, fast-acting, and rated for a wide range of voltages and temperatures, these PCB-mount micro switches are a go-to choice for electronics engineers, hobbyists, and DIY builders alike. Whether you're building automation systems, repairing appliances, or prototyping robotics, these switches deliver consistent open/close actuation every time.
Key Features
- Model: KW12-3
- Rated Voltage: AC 125V – 250V
- Current Rating: 5A
- Operating Temperature: -40°C to 70°C

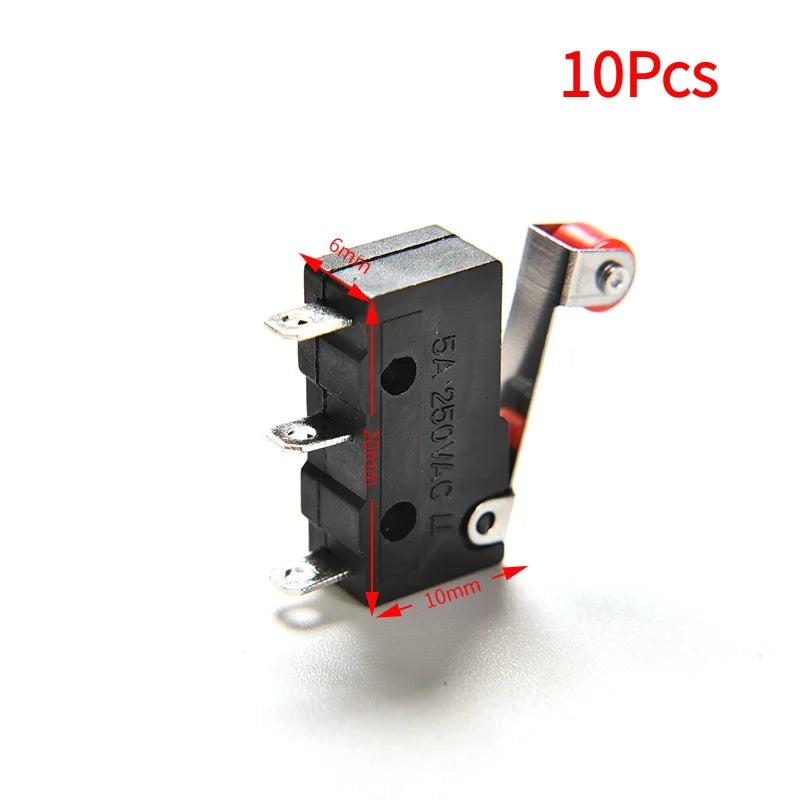

- Dimensions: 20 × 10 × 6 mm (L × W × H)
- Terminal Type: PCB (Printed Circuit Board) terminals

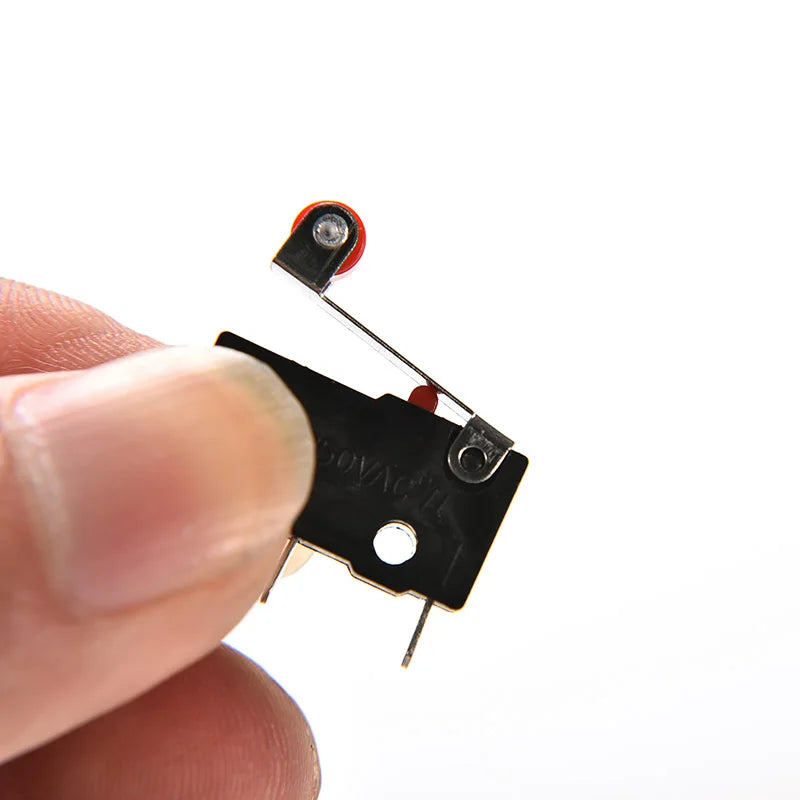

- Actuator: Roller lever arm for precise mechanical triggering
- Material: Durable plastic housing
How It Works
The KW12-3 uses a proven snap-action reed mechanism. An external mechanical force — applied via the roller lever arm — acts on the internal spring reed. At a critical actuation point, the reed snaps instantaneously, rapidly opening or closing the contact circuit. When the force is removed, the reed reverses and resets with equal speed. This snap-action design ensures:
- Minimal contact gap with short, precise travel
- Fast-break/fast-make switching action
- Low actuation force requirement
- Consistent and repeatable performance across many cycles
Wide Range of Applications
These versatile micro switches are suitable for use in:
- Computer mice and peripheral devices
- Automotive electronics and car accessories
- Communications equipment
- Test and measurement instruments
- Gas water heaters and gas burners
- Small household appliances (microwave ovens, rice cookers, etc.)
- Floating ball valve equipment
- Building automation systems
- Electric power tools
- DIY robotics and 3D printers
Package Contents

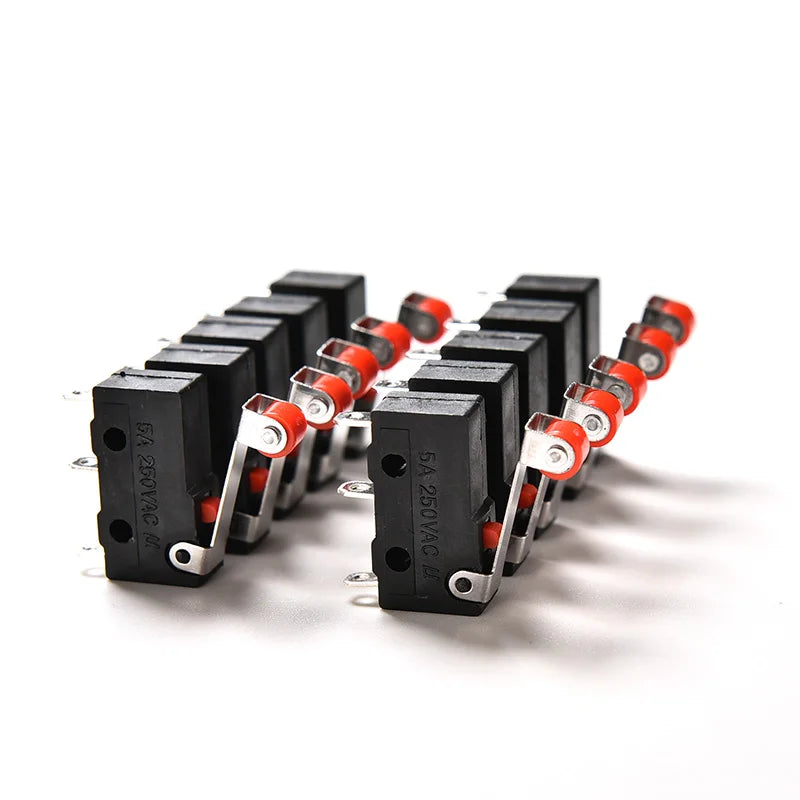

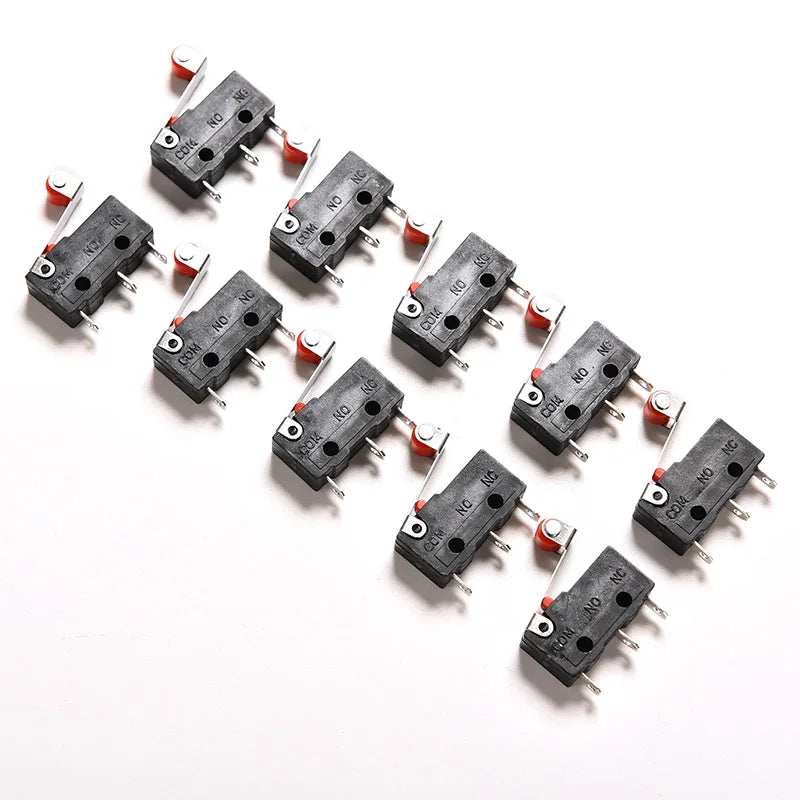

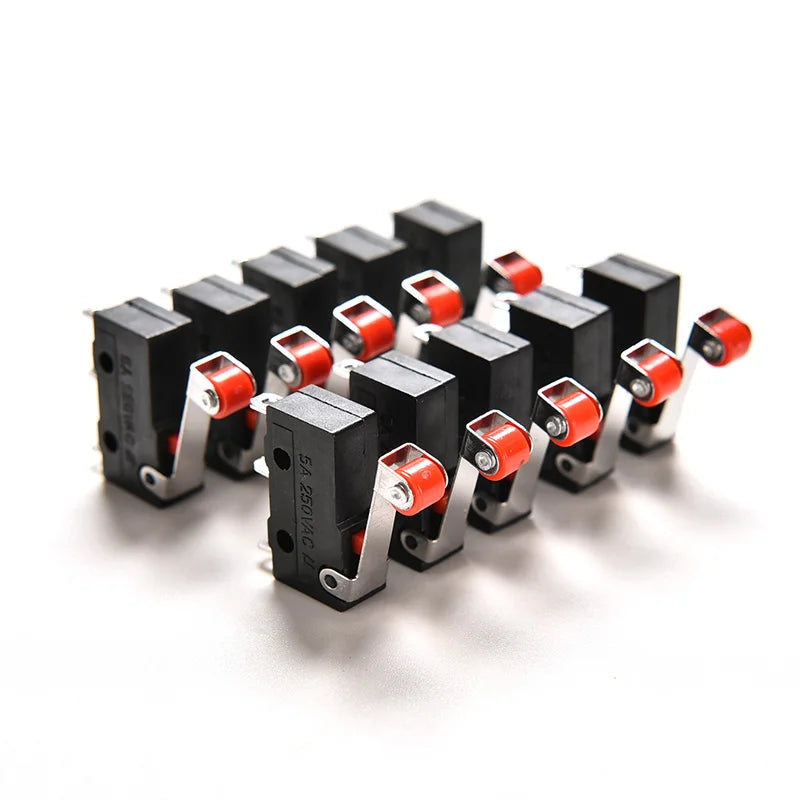

- 10 × KW12-3 Micro Roller Lever Limit Switches
Made in China.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage and current are the KW12-3 micro roller lever limit switches rated for?
A: The KW12-3 limit switches are rated for AC 125V to 250V with a current rating of 5A, making them compatible with a broad range of low-to-mid voltage electronic applications including appliances, automation systems, and DIY electronics projects.
Q: Are these KW12-3 micro switches suitable for PCB mounting?
A: Yes. The KW12-3 switches feature PCB terminal connections, designed to be soldered directly onto a printed circuit board. Their compact 20 × 10 × 6 mm footprint makes them ideal for space-constrained board layouts.
Q: Can these limit switches be used in extreme temperature environments?
A: These micro switches have an operating temperature range of -40°C to 70°C, making them suitable for both cold-storage automation and moderately high-heat environments such as appliance interiors or outdoor enclosures.
Q: How many switches are included in the pack?
A: Each order includes 10 individual KW12-3 micro roller lever limit switches, giving you spares for prototyping, repairs, or multi-unit builds at an excellent value.
