160A High Power MOS Trigger Switch Driver Module with PWM Control
Take precise control of your electronics projects with this compact, high-performance MOS Trigger Switch Driver Module. Designed for makers, DIY enthusiasts, and professional engineers alike, this module supports PWM signal input for smooth, accurate output regulation — perfect for dimming LED strips, controlling motor speed, and managing high-current loads with ease.
Key Features
- Wide Input Voltage Range: Supports 5V to 18V DC input (withstand voltage up to 30V), making it compatible with a broad range of power supply environments for maximum versatility.
- High Current Capacity: Handles a continuous load of 0–40A with an instantaneous peak of 160A, built to drive motors, LED light bars, solenoids, and other power-hungry devices without breaking a sweat.
- PWM Signal Integration: Accepts PWM signal input for precise output current adjustment — ideal for lighting gradient effects, variable motor speed control, and smooth power regulation.

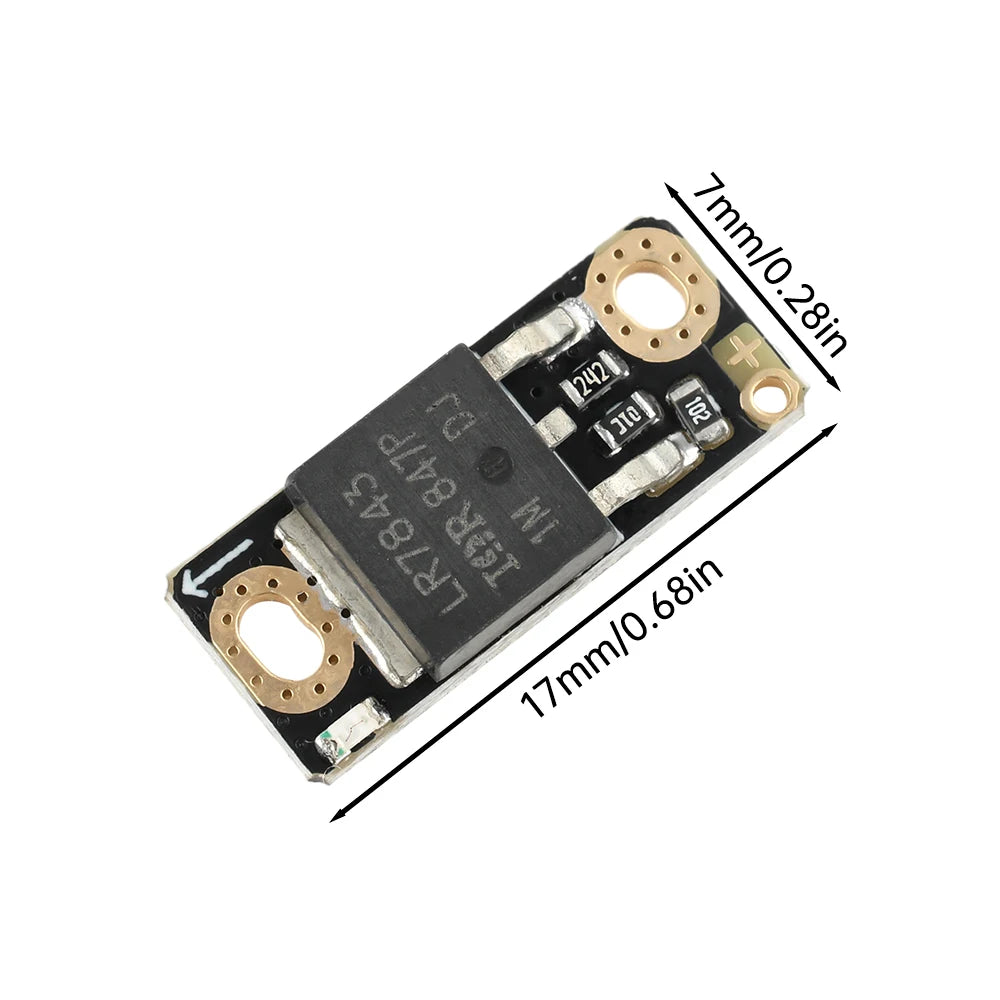

- Compact & Easy to Install: Small form factor makes it a perfect fit for space-constrained builds, compact enclosures, and DIY electronics projects — no bulky hardware required.

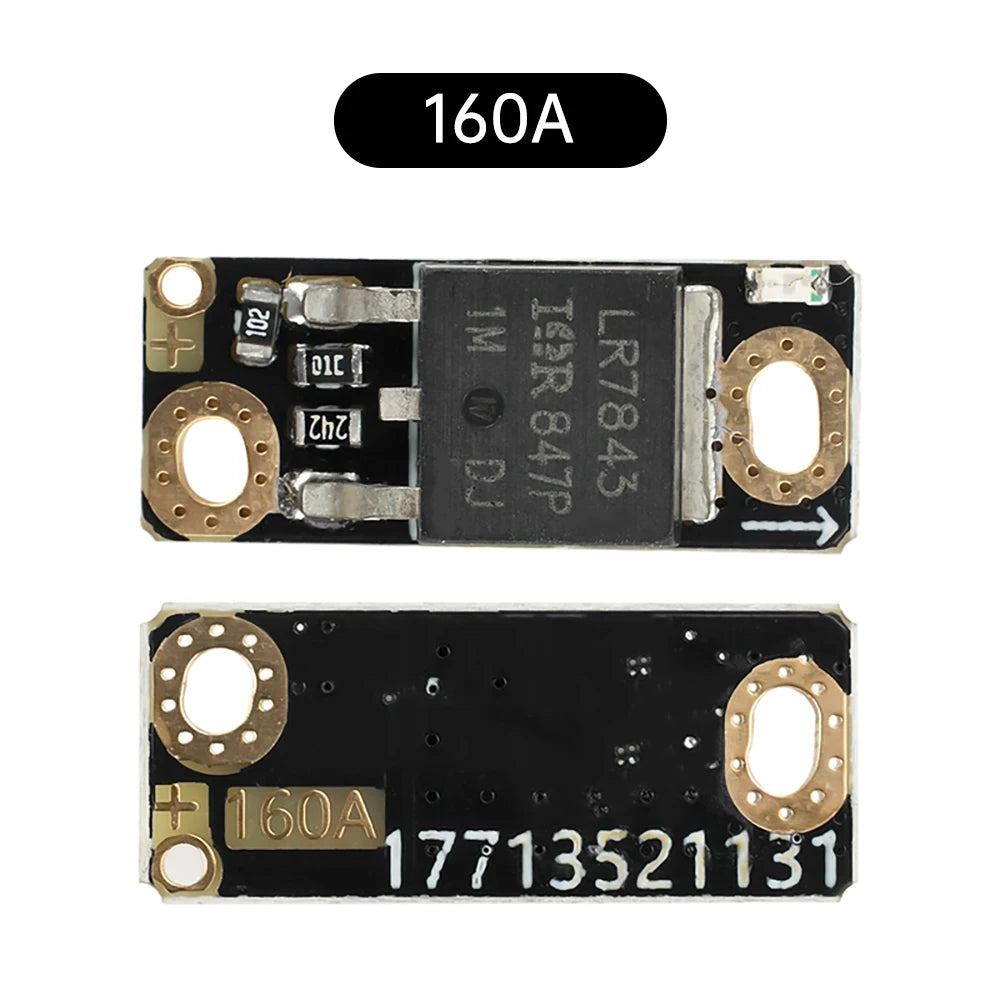

- High-Quality MOS Tube Construction: Uses premium, high-power MOSFET transistors engineered to handle demanding, high-current applications reliably over time.

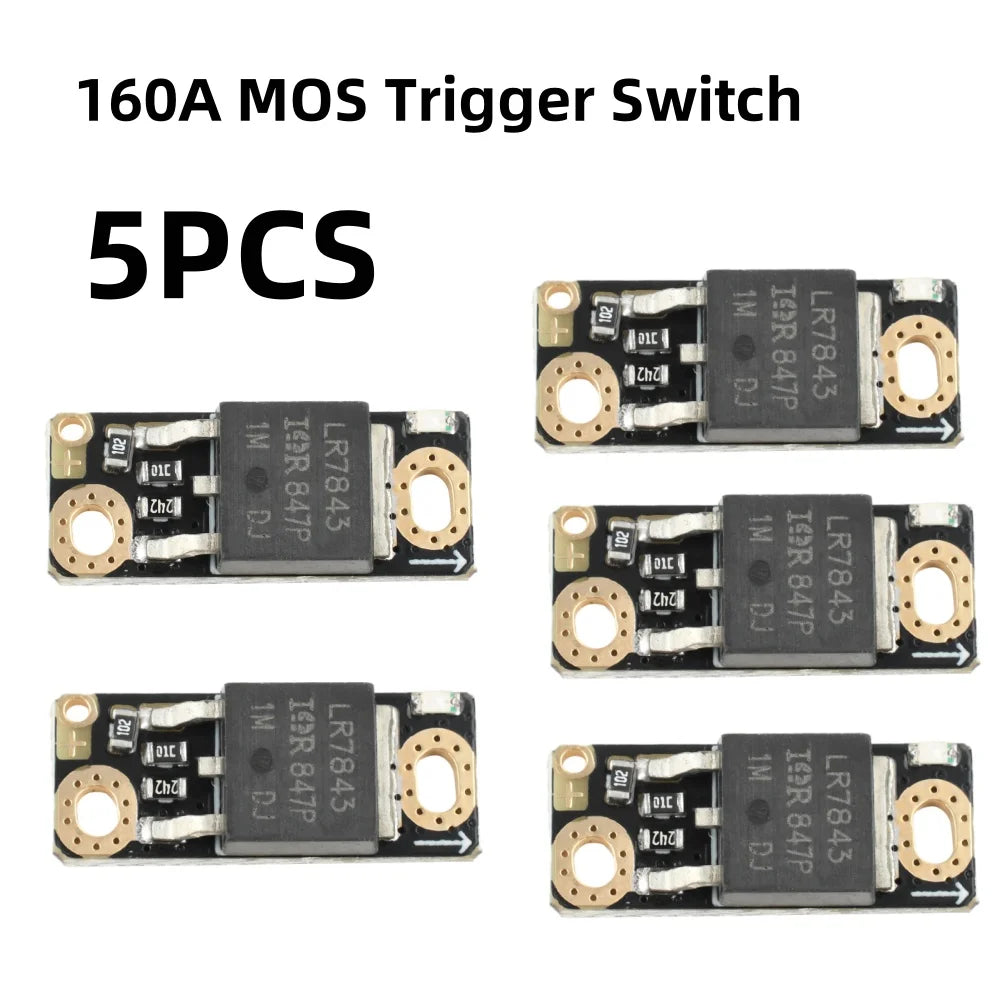

- Multi-Pack Options: Available in 1, 2, 5, or 8-piece quantities so you can stock up for multiple projects or replace spares as needed.
Specifications
| Input Voltage | 5V – 18V DC |
| Withstand Voltage | 30V |
| Continuous Current | 0 – 40A |
| Instantaneous Peak Current | 160A |
| Control Signal | PWM |
| Package Type | TQFP |
| Condition | New |
| Country of Origin | Made in China |
Ideal Applications
- LED light bar dimming and lighting gradient control
- DC motor speed regulation
- Solenoid valve switching
- DIY electronics and robotics projects
- Automation and smart home control circuits
- Power load switching in custom PCB designs
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the maximum current this MOS PWM switch driver module can handle?
A: The module supports a continuous current range of 0–40A and can handle an instantaneous peak of 160A. The input voltage range is 5–18V DC, with a withstand voltage of up to 30V, making it suitable for demanding high-current switching applications.
Q: What devices can I control with this PWM MOS trigger switch driver module?
A: This module is well suited for controlling DC motors, LED light strips and bars, solenoid valves, fans, and other resistive or inductive loads. Its PWM input compatibility allows for smooth speed control, brightness dimming, and precise power regulation in DIY and professional electronics projects.
Q: Is this MOS driver module suitable for beginners and DIY electronics projects?
A: Yes! The compact size and straightforward PWM signal interface make this module easy to integrate into a wide variety of projects. Whether you are a hobbyist building your first motor controller or an experienced engineer designing a custom power board, the plug-and-play nature of this module makes it an accessible and reliable choice.
