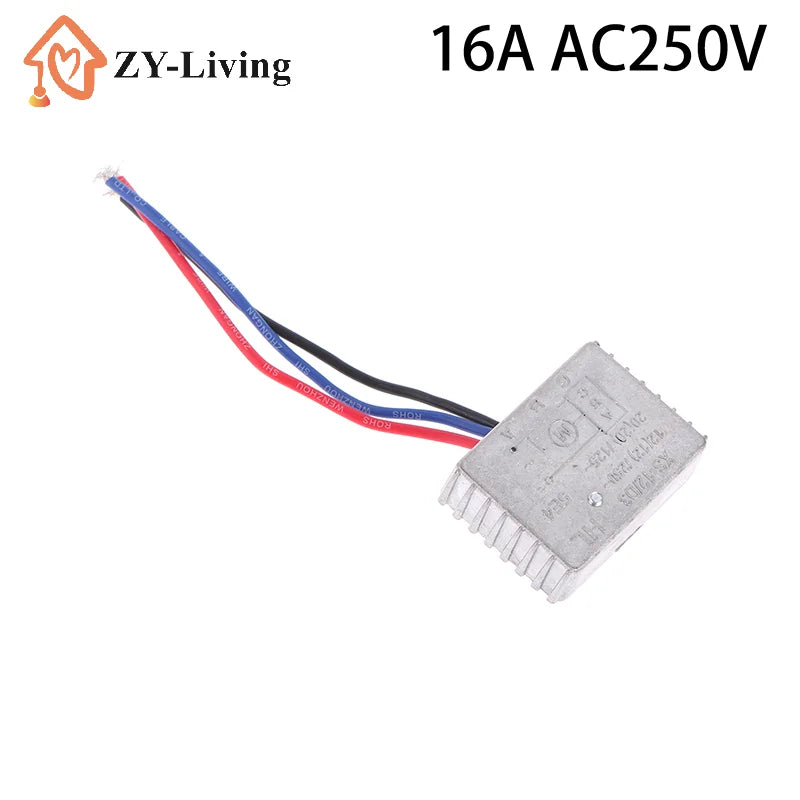

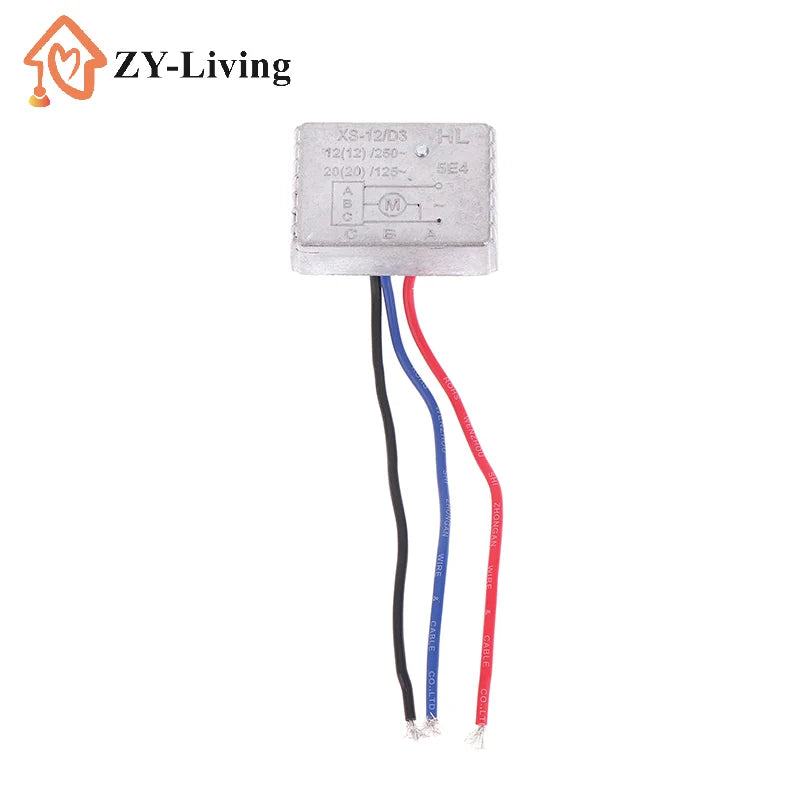

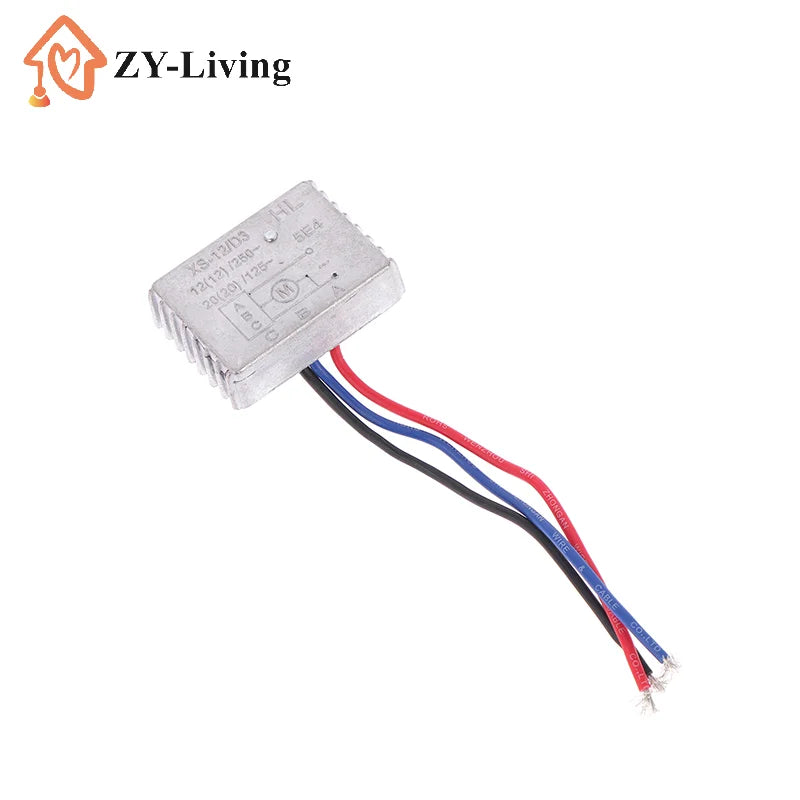

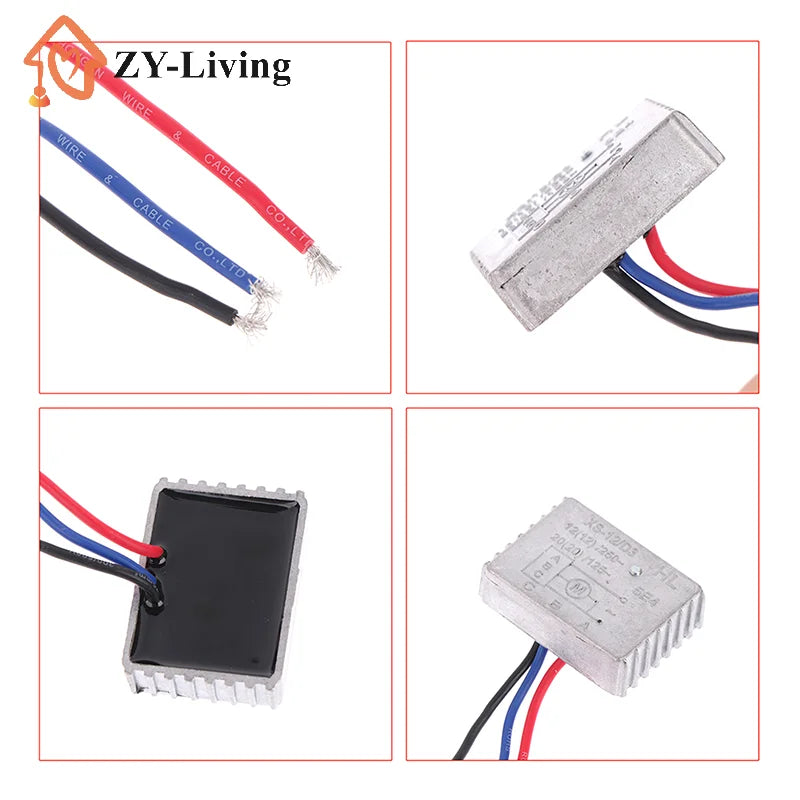

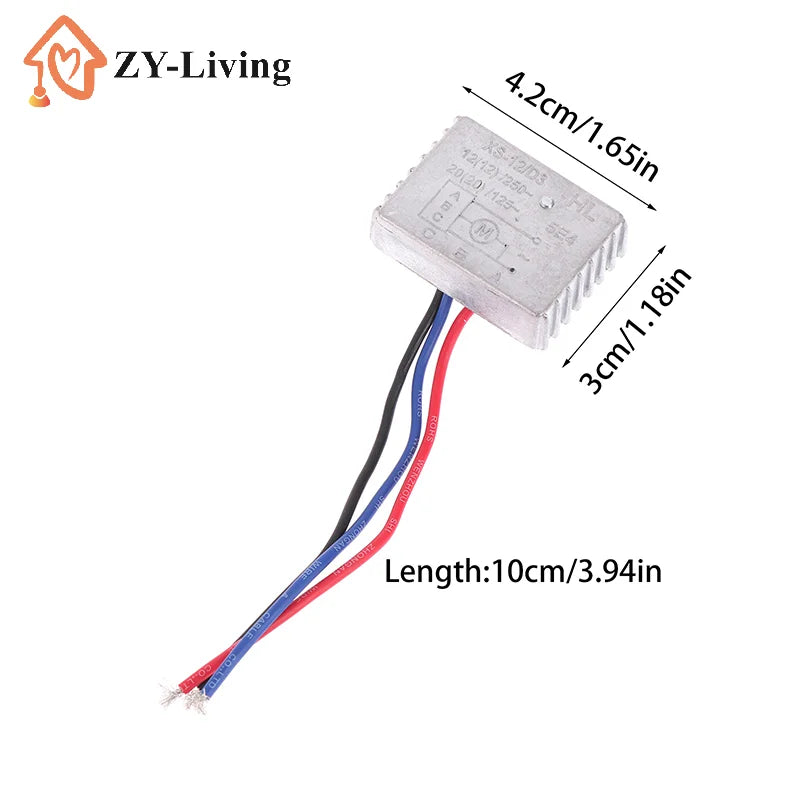

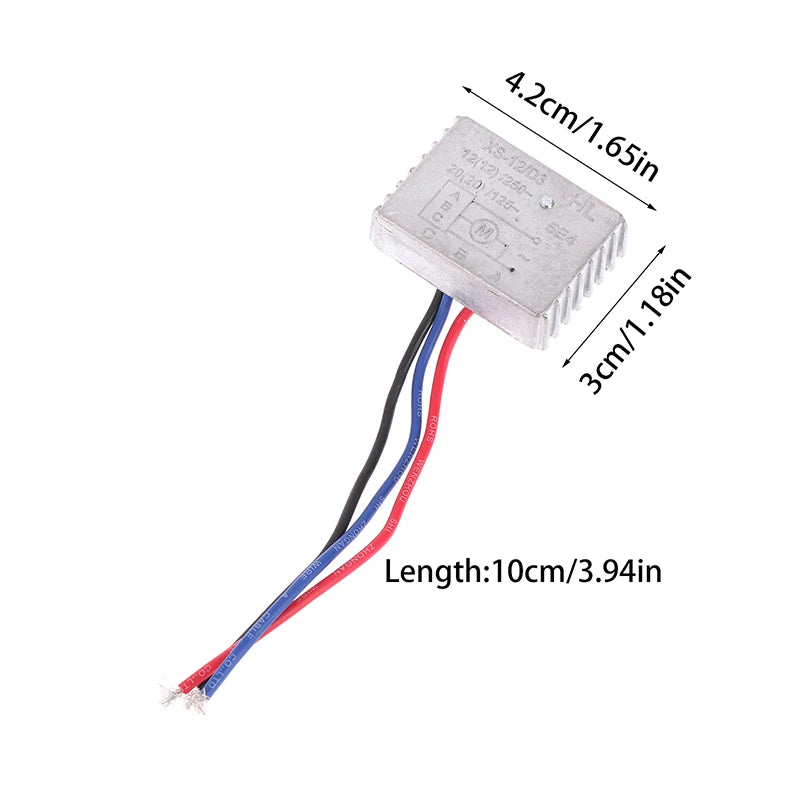

230V Soft Start Current Limiter Retrofit Module for Power Tools
Upgrade your brushed-motor power tools with this industrial-grade Soft Start Current Limiter Retrofit Module. Designed for 230V systems and rated up to 20A (3450W), this compact module eliminates harsh, abrupt motor startups — instead, your tool smoothly ramps up to full speed in just 1–2 seconds. Ideal for woodworking machinery, angle grinders, circular saws, routers, and other brushed-motor power tools.
Why Use a Soft Start Module?
Hard starts put enormous stress on motor windings, drive belts, blades, and workpieces. By limiting the inrush current at startup, this retrofit module extends the service life of your tools, reduces wear on mechanical components, and gives you greater control the moment you flip the switch.
Key Features
- Wide Current Range: Supports 12A–20A loads (up to 3450W @ 230V)
- Smooth Ramp-Up: Tool reaches full operating speed in approximately 1–2 seconds
- Industrial Grade: Precision-machined plastic and metal construction for high stability and durability
- Easy Retrofit: Includes 2 connecting wires — installs directly into existing tool wiring

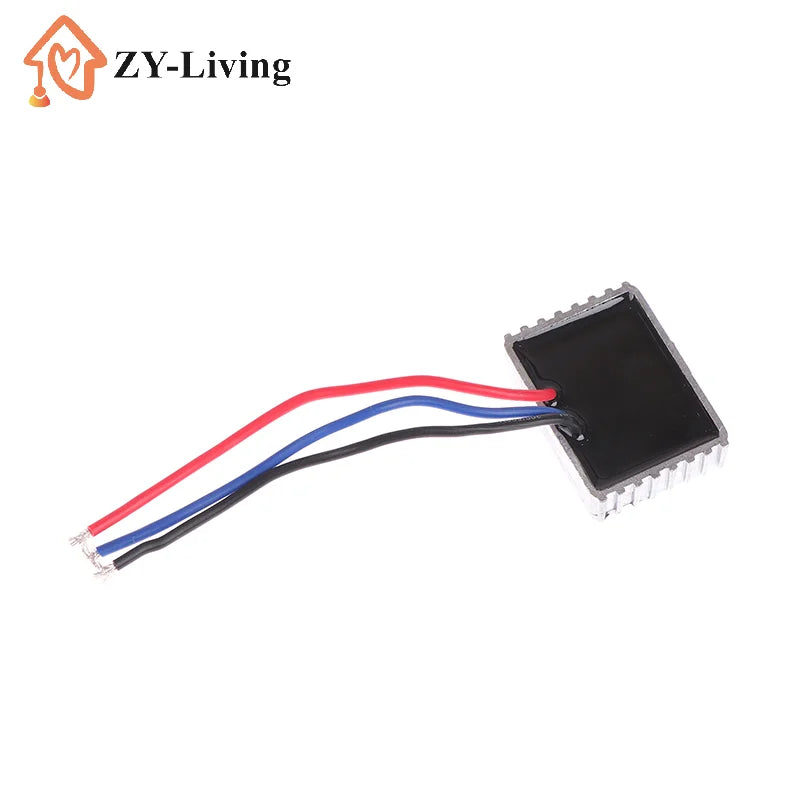

- Dust-Proof Package: Protective cover on the back connection area
- Wear-Resistant: Built for long-term, repeated use in workshop environments
- Brushed Motor Compatible: Designed exclusively for brushed-type motors
Specifications
| Input Voltage | 230V AC |
| Current Rating | 12A – 20A |
| Max Power Load | 3450W |
| Motor Type | Brushed motor only |
| Ramp-Up Time | ~1–2 seconds |
| Forward/Reverse | No |
| Material | Plastic & Metal |
| Country of Origin | Made in China |
Package Includes
- 1 × Soft Start Current Limiter Module (variant as selected)
Installation Note
This module is compatible with brushed motors only. It is not suitable for brushless motors or single-phase induction motors. If you are unsure of your tool's motor type, consult the tool's documentation before installing. Always disconnect power before wiring.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of power tools is this soft start current limiter compatible with?
A: This 230V soft start retrofit module is designed for power tools that use brushed motors, such as angle grinders, circular saws, belt sanders, routers, and woodworking machinery. It is NOT compatible with brushless motors or AC induction motors.
Q: How does the soft start module reduce inrush current on startup?
A: The module gradually increases voltage to the motor over approximately 1–2 seconds after the tool is switched on, limiting the initial surge of electrical current. This smooth ramp-up reduces mechanical shock to the tool's drive components and electrical stress on the motor windings.
Q: Is this module suitable for use with a 110V power supply?
A: No. This retrofit module is rated for 230V AC systems only. Using it with a different voltage without appropriate conversion equipment is not recommended and may damage the module or your tool.
Q: Does installation require any special tools or wiring expertise?
A: The module comes with 2 connecting wires and is designed as a straightforward retrofit — it is wired in series with the tool's power switch. Basic electrical wiring knowledge is recommended. Always ensure the power supply is fully disconnected before beginning installation.
