25A AC-DC Rectifier Filter Power Supply Bare PCB Board

25A Single AC-DC Audio Amplifier Rectifier Filter Power Supply Board — Bare PCB

Build a clean, stable power supply for your audio amplifier projects with this high-quality bare PCB board. Designed for DIY electronics enthusiasts, this board supports a max 25A bridge rectifier and dual filter capacitors, making it an ideal foundation for amplifier power supply builds. Available in packs of 1 or 3 boards so you can stock up for multiple projects.

Key Specifications

• Material: FR-4 PCB

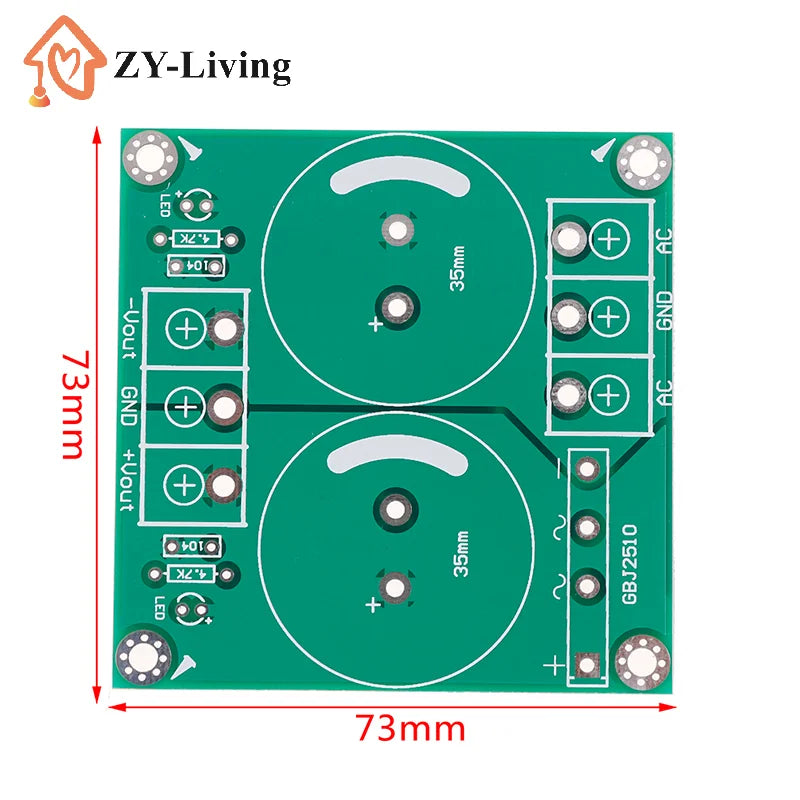

• Board Size: 73 × 73 mm (Length × Width)
• Board Thickness: 1.6 mm
• Surface Finish: Double-sided solder resist for maximum durability
• Max Bridge Rectifier Rating: 25A
• Capacitor Slots: 2 × capacitors (supports 30 mm or 35 mm diameter)
• Country of Origin: Made in China

Wiring Overview

AC Input Connector

• AC: AC transformer connection line
• GND: Ground connection to transformer

Note: When using a single-voltage transformer, connect only one AC terminal and GND — leave the second AC terminal empty. This configuration will still double the output voltage.

DC Output Interface

• −Vout: Negative output terminal
• GND: Ground
• +Vout: Positive output terminal

What's in the Box

• 1 or 3 × Bare PCB Board(s) (no additional components included)

Please Note: This listing is for the bare PCB board only. Rectifier bridges, capacitors, and all other components are not included and must be sourced separately.

Ideal For

• DIY audio amplifier power supply builds
• Electronics prototyping and custom power supply projects
• Hobbyists and engineers working with AC-DC conversion circuits

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Does the 25A AC-DC rectifier filter power supply board come with capacitors or a bridge rectifier included?

A: No — this listing is for the bare PCB board only. The board supports up to a 25A bridge rectifier and two filter capacitors (30 mm or 35 mm diameter), but all components including the rectifier and capacitors must be purchased separately and soldered by the user.

Q: What size is the AC-DC filter power supply PCB board?

A: The board measures 73 × 73 mm with a thickness of 1.6 mm. It is made from FR-4 material with a double-sided solder resist finish for improved durability and ease of soldering.

Q: Can I use this bare PCB board with a single-voltage transformer?

A: Yes. When using a single-voltage transformer, connect one AC terminal and GND only, leaving the second AC terminal empty. This configuration will still produce a doubled output voltage, making it flexible for a range of amplifier power supply builds.

Q: What quantity options are available for this rectifier filter power supply PCB board?

A: This board is available in a pack of 1 or a pack of 3, allowing you to buy just what you need or stock up for multiple DIY audio amplifier power supply projects at once.
