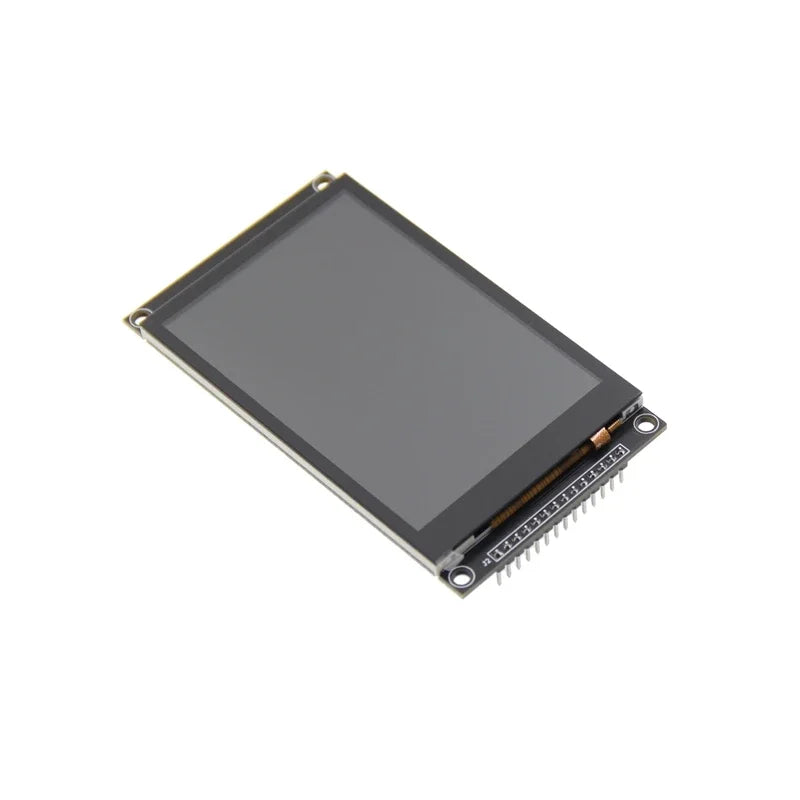

3.5-Inch IPS TFT LCD Display Module with Capacitive Touch Screen
Take your microcontroller project to the next level with this high-performance 3.5-inch IPS TFT LCD display module featuring a 320×480 pixel resolution, 16.7 million colors, and an optional capacitive touch screen. Designed for makers, hobbyists, and engineers alike, this module connects via a 4-wire SPI serial interface and is compatible with popular platforms including ESP32, STM32, Arduino UNO, Arduino Mega 2560, C51, and CH32. Made in Mainland China.
Key Features
- IPS Full-View Panel: Enjoy vivid, accurate colors from any angle with the wide-viewing-angle IPS display technology.
- High Resolution: 320×RGB×480 pixels with up to 16.7 million colors for sharp, rich visuals on a 3.5-inch screen.

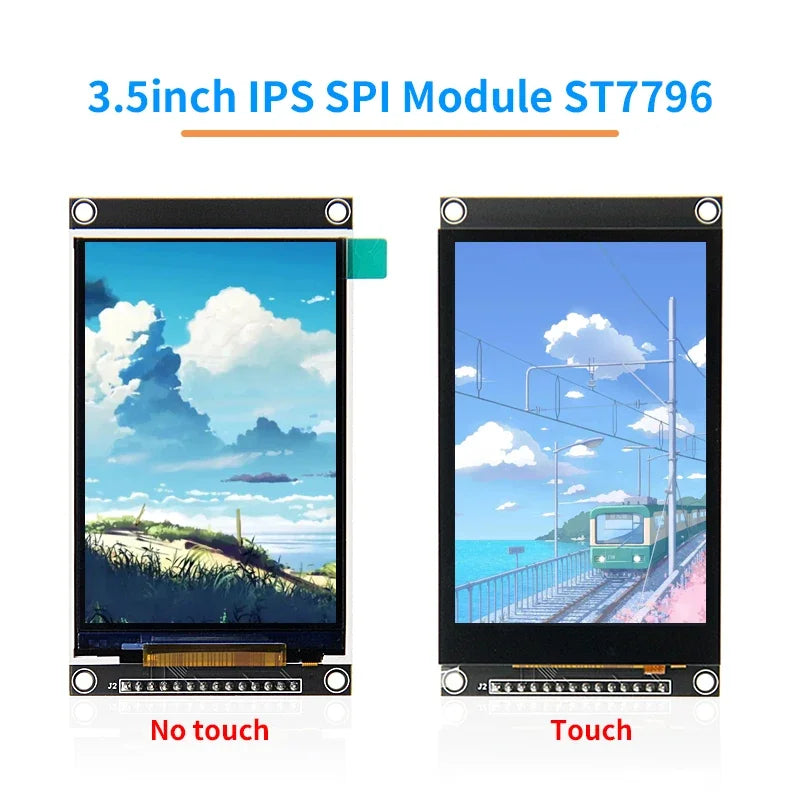

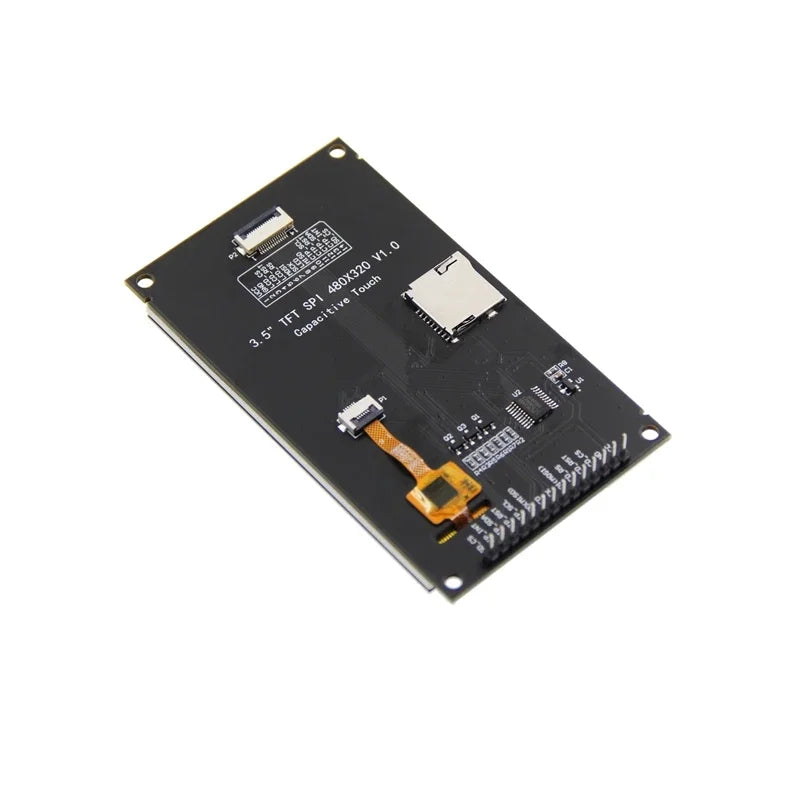

- Capacitive Touch Screen (Optional): Choose the touch-enabled variant (MSP3526) powered by the FT6336U touch driver IC via an IIC interface, or the non-touch version (MSP3525).
- 4-Wire SPI Interface: Saves valuable I/O pins on your microcontroller with an efficient 4-line SPI serial bus (ST7796U driver IC).
- 5V & 3.3V MCU Compatible: Onboard level-conversion circuit makes it plug-and-play with both 5V and 3.3V systems — no external components required.

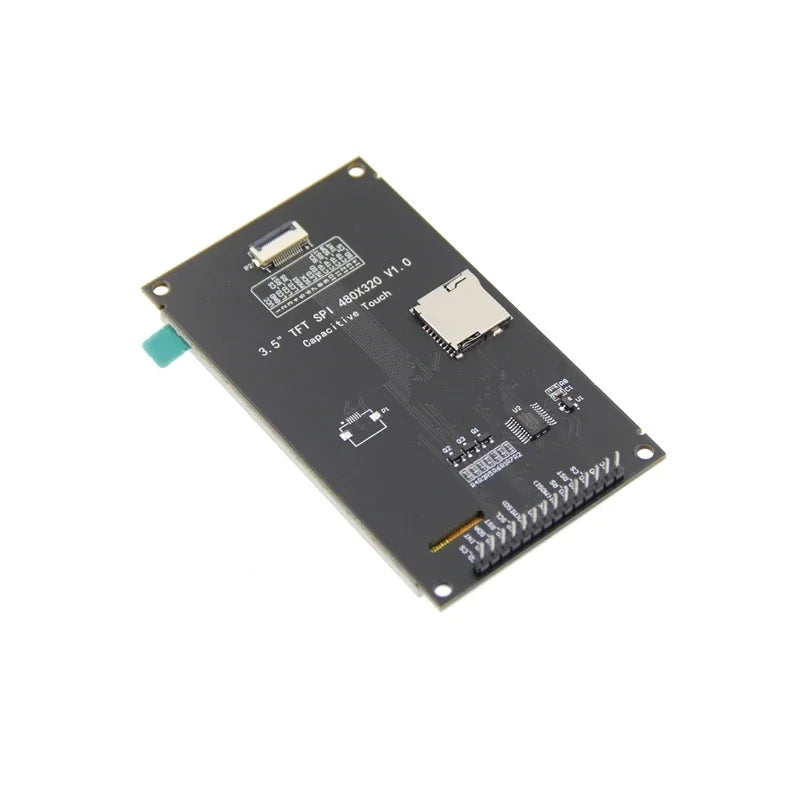

- Micro SD Card Slot: Expand storage capacity easily to load fonts, images, or large data files directly onto the module.
- Dual Interface Support: Accepts both 2.54mm pin header and 0.5mm FPC extension interface for flexible integration into your build.
- Military-Grade Durability: Multiple aging tests ensure long-term, stable operation under demanding conditions.
- Rich Example Code: Ready-to-use sample programs provided for ESP32, STM32, Arduino UNO, Mega2560, C51, and CH32 — get started quickly with full WIKI support online.
Product Specifications
| LCD Parameters | |
| Screen Size | 3.5 inch |
| Screen Type | IPS |
| Resolution | 320×RGB×480 pixels |
| Active Area | 48.96(W) × 73.44(H) mm |
| Number of Colors | 16.7 Million |
| Driver IC | ST7796U |
| Display Interface | 4-Line SPI |
| Brightness | 300 cd/m² |
| Backlight Type | White LED × 6 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Touch Screen Parameters | |
| Touch Screen Type | Capacitive |
| Touch Resolution | 320×480 pixels |
| Touch Driver IC | FT6336U |
| Communication Interface | IIC |
| Touch Operating Temperature | -20°C to 70°C |
| Electrical Parameters | |
| Working Voltage | 5.0 V |
| Backlight Current | 95 mA |
| Power Consumption | 0.5 W |
| Module Size | |
| With Touch Screen | 55.5(W) × 98.0(H) × 12.98(D) mm |
| Without Touch Screen | 55.5(W) × 98.0(H) × 14.28(D) mm |
| Interface | 14P 2.54mm Pin Header & 0.5mm FPC |
| SKU (No Touch) | MSP3525 — ~73g |
| SKU (With Touch) | MSP3526 — ~82g |

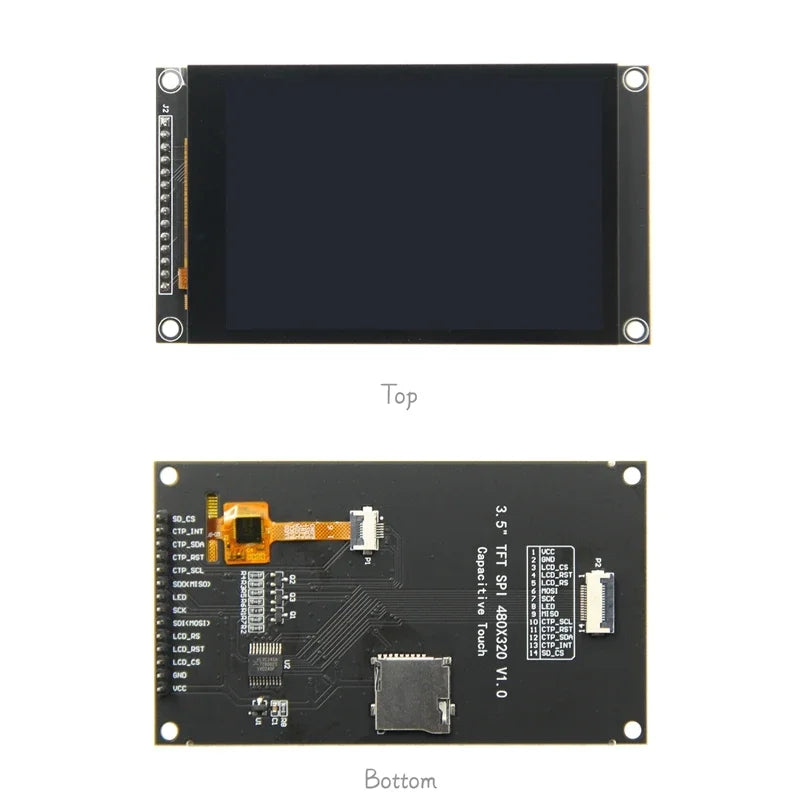

Pin Function Reference
| # | Pin | Function |
| 1 | VCC | Power positive |
| 2 | GND | Power ground |
| 3 | LCD_CS | LCD chip select (active low) |
| 4 | LCD_RST | LCD reset (active low) |
| 5 | LCD_RS | Data/command select (High=data, Low=command) |
| 6 | SDI (MOSI) | SPI data write (shared with SD) |
| 7 | SCK | SPI clock (shared with SD) |
| 8 | LED | Backlight control (optional) |
| 9 | SDO (MISO) | SPI data read (shared with SD) |
| 10 | CTP_SCL | Capacitive touch IIC clock |
| 11 | CTP_RST | Capacitive touch reset (active low) |
| 12 | CTP_SDA | Capacitive touch IIC data |
| 13 | CTP_INT | Touch interrupt signal (low on touch event) |
| 14 | SD_CS | SD card chip select (active low) |
Compatible Platforms
This display module comes with ready-to-use example code and driver support for:
- ESP32
- STM32
- Arduino UNO
- Arduino Mega 2560
- C51
- CH32
Full WIKI documentation is available online and continuously updated to help you integrate the display into your projects quickly.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What is the difference between the MSP3525 and MSP3526 versions of this TFT LCD display module?
A: The MSP3525 is the version without a touch screen and weighs approximately 73g, while the MSP3526 includes a capacitive touch screen (FT6336U driver via IIC) and weighs approximately 82g. Both versions share the same 3.5-inch IPS panel, 320×480 resolution, and 4-wire SPI interface.
Q: Is this 3.5-inch SPI TFT LCD module compatible with Arduino and ESP32?
A: Yes! This display module is compatible with a wide range of microcontroller platforms including Arduino UNO, Arduino Mega2560, ESP32, STM32, C51, and CH32. Sample code and low-level drivers are provided for all supported platforms, and WIKI documentation is updated online regularly.
Q: Does this display module work with both 5V and 3.3V microcontrollers?
A: Absolutely. The module features an onboard level-conversion circuit that makes it fully compatible with both 5V and 3.3V MCUs — no external logic-level shifter is required.
Q: Can I use a Micro SD card with this LCD module?
A: Yes. The module includes a built-in Micro SD card slot connected via the shared SPI bus. This allows you to expand storage for fonts, images, and other large data files. The SD_CS pin (Pin 14) is used to select the SD card independently from the LCD.
