3.95" TFT Color LCD Touch Display Module for Arduino Mega2560 & UNO

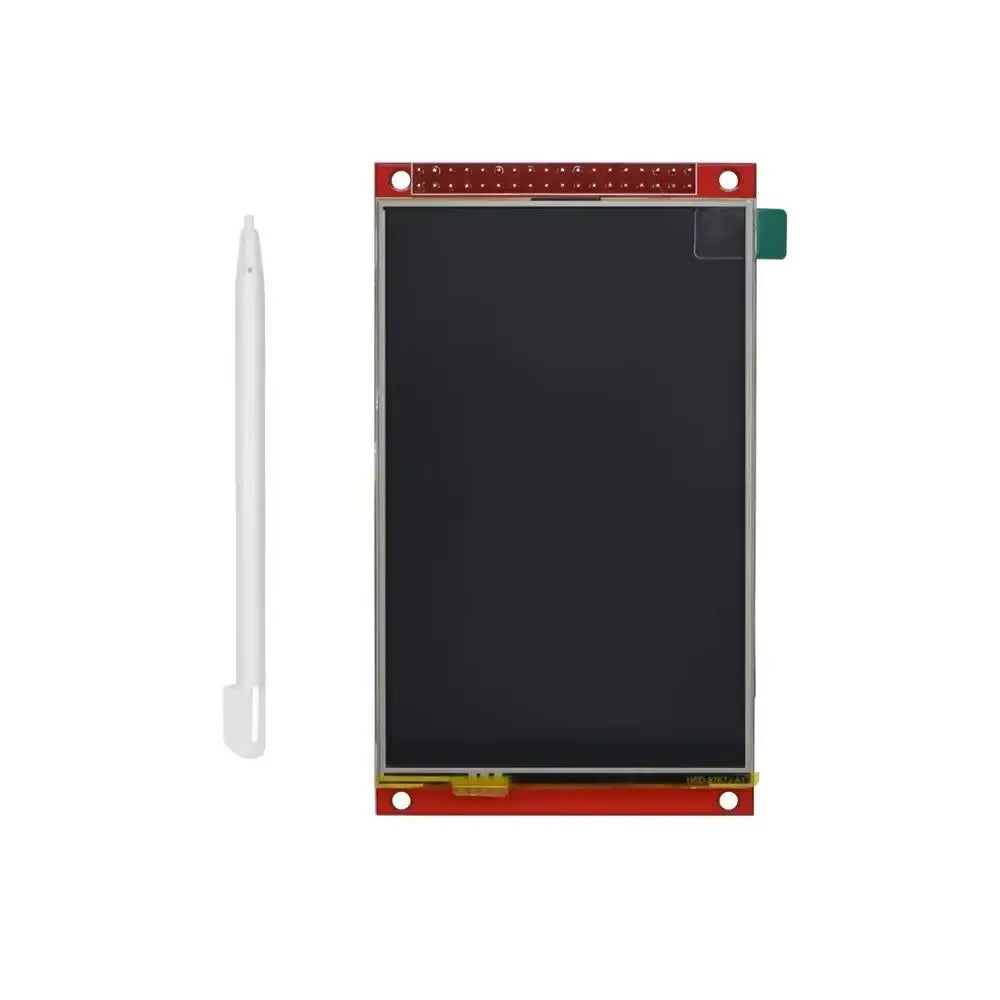

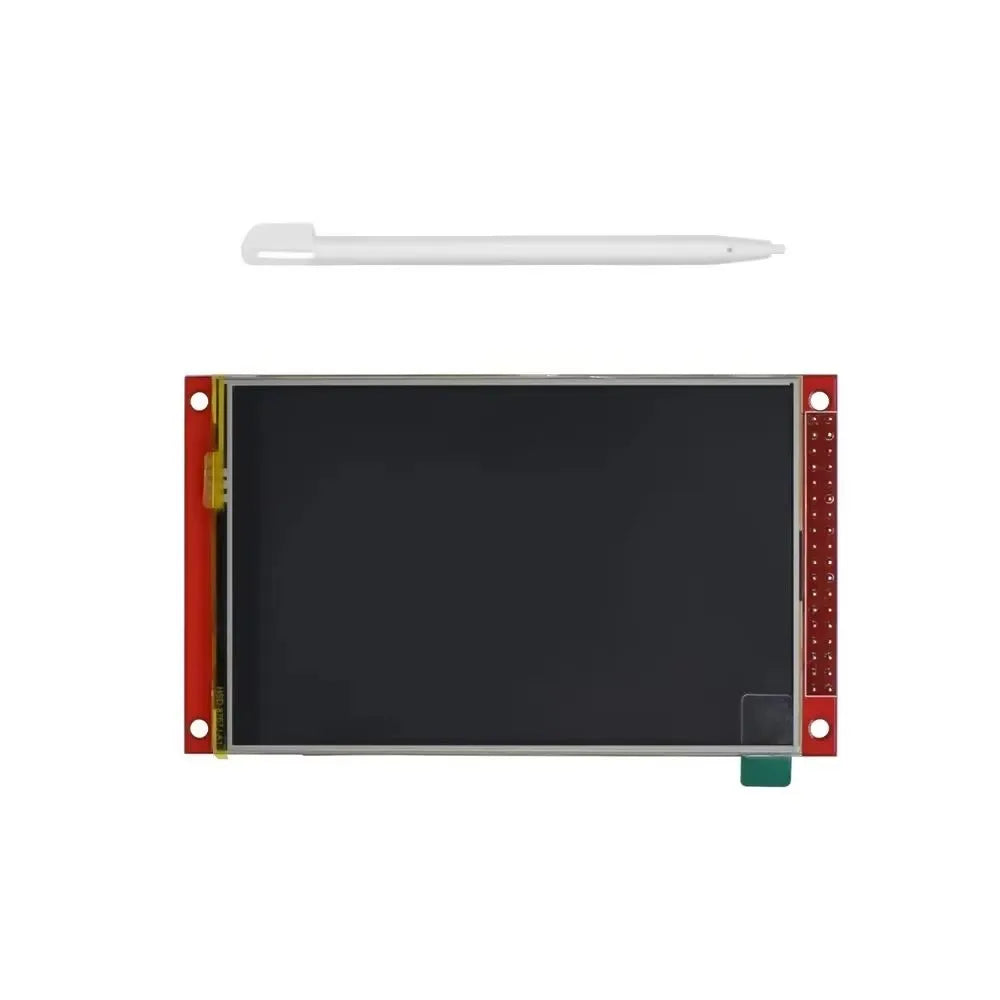

Take your Arduino projects to the next level with this vibrant 3.95-inch TFT color LCD display module. Featuring a 480×320 pixel resolution, brilliant RGB 65K color support, and an integrated touch panel, this screen is designed for direct plug-in use with the Arduino Mega2560 — no extra wiring hassle required. Whether you're building an interactive interface, a data visualizer, or a custom embedded project, this display delivers crisp, colorful visuals with fast 8-bit parallel bus data transfer.
Key Features
- Direct Plug-In Compatibility: Designed for seamless, plug-in use with Arduino Mega2560; also compatible with C51 and STM32 platforms.
- Vivid 3.95" Color Display: 480×320 pixel resolution with RGB 65K color support for rich, detailed visuals on a 83.52×55.68 mm active area.
- Driver ICs: Powered by ILI9488 / ST7796S driver IC for reliable, high-performance display output.
- 8-Bit Parallel Interface: Fast 8-bit parallel bus data transmission for smooth, responsive screen updates.
- Dual Voltage Compatible: On-board 5V/3.3V level-shifting IC ensures compatibility with both 5V and 3.3V operating environments.
- Touch Panel Included: Integrated resistive touch screen with interrupt signal (TP_IRQ) for intuitive user interaction.
- SD Card Slot: Built-in SD card interface for easy data logging, image storage, and experiment expansion.
- High-Brightness Backlight: 6-chip high-brightness white LEDs for a clear, well-lit display in various environments.
- Arduino Library Included: Comes with a comprehensive Arduino library and rich sample programs to get you started quickly.
- Wide Operating Temperature Range: Operates reliably from -20°C to 60°C; stores from -30°C to 70°C.
- Robust Build Quality: Built to military-grade process standards for long-term stable operation.
Technical Specifications
| Screen Size | 3.95 inches |
| Display Type | TFT |
| Driver IC | ILI9488 / ST7796S |
| Resolution | 480×320 pixels |
| Display Colors | RGB 65K |
| Module Interface | 8-bit Parallel Interface |
| Active Area | 83.52 × 55.68 mm |
| PCB Size | 61.54 × 105.69 mm |
| Backlight | 6-chip High-Brightness White LEDs |
| Operating Voltage | 5V / 3.3V |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Weight (with packaging) | 68 g |
| SKU | MAR3953 |
| Country of Origin | Made in China |
Pin Interface Overview
This module uses a 36-pin interface supporting 8-bit parallel data bus mode. Key pins include:
- DB0–DB7: 8-bit data bus lines
- LCD_RS / LCD_WR / LCD_CS / LCD_RST / LCD_RD: LCD control signals
- TP_IRQ / TP_CS: Touch screen interrupt and chip select
- SD_CS / MISO / MOSI / EX_CLK: SD card and SPI bus signals
- 5V (×2) / GND (×2): Power supply and ground

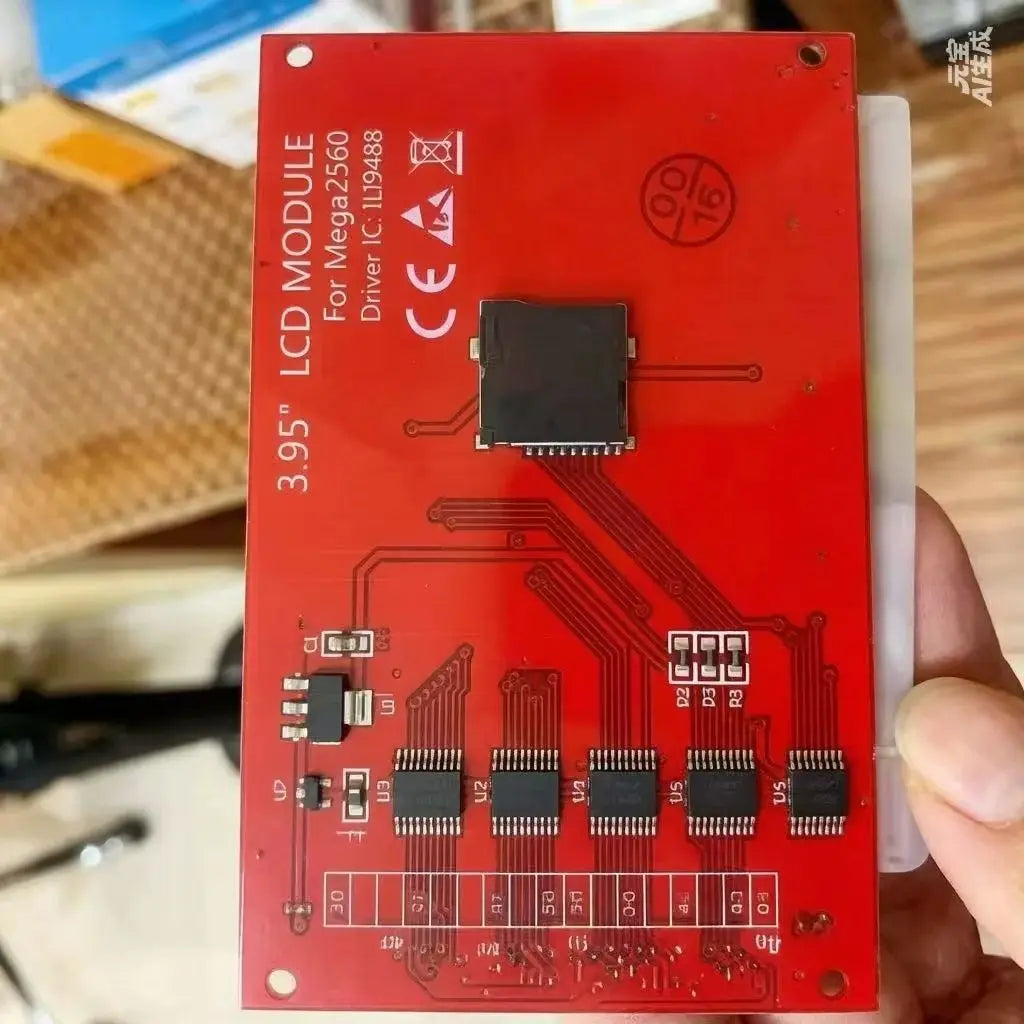

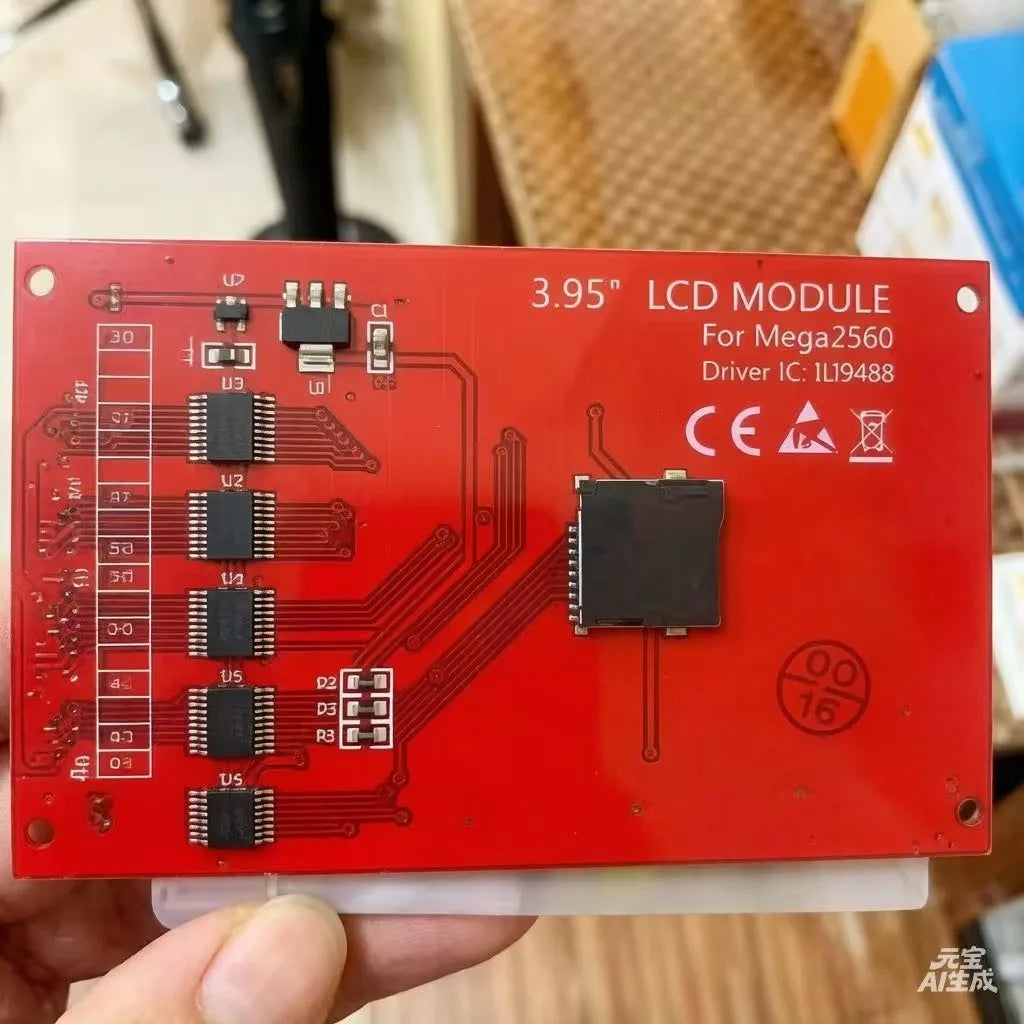

The blue box on the PCB houses the 8-bit/16-bit data bus mode switching circuit. This module is configured for 8-bit mode by default.
What's in the Box
- 1× 3.95" TFT LCD Touch Display Module (ILI9488 / ST7796S)
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this TFT LCD display module compatible with Arduino UNO as well as Mega2560?
A: This 3.95" TFT LCD display module is primarily designed for direct plug-in use with the Arduino Mega2560. While it can be interfaced with an Arduino UNO, the UNO has fewer I/O pins, so some creative wiring may be required. The included Arduino library and sample programs are optimized for the Mega2560 platform.
Q: What driver IC does this TFT LCD display module use?
A: This module supports both the ILI9488 and ST7796S driver ICs. The default driver IC shipped is the ST7796S, which provides reliable 480×320 pixel TFT color display output via an 8-bit parallel interface.
Q: Does this display support both 5V and 3.3V microcontrollers?
A: Yes! The module features an on-board 5V/3.3V level-shifting IC, making it fully compatible with both 5V microcontrollers (like Arduino Mega2560/UNO) and 3.3V platforms (like STM32). No additional logic level converter is needed.
Q: Can I use the SD card slot on this display module with Arduino?
A: Absolutely. The built-in SD card slot communicates via the SPI bus (MISO, MOSI, EX_CLK, SD_CS pins) and is easily accessible from Arduino. It's great for storing images, logs, or configuration data in your projects.
