360° Trackball Hall Effect Sensor Module – 11PIN DIY

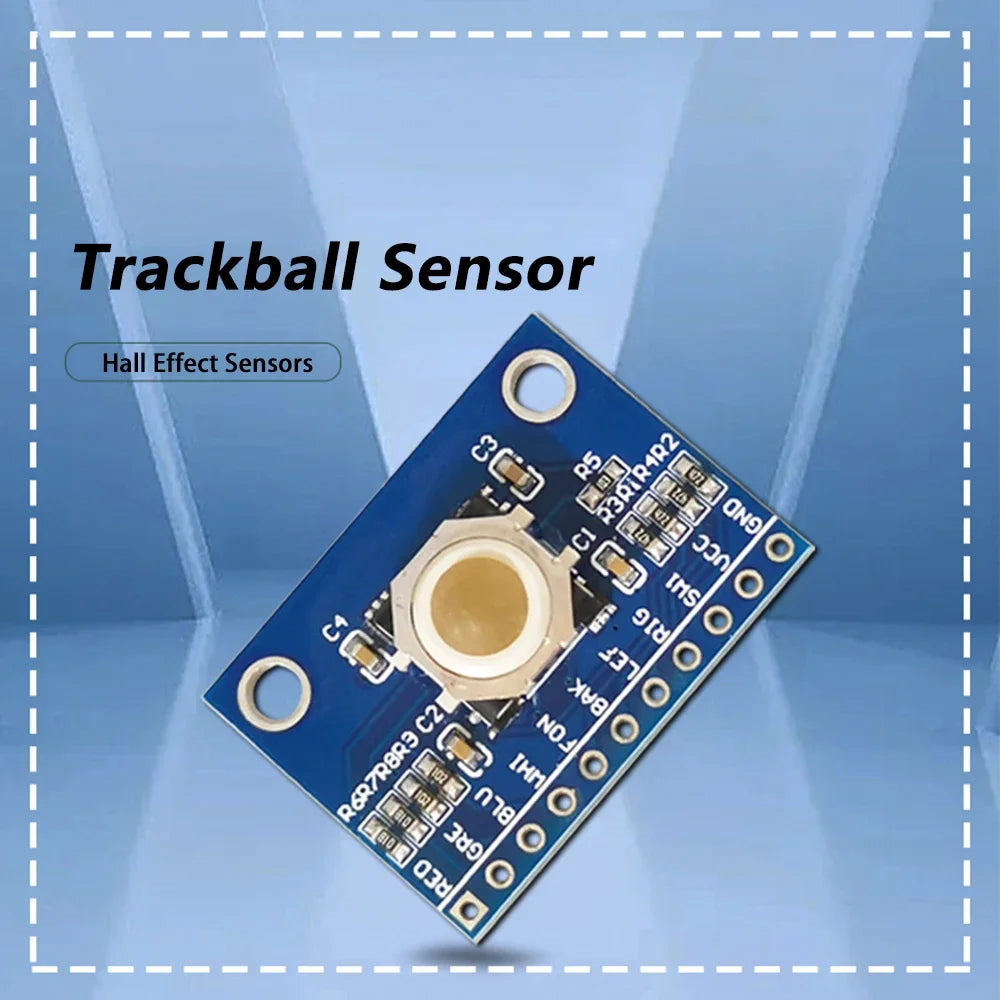

360° Trackball Hall Effect Sensor Module

Take your DIY electronics projects to the next level with this precision 360° Trackball Hall Effect Sensor Module. Designed for makers, hobbyists, and developers, this compact module delivers smooth omnidirectional navigation input using Hall effect technology — no mechanical encoder wear, just reliable, responsive signal output. Compatible with most development boards and microcontrollers, it's an ideal component for custom interfaces, robotics, gaming controllers, and embedded systems.

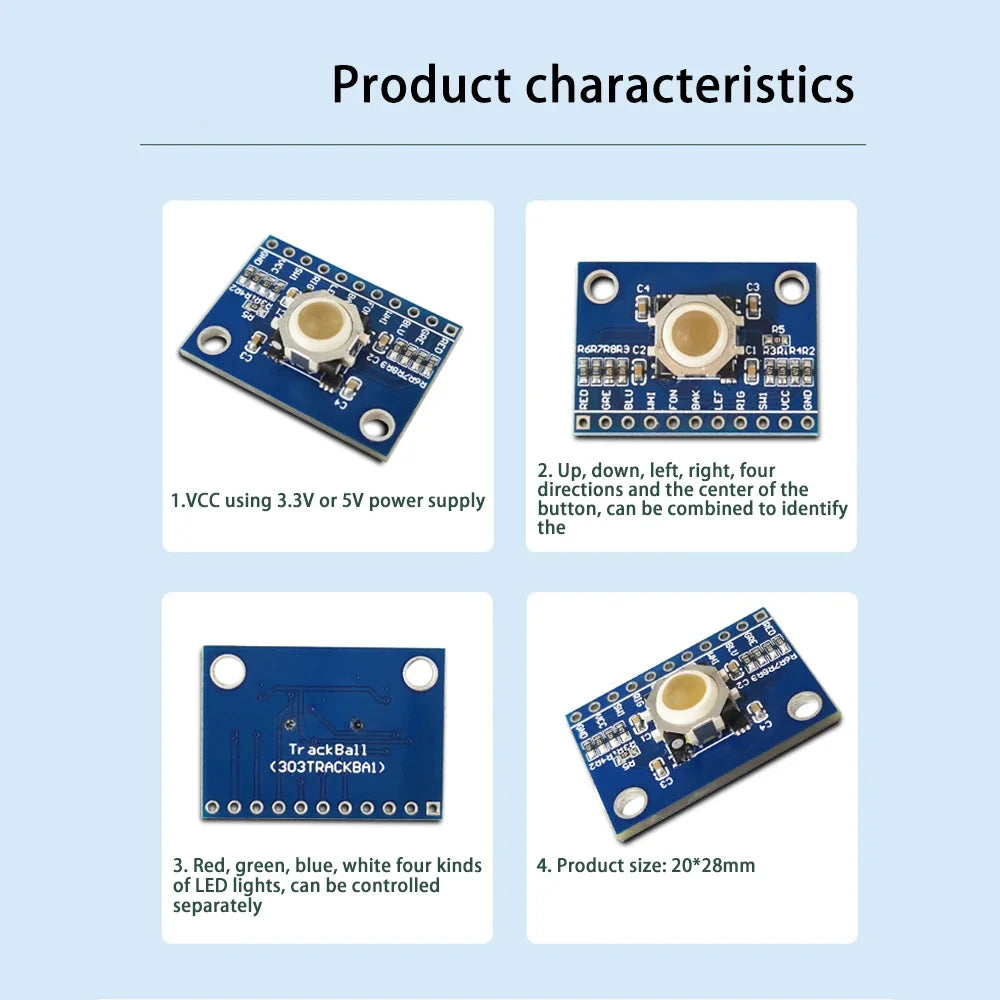

Key Features

• 360° Trackball Navigation: Detects movement in all four directions (up, down, left, right) plus a center click button for versatile input control.
• Hall Effect Technology: Multi-pole magnetized magnets on the X and Y rotating shafts send signals to SMD Hall elements, accurately determining movement trajectory without physical contact wear.
• Dual Voltage Support: Compatible with both 3.3V and 5V power supplies (VCC), making it flexible for a wide range of development boards.
• RGB + White LED Indicators: Four individually controllable LEDs (Red, Green, Blue, White) for visual feedback — high level = off, low level = on.
• 11-PIN Header Interface: Connects easily to your development board via the included 11-pin header (unsoldered, giving you full flexibility).
• Anti-Static Packaging: Shipped in a protective static bag to safeguard sensitive electronic components.
• DIY-Friendly Design: Write your own programs on your development board — perfect for electronics enthusiasts and prototypers.

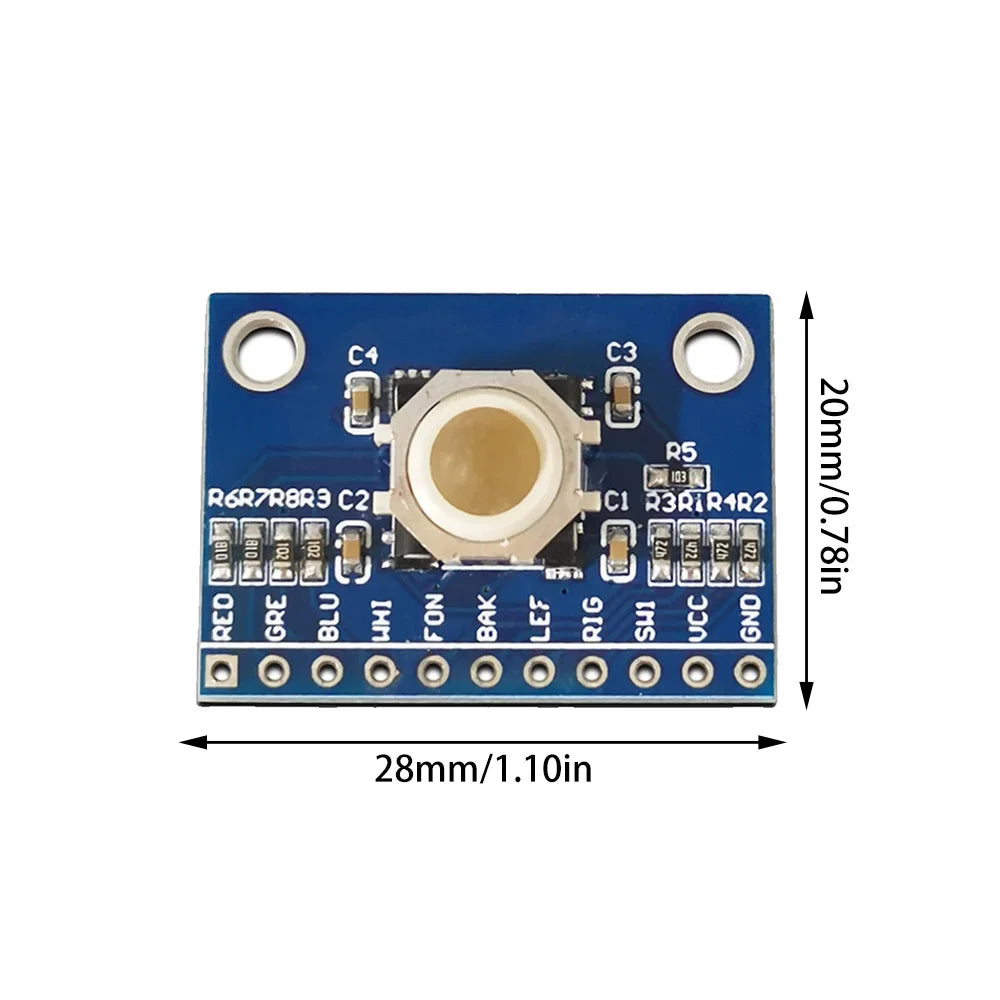

Specifications

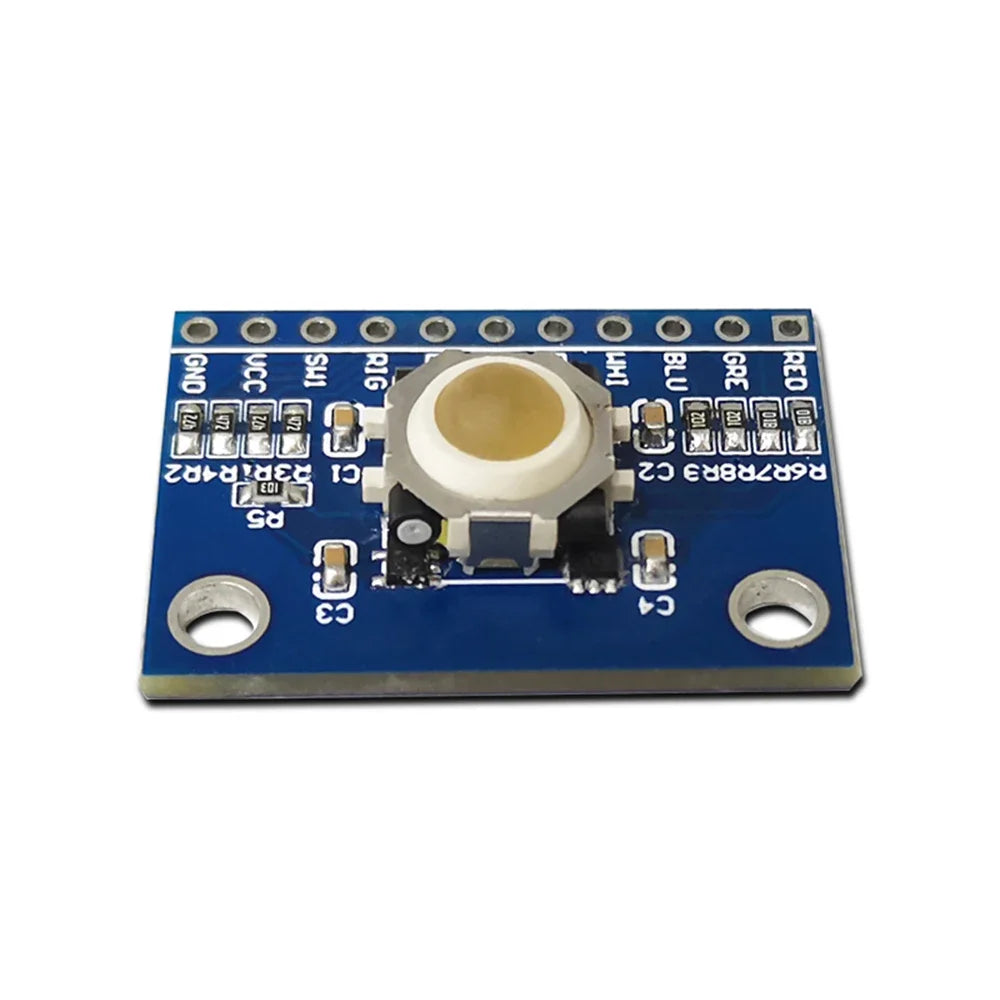

Pin Reference

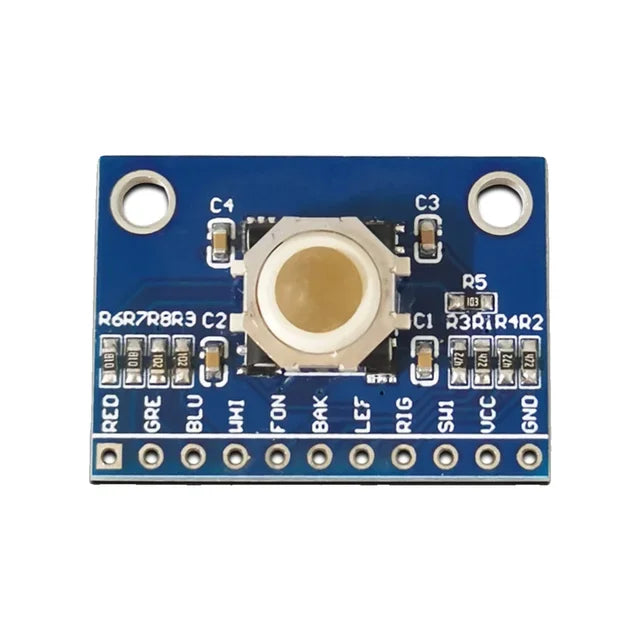

• FON – Up direction input
• BAK – Down direction input
• LEF – Left direction input
• RIG – Right direction input
• SW1 – Center button input
• RED / GRE / BLU / WHI – LED outputs (microcontroller controlled)

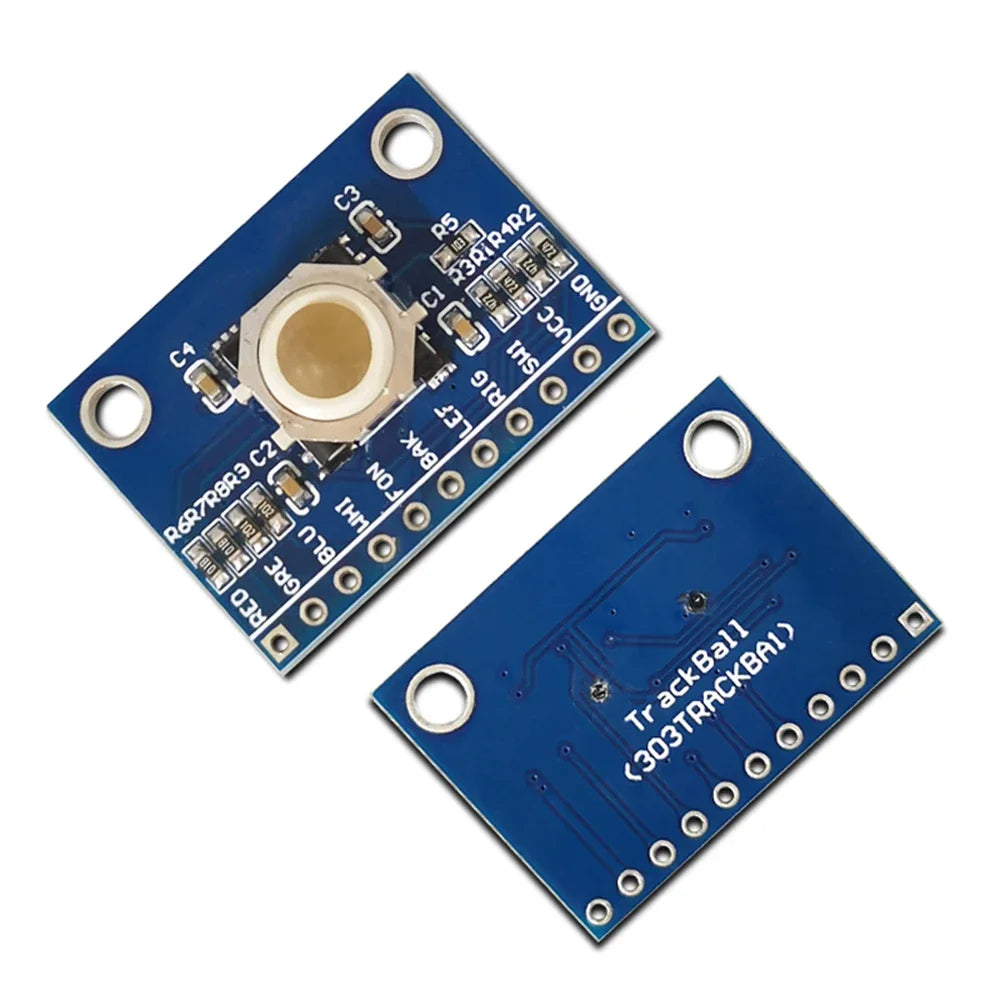

How to Use

1. Connect the module to your development board using the included 11-PIN header.
2. Set VCC to 3.3V or 5V depending on your board's requirements.
3. Configure FON, BAK, LEF, RIG, and SW1 as button inputs to your microcontroller.
4. Use RED, GRE, BLU, and WHI pins as microcontroller outputs to control the LEDs.
5. Write your custom program and start building!

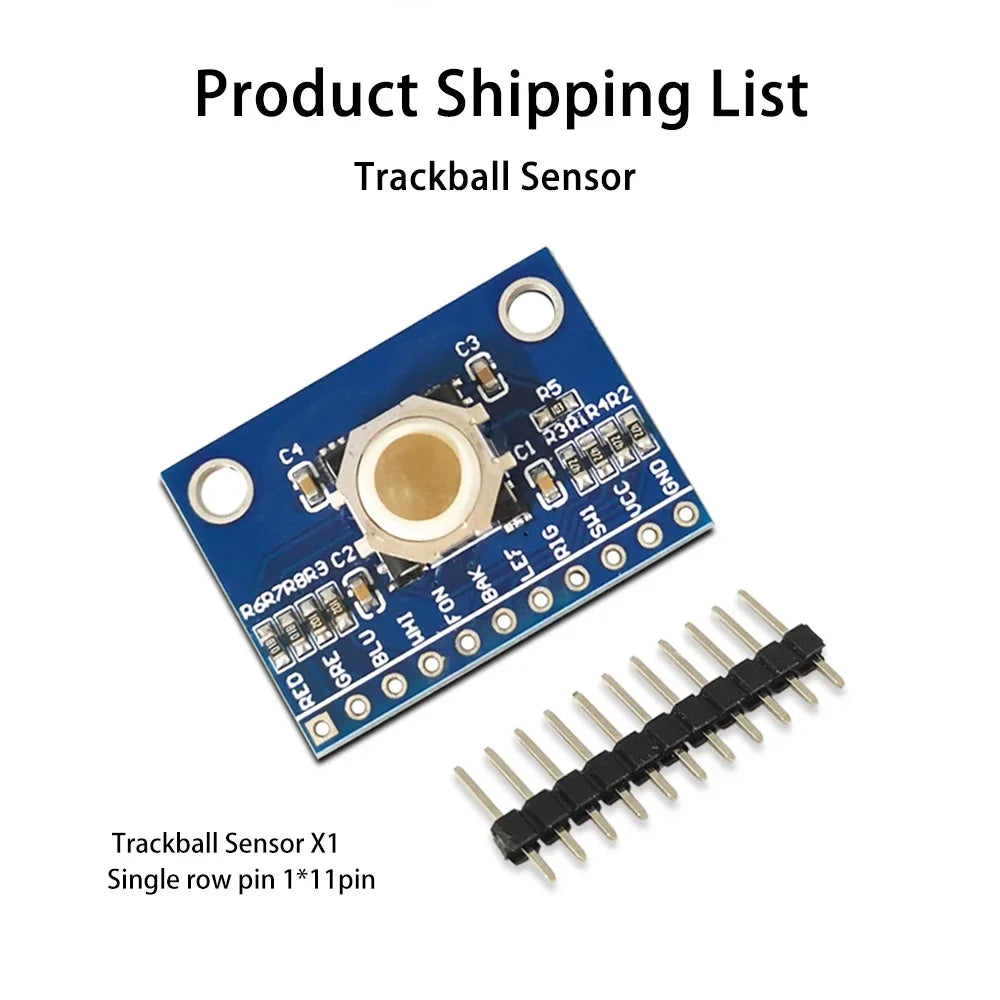

What's in the Box

• 1× Trackball Hall Effect Sensor Module
• 1× 11-PIN Pin Header

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What voltage does the 360° trackball sensor module support?

A: The 360° trackball Hall effect sensor module supports both 3.3V and 5V power supplies via the VCC pin, making it compatible with a wide variety of microcontrollers and development boards such as Arduino, Raspberry Pi, and ESP32.

Q: Is the 11-PIN header pre-soldered on the trackball module?

A: No, the 11-PIN pin header is included but not pre-soldered. This gives you full flexibility to solder it in the orientation that best suits your PCB layout or project design.

Q: Can I control the LED colors on this trackball sensor module independently?

A: Yes! The module features four separate LED outputs — Red (RED), Green (GRE), Blue (BLU), and White (WHI) — each independently controlled via your microcontroller. A low-level signal turns a specific LED on, while a high-level signal turns it off.

Q: Is this trackball module suitable for DIY and hobbyist electronics projects?

A: Absolutely. The trackball Hall effect sensor module is designed with DIY enthusiasts in mind. Once connected to your development board, you can write custom programs to use the 360° navigation, click button, and LED indicators in virtually any project — from custom HID controllers to robotics interfaces.
