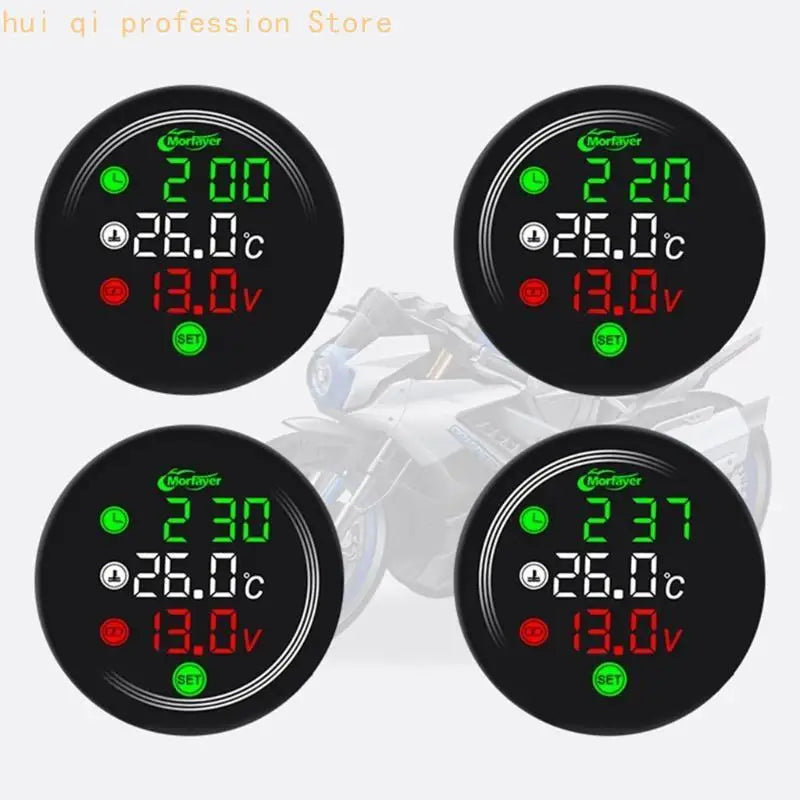

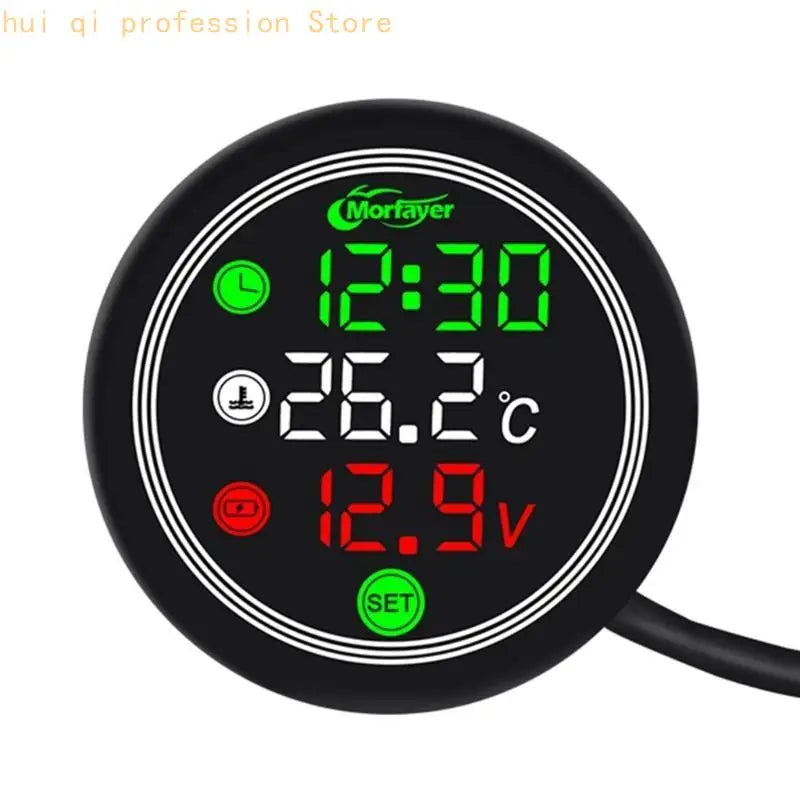

4-in-1 Digital Thermometer, Voltmeter, Timer & Temperature Meter
Meet your all-in-one monitoring solution — the 4-in-1 Digital Thermometer Voltmeter Timer & Temp Meter. Designed for both air and water temperature readings, this compact and waterproof multifunctional meter is built for vehicles, motorbikes, boats, and any 9–24V electrical system. Its sleek touch-screen interface and sturdy PC housing make it as easy to use as it is durable.
Key Features

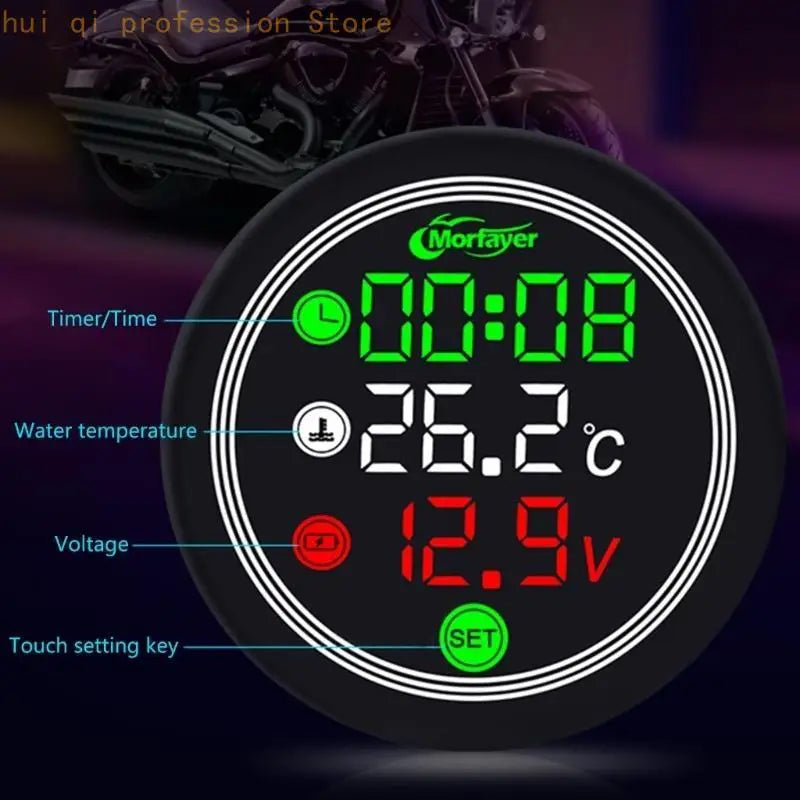

- 4-in-1 Multifunctional Design: Combines a timer, real-time clock, air/water temperature meter, and voltmeter in one compact unit.
- Touch-Screen Operation: Intuitive long-press to power on/off for a smooth, user-friendly experience.

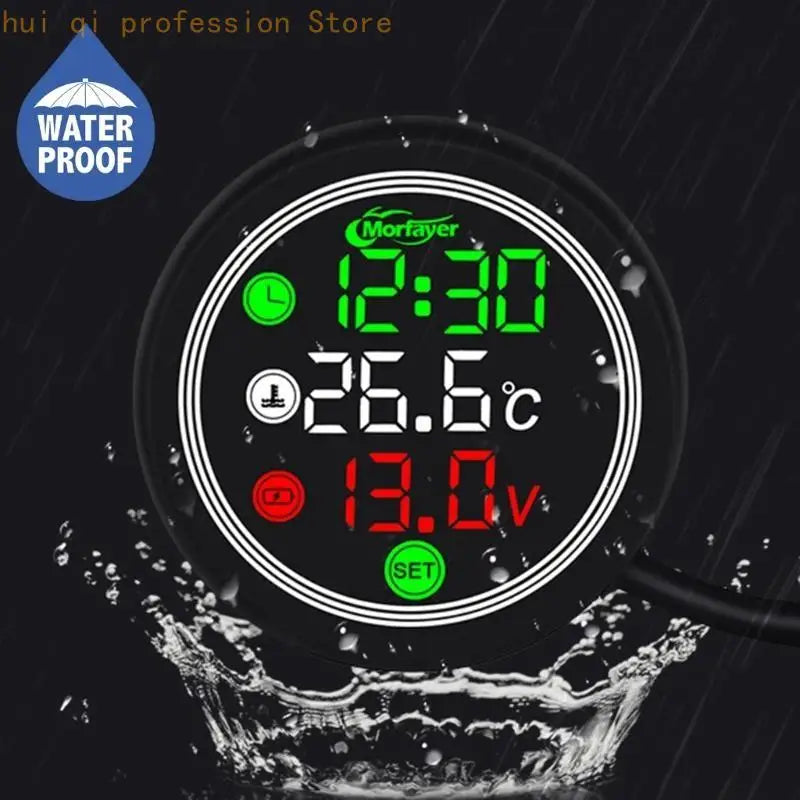

- Waterproof Construction: High-quality PC material ensures durability and protection against moisture — no flickering, no fading.
- 12/24-Hour Switching: Easily toggle between 12-hour and 24-hour display modes to suit your preference.
- Configurable Alarms: Built-in high water temperature and low voltage alerts. Default low alarm: 11.5V; default high temperature alarm: 75°C — both adjustable to your needs.

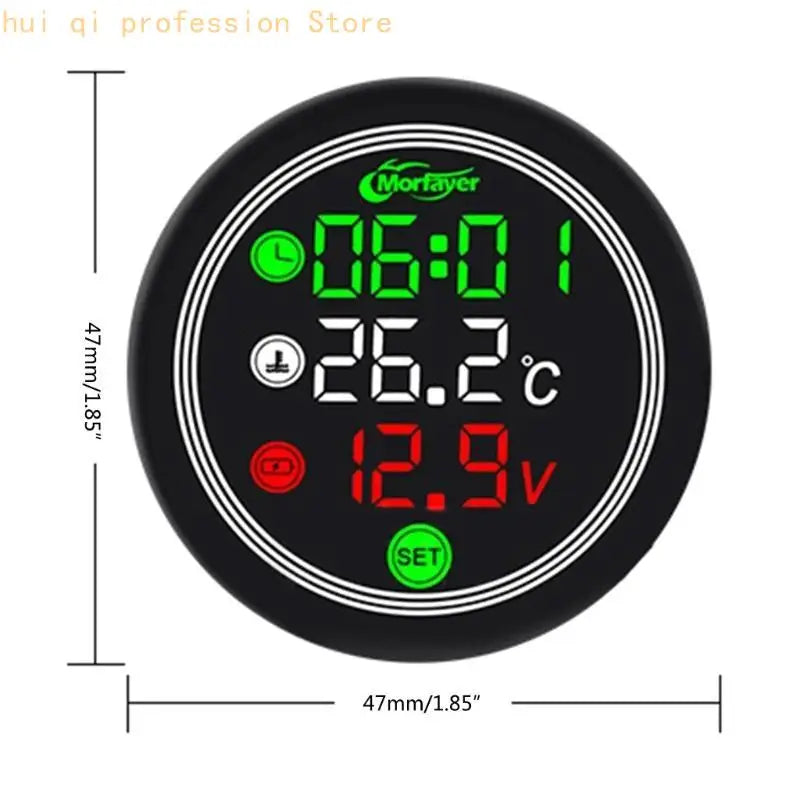

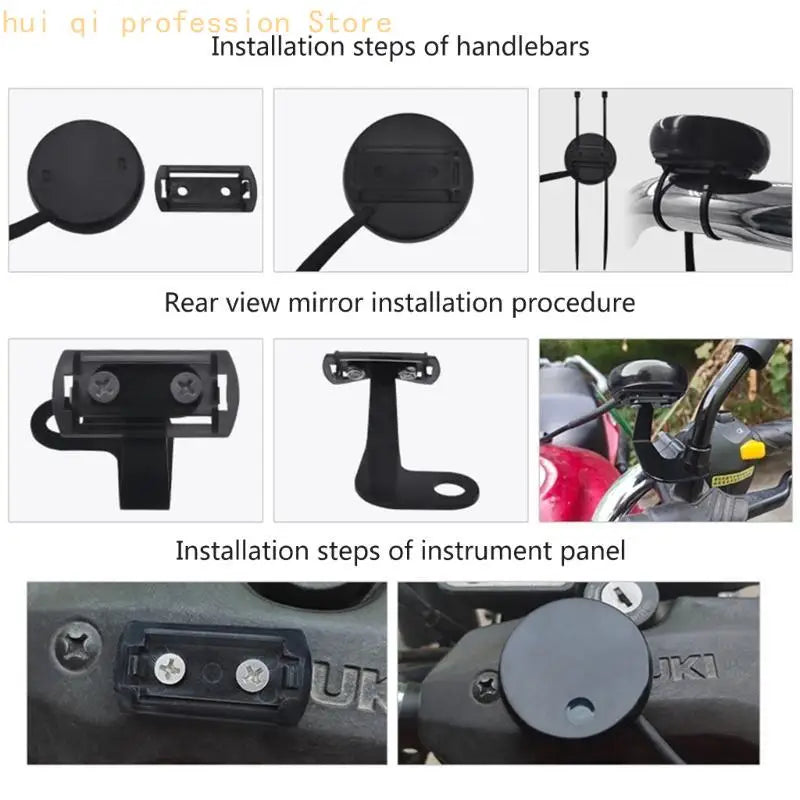

- Compact & Mountable: M10x1 thread mount, approximately 4.7 cm / 1.85 in diameter — fits neatly into dashboards and panels.
- Flexible Temperature Sensing: Choose between Air Temperature or Water Temperature probe type at the time of ordering.
- Wide Voltage Compatibility: Works with 9–24V systems, ideal for cars, trucks, ATVs, and marine applications.
Specifications
| Material | PC (Polycarbonate) |
| Input Voltage | 9–24V |
| Thread Size | M10x1 |
| Diameter | Approx. 4.7 cm / 1.85 in |
| Temperature Type | Air Temperature / Water Temperature (Optional) |
| Default Low Voltage Alarm | 11.5V |
| Default High Temp Alarm | 75°C |
| Certification | CCC |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × 4-in-1 Thermometer Voltmeter Timer Set

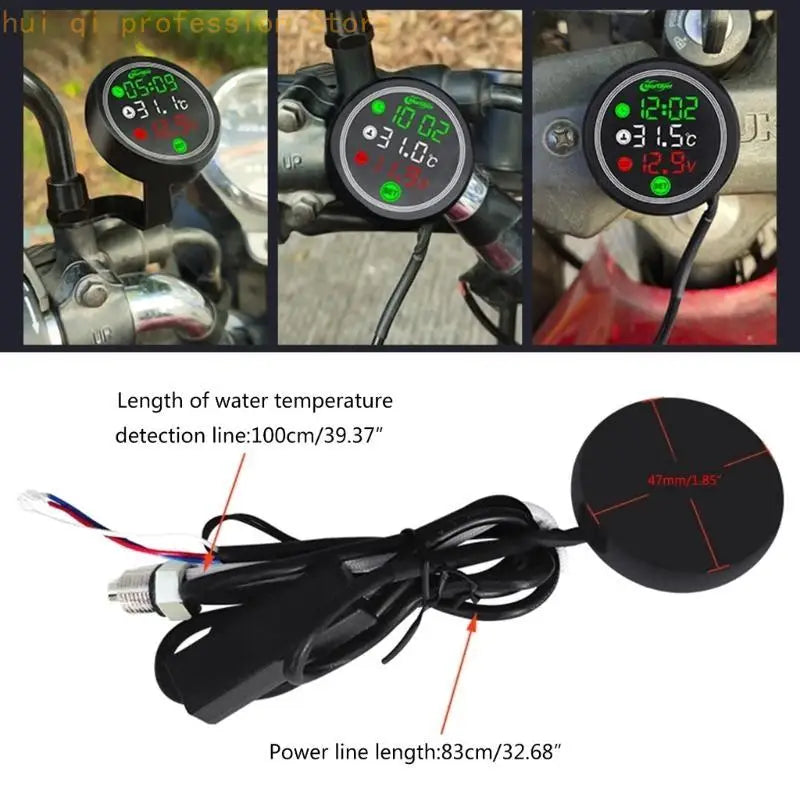

Wiring Guide
- Red Wire: Connect to the positive pole (+)
- White Wire: Connect to the negative pole (−)
- Blue Wire: Connect to the electric door/ignition lock
Note: The water temperature version requires connection to a dedicated water temperature probe/sensor (not included). Please select the correct type — Air or Water — before purchasing.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the voltage range supported by this 4-in-1 voltmeter thermometer timer?
A: This multifunctional meter supports input voltages from 9V to 24V, making it compatible with a wide range of vehicles including cars, motorcycles, trucks, ATVs, and marine vessels.
Q: Can I use this meter for both air and water temperature monitoring?
A: Yes! This meter is available in two variants — Air Temperature and Water Temperature. Please select the appropriate type when ordering. Note that the water temperature version requires connection to a compatible water temperature sensor.
Q: How do I set or adjust the voltage and temperature alarm thresholds?
A: The meter comes with a default low voltage alarm set to 11.5V and a default high temperature alarm at 75°C. Both values are user-adjustable through the touch-screen interface, allowing you to customize the alerts to match your specific system requirements.
Q: Is this thermometer voltmeter waterproof?
A: Yes, the unit is constructed from high-quality polycarbonate (PC) material and features waterproof design, making it suitable for use in environments exposed to moisture, such as marine or outdoor automotive applications.
