433MHz Universal 4-Channel Garage Door Remote Control Duplicator
Tired of juggling multiple remotes or waiting for a replacement key fob? This 433MHz Universal Remote Control Duplicator (Model HFY408G) lets you clone your existing garage door, gate, barrier, or alarm remote in seconds — no tools, no technician needed. With a 150-meter wireless range and broad chip compatibility, it's the go-to backup or replacement remote for homes and businesses alike.
Key Features

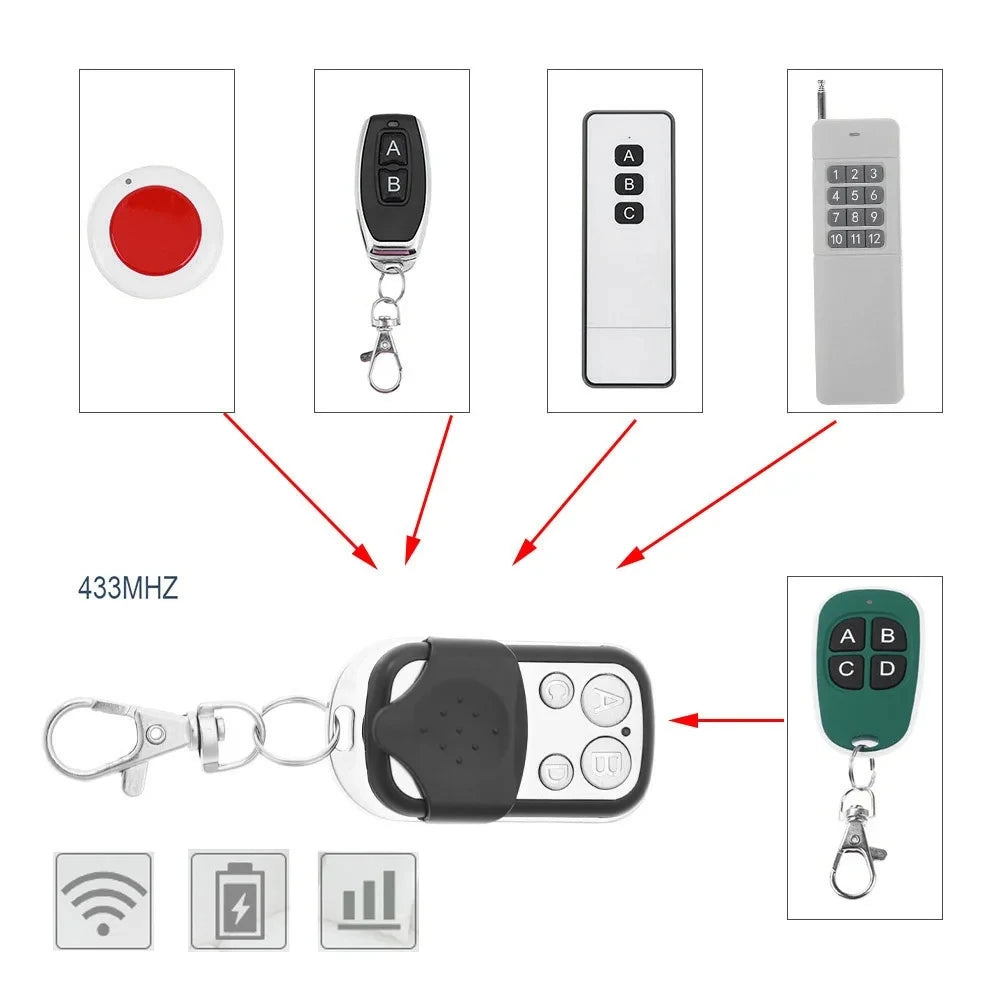

- Wide Compatibility: Works with virtually all 433MHz fixed-code and learning-code remotes including chips: 2260, 2262, PT2264, 5326, SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527, 1527, 2240, HCS101, HCS200/HCS201, HCS300/HCS301, and many more.
- 4-Channel RF Wireless: Control up to 4 separate devices — garage doors, electric gates, barriers, alarm systems, and more — all from one compact remote.
- Long Wireless Range: Up to 150 meters (approx. 500 ft) of reliable RF signal transmission.
- Easy One-Step Cloning: Hold the original and copy remotes together, press the target button three times, and the LED flashes to confirm a successful copy — no programming expertise required.
- Simple Code-Clear Function: Press and hold the two top buttons simultaneously; the LED flashes 3 times to confirm a successful code wipe, ready for fresh pairing.
- Compact & Durable Design: Sleek black and silver finish fits comfortably in your hand or on a keychain.
- RF Wireless Communication: Operates at 433MHz on the standard RF band for reliable, interference-resistant performance.
Specifications
| Model | HFY408G |
| Frequency | 433 MHz |
| Channels | 4 |
| Rated Voltage | 12V |
| Rated Current | 10 mA |
| Wireless Range | Up to 150 m |
| Communication | RF Wireless |
| Color | Black / Silver |
| Country of Origin | Made in China |
Compatible Applications
This duplicator is ideal for use with:
- Electric garage doors
- Sliding or swing gate openers
- Barrier arm systems (parking lots, driveways)
- Home and business alarm systems
- Tubular motor controllers (e.g., Duya brand)
- Car central locking remotes (433MHz fixed-code)
Important Notes
- Encrypted HCS200 or HCS300 remotes cannot be copied with this device.
- Only compatible with 433MHz fixed-code and compatible learning-code remotes. Not suitable for rolling-code or encrypted signals beyond the supported chip list.
- Color may vary slightly from images due to monitor calibration differences.
- Please allow minor dimension tolerances due to manual measurement.
How to Copy a Remote
- Hold your original remote and this duplicator close together.
- Press and hold the button on the duplicator you want to program.
- Simultaneously press the corresponding button on your original remote.
- Repeat three times — the LED will flash rapidly to confirm the copy was successful.
- Test the duplicated button to confirm operation.
What's in the Box
- 1 × 433MHz Universal Remote Control Duplicator (HFY408G)
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Will this 433MHz remote duplicator work with my garage door opener?
A: This universal 433MHz remote duplicator is compatible with most garage door openers, electric gates, and barrier systems that use 433MHz fixed-code or supported learning-code chips (e.g., 2262, 1527, HCS101, HCS300, and many more). It will not work with encrypted rolling-code systems like encrypted HCS200/HCS300 remotes. Check your existing remote's chip type or frequency label before purchasing.
Q: How many remotes can I copy onto this duplicator?
A: This 4-channel RF remote duplicator allows you to store up to 4 separate remote codes — one per button. This means you can control four different devices (e.g., a garage door, a gate, a barrier, and an alarm) all from a single remote.
Q: How do I reset or clear the stored codes on this remote duplicator?
A: To clear all stored codes, simply press and hold the two top buttons simultaneously until the LED indicator flashes 3 times. This confirms the memory has been wiped and the remote is ready to be programmed with new codes.
Q: What is the wireless range of this universal gate remote duplicator?
A: This remote control duplicator has a wireless RF transmission range of up to 150 meters (approximately 500 feet) under open, unobstructed conditions. Range may vary slightly depending on local interference or building materials.
