4S LiFePO4 BMS Protection Module — Up to 24S Series | 40A to 200A
Keep your battery packs running safely and efficiently with this 4S LiFePO4 Battery Management System (BMS) Protection Module. Designed for energy storage systems, solar setups, electric vehicles, and custom battery configurations, this board supports up to 24S series connection with a 110V capacity rating. Whether you're building a DIY power wall or managing a high-current battery bank, this BMS delivers the protection and reliability your system demands.
Made in Mainland China.
Key Features
- Multi-Level Safety Protection: Built-in safeguards actively prevent overcharging, over-discharging, overcurrent, and short circuits — keeping your battery system and connected devices secure under demanding conditions.
- Temperature Monitoring: Integrated thermal oversight and wiring control help prevent overheating, maintaining safe operating temperatures throughout your battery system.

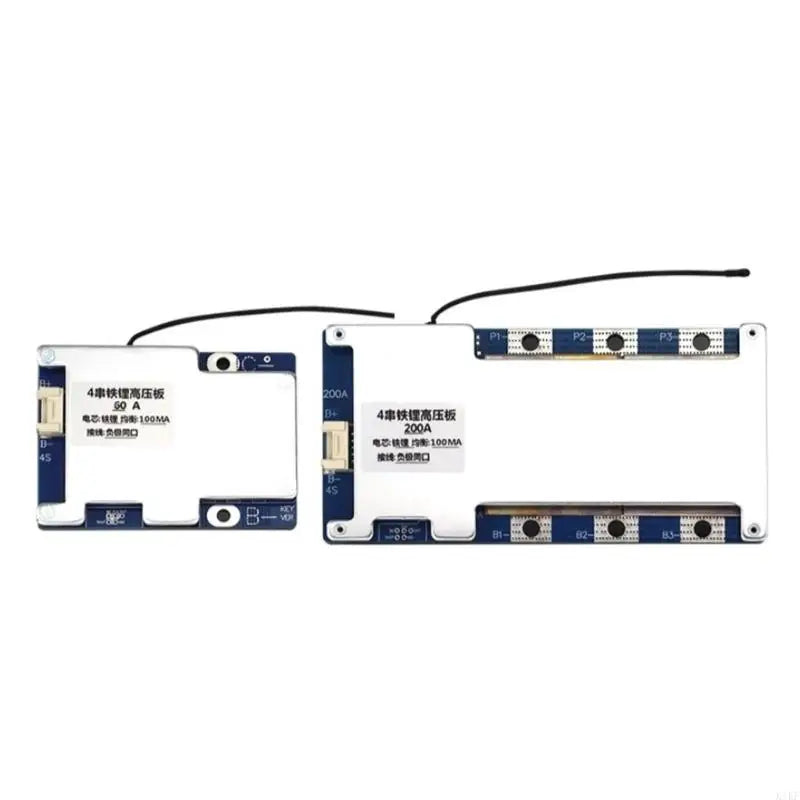

- Wide Current Range: Available in 40A, 50A, 60A, 100A, 150A, and 200A variants to match your exact power requirements.
- Integrated IC Design: Single-chip integrated circuit ensures consistent, reliable performance across a wide variety of battery configurations with minimal variance.
- Scalable Series Support: Handles up to 24S series connections, making it ideal for high-voltage energy storage and multi-cell battery builds.
- Durable Construction: Plastic and metal composite build ensures effective thermal management and long-lasting structural integrity.
- Reusable & Versatile: Engineered for repeated use across multiple projects and battery setups.

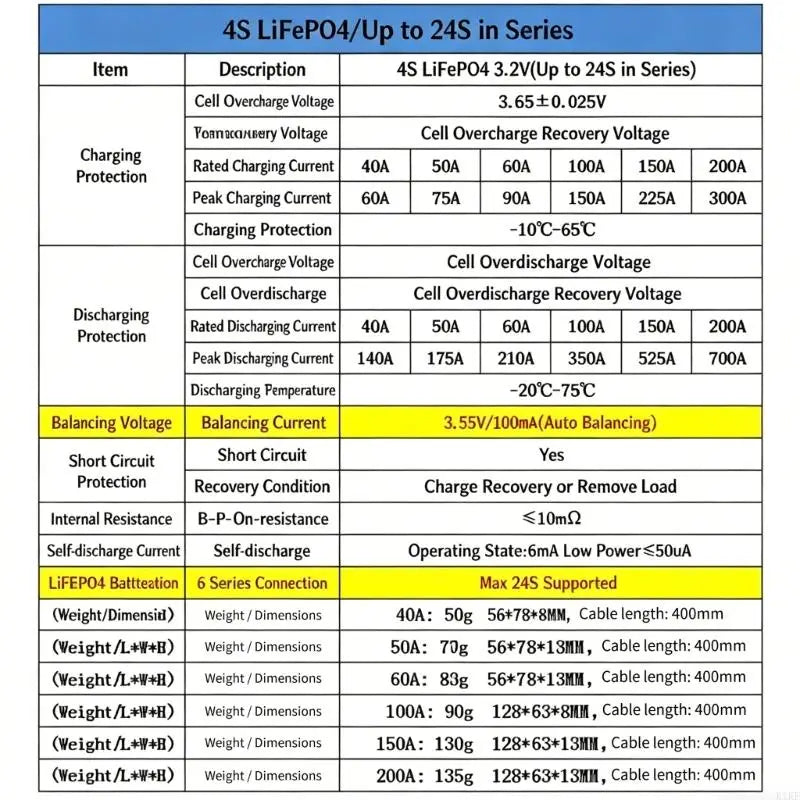

Specifications
| Battery Type | LiFePO4 (4S configuration) |
| Max Series Connection | Up to 24S |
| Voltage Range | USB (5–20V DC) / up to 110V capacity |
| Current Options | 40A / 50A / 60A / 100A / 150A / 200A (optional) |
| Materials | Plastic + Metal |

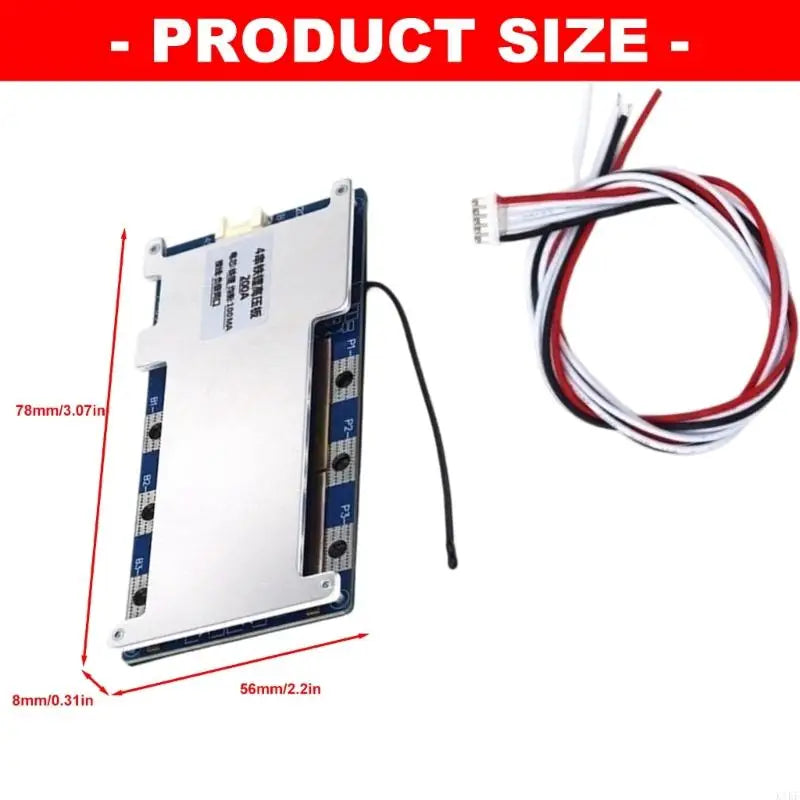

| Dimensions | 56×78×8 mm / 128×63×8 mm |
| PCB Included | Yes |
| Battery Included | No |
| Charger Included | No |
| Reusability | Reusable |
| Country of Origin | Mainland China |
Package Includes

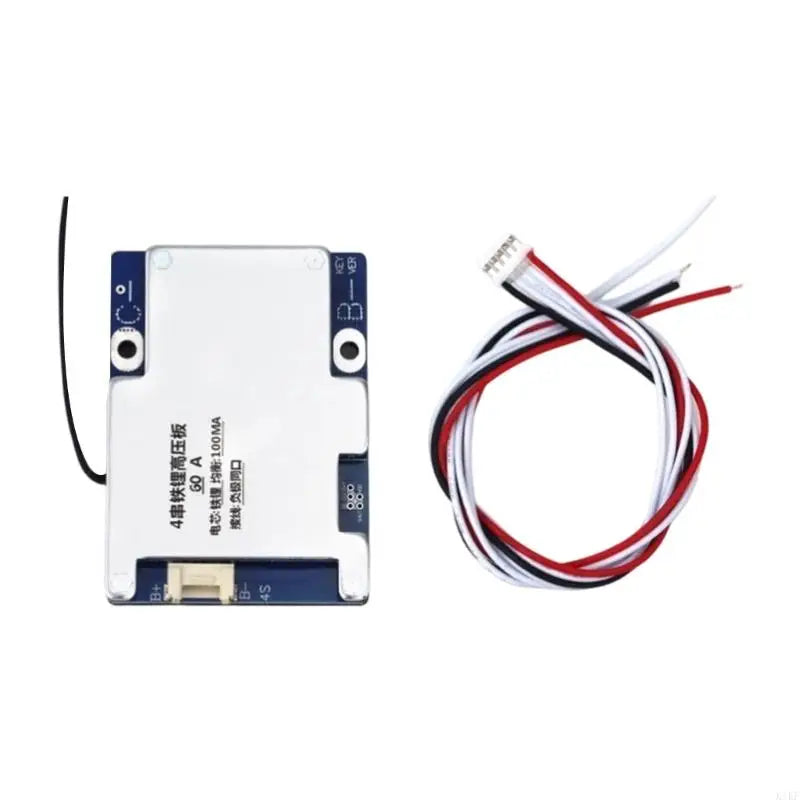

- 1× 4S LiFePO4 Battery Protection Board (BMS Module)
Note: Please allow 0–1 cm measurement tolerance due to manual measurement. Colors may vary slightly from product images due to monitor differences.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What battery chemistries is this BMS Protection Module compatible with?
A: This BMS module is specifically designed for LiFePO4 (Lithium Iron Phosphate) battery cells in a 4S configuration. It is optimized for the voltage and charge characteristics of LiFePO4 chemistry and supports up to 24S series connections for high-voltage applications.
Q: What current rating should I choose for my build?
A: Select a current rating that matches or slightly exceeds your system's expected peak discharge and charge current. Available options are 40A, 50A, 60A, 100A, 150A, and 200A. For example, if your system draws up to 80A peak, choose the 100A variant for a safety margin.
Q: Does this BMS protect against short circuits and overcharging?
A: Yes. The module includes integrated protection against overcharging, over-discharging, overcurrent, and short circuits. It also features temperature monitoring to help prevent overheating, making it suitable for demanding energy storage and power delivery applications.
Q: Are batteries or a charger included with this module?
A: No. This listing includes only the 4S LiFePO4 BMS Protection Board. Batteries and chargers are sold separately.
