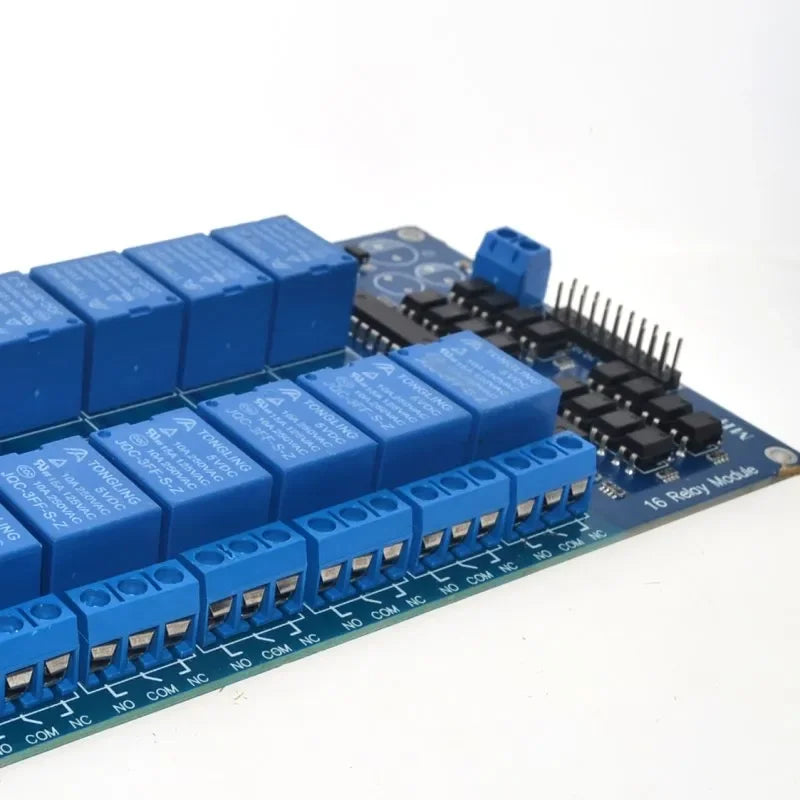

5V 16-Channel Relay Module with Optocoupler Isolation
Take full control of your electronics projects with this versatile 5V 16-Channel Relay Module. Designed for makers, engineers, and hobbyists alike, this relay board offers broad microcontroller compatibility, built-in optocoupler isolation for circuit protection, and high-current switching capability — all in a compact, easy-to-integrate package.
Key Features
- 16 Independent Relay Channels — Control up to 16 separate circuits simultaneously with one compact board.
- 5V Operating Voltage — Each channel requires only 15–25mA of driver current, making it efficient and easy to power.
- High-Current Relay Capacity — Rated for AC 250V / 10A and DC 30V / 10A per channel, suitable for a wide range of loads.

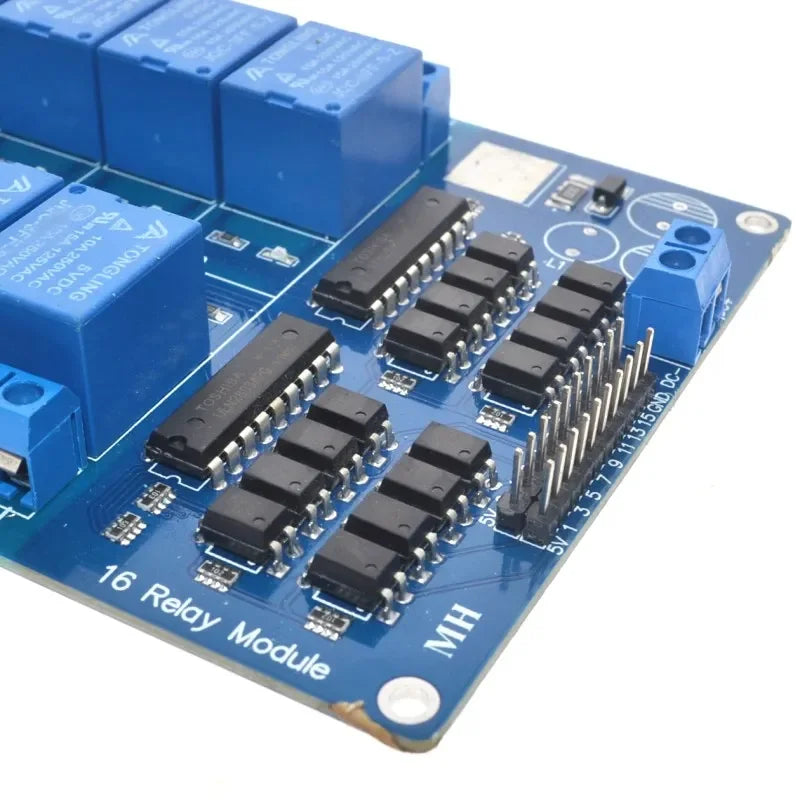

- Optocoupler Isolation — Built-in optocoupler isolation protects your microcontroller and sensitive components from high-voltage switching noise.
- Wide Microcontroller Compatibility — Works directly with Arduino, 8051, AVR, PIC, PLC, DSP, ARM, MSP430, and standard TTL logic systems — no additional drivers needed.

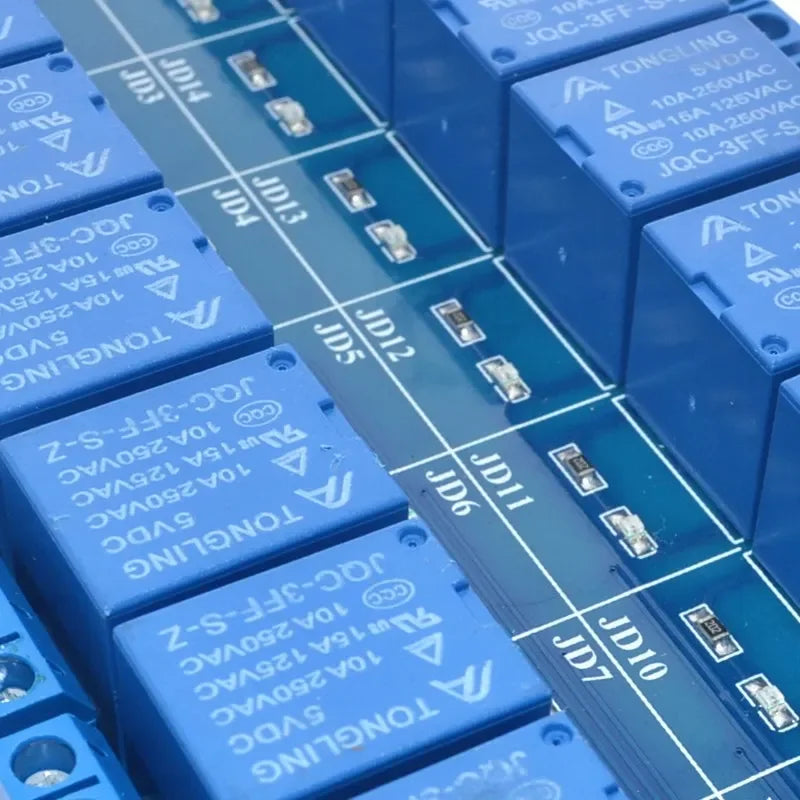

- Status Indicator LEDs — Each relay channel features a dedicated LED indicator so you can monitor relay output status at a glance.
- Compact Form Factor — Measures 18cm × 9cm × 1.8cm (5.47" × 2.04" × 0.67"), fitting neatly into enclosures and project builds.
- Brand New Condition — Ships in new condition, ready for immediate integration into your project.
Technical Specifications
| Supply Voltage | 5V DC |
| Number of Channels | 16 |
| Driver Current per Channel | 15–25mA |
| Relay Rating (AC) | 250V / 10A |
| Relay Rating (DC) | 30V / 10A |
| Isolation | Optocoupler |
| Compatible Platforms | Arduino, AVR, PIC, ARM, DSP, PLC, MSP430, TTL |
| Board Dimensions | 18cm × 9cm × 1.8cm |

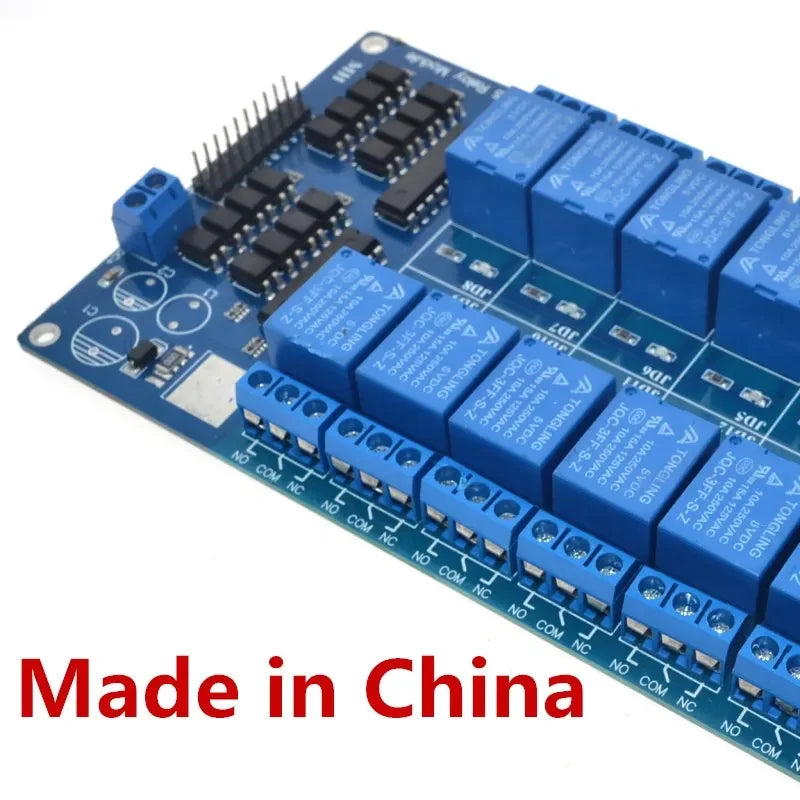

| Country of Origin | Made in China |
What's in the Box
- 1 × 5V 16-Channel Relay Module with Optocoupler Isolation
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is this 16-channel relay module compatible with Arduino and Raspberry Pi projects?
A: Yes! This 5V 16-channel relay module is compatible with Arduino, AVR, PIC, ARM, DSP, PLC, MSP430, and any standard TTL logic microcontroller. It can also be used with Raspberry Pi via a logic-level interface, making it highly versatile for a wide range of DIY electronics and automation projects.
Q: What does optocoupler isolation mean and why does it matter?
A: Optocoupler isolation means that the high-voltage relay switching side and the low-voltage control side (your microcontroller) are electrically separated using light-based signal transmission. This protects your Arduino or other controller from voltage spikes and electrical noise generated when switching high-current loads, keeping your components safe and your signals clean.
Q: What kind of loads can this relay module switch?
A: Each of the 16 relay channels is rated to switch up to AC 250V / 10A or DC 30V / 10A. This makes it suitable for controlling lights, motors, solenoids, home appliances, and other moderate-power electrical devices from a low-voltage microcontroller signal.
Q: How do I know which relay channels are active?
A: The board includes a dedicated status indicator LED for each of the 16 relay channels. When a relay is energized, its corresponding LED lights up, giving you clear visual confirmation of relay output status without needing additional test equipment.
