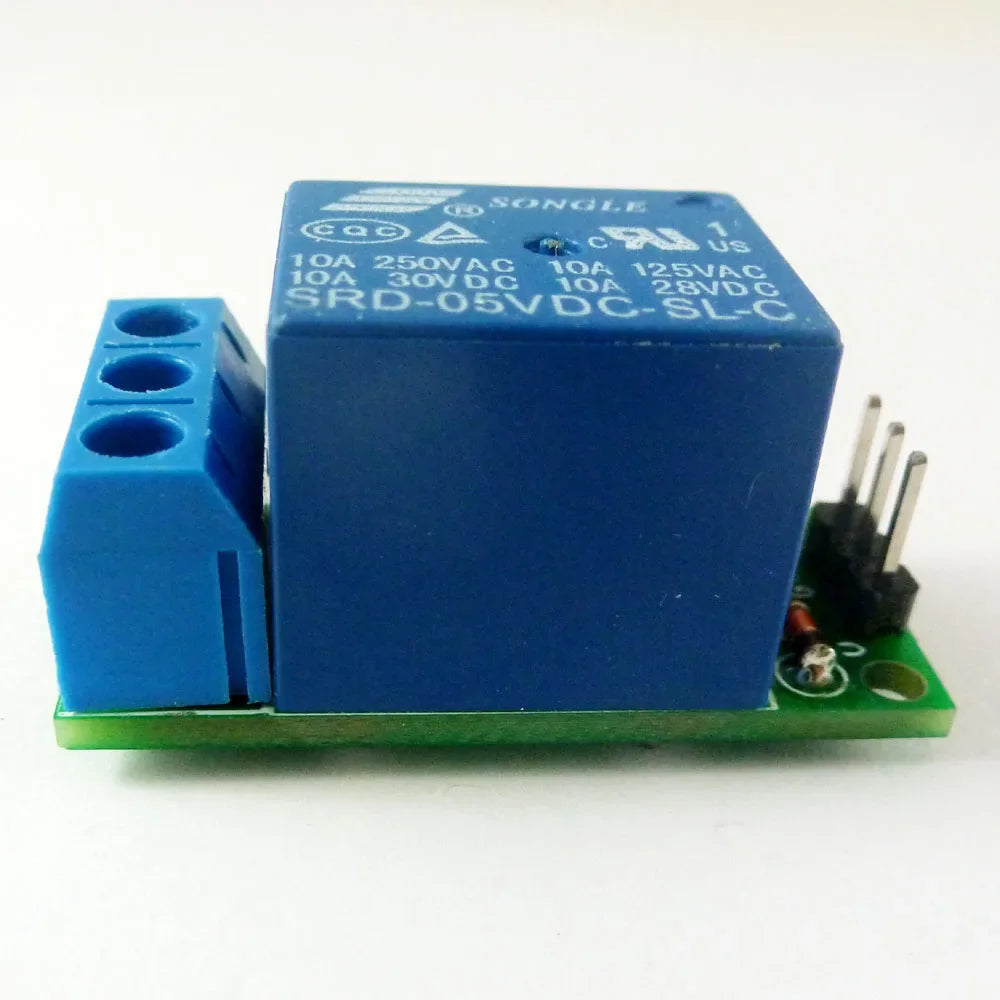

Take control of your Arduino projects, smart home setups, LED lighting, and motor circuits with this compact 5V Bistable (Self-Locking) Flip-Flop Latch Relay Module. This 3-piece set delivers a reliable, ultra-low standby power solution for any maker, hobbyist, or electronics engineer who needs a toggle-style relay that holds its state without continuous power draw.
What Makes It Bistable?
Unlike standard relays that require a constant signal to stay engaged, this bistable (self-locking) design remembers its last state. One low pulse trigger pulls the relay in — and it stays latched. A second pulse releases it — and it stays released. No signal, no wasted power. Just clean, reliable switching.

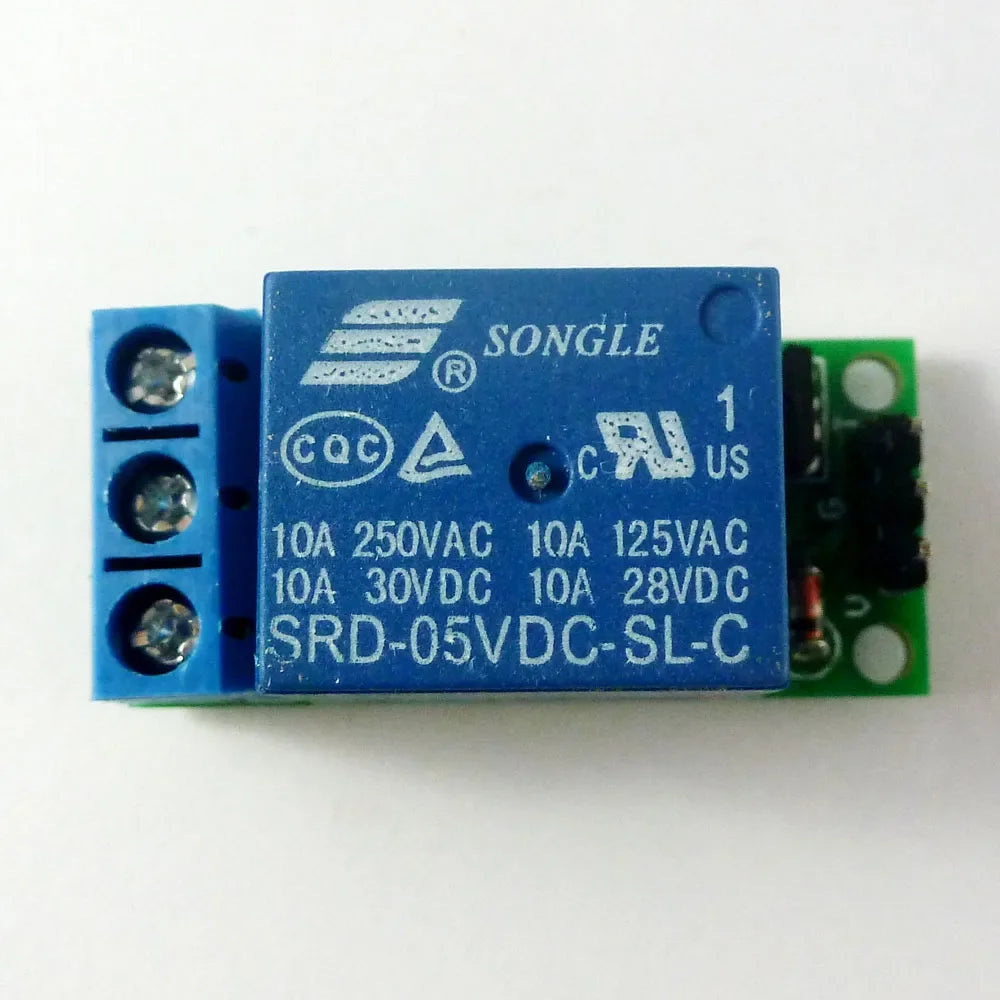

Key Specifications
- Working Voltage: DC 5V
- Working Current: 70 mA
- Standby Current: Only 1 µA (ultra-low power)
- Load Capacity: AC 250V / 10A | DC 30V / 10A
- Trigger Mode: Low Pulse Trigger
- Dimensions: 35mm × 16mm × 18.5mm (L × W × H) — Miniature footprint
- Weight: 13.5 g per module

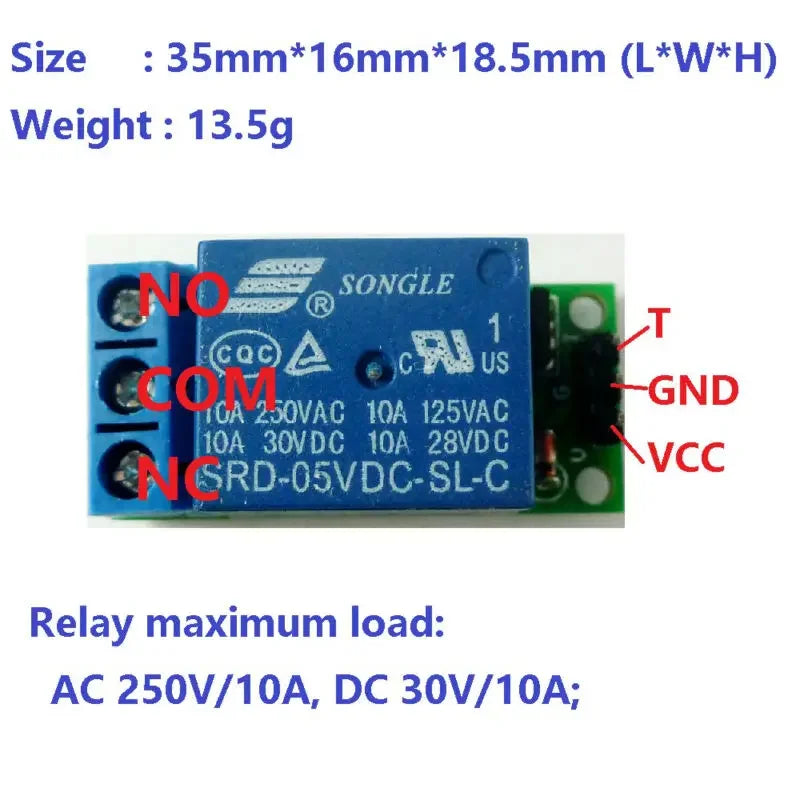

- Package Contents: 3× 1-Channel DC 5V Self-Locking Relay Module

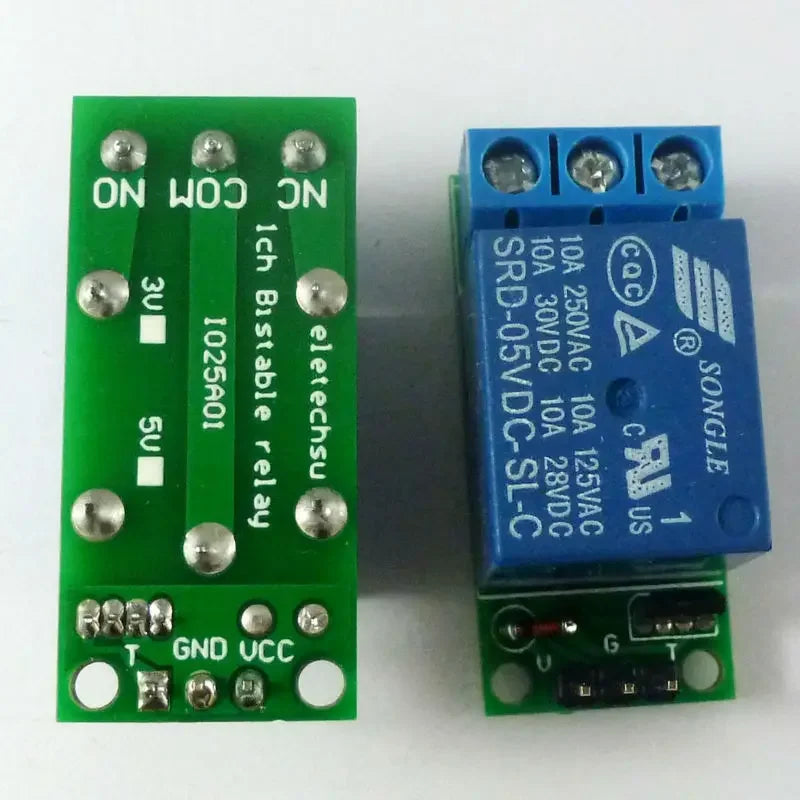

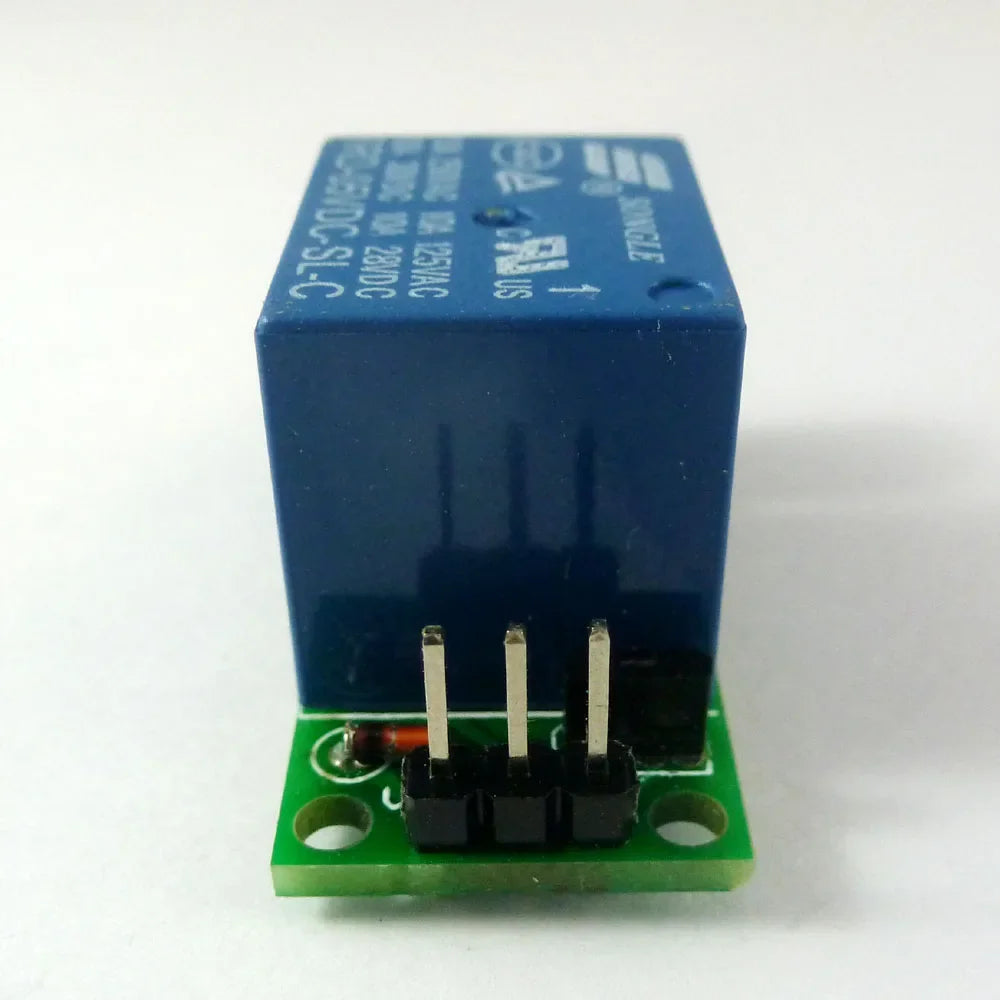

Module Interface Pins
- VCC — Positive power supply
- GND — Negative power supply (ground)
- T — Low pulse trigger input
Relay Output Terminals
- NO — Normally Open relay interface
- COM — Common relay interface
- NC — Normally Closed relay interface
How It Works

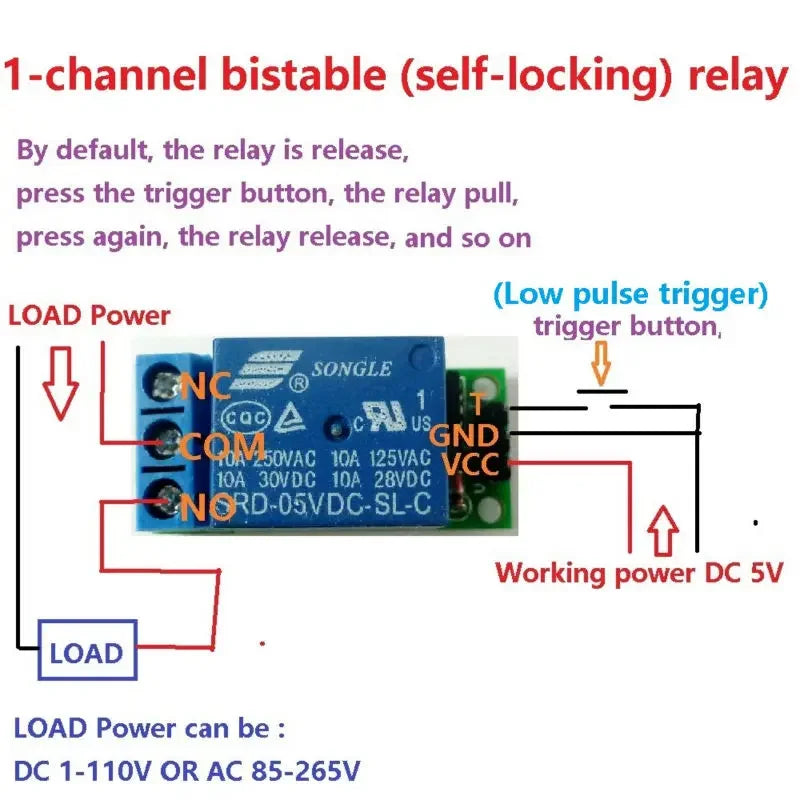

By default, the relay starts in the released (open) state. Press the trigger once → relay latches ON. Press again → relay releases OFF. Press a third time → relay latches ON again. This toggle behavior repeats indefinitely with each low pulse trigger signal, making it perfect for hands-free or single-button control.
Typical Applications
- Arduino & MCU development boards
- Smart home automation systems
- LED lighting control
- DC motor switching
- Automotive electronics
- Emergency lighting systems
- Toy cars and remote-controlled vehicles
Made in Mainland China.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does "bistable" or "self-locking" mean for this relay module?
A: A bistable relay module holds its switched state without needing a continuous signal. One low pulse trigger causes the relay to latch into the ON position and stay there; a second pulse switches it to the OFF position and holds it there. This makes it ideal for low-power applications where you don't want continuous current drawn just to maintain a relay state.
Q: Is this 5V bistable relay module compatible with Arduino and Raspberry Pi?
A: Yes! The module operates at DC 5V, which is natively compatible with Arduino boards. It can also be used with Raspberry Pi and other 3.3V microcontrollers by using a small level-shifting circuit, since the trigger input accepts low pulse signals. It is widely used in smart home, LED, motor, and MCU projects.
Q: What load can this relay module switch?
A: Each relay module supports up to AC 250V / 10A for AC loads and DC 30V / 10A for DC loads, making it suitable for controlling lights, small motors, and other general-purpose electrical loads — all from a compact 35mm × 16mm board.
Q: How many modules are included in one purchase?
A: Each purchase includes 3 × 1-Channel DC 5V Self-Locking Bistable Relay Modules, giving you excellent value for prototyping or multi-circuit projects.
