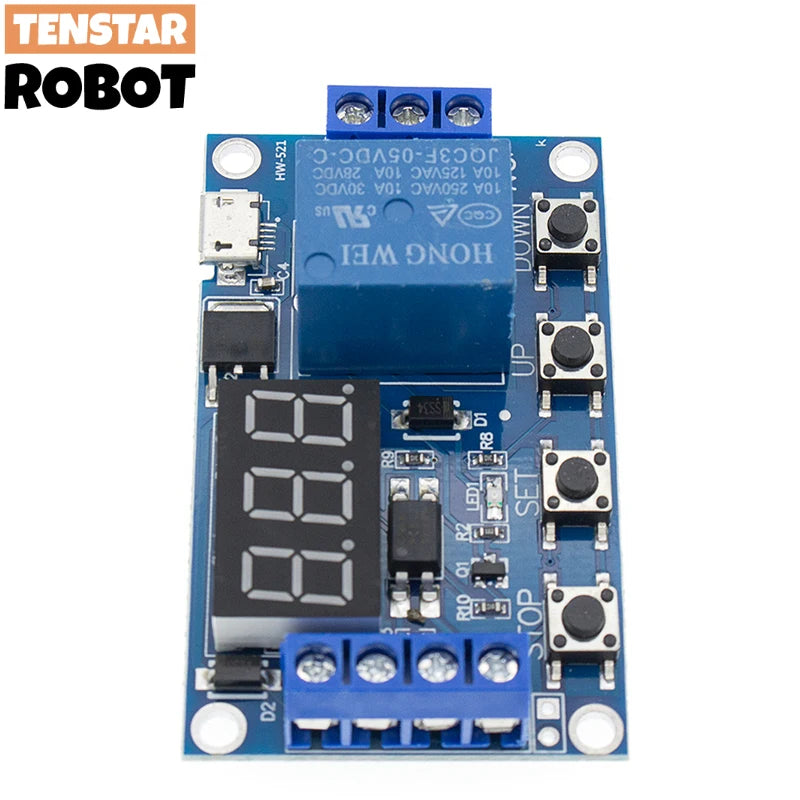

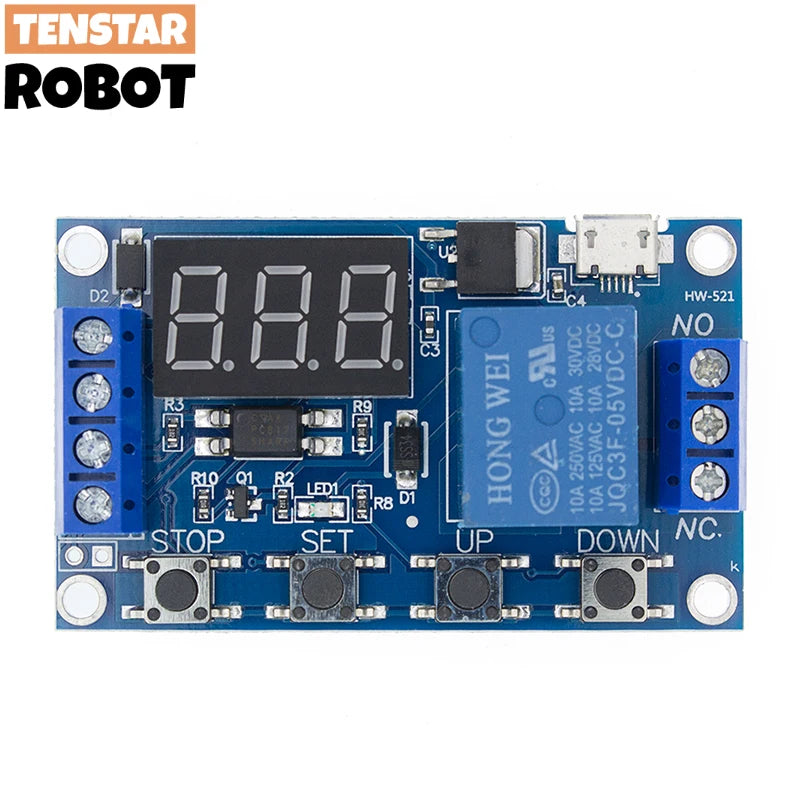

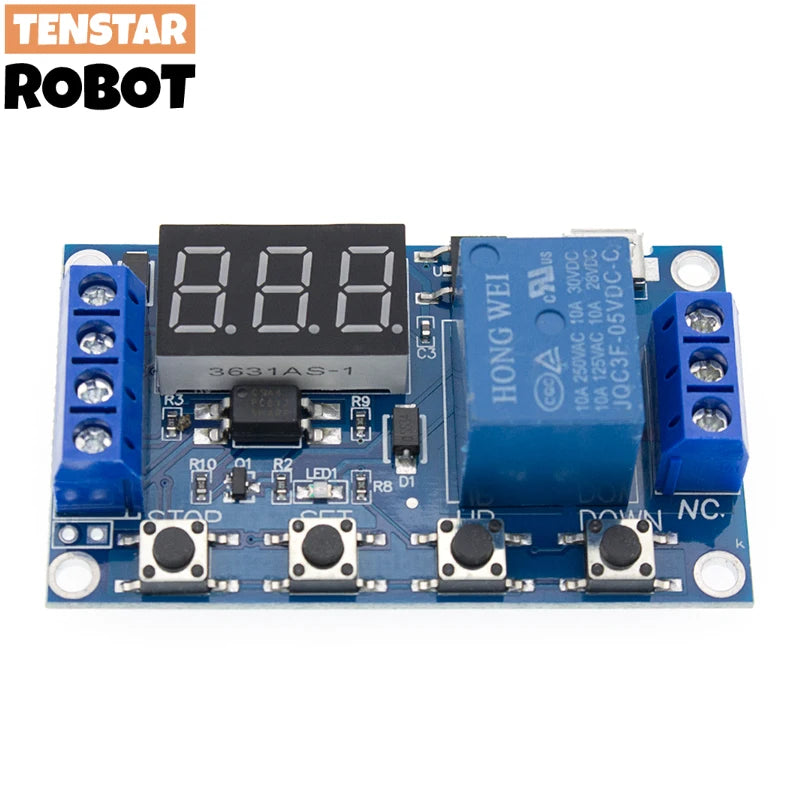

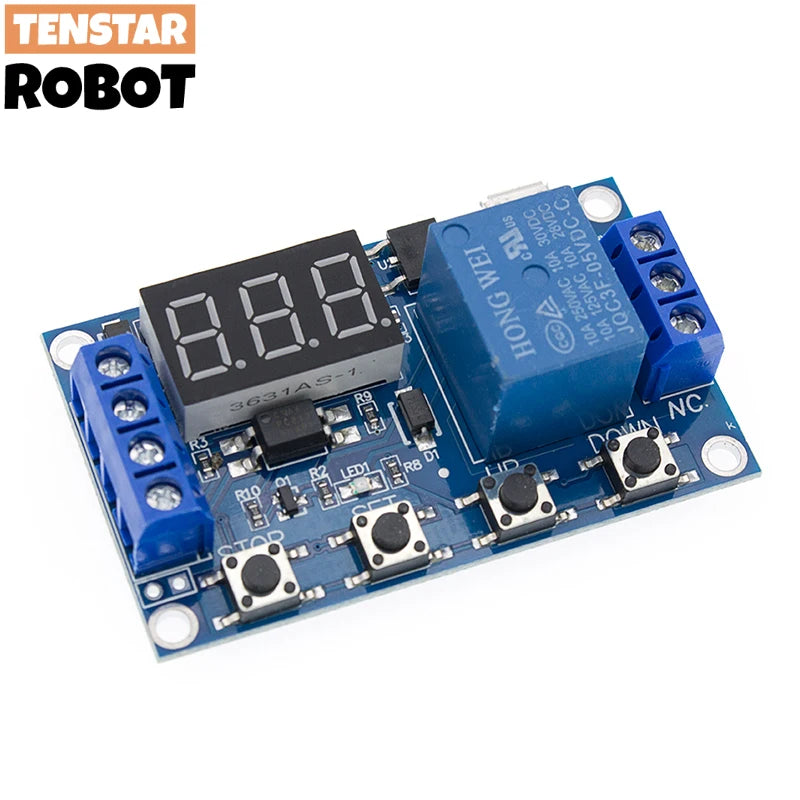

6-30V Relay Module Switch – Adjustable Time Delay Circuit Timer

Take precise control of your electronics projects with this versatile 6–30V Relay Module Time Delay Circuit Timer. Featuring multiple programmable operation modes, optocoupler isolation, and a wide input voltage range, this compact module is perfect for DIY automation, Arduino projects, industrial control circuits, and more.

Key Specifications

  • Operating Voltage: 6V – 30V DC

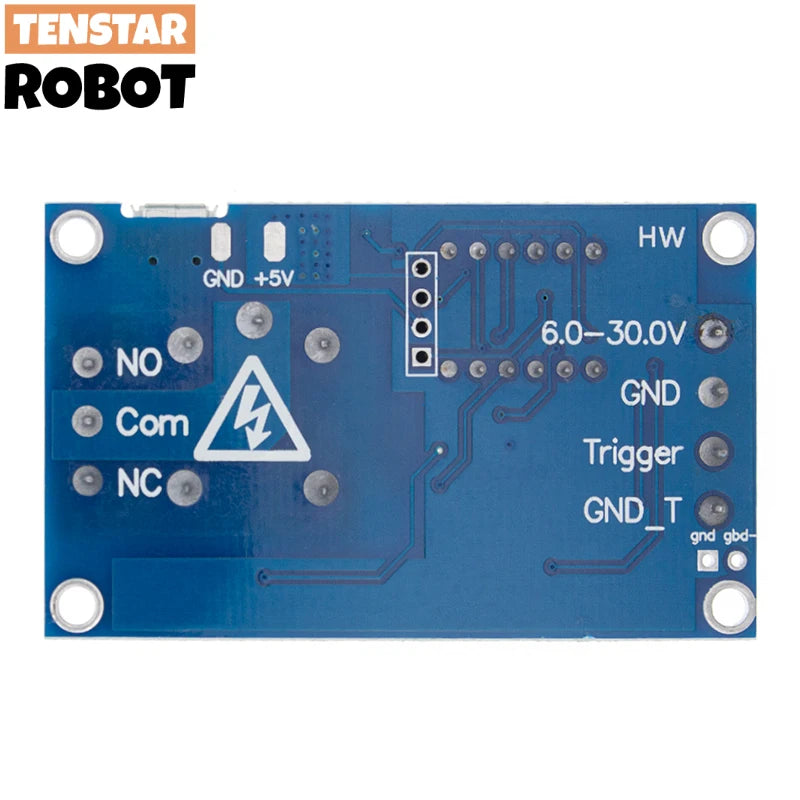

  • Trigger Signal: High-level trigger (3.0V – 24V); signal ground and system ground are isolated for improved anti-interference performance
  • Output Capacity: Up to DC 30V / 5A or AC 220V / 5A
  • Optocoupler Isolation: Enhances anti-interference capability; settings are stored permanently in memory
  • Time Range: 0.1 seconds (minimum) to 999 minutes (maximum) — continuously adjustable

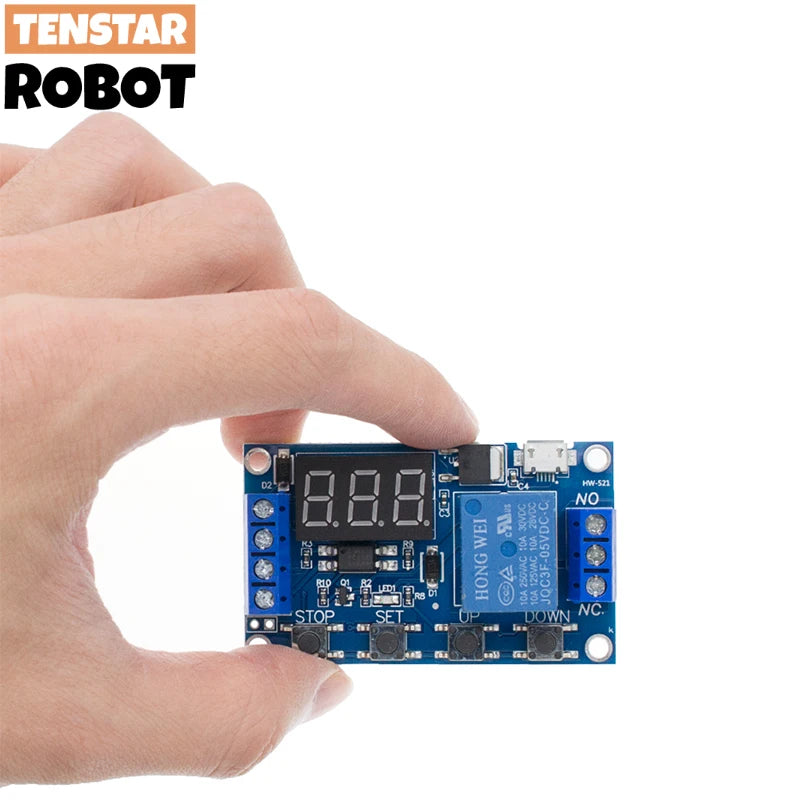

  • Dimensions: 6.3 × 3.8 × 1.5 cm (2.48″ × 1.50″ × 0.59″)
  • Condition: Brand new

Operation Modes

  • P1.1: After trigger, relay activates for set ON time (OP), then turns off; re-trigger during OP has no effect
  • P1.2: After trigger, relay activates for set ON time; re-trigger during OP restarts the timer
  • P1.3: After trigger, relay activates for set ON time; re-trigger during OP resets and disconnects relay immediately
  • P2: After trigger, relay delays OFF for set time (CL), then activates (OP), then turns off
  • P3.1: Cyclic mode — relay toggles ON (OP) and OFF (CL) for a configurable number of cycles (LOP)
  • P3.2: Auto-cycle on power-up — no trigger needed; relay cycles ON/OFF for set LOP count
  • P4: Signal-hold mode — relay stays on while signal is active; turns off after OP time when signal disappears

How to Set Parameters

  1. Power on the module; the display will flash the current operating mode (default: P1.1)
  2. Long-press the SET key for 2 seconds to enter mode-selection interface; use UP/DOWN keys to choose your mode (P1.1–P4)
  3. Short-press SET to configure each parameter (OP on-time, CL off-time, LOP cycle count); use UP/DOWN to adjust values; short-press STOP to select decimal place and set time resolution
  4. Long-press SET after configuration to save and return to main interface

Additional Features

  • Sleep Mode (C-P): Display auto-dims after 5 minutes of inactivity; function continues running
  • Normal Mode (O-d): Display stays on continuously
  • Quick Stop: Short-press STOP on main interface to instantly toggle relay ON/OFF
  • Time Interval Options: Selectable resolution — 0.1s to 99.9s, 1s to 999s, or 1 min to 999 min

Made in Mainland China.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the operating voltage range of this relay timer module?

A: This relay module operates on a DC supply voltage of 6V to 30V, making it compatible with a wide range of power sources including 6V, 9V, 12V, 24V, and more common electronics project voltages.

Q: What devices can this relay module control?

A: The relay output can switch loads up to DC 30V / 5A or AC 220V / 5A, allowing you to control a variety of devices such as lights, motors, fans, solenoids, and other electrical appliances within those ratings.

Q: Can the timer settings be saved after powering off?

A: Yes. Thanks to built-in non-volatile memory, all configured parameters — including operation mode, ON time, OFF time, and cycle count — are stored permanently and retained even after the module is powered off.

Q: How many operation modes does this relay timer support?

A: The module supports multiple programmable modes including single-trigger delay (P1.1, P1.2, P1.3), delayed activation (P2), cyclic timer with or without trigger (P3.1, P3.2), and signal-hold mode (P4), giving you flexible control for virtually any automation scenario.
