7500RPM 120mm Replacement Cooling Fan for Antminer S7 S9 – DC 12V 4-Pin
7500RPM 120mm Replacement Cooling Fan for Antminer S7 S9 – DC 12V 4-Pin

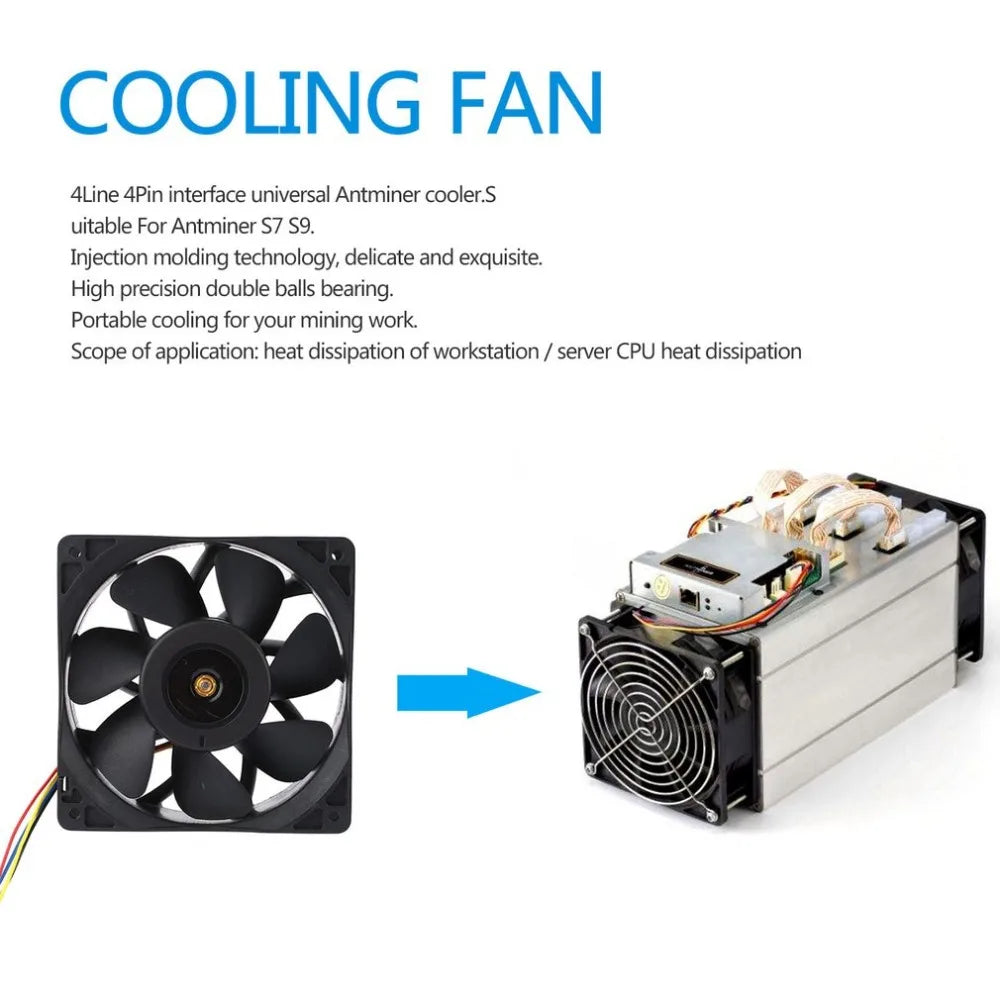

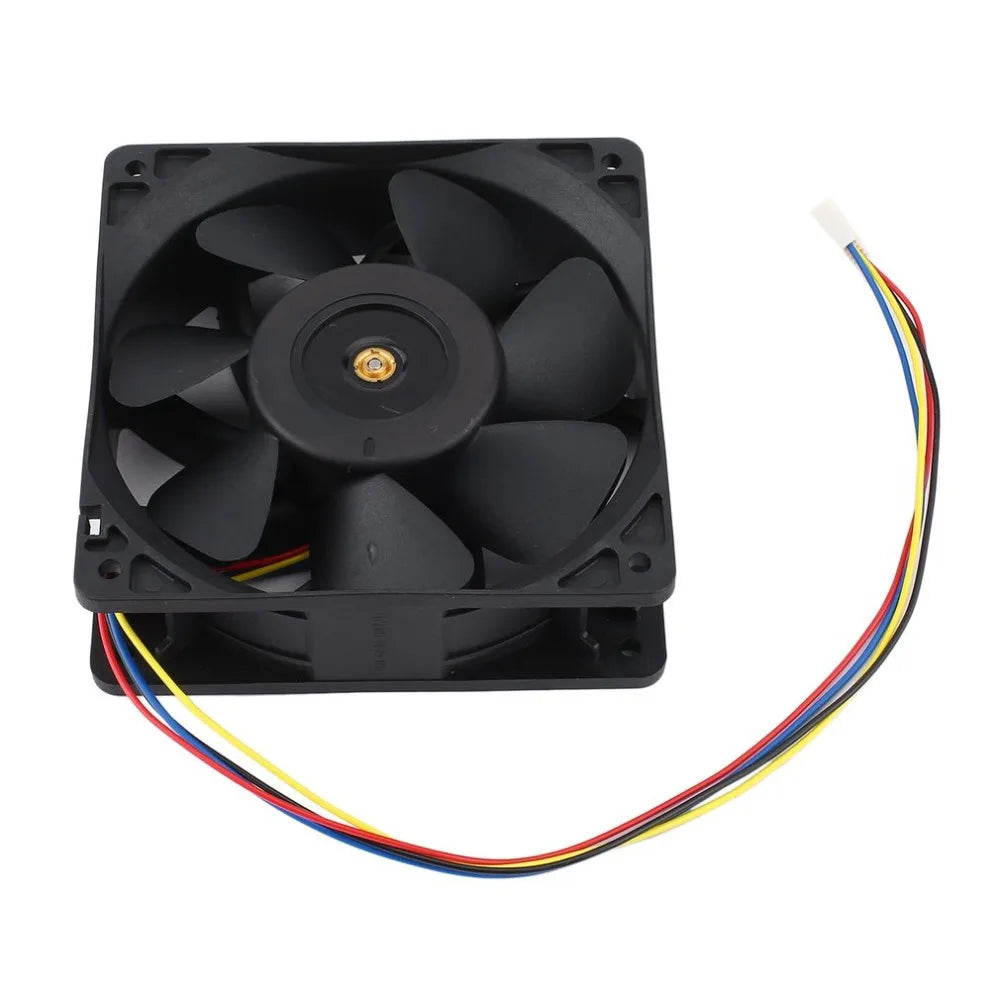

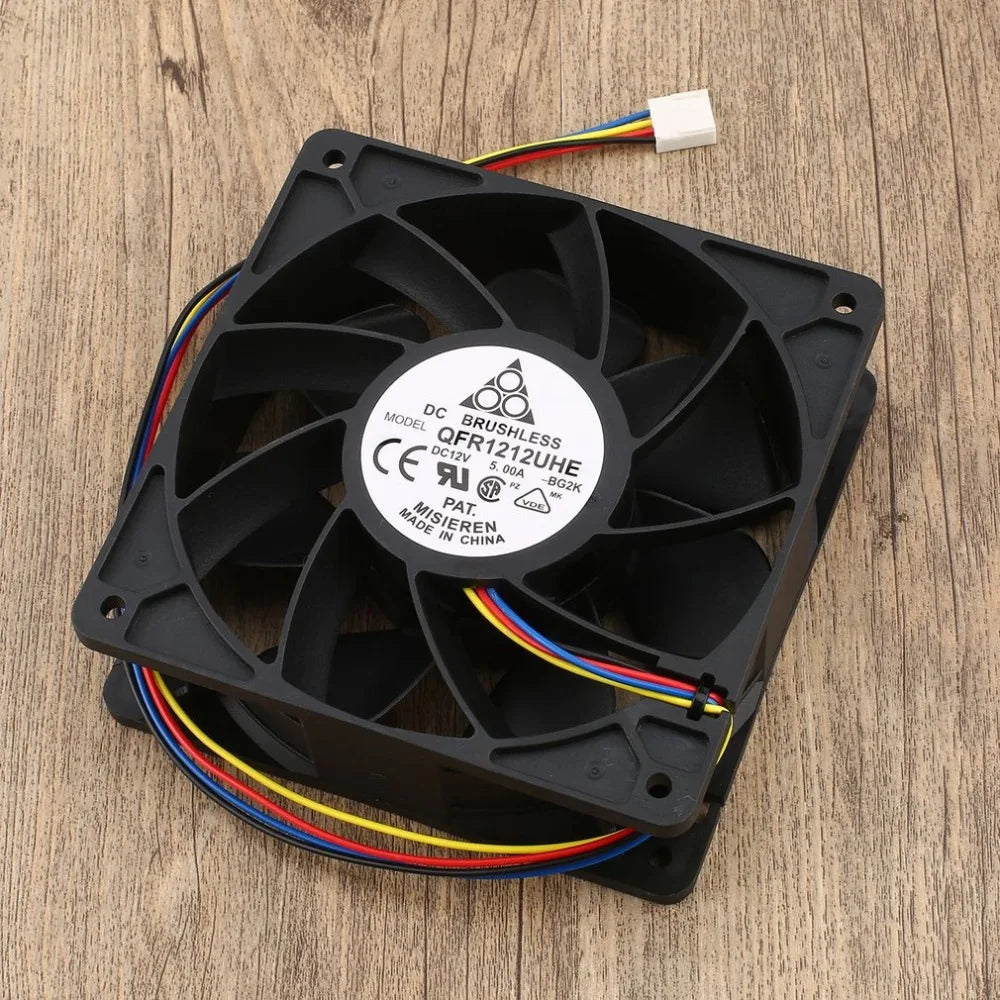

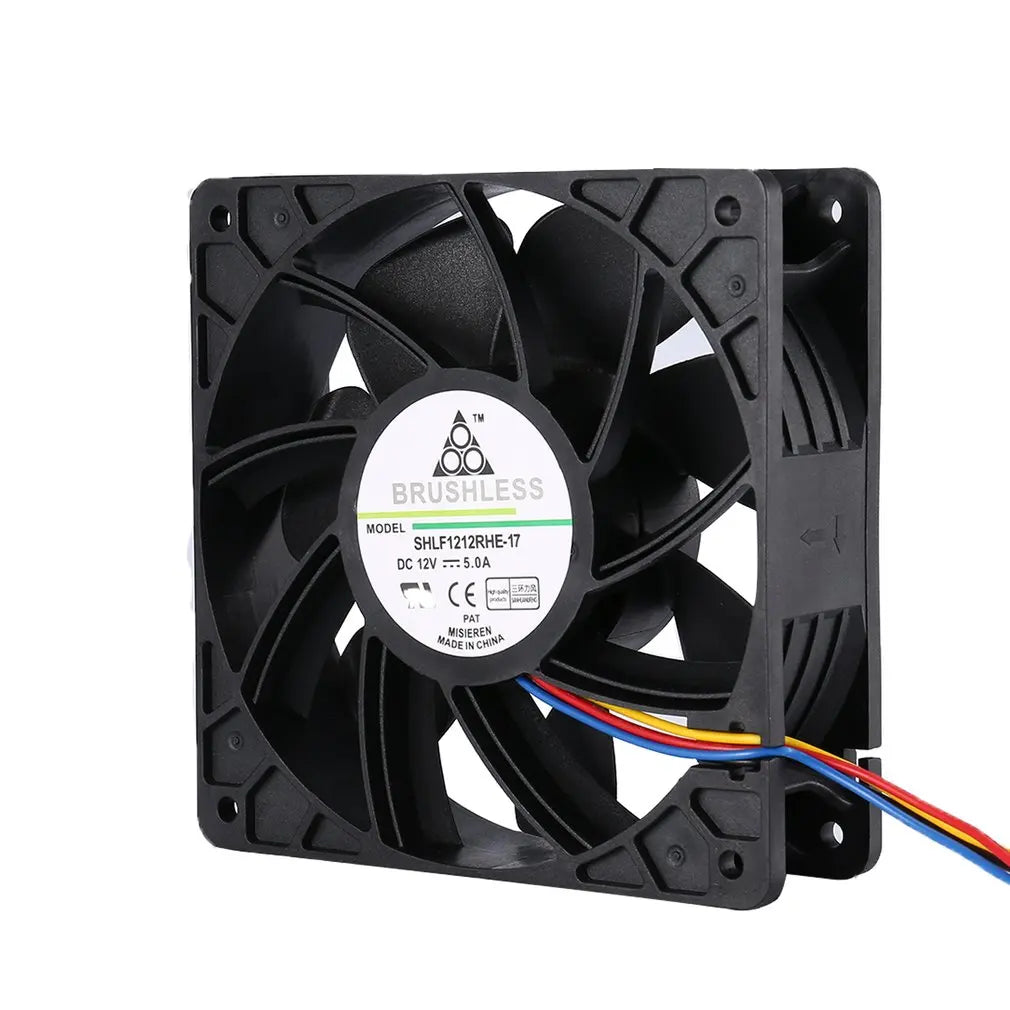

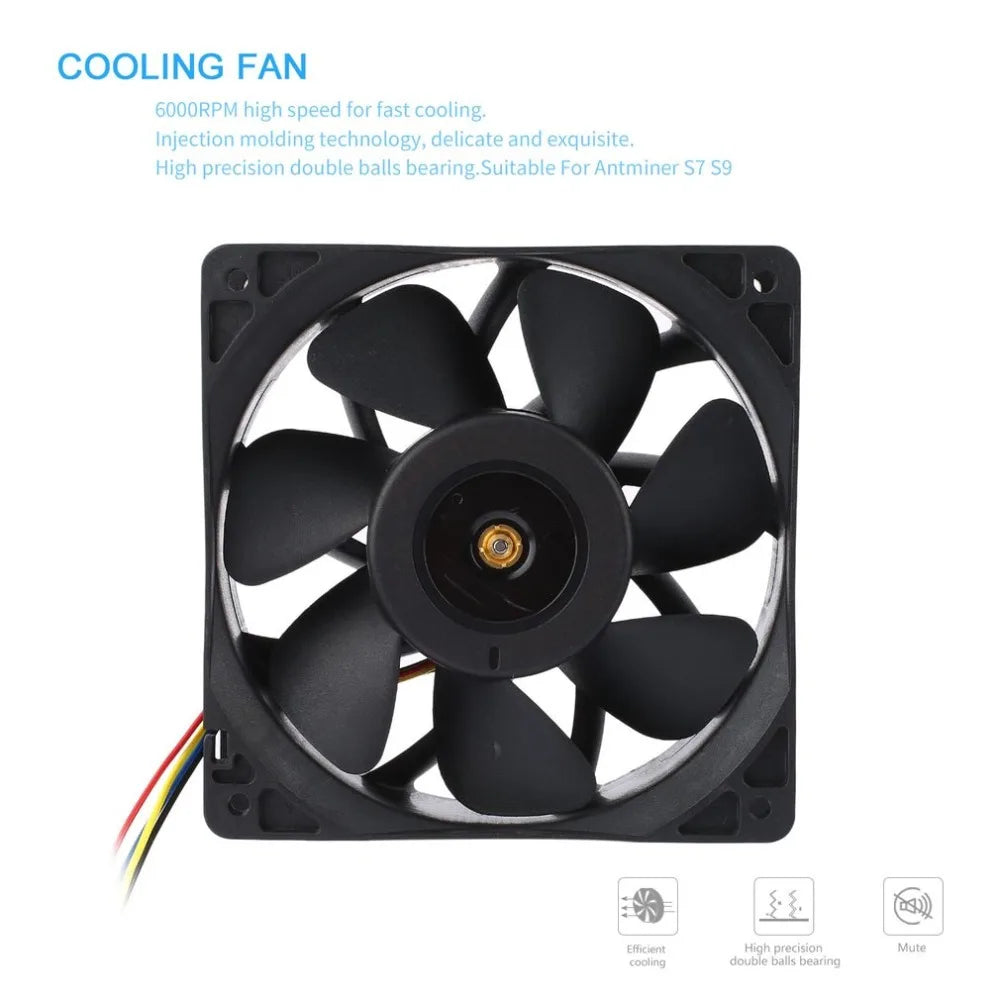

7500RPM Brushless Replacement Cooling Fan for Antminer S7 & S9
Keep your cryptocurrency mining rig running at peak efficiency with this high-performance 120mm brushless DC cooling fan engineered specifically for the Antminer S7 and S9. Spinning at up to 7,500 RPM and delivering 280.38 CFM of airflow, this fan moves serious air through your miner's heatsinks to maintain stable operating temperatures during extended mining sessions.
Built with a dual ball bearing system and a flame-retardant PBT + 30% glass fiber frame, this fan is designed for longevity and reliability — rated for up to 80,000 hours of continuous operation at 25°C. The plug-and-play 4-pin / 4-line connector makes replacement quick and straightforward with no modifications needed.
Made in Mainland China.
Key Features
- 7,000–7,500 RPM high-speed operation for rapid heat dissipation
- 280.38 CFM airflow with 24.60 mmH₂O static pressure
- 4-Pin / 4-Line connector — direct drop-in replacement for Antminer S7 & S9
- Dual ball bearing construction for extended service life (>80,000 hours)
- Flame-retardant frame: PBT + 30% glass fiber + V0 rating
- 7-blade injection-molded design for optimized airflow efficiency
- Operating temperature range: -10°C to +70°C
- Compact 120 × 120 × 37mm form factor — fits standard 120mm mounting points
- Counterclockwise rotation (viewed from blade side)

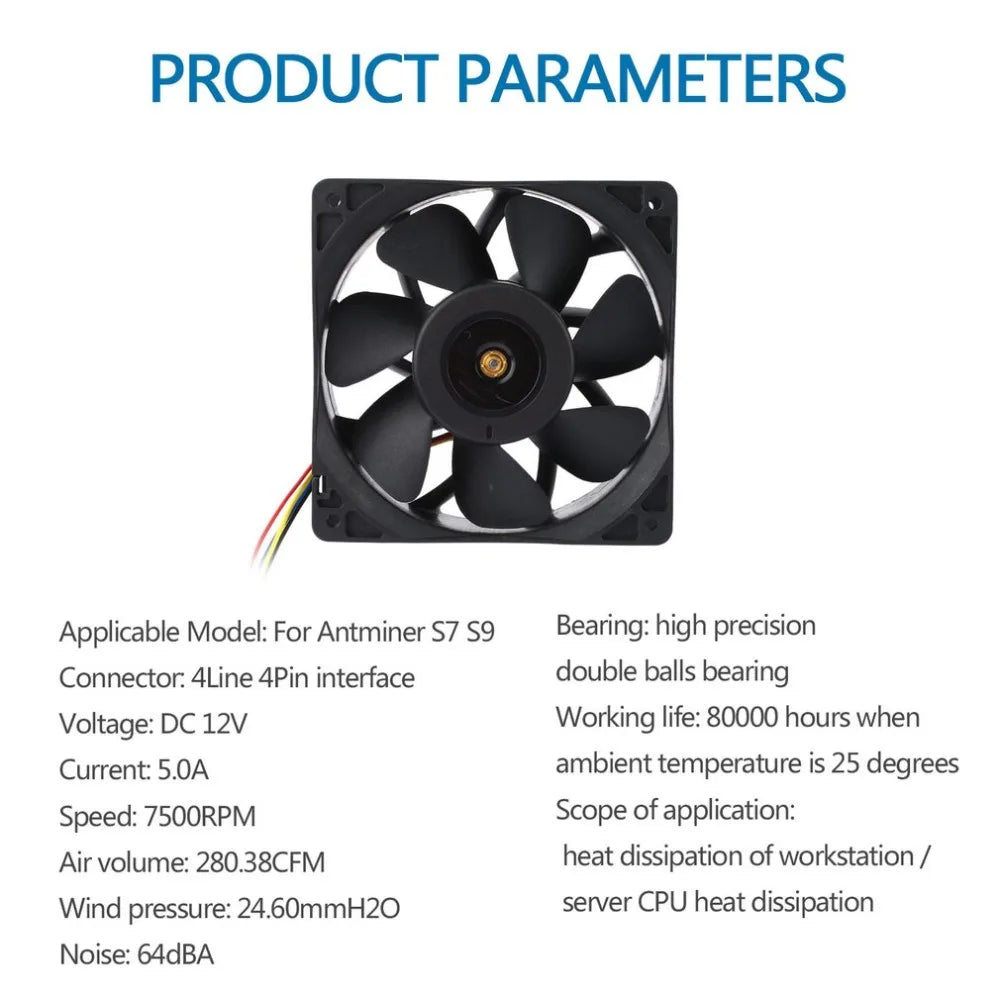

Full Technical Specifications
| Voltage | DC 12V |
| Current | 5.0A |
| Fan Speed | 7,000 – 7,500 RPM |
| Air Volume | 280.38 CFM |
| Static Pressure | 24.60 mmH₂O |
| Noise Level | 64 dBA |
| Bearing Type | High-Precision Dual Ball Bearing |
| Blades | 7 |
| Connector | 4-Pin / 4-Line |
| Fan Size | 120 × 120 × 37mm |
| Color | Black |
| Operating Temp. | -10°C to +70°C |
| Storage Temp. | -40°C to +70°C |
| Working Life | ~80,000 hours @ 25°C ambient |
| Insulation Resistance | >500 MΩ |
| Compatible Models | Antminer S7, S9 |
| Origin | Mainland China |
What's in the Box
- 1 × Antminer Replacement Cooling Fan (120mm, DC 12V, 4-Pin)
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is this cooling fan compatible with both the Antminer S7 and S9?
A: Yes. This 120mm DC 12V brushless replacement fan is designed to be a direct plug-and-play replacement for both the Antminer S7 and Antminer S9. The 4-pin / 4-line connector matches the stock fan interface on these miners, making installation quick and hassle-free.
Q: How long will this Antminer cooling fan last?
A: This fan is rated for approximately 80,000 hours of continuous operation at an ambient temperature of 25°C, thanks to its high-precision dual ball bearing design. The flame-retardant PBT + 30% glass fiber frame further contributes to its durability in demanding mining environments.
Q: What is the noise level of this 7500RPM fan?
A: At full speed (7,500 RPM), this fan operates at approximately 64 dBA. Like all high-performance mining fans running at this RPM range, some operational noise is expected — this is normal for fans delivering 280.38 CFM of airflow at the speeds required to keep Antminer hardware cool.
Q: What direction does the fan blade rotate?
A: The fan rotates counterclockwise when viewed from the blade/intake side. This matches the original Antminer S7/S9 fan orientation for correct airflow direction through the miner chassis.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
