BeiDou Ceramic Patch Antenna with Cable – Vehicle Positioning
BeiDou Ceramic Patch Antenna with Cable – Vehicle Positioning

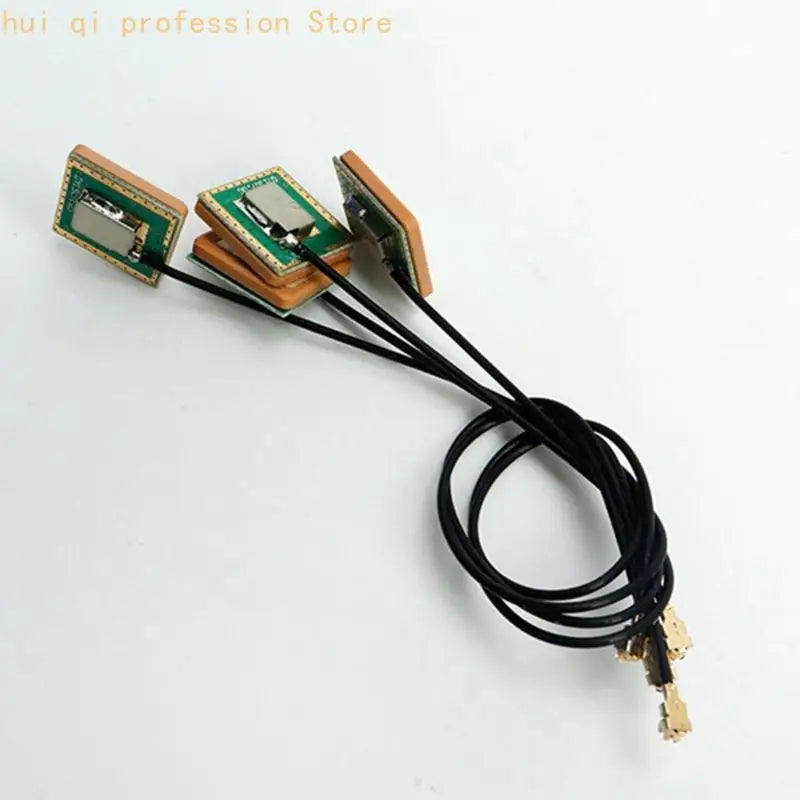

The BeiDou Ceramic Patch Antenna with Wire Cable is a compact, reliable replacement component designed for vehicle positioning modules, embedded receiver assemblies, and electronics repair applications. Supporting satellite frequencies at 1575.42 MHz and approximately 1561 MHz, this antenna ensures consistent satellite signal pickup during module integration, replacement, or maintenance work.
Made in Mainland China.
Key Features
- Dual-Frequency Satellite Reception: Covers 1575.42 MHz and ~1561 MHz, supporting reliable satellite signal acquisition for vehicle positioning hardware during integration or replacement tasks.

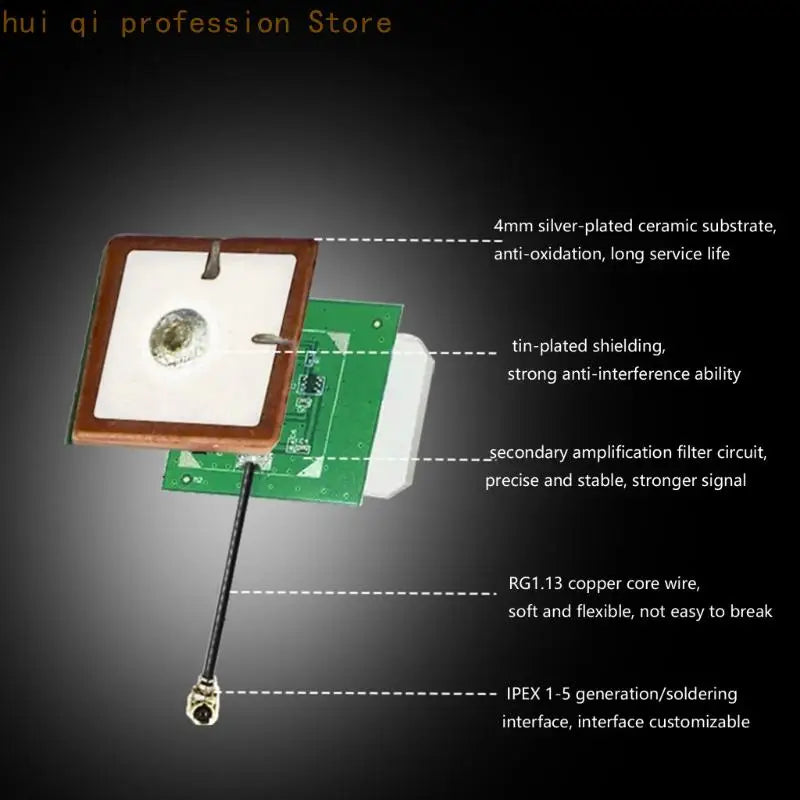

- Ceramic & Metal Construction: Combines a ceramic antenna body, wire cable, and board connector for a sturdy, compact reception component suited to embedded receiver assemblies.
- Space-Efficient Design: The external antenna format is ideal for positioning projects where board space is limited — add reception capability without bulky hardware.
- Replacement-Ready: Engineered for vehicle positioning modules and related locator equipment, making it a go-to component for repair benches, installation tasks, and maintenance updates.

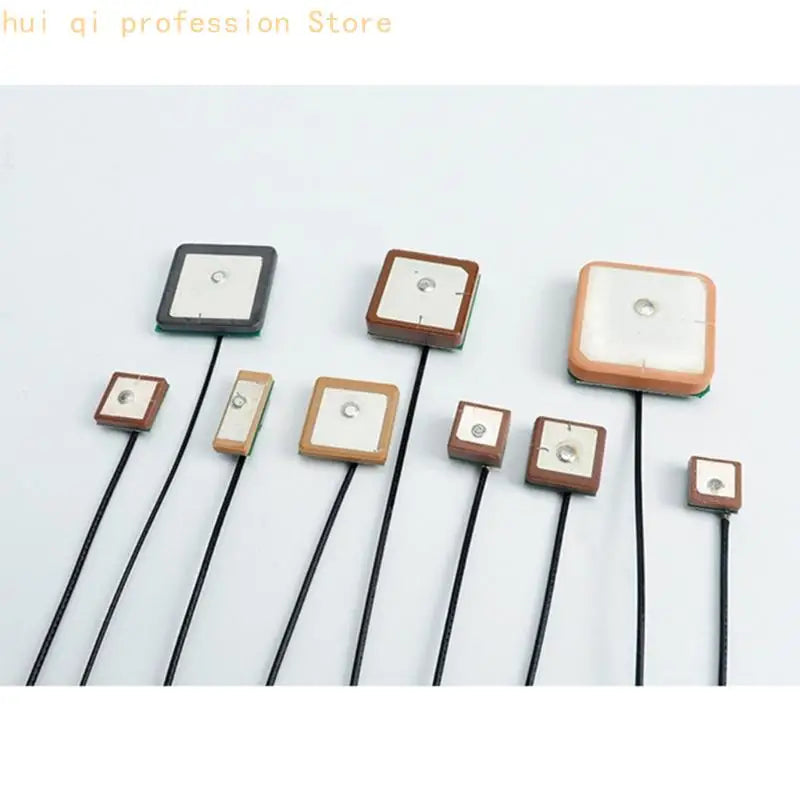

- Multiple Size Options: Available in a range of sizes to suit different module configurations and installation needs.
Specifications
| Component Material | Ceramic and Metal |
| Supported Frequencies | 1575.42 MHz / ~1561 MHz |
| Wired / Wireless | Wired (with cable) |
| Shape | Round (Patch) |

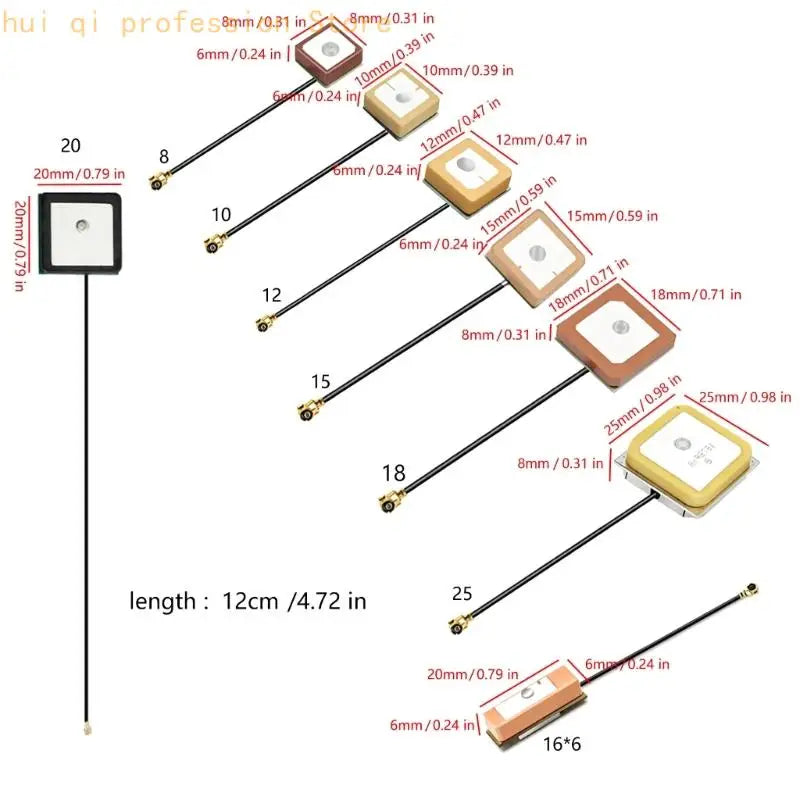

| Available Sizes | 8×8mm, 10×10mm, 12×12mm, 15×15mm, 16×16mm, 18×18mm, 20×20mm, 25×25mm |
| Country of Origin | Mainland China |
Package Includes
- 1 × BeiDou Ceramic Patch Antenna (with wire cable)
Important Notes
- Please allow ±1–2 cm measurement tolerance due to manual measurement methods.
- Colors may appear slightly different from product images due to monitor calibration differences.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What satellite systems does this BeiDou ceramic patch antenna support?
A: This ceramic patch antenna supports BeiDou satellite frequencies at approximately 1561 MHz and GPS L1 at 1575.42 MHz, making it compatible with a range of vehicle positioning modules and embedded receiver assemblies that use these frequency bands.
Q: What sizes are available for this ceramic patch antenna?
A: The antenna is available in multiple sizes: 8×8mm, 10×10mm, 12×12mm, 15×15mm, 16×16mm, 18×18mm, 20×20mm, and 25×25mm. Choose the size that best fits your specific vehicle positioning module or electronics repair application.
Q: Is this antenna suitable for DIY electronics repair and vehicle positioning projects?
A: Yes. This BeiDou ceramic patch antenna is designed as a replacement component for vehicle positioning hardware and embedded receiver assemblies. Its compact form factor and included wire cable make it well-suited for repair benches, DIY integration projects, and professional installation tasks where a reliable satellite signal antenna is needed.
