Boat Bilge Pump Control Panel — 12V / 24V / 32V Three-Position Rocker Switch
Keep your marine electrical system organized and easy to manage with this compact Boat Bilge Pump Control Panel. Designed as a direct replacement or upgrade for your vessel's bilge pump wiring circuit, this single-unit panel delivers straightforward mode switching, a built-in resettable breaker, and a clean, readable face — everything you need for a professional-looking marine installation.
Made in Mainland China.
Key Features
- Three-Position Rocker Control: Clear AUTO / OFF / Manual positions give you instant, reliable control over your bilge pump circuit. Switch modes quickly during routine checks, wiring replacement, or on-the-water operation.
- Wide Voltage Compatibility: Supports 12V, 24V, and 32V electrical systems, making it compatible with the majority of recreational and small commercial boat setups.
- Built-In Resettable Breaker: The integrated breaker assembly combines pump control and circuit protection into one tidy panel — no need for a separate breaker module, keeping your wiring bay neat and organized.

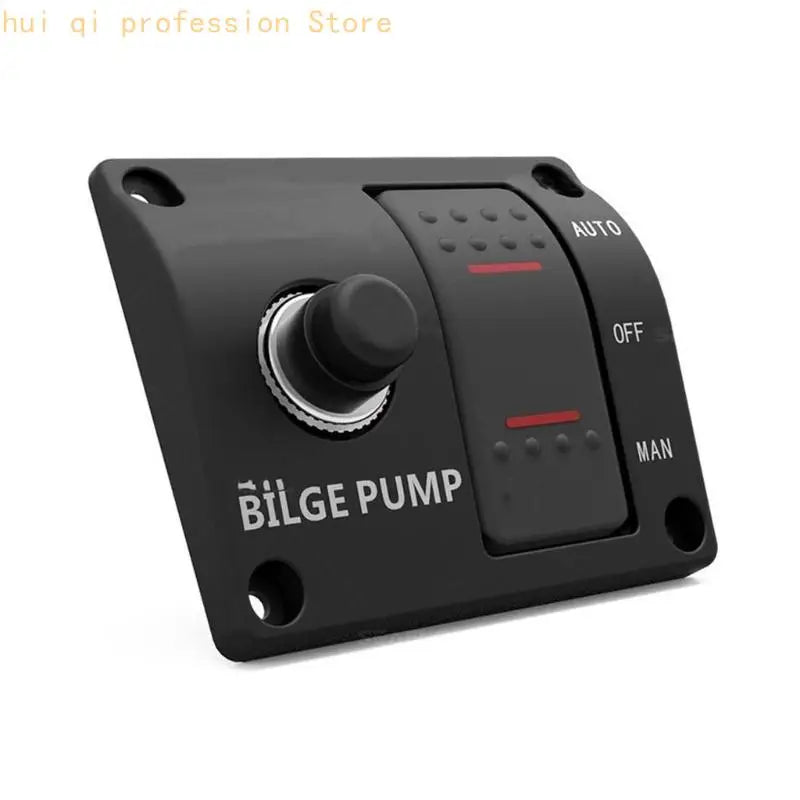

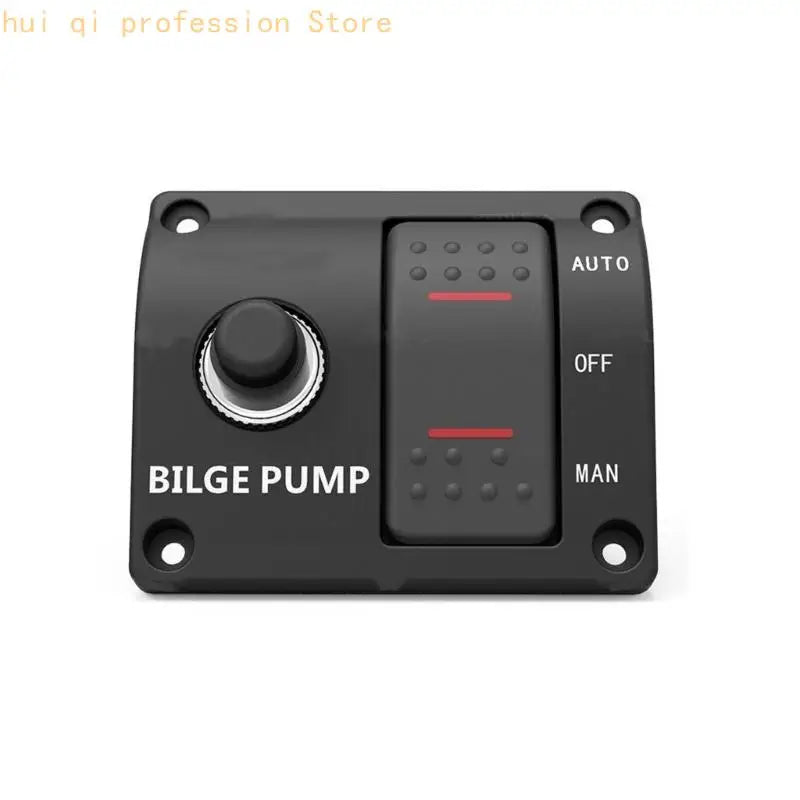

- Secure Fixed-Mount Design: Four recessed mounting holes allow stable, flush installation on any standard marine panel surface. The black face with bold white markings stays legible even in low-light conditions.
- ABS + Metal Construction: Durable materials stand up to the demanding marine environment, resisting moisture and vibration for long-lasting performance.
- Simple Panel Replacement: Designed as a one-piece drop-in replacement, swapping out a worn or failed control panel is fast and straightforward.
Specifications
| Material | ABS + Metal |
| Control Modes | AUTO / OFF / Manual |
| Voltage Compatibility | 12V / 24V / 32V |

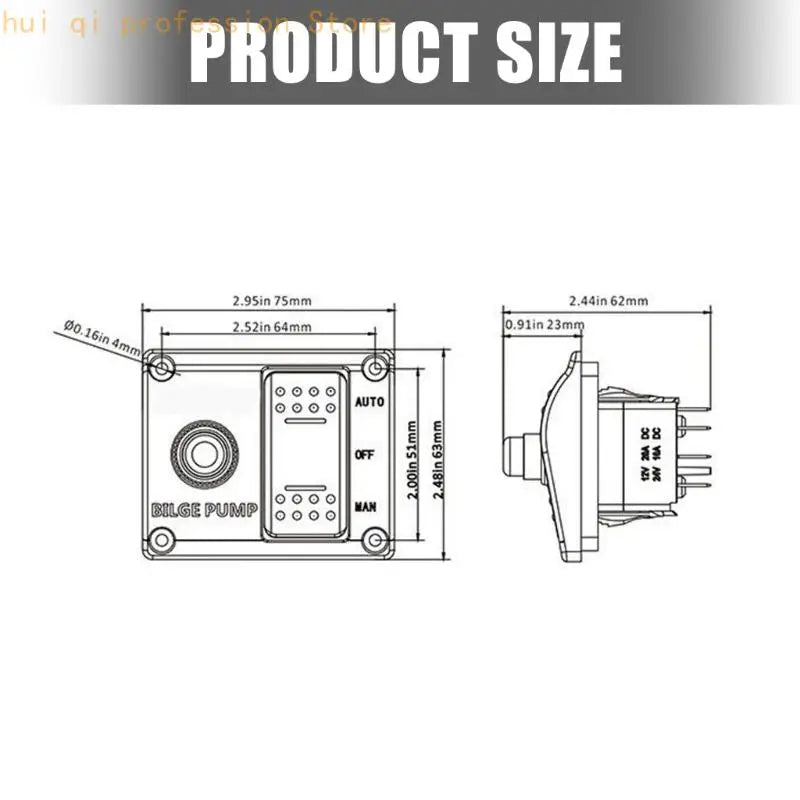

| Mounting | Four recessed mounting holes |
| Breaker | Integrated resettable breaker |
| Face Color | Black with white markings |
| Country of Origin | Mainland China |
Package Includes
- 1 × Bilge Pump Control Panel
Note: Please allow 1–2 cm tolerance due to manual measurement. Colors may vary slightly between monitors and the actual product.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage systems is this bilge pump control panel compatible with?
A: This bilge pump control panel supports 12V, 24V, and 32V DC electrical systems, covering the most common voltage configurations found on recreational boats, fishing vessels, and small commercial craft. Always verify your boat's system voltage before installation.
Q: Does this panel include a built-in circuit breaker?
A: Yes. The panel features an integrated resettable breaker, combining bilge pump switching and circuit protection in a single unit. This simplifies installation and keeps your marine wiring panel cleaner without requiring a separate breaker component.
Q: What are the three control positions on this bilge pump panel?
A: The rocker switch offers three positions: AUTO (pump activates automatically via float switch), OFF (pump disabled), and Manual (pump runs continuously on demand). This gives you full, flexible control over your bilge pump operation at all times.
Q: Is this panel easy to install as a replacement on an existing boat?
A: Absolutely. The panel is designed as a direct single-unit replacement for standard bilge pump control panels. The four recessed mounting holes allow for secure, stable installation on most marine panel surfaces, and the clear AUTO/OFF/Manual labeling makes wiring identification straightforward.
