DC 12V / 24V 40A Motor Control Switch – Forward, Reverse & Stop

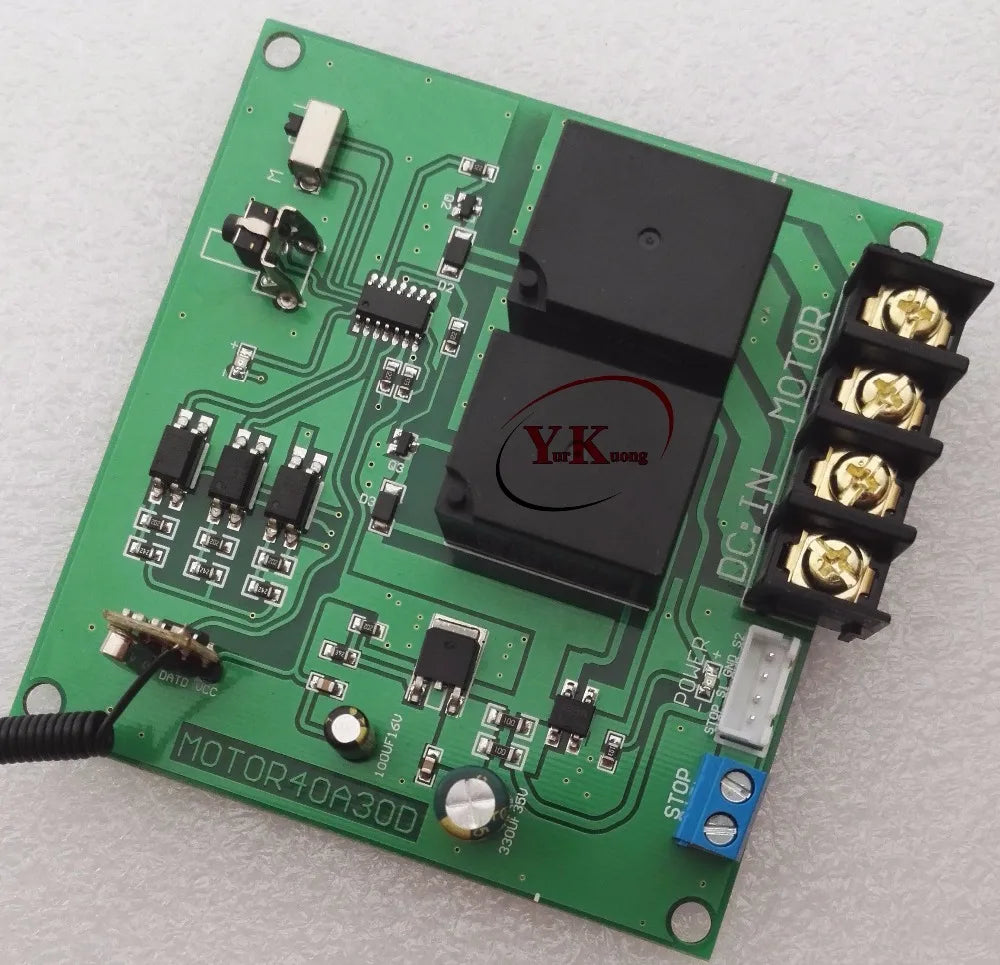

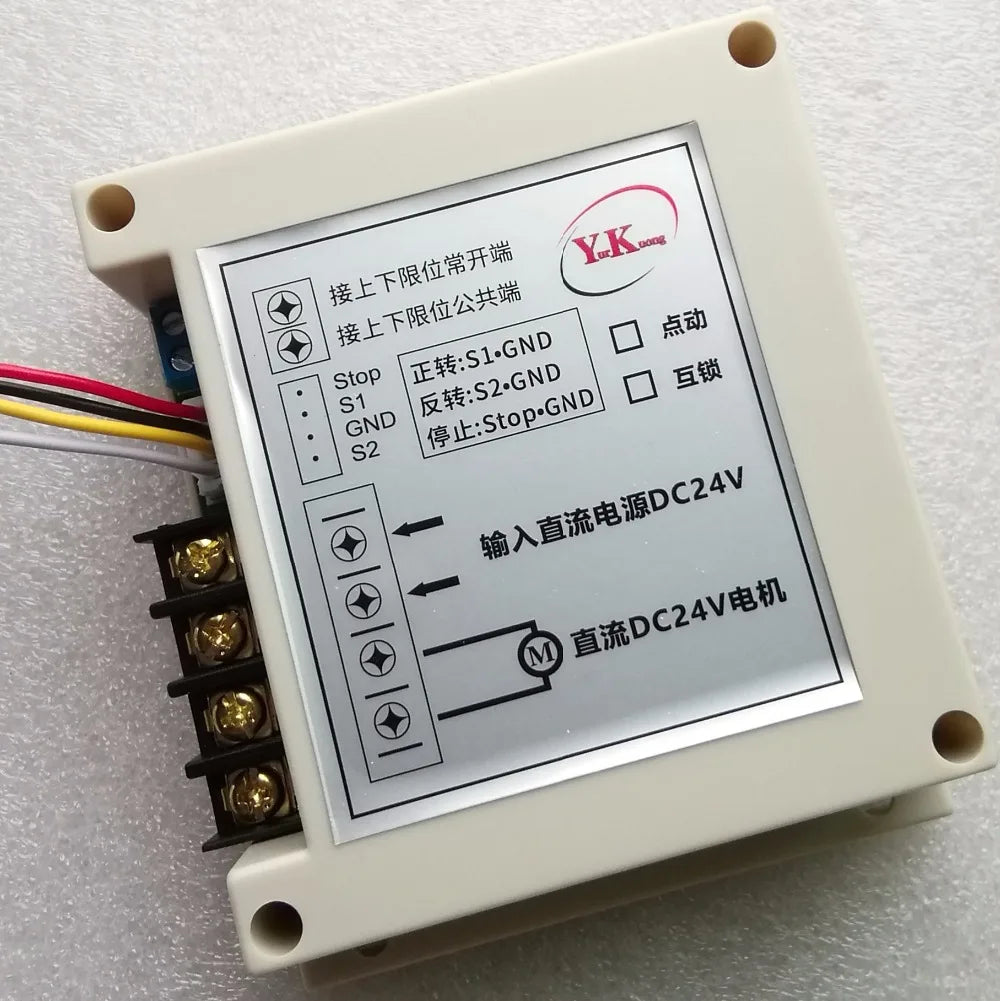

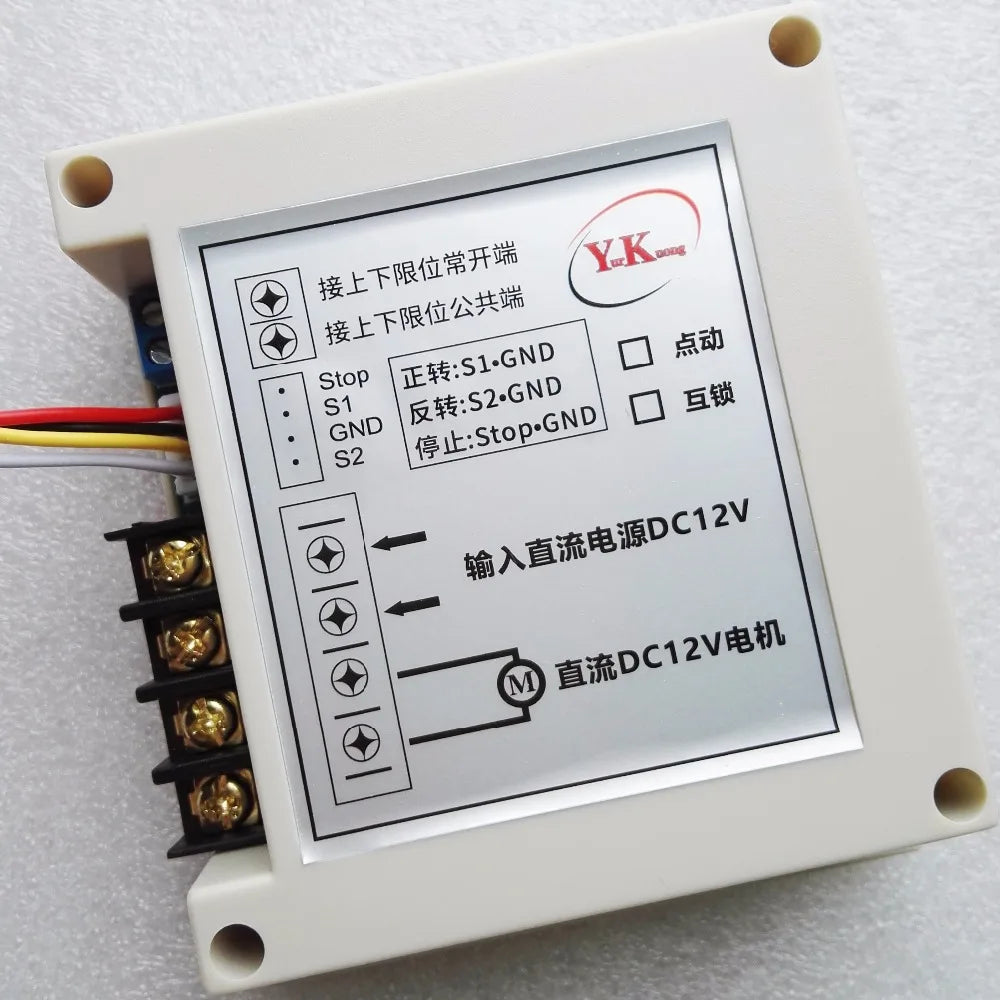

Take precise command of your DC motors with this heavy-duty Motor Control Switch Receiver by YurKuong. Engineered for demanding applications, this aluminium alloy controller handles up to 40A and supports both DC 12V (up to 400W) and DC 24V (up to 600W) systems. Whether you're running linear actuators, gate openers, lifts, winches, or conveyor systems, this switch gives you reliable, flexible directional control — forward, reverse, and stop — all in one compact unit.
Please Note: This listing includes the Receiver unit only. A compatible Remote Control Transmitter is sold separately. This receiver is compatible with standard learning-code transmitters — simply use the learning button to pair your transmitter.
Key Features
- Dual Voltage Support: Works with DC 12V (max load <400W) and DC 24V (max load <600W)
- High-Current 40A Relay: Handles high-load motor applications with confidence
- Directional Control: Easily switch motor direction — Forward, Reverse, and Stop via external wired buttons or limit switches
- Two Working Modes: Momentary (M) and Latched (L), selectable via onboard switch; Latched mode includes a built-in 3-second delay for motor protection
- Limit Switch Compatible: Supports NO/COM terminal connections for Sensor Switches, Proximity Switches, Photoelectric Switches, and Mechanical Limit Switches (limit switch not included)
- Power Memory: After a power cycle, the receiver remains in the OFF state — ideal for safety-conscious setups
- LED Power Indicator: Built-in LED confirms active power status at a glance
- Durable Aluminium Alloy Housing: Robust construction for long-lasting performance in varied environments
- CCC Certified | EU LVD compliant (below 50Vac / 75Vdc)
Specifications
| Working Voltage | DC 12V or DC 24V |
| Max Load (12V) | 40A / <400W |
| Max Load (24V) | 40A / <600W |
| Relay Rating | 40A |
| Working Modes | Momentary / Latched (switchable) |
| Limit Switch Terminal Voltage | DC 9V – 11V |
| Dimensions | 115 × 95 × 40 mm |
| Material | Aluminium Alloy |
| Certification | CCC, EU LVD |
| Country of Origin | Made in Mainland China |
| Warranty | 1 Year |

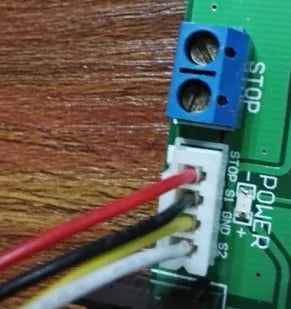

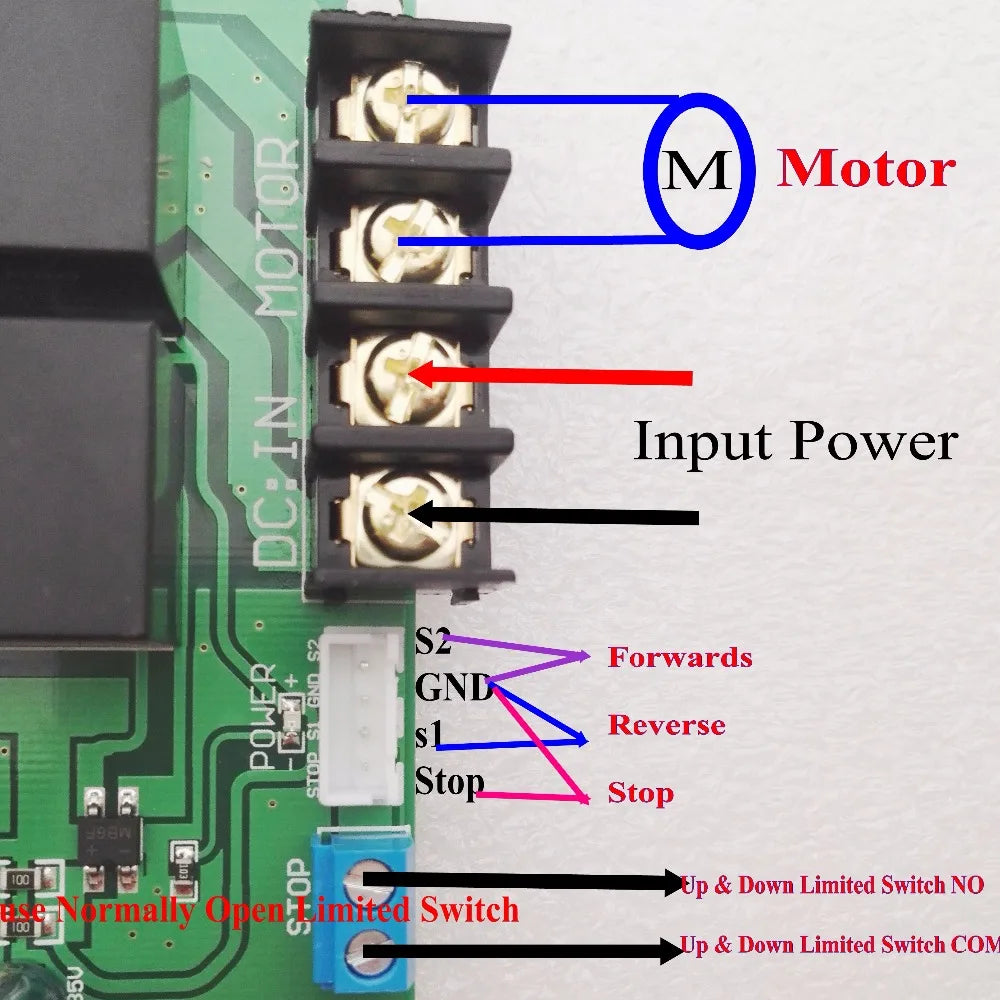

External Button Wiring Guide
Connecting external manual push buttons is straightforward:
- Forward: Connect S2 to GND
- Reverse: Connect S1 to GND
- Stop: Connect STOP terminal to GND
- Limit Switch: Use the NO and COM terminals (limit switch not included)
Compatible limit switch types include: Sensor Switches, Proximity Switches, Photoelectric Switches, and Mechanical Limit Switches.
Ideal Applications
- Linear actuators and electric motors
- Automatic gate and garage door openers
- Lifts, hoists, and winch systems
- Conveyor belts and industrial automation
- DIY robotics and custom motorized projects
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Does this DC motor control switch come with a remote transmitter?
A: No — this listing includes the receiver unit only. It is fully compatible with a standard learning-code remote control transmitter, which is available separately. Use the onboard learning button to pair your transmitter with the receiver quickly and easily.
Q: Can I use both DC 12V and DC 24V motors with this switch?
A: Yes. The switch supports both DC 12V (max load under 400W) and DC 24V (max load under 600W) systems. Simply select the correct model (MotorDC12V40A or MotorDC24V40A) to match your motor's operating voltage.
Q: What is the difference between Momentary and Latched mode?
A: In Momentary mode (switch set to "M"), the motor runs only while the button is held. In Latched mode (switch set to "L"), a single button press activates the motor continuously until stopped. Latched mode also includes a built-in 3-second delay between directional changes for added motor protection.
Q: Can I connect limit switches to stop the motor automatically?
A: Yes. The receiver has dedicated NO (Normally Open) and COM terminals for limit switch connections. Compatible types include Mechanical Limit Switches, Proximity Switches, Photoelectric Switches, and Sensor Switches. Please note limit switches are not included and must be purchased separately.
