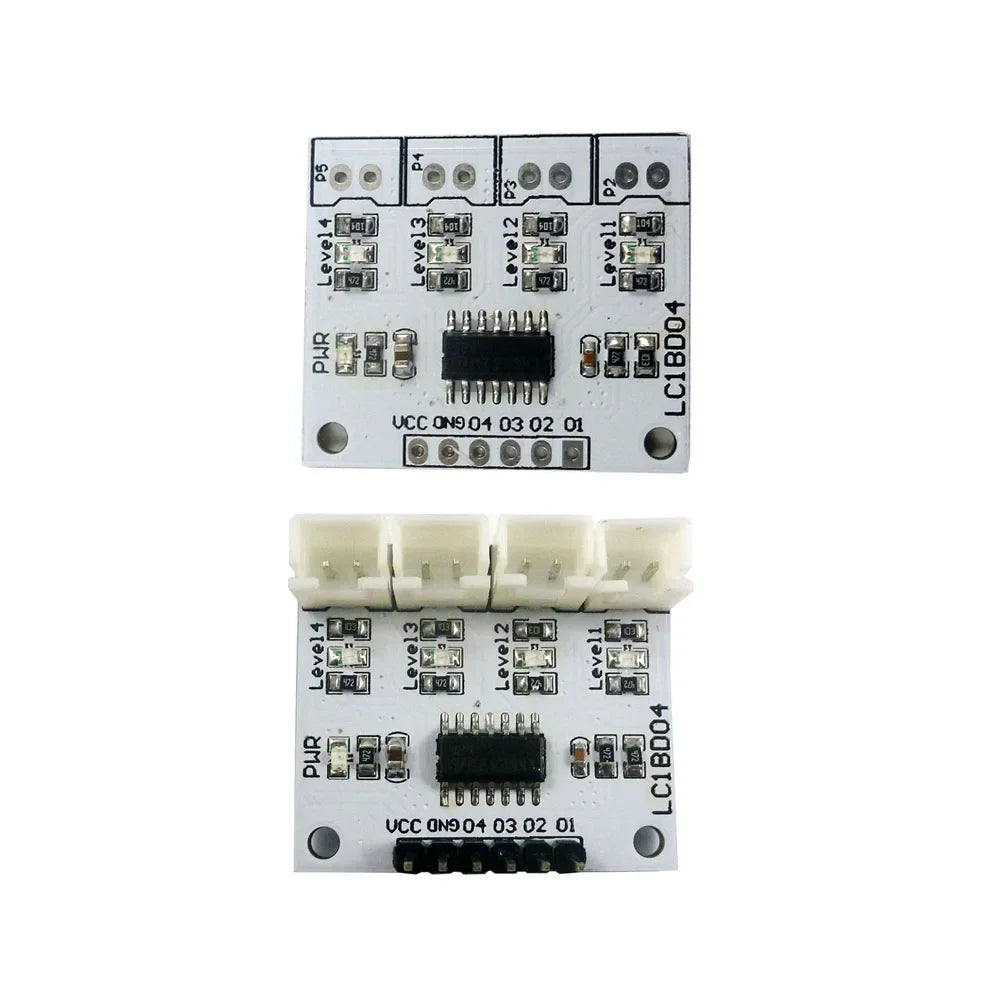

DC 5V 4-Channel Water Liquid Level Sensor Switch Module
DC 5V 4-Channel Water Liquid Level Sensor Switch Module
DC 5V 4-Channel Water Liquid Level Indicator & Controller Sensor Switch Module
Monitor and automate your water systems with precision using this compact DC 5V 4-Digital Water Liquid Level Indicator Board Controller Sensor Switch Module. Designed for aquariums, fish tanks, household water towers, automatic pumping systems, and more — this versatile module delivers stable, reliable performance in a lightweight, easy-to-install package.
Key Features
- Wide Range of Applications: Suitable for aquarium water change systems, water tower auto-fill, conductive liquid control, poultry & livestock automatic feeders, solenoid valve control, and water pump motor automation.
- Compact & Lightweight: Measures just 32mm × 28mm × 11mm (with pin) or 32mm × 28mm × 3.5mm (without pin); weighs only 4.6g (with pin) or 3.3g (without pin).
- Simple to Use: Easy integration with MCU IO ports — no complex wiring required.
- Stable Performance: Delivers consistent readings with one power indicator LED and four water level indicator LEDs for clear visual feedback.

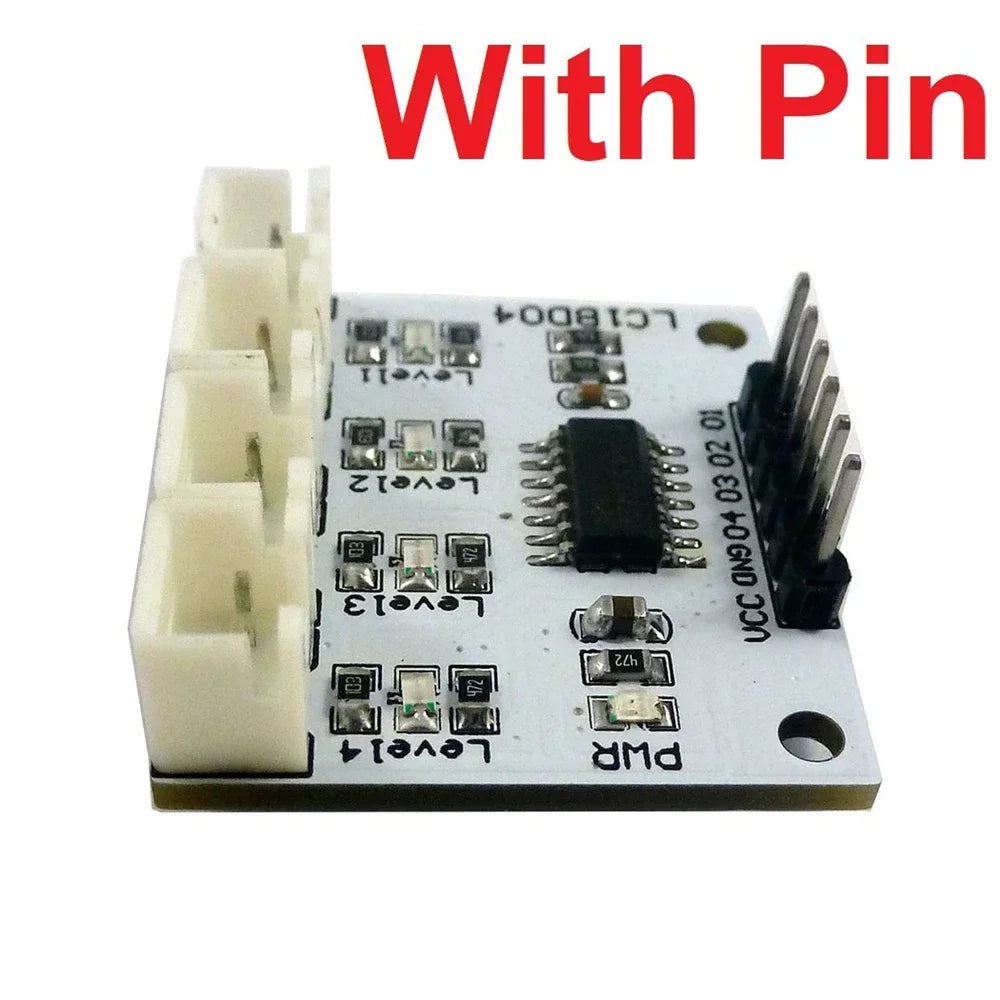

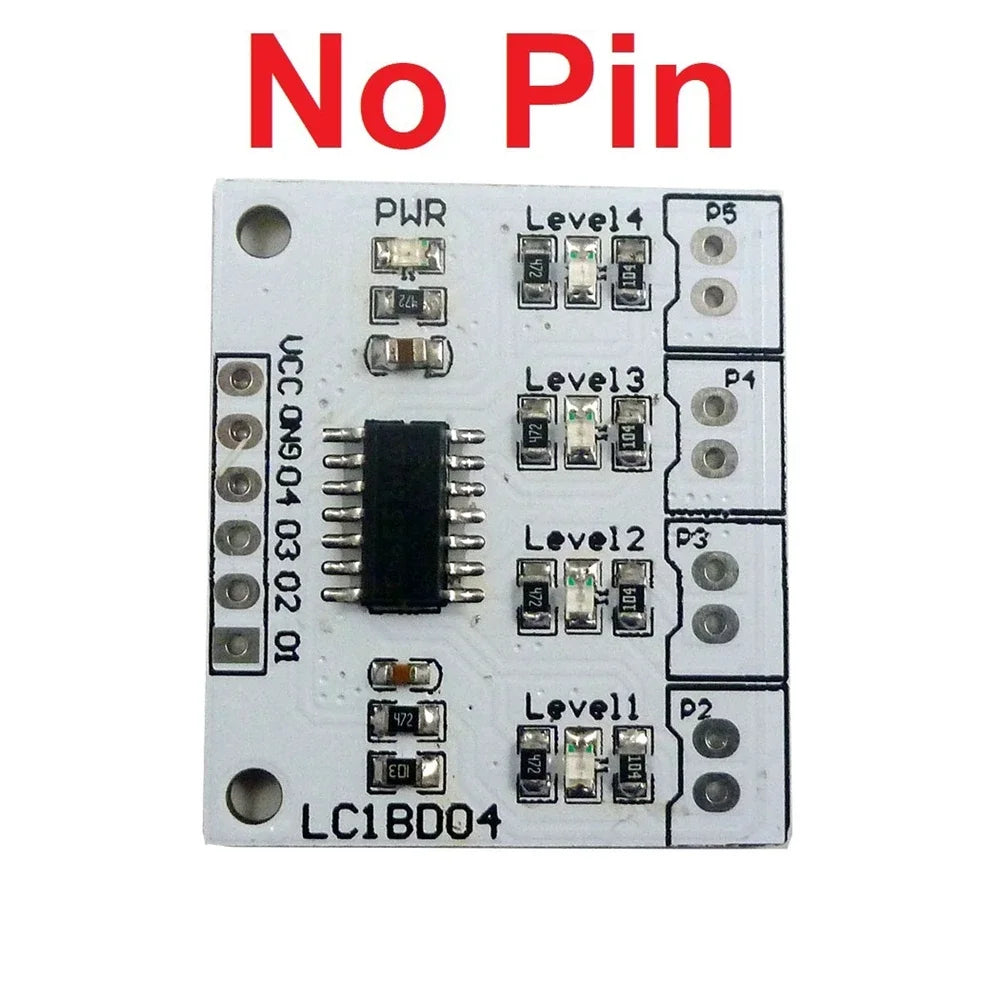

- Flexible Configuration: Available with or without header pins to suit your project needs.
Specifications
- Working Voltage: DC 5V
- Working Current: 7–12 mA

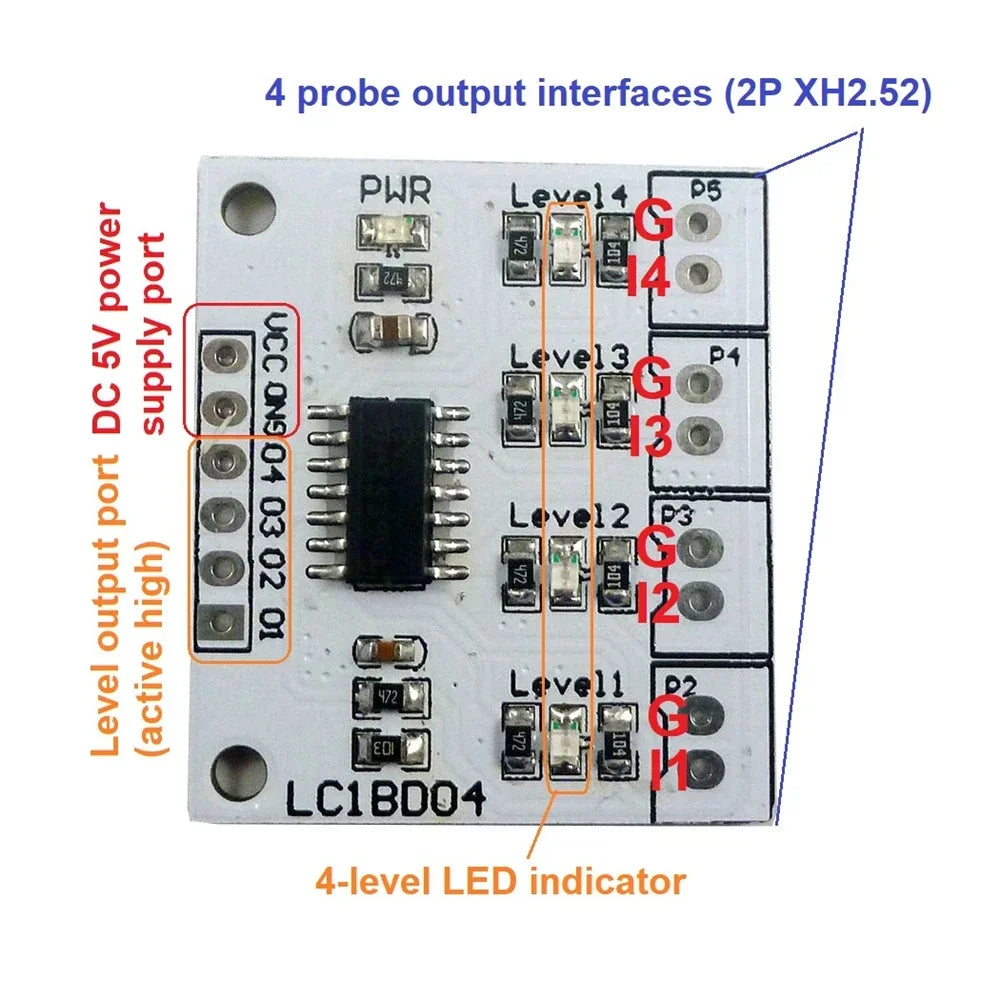

- Indicators: 1 power indicator + 4 water level indicators
- Output Interfaces: 4 water level output interfaces (Low: 0V / High: 3.7V) for MCU IO
- Sensor Interfaces: 4 × 2P XH2.54 connectors
- Dimensions (with pin): 32mm × 28mm × 11mm
- Dimensions (without pin): 32mm × 28mm × 3.5mm
- Weight (with pin): 4.6g | Weight (without pin): 3.3g
Applicable Uses
- Household water tower automatic water supply systems
- Aquarium & fish tank water change systems
- Water tower automatic water injection & pumping
- Conductive liquid automatic control systems
- Automatic feeders for poultry and livestock farms
- Solenoid valve, water pump motor, and automatic control applications
Important Notes
- Probe not included: Package does not include probes/wires. A 2P male XH2.54mm wire and cable can be used as a probe and purchased separately.
- Safety: Always use a well-isolated DC power supply for safe operation.
Package Includes
- 1 × Water Level Controller Panel Sensor Switch Module
Made in Mainland China.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the working voltage of this water level sensor switch module?
A: This water liquid level indicator controller module operates at DC 5V with a working current of 7–12 mA, making it compatible with most standard microcontroller projects and USB-powered systems.
Q: Does the package include probes or sensor wires?
A: No, the probe (wire) is not included in the package. You can use a 2P male XH2.54mm wire and cable as a probe, which is widely available for separate purchase or can be supplied from your own components.
Q: What types of systems can this 4-channel water level sensor module be used with?
A: This module is highly versatile — it works with aquarium and fish tank water change systems, household water tower auto-fill setups, automatic pumping systems, solenoid valve controllers, livestock automatic feeders, and any application requiring automated monitoring of conductive liquid levels.
Q: Can I connect this module directly to a microcontroller (MCU)?

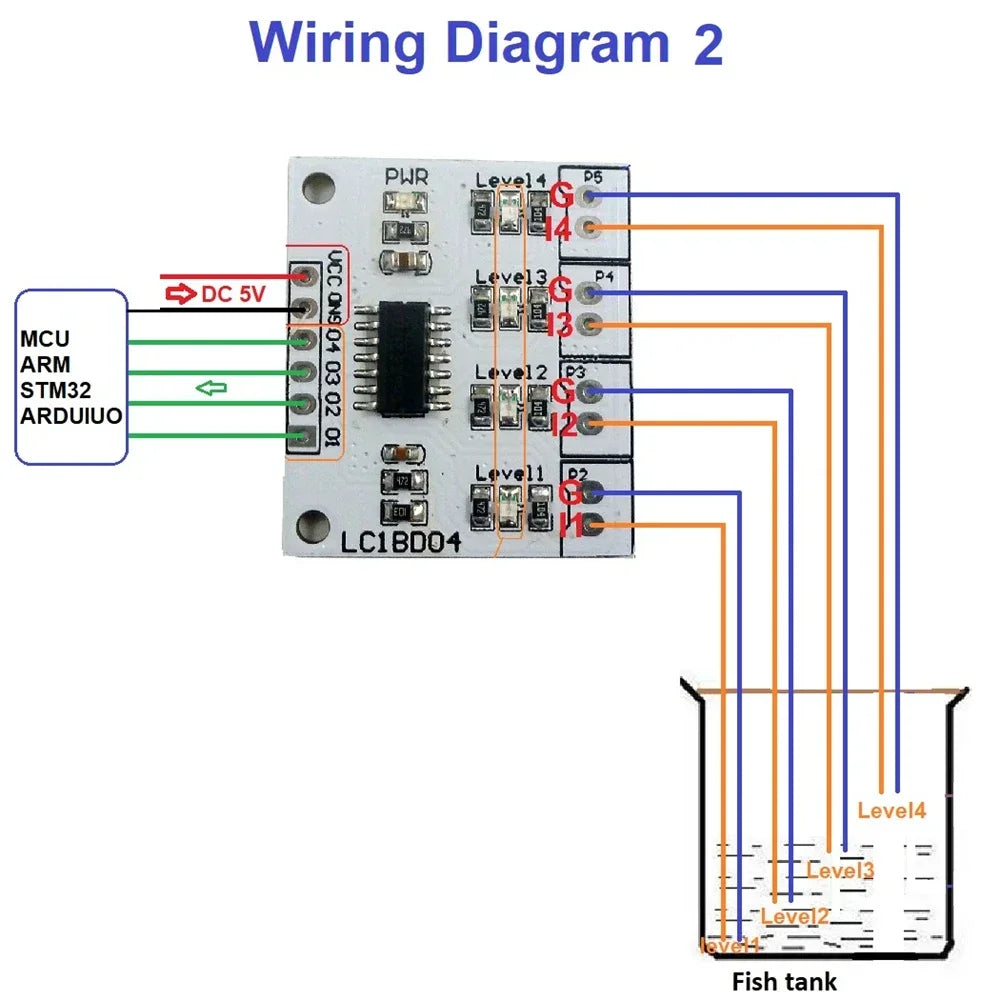

A: Yes. The module features four water level output interfaces with low-level output at 0V and high-level output at 3.7V, making it directly compatible with standard MCU IO ports for seamless integration into your automation projects.
