DC 5V Flip-Flop Latch Relay Module – 1-Channel Bistable Self-Locking Switch
Take precise control of your electronics projects with this DC 5V Bistable Flip-Flop Latch Relay Module. Featuring a single-key self-locking design, this 1-channel relay board allows you to toggle output states with a single trigger pulse — no need to hold the signal. Ideal for DIY electronics, industrial control systems, smart home upgrades, and automotive start/stop circuits.
Made in Mainland China.
Key Features
- Bistable Single-Key Switching: Each trigger pulse flips the relay state (ON→OFF or OFF→ON), making operation simple and intuitive for a wide range of control applications.
- Self-Locking Design: Once triggered, the relay holds its state until the next signal — no continuous power needed to maintain position, ensuring stable, reliable operation.
- Flexible Trigger Modes: Supports both high-level signal (3V+) and physical switch inputs, allowing versatile integration with microcontrollers (Arduino, Raspberry Pi), PLCs, and manual switches.
- Built-In Anti-Jitter Circuit: Onboard debounce circuitry filters out signal noise and electromagnetic interference, delivering consistent performance even in demanding environments.
- Wide Application Range: Suitable for industrial equipment control, smart home appliance automation, vehicle ignition start/stop modification circuits, and more.
Technical Specifications
| Supply Voltage | DC 5V (operating range: 4.5V – 6V) |
| Standby Current | 1.0 mA |
| Working Current | 68 mA |
| Signal Trigger Level | High level ≥3V (limit: -2V to +8V) |
| Output Mode | Passive (switching) – 1× NO + 1× NC contacts |
| Output Capacity | 10A @ DC 30V or AC 250V |
| Switching Time | ~10 ms (±1% error) |
| Relay Service Life | 100,000+ operations (at ≤10A) |

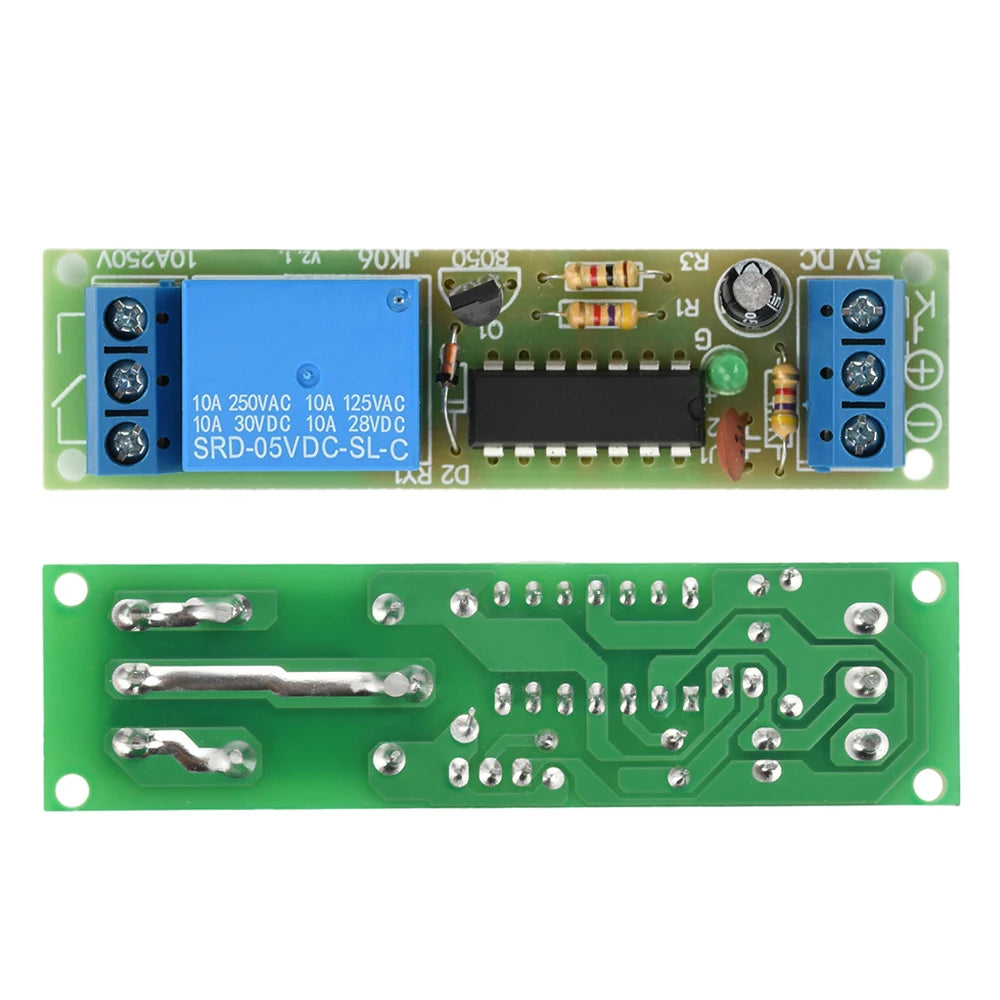

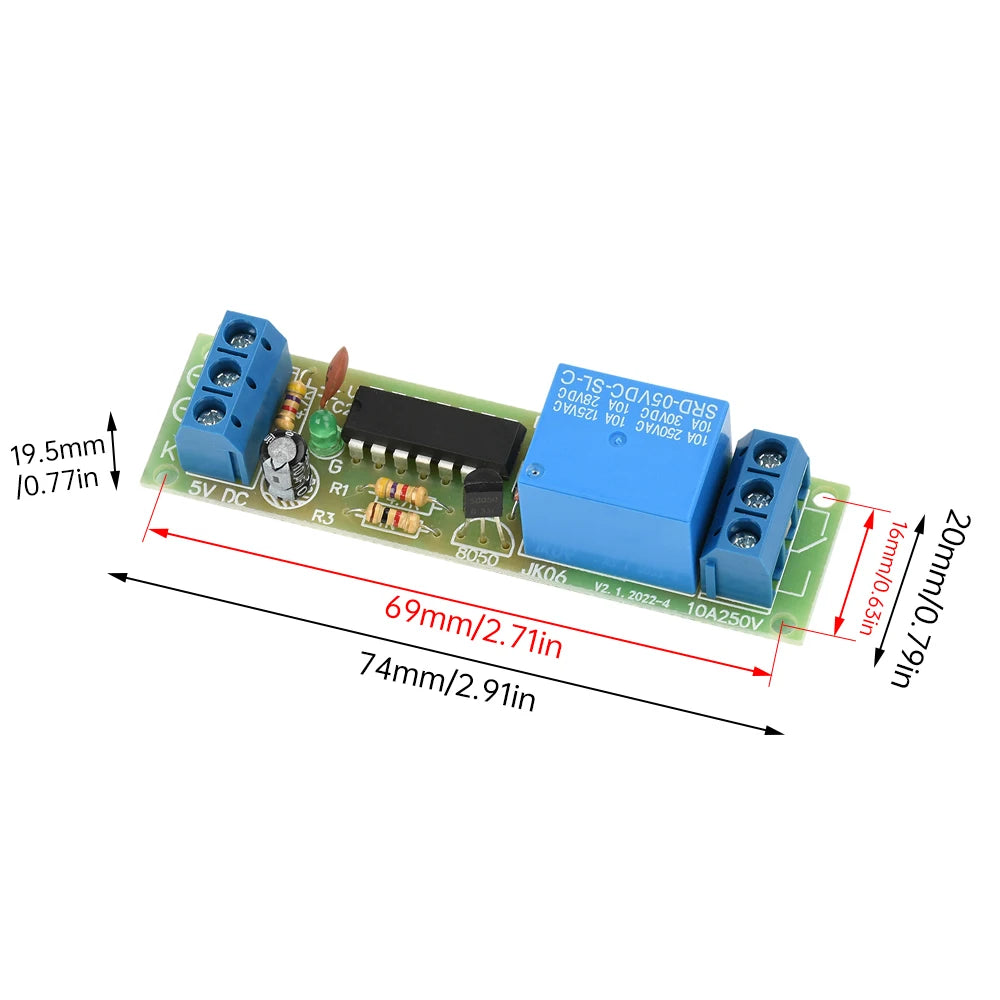

| Board Dimensions | 74 × 20 × 20 mm |
| Mounting Hole Spacing | 69 × 16 mm center-to-center, Ø2.6 mm holes |
| Package Type | SOP |

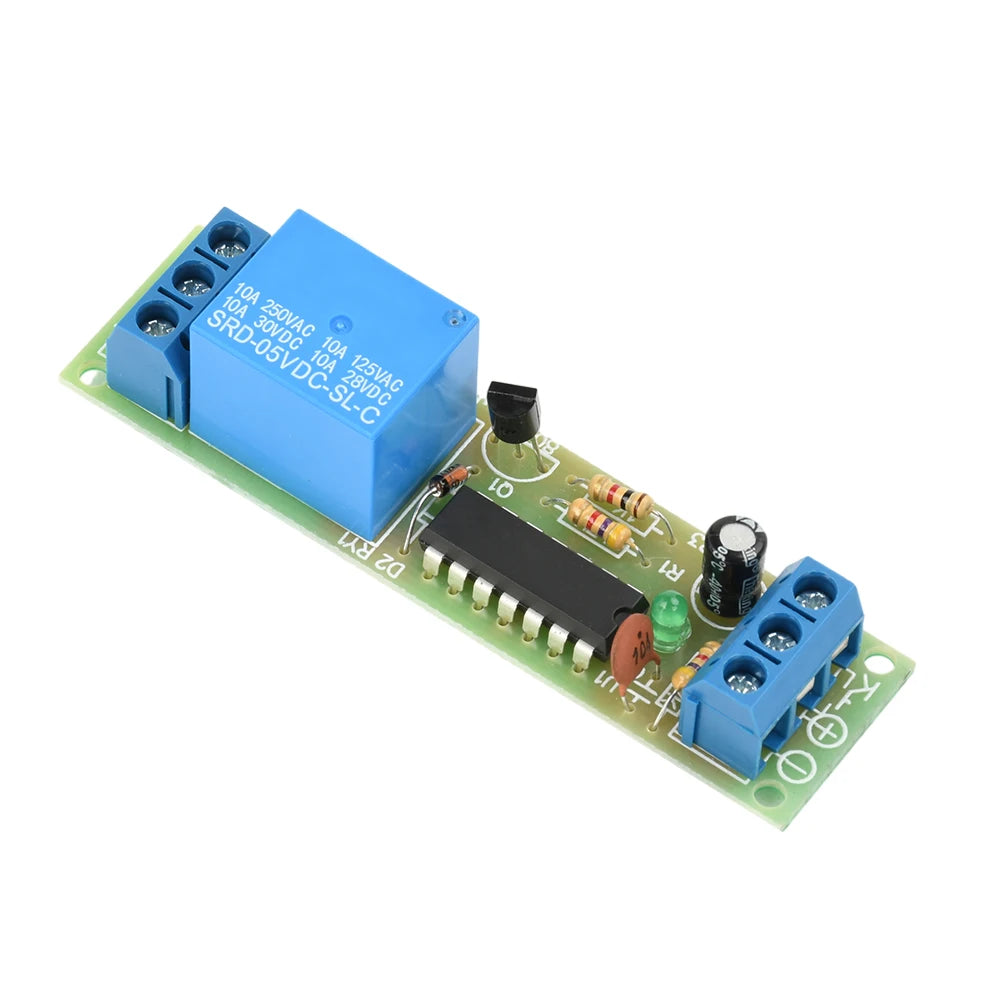

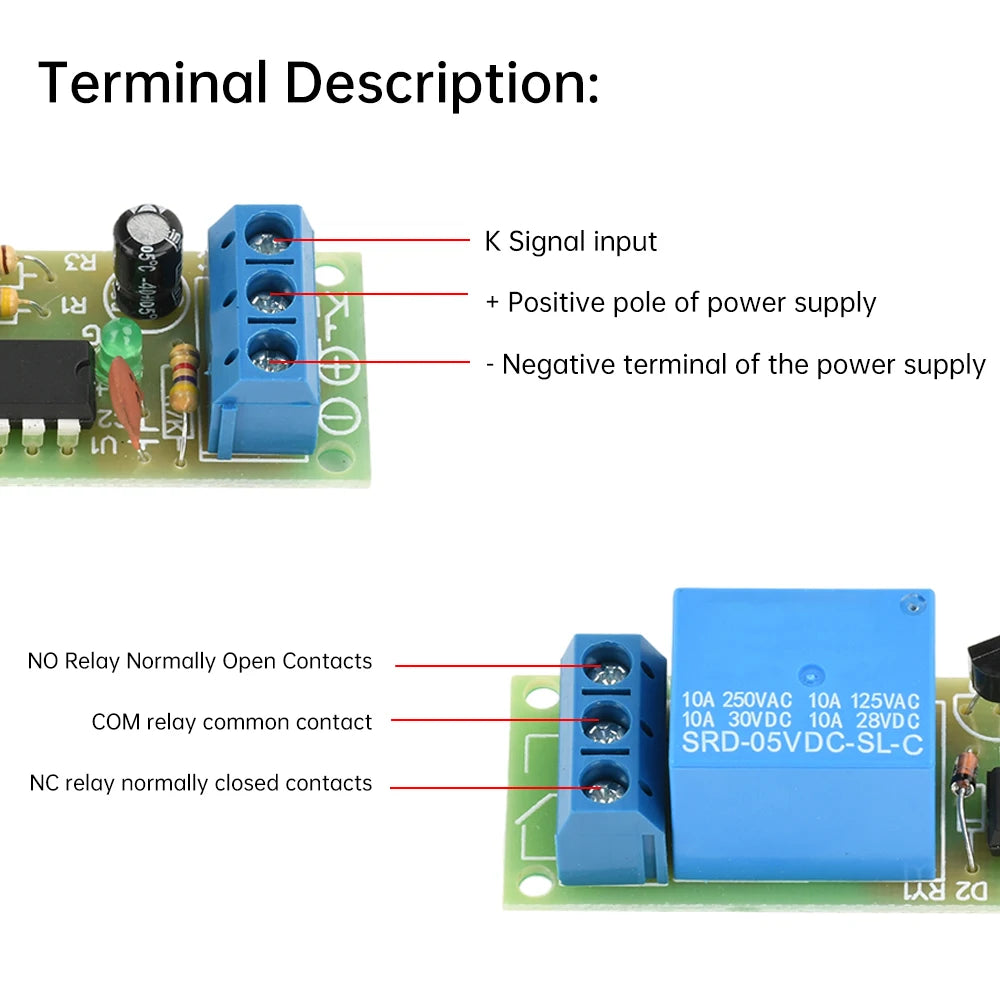

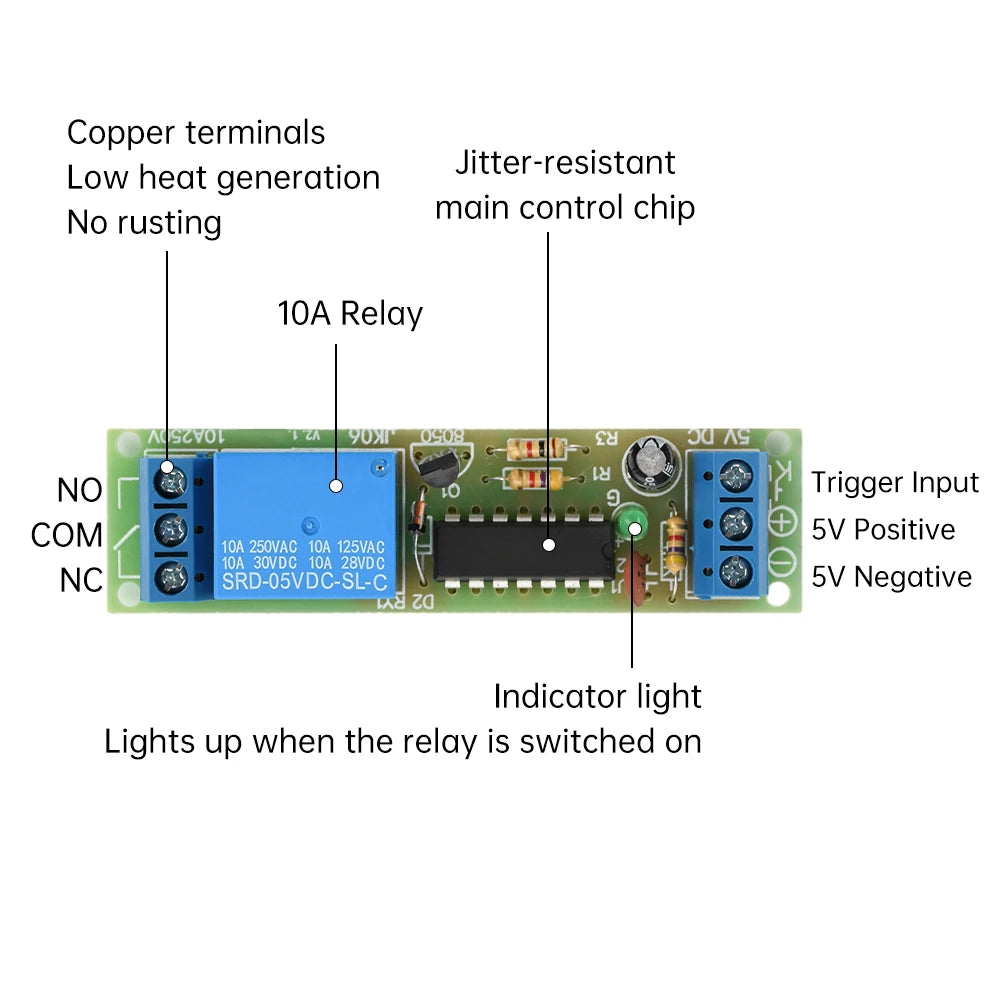

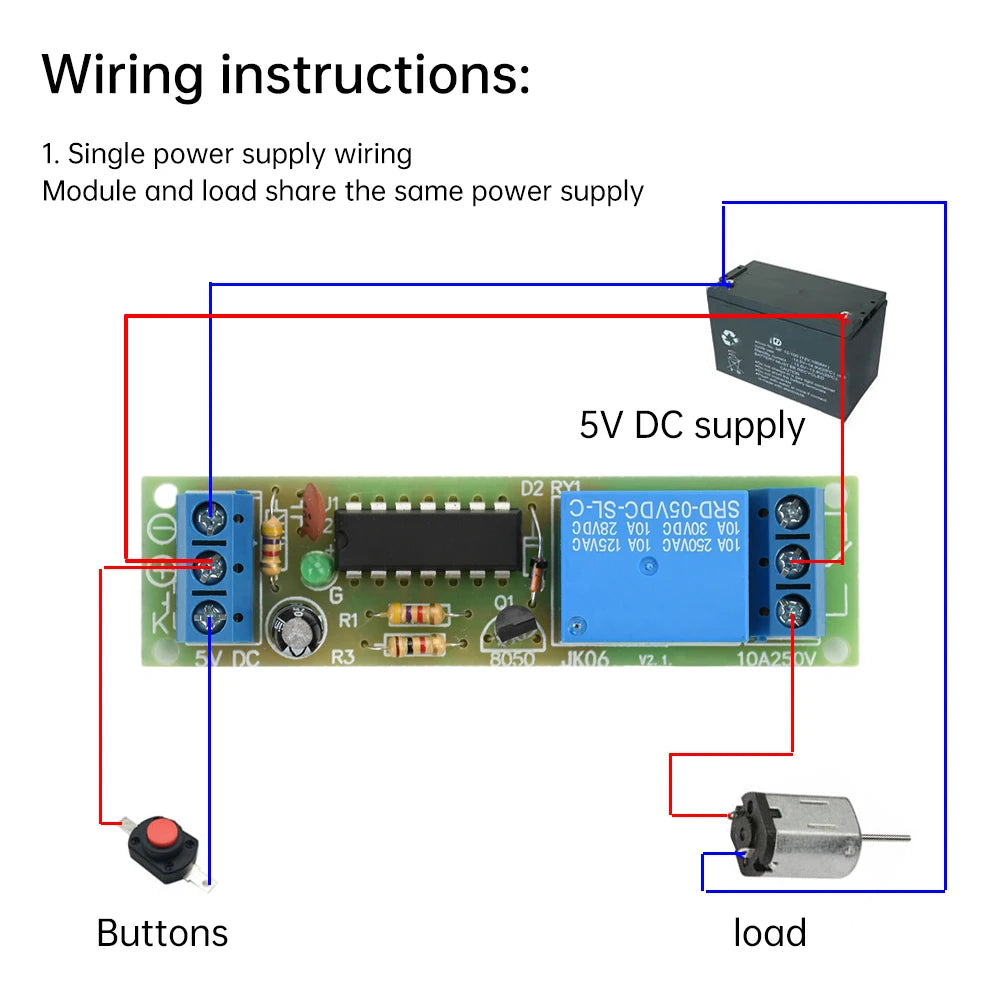

Terminal Description
- + — Power supply positive terminal
- – — Power supply negative terminal
- K — Signal input terminal
- NO — Normally Open relay contact
- NC — Normally Closed relay contact
- COM — Relay common contact
Package Includes
- 1× DC 5V Bistable Flip-Flop Latch Relay Module (Single Channel, Self-Locking)
