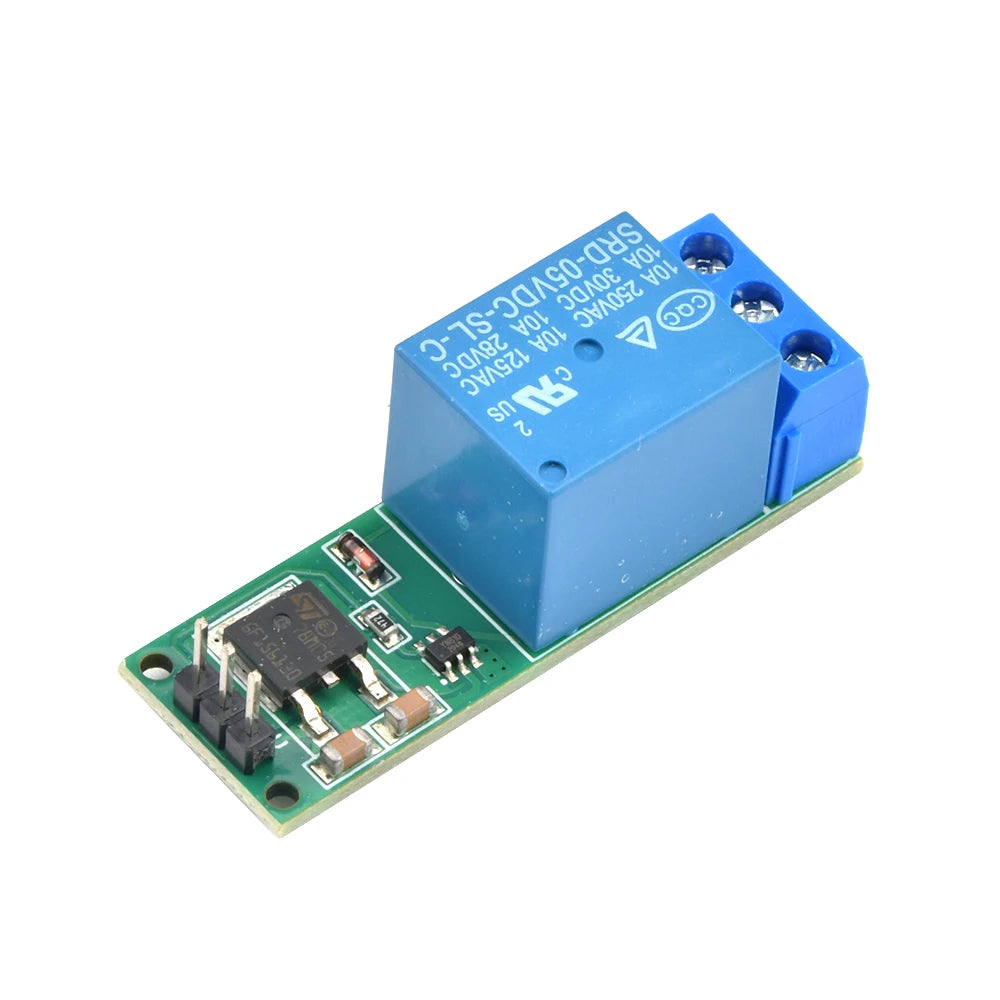

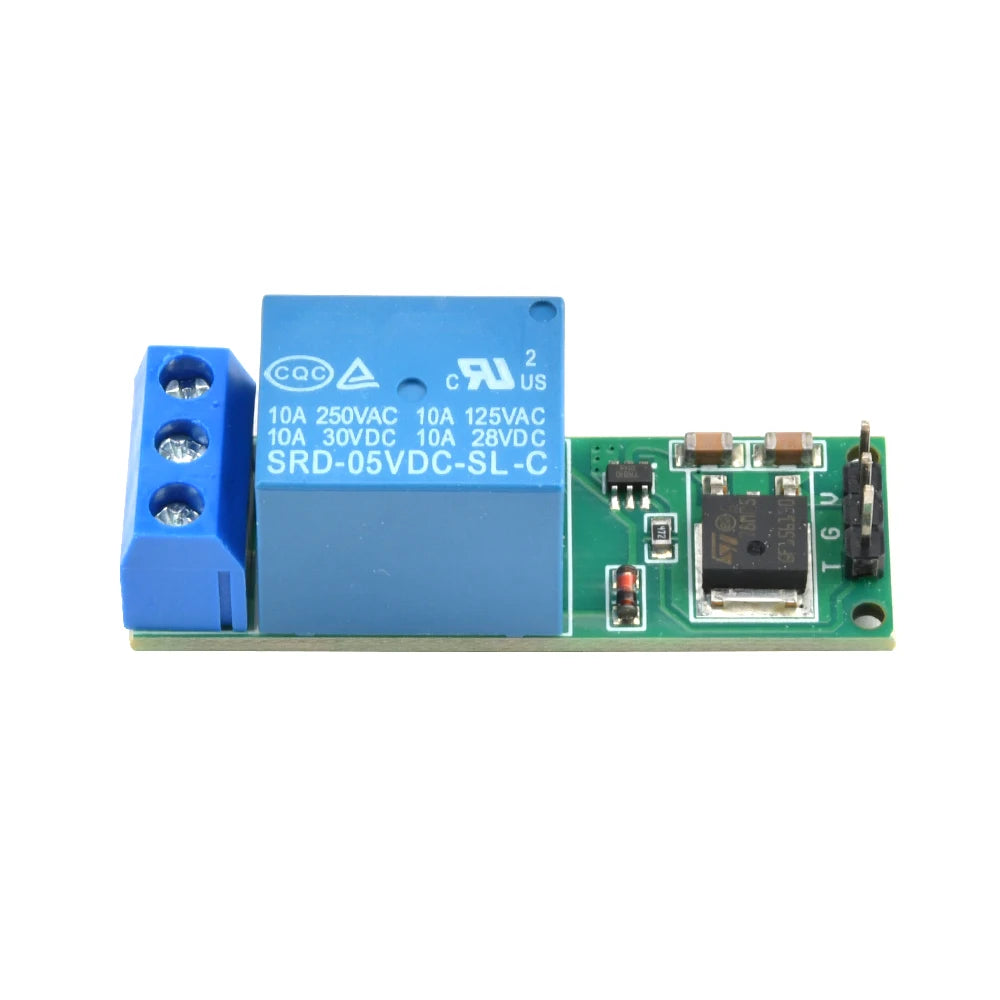

DC 6-24V Bistable Self-Locking Relay Module
Take control of your smart home, automotive, or DIY electronics projects with the DC 6-24V Flip-Flop Latch Relay Module. This compact 1-channel bistable (self-locking) relay switch uses a low-pulse trigger to toggle its state — once switched, it holds its position without continuous power, making it incredibly energy efficient with an ultra-low standby current of just 1μA.
Whether you're automating LED lighting, building a smart home system, working on an automotive electronics project, or developing an MCU prototype, this relay board delivers reliable, stable switching performance in a user-friendly package built from premium-quality components.
Key Features
- Bistable / Self-Locking Design: Holds its ON or OFF state without continuous power — ideal for energy-sensitive applications.
- Wide Operating Voltage: Compatible with DC 6V to 24V power supplies for maximum versatility.
- Low-Pulse Trigger: Simple, single-pulse activation toggles the relay state with ease.
- High Load Capacity: Supports AC 250V/10A and DC 30V/10A — handles real-world loads confidently.
- Ultra-Low Standby Current: Only 1μA standby draw keeps your system efficient between triggers.

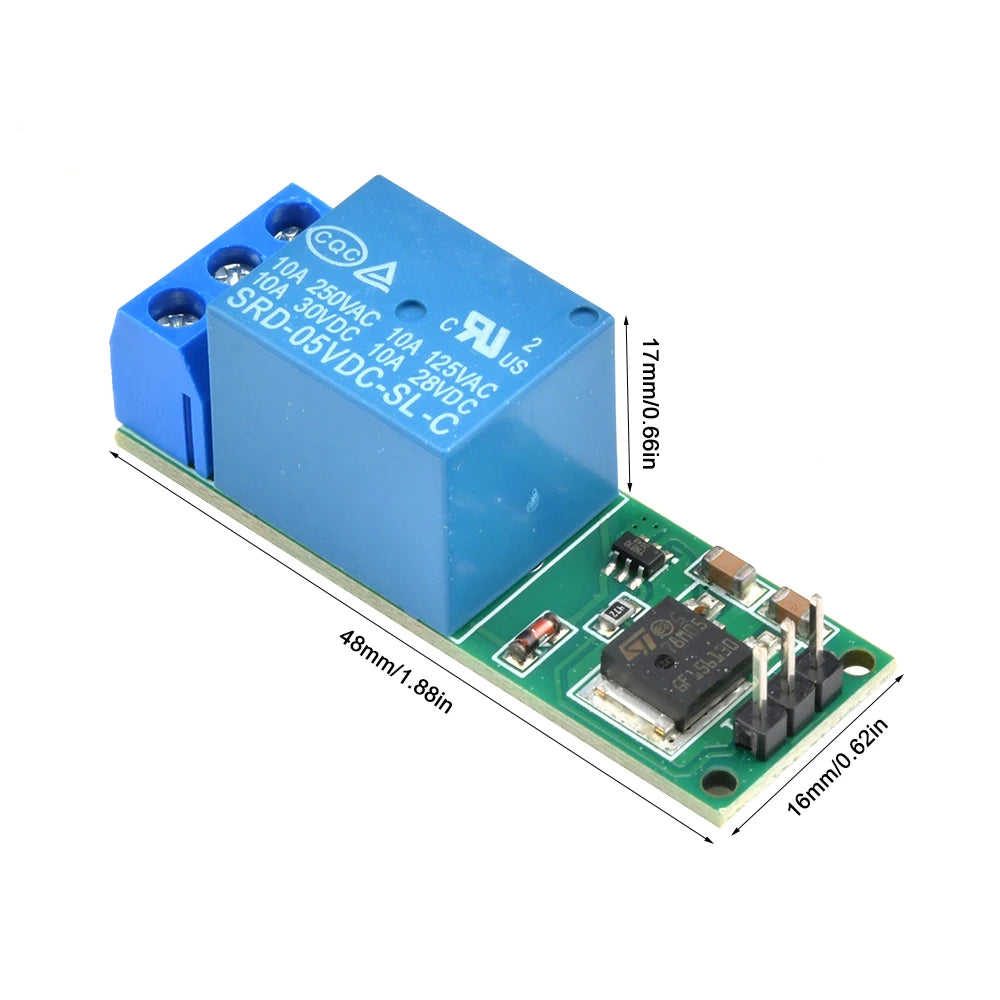

- Compact & Elegant Form Factor: Easy to integrate into tight spaces and existing enclosures.
- Wide Application Range: Perfect for automotive electronics, industrial equipment, LED control, smart home devices, emergency lighting, MCU development boards, and toy cars.
Technical Specifications
| Operating Voltage | DC 6V – 24V |
| Operating Current | 60–70 mA |
| Standby Current | 1 μA |
| Load Capacity | AC 250V/10A | DC 30V/10A |
| Trigger Mode | Low-Pulse Trigger |
| Relay Type | Bistable (Self-Locking / Flip-Flop) |
| Channels | 1-Way |
| EU LVD Voltage | Low Voltage — Below 50V AC or 75V DC |

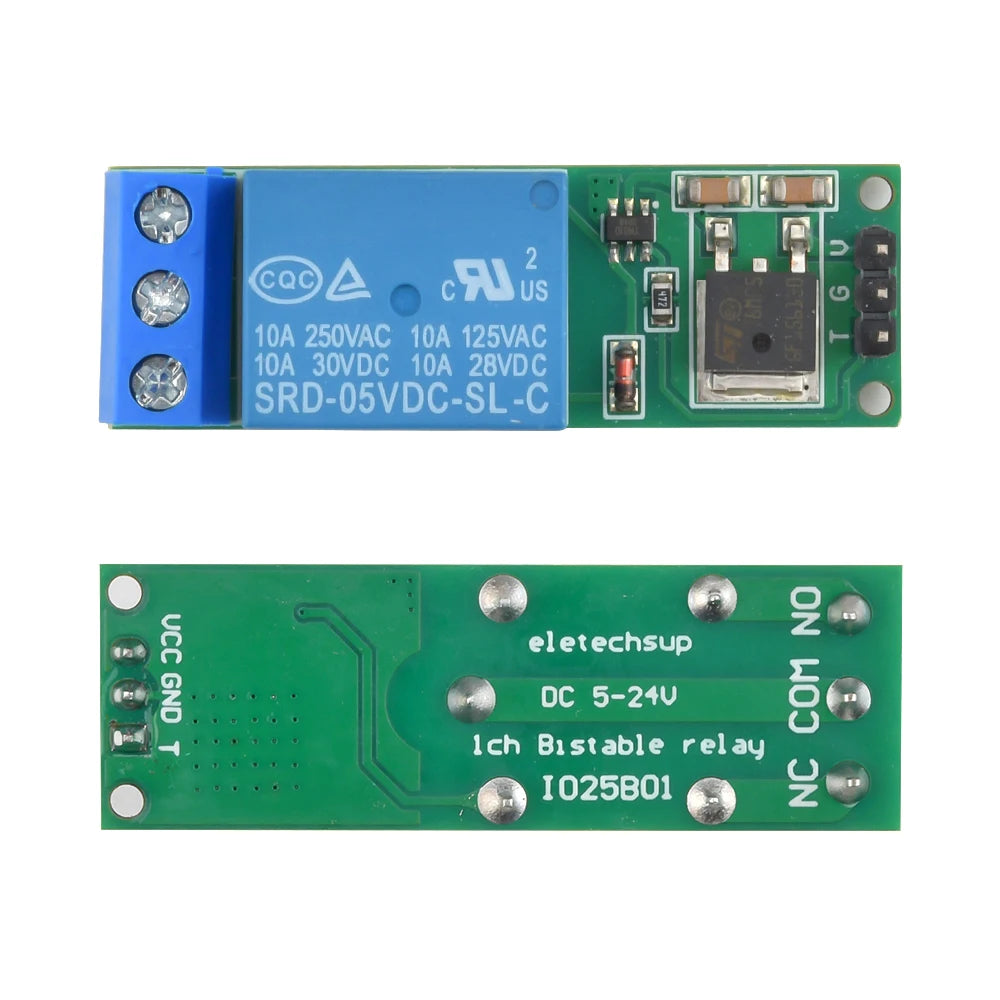

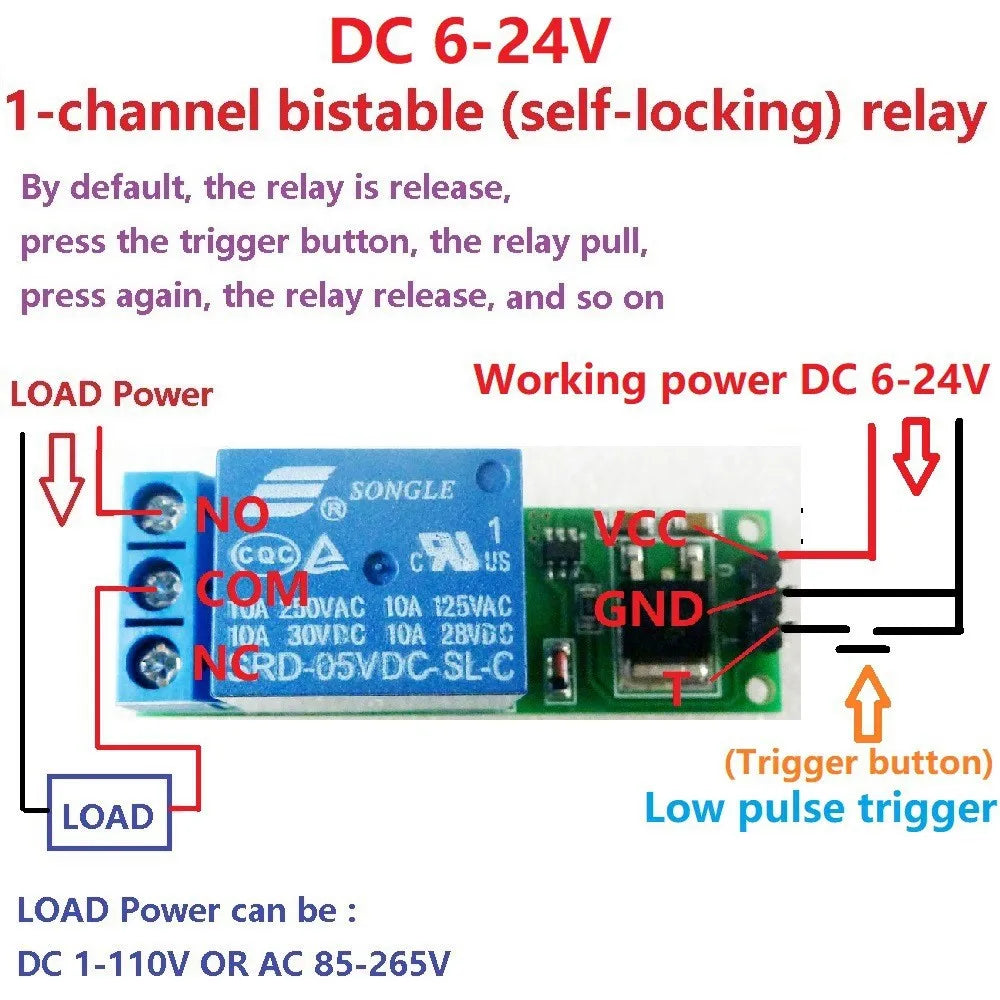

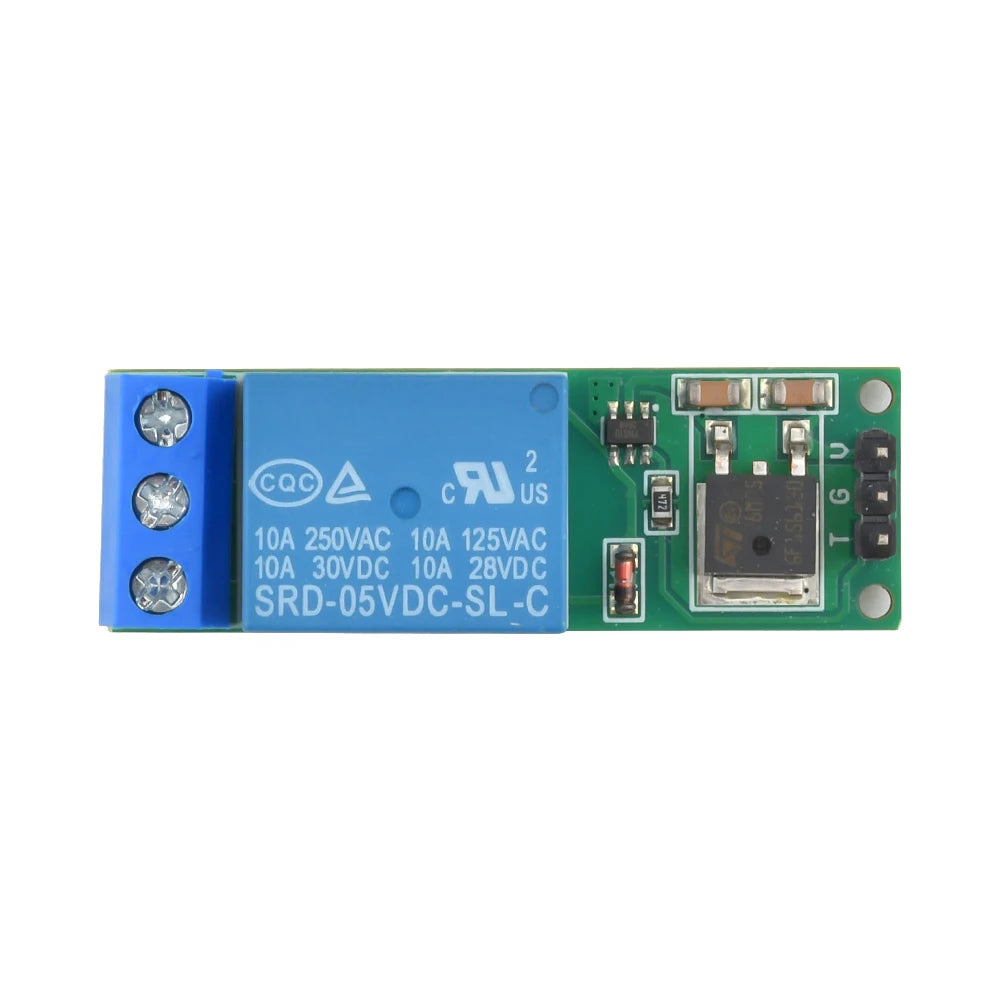

Module Interface Pinout
- VCC: Positive Power Supply
- GND: Negative Power Supply (Ground)
- T: Low-Pulse Trigger Input
Relay Output Terminals
- NO: Normally Open Interface
- COM: Common Interface
- NC: Normally Closed Interface
What's in the Box
- 1× Self-Locking Bistable Relay Module
Made in Mainland China.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does "bistable" or "self-locking" mean for this relay module?
A: A bistable relay module has two stable states — ON and OFF. Once triggered by a low pulse, it latches into its new state and holds that position without needing continuous power. This makes the DC 6-24V bistable self-locking relay module highly energy-efficient, as it consumes only 1μA in standby.
Q: What types of projects is this flip-flop latch relay module best suited for?
A: This relay switch module is ideal for a wide variety of applications including smart home automation, LED lighting control, automotive electronics, emergency lighting systems, MCU development boards, industrial equipment switching, and toy car projects. Its wide 6-24V DC operating range makes it compatible with most common power supplies.
Q: How do I trigger the relay to change its state?
A: Simply apply a low-pulse signal to the T (trigger) pin. Each low pulse toggles the relay between its Normally Open (NO) and Normally Closed (NC) states. The module interface includes VCC (positive supply), GND (ground), and T (trigger input) for straightforward wiring.
Q: What is the maximum load this relay module can handle?
A: The relay output terminals support up to AC 250V/10A or DC 30V/10A, making it suitable for controlling moderate-duty loads such as LED strips, small motors, and standard home automation devices.
