GUANDO 400W DC-DC Step-Down Buck Power Module — Adjustable Voltage & Current

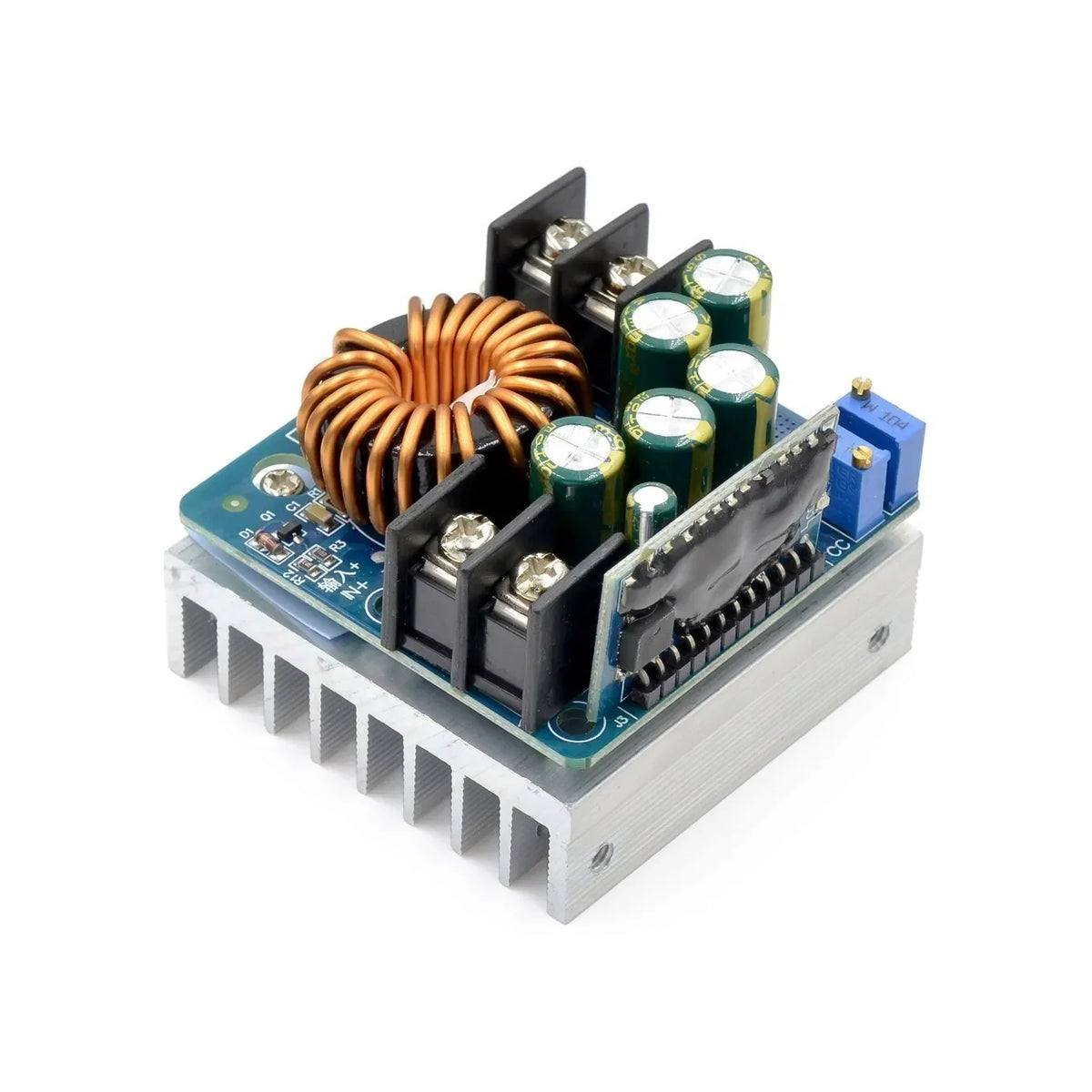

Meet the GUANDO SZ-BK0612 — a high-efficiency, 400W non-isolated BUCK (step-down) power module designed for makers, engineers, and electronics enthusiasts. Whether you need a reliable bench power supply, a battery charging solution, or an LED driver, this compact module delivers continuously adjustable voltage and current with impressive efficiency. Made in Mainland China.
Key Features
- Wide Input Range: Accepts 10.5V–60V DC input, compatible with most common power supplies on the market.
- Adjustable Output: Continuously adjustable output voltage (0–45V) and current (0.2–15A) to suit virtually any load requirement.
- High Efficiency: Step-rectifier design achieves up to 92–97% conversion efficiency depending on input/output conditions.
- High Output Power: Up to 400W peak (with forced cooling); 280W / 12A maximum continuous output in a well-ventilated environment.
- Constant Voltage & Constant Current (CV/CC): Dual-mode operation with a dedicated red CC indicator light that illuminates during constant-current operation for at-a-glance status monitoring.
- Built-in Protections: Input undervoltage protection (auto-shuts output below ~10.5V), input reverse-polarity fuse protection (15A fuse), and short-circuit protection via constant-current limiting.

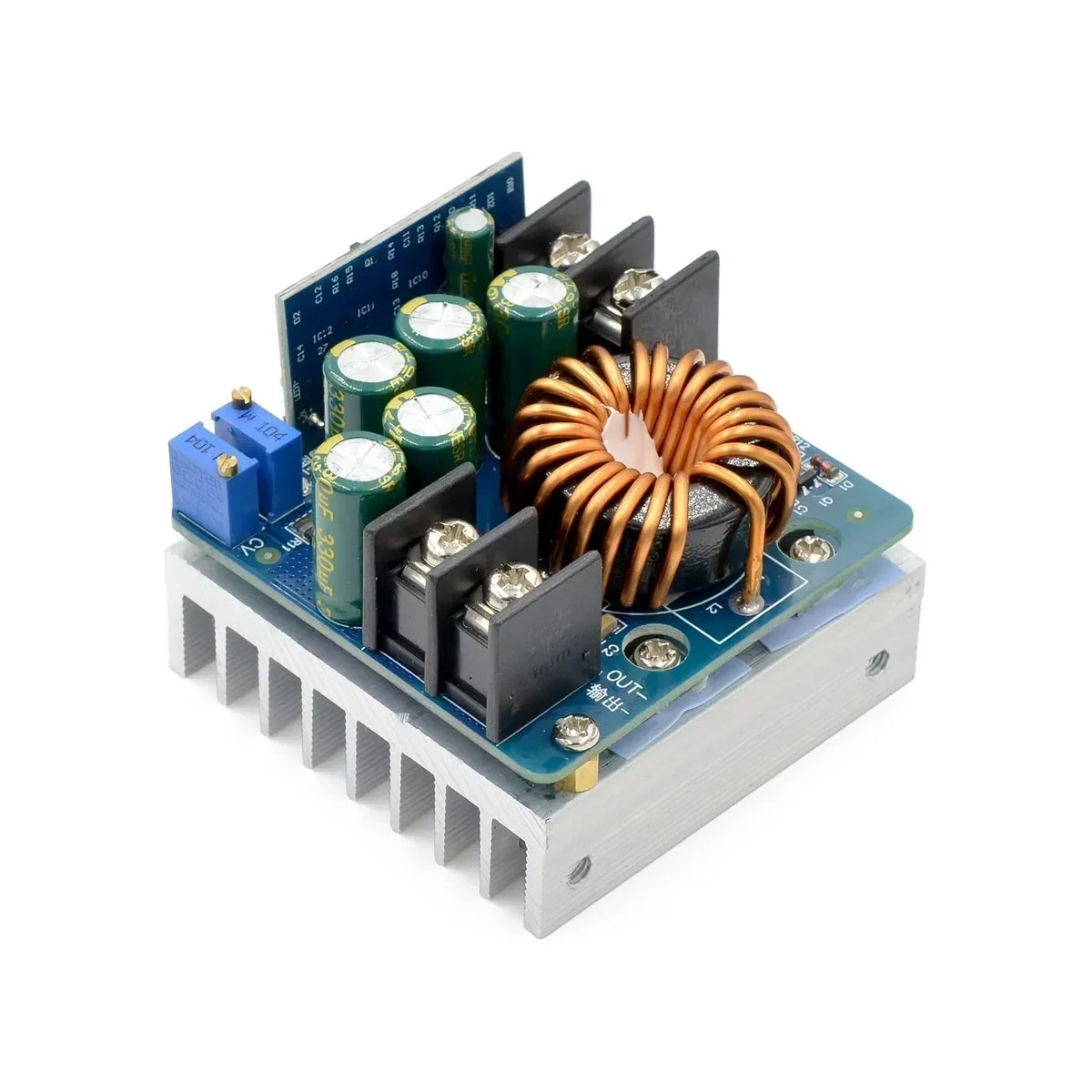

- Easy Connections: Built-in 25A screw terminal block — no soldering required.

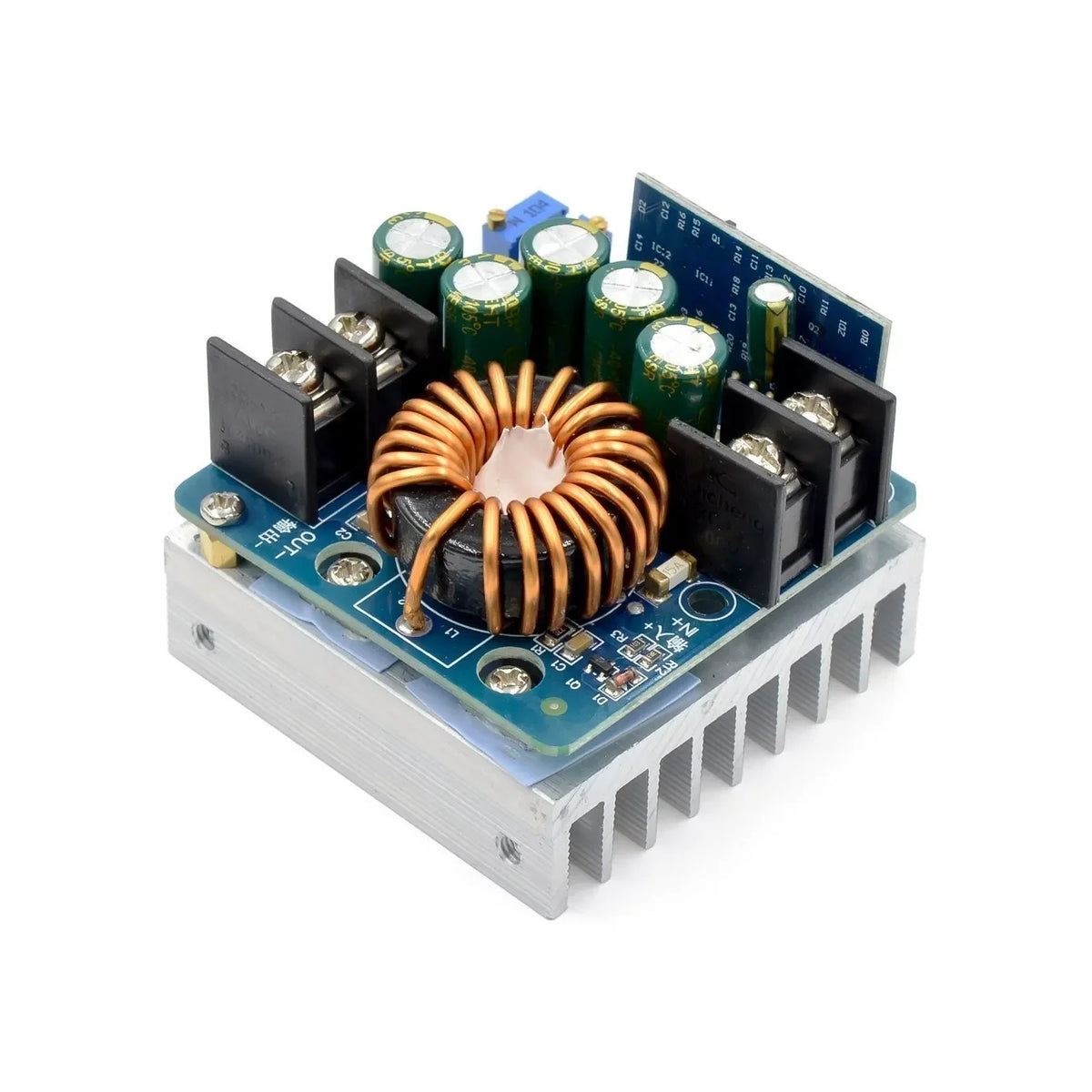

- Status Indicator: Blue LED working indicator light confirms the module is active.
Technical Specifications
| Model | SZ-BK0612 |
| Module Type | Non-Isolated BUCK (Step-Down) |
| Input Voltage | 10.5V – 60V DC |
| Output Voltage | 0V (+1V) – ~Input × 0.8 (max 45V) |
| Output Current | 0.2A – 15A (continuously adjustable) |
| Peak Output Power | 400W (forced cooling required) |
| Continuous Output Power | 280W / 12A (ventilated environment) |
| Conversion Efficiency | Up to 97% |
| Working Frequency | 100 kHz |
| Operating Temperature | -10°C to +85°C (add cooling above 65°C) |
| Input Fuse | 15A (replaceable) |
| Connection Terminal | Built-in 25A screw terminal (no soldering) |

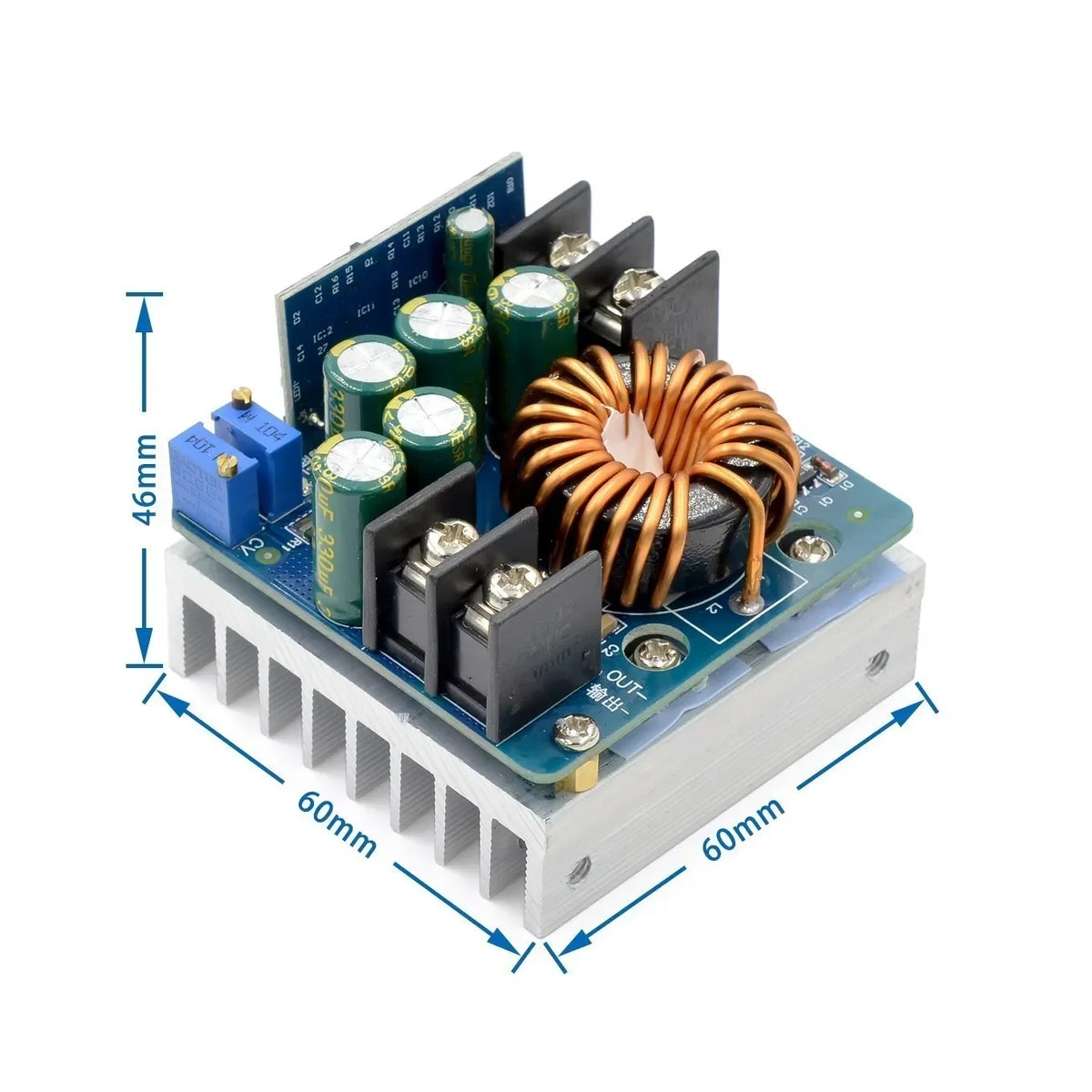

| Module Dimensions | 60mm × 60mm × 45mm |
| Net Weight | 170g (packaged: ~180g) |
| Country of Origin | Made in Mainland China |
How to Adjust Voltage & Current

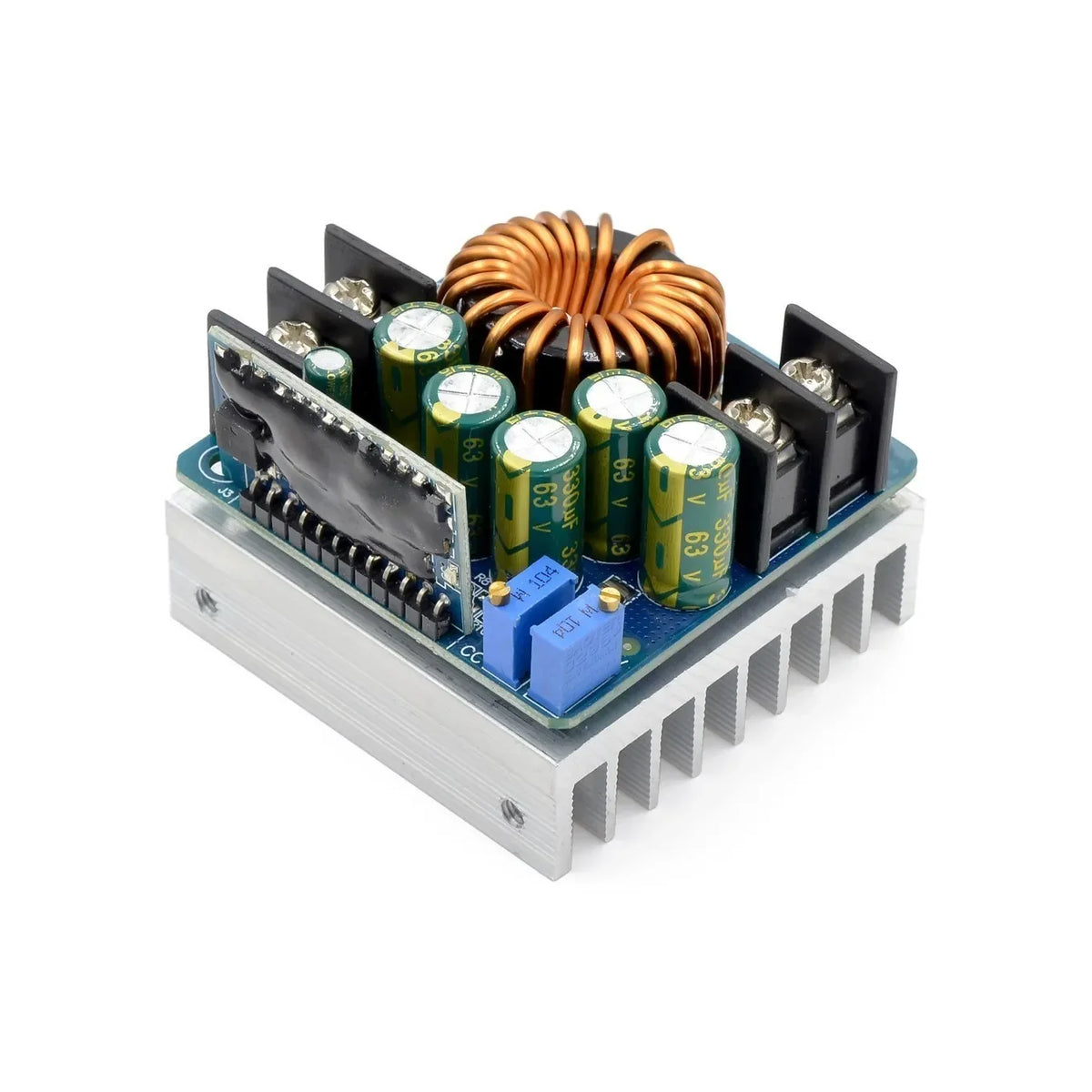

Voltage Adjustment: Use a flat-head screwdriver to turn the CV (blue) potentiometer on the module. Rotate clockwise to increase voltage and counter-clockwise to decrease it. Monitor with a multimeter for precision.
Current Adjustment: Set your multimeter to the 10A or 20A current range. Set output voltage to ~5V, then turn the CC (blue) potentiometer fully counter-clockwise (~20 turns) to bring current to minimum. Short-circuit the output terminals through the multimeter, then rotate the CC potentiometer clockwise until the desired current value is reached. Note: If the module shows no output after turning CC fully counter-clockwise, this is normal — current is set to 0A. Simply rotate clockwise to restore output.
Important Safety Notes
- This is a step-down (buck) only module — input voltage MUST always be higher than output voltage.
- Never reverse-connect input or output terminals. Reverse input will blow the input fuse; reverse output will damage the control board beyond repair.
- When charging batteries or driving inductive loads (e.g., motors), add an anti-backfeed diode on the output.
- Do NOT short-circuit the input negative and output negative poles directly — this bypasses constant-current detection and can damage the module and connected load.

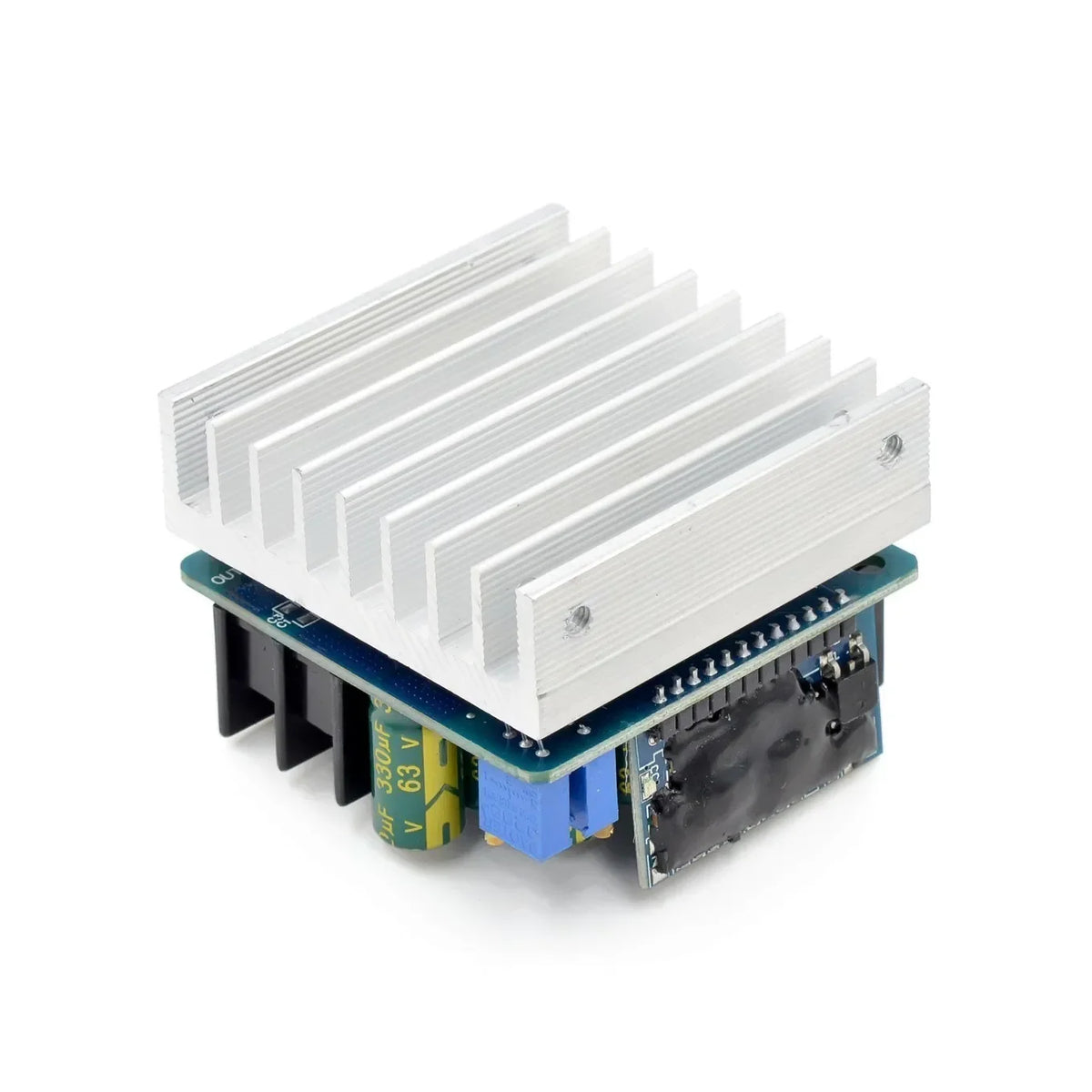

- For continuous operation above 280W or 12A, add forced cooling (a fan on the heatsink and magnetic ring).
- The control board has weather-resistant conformal coating — avoid physical impact or dropping.
