DC-DC Adjustable Boost & Buck Voltage Regulator Module

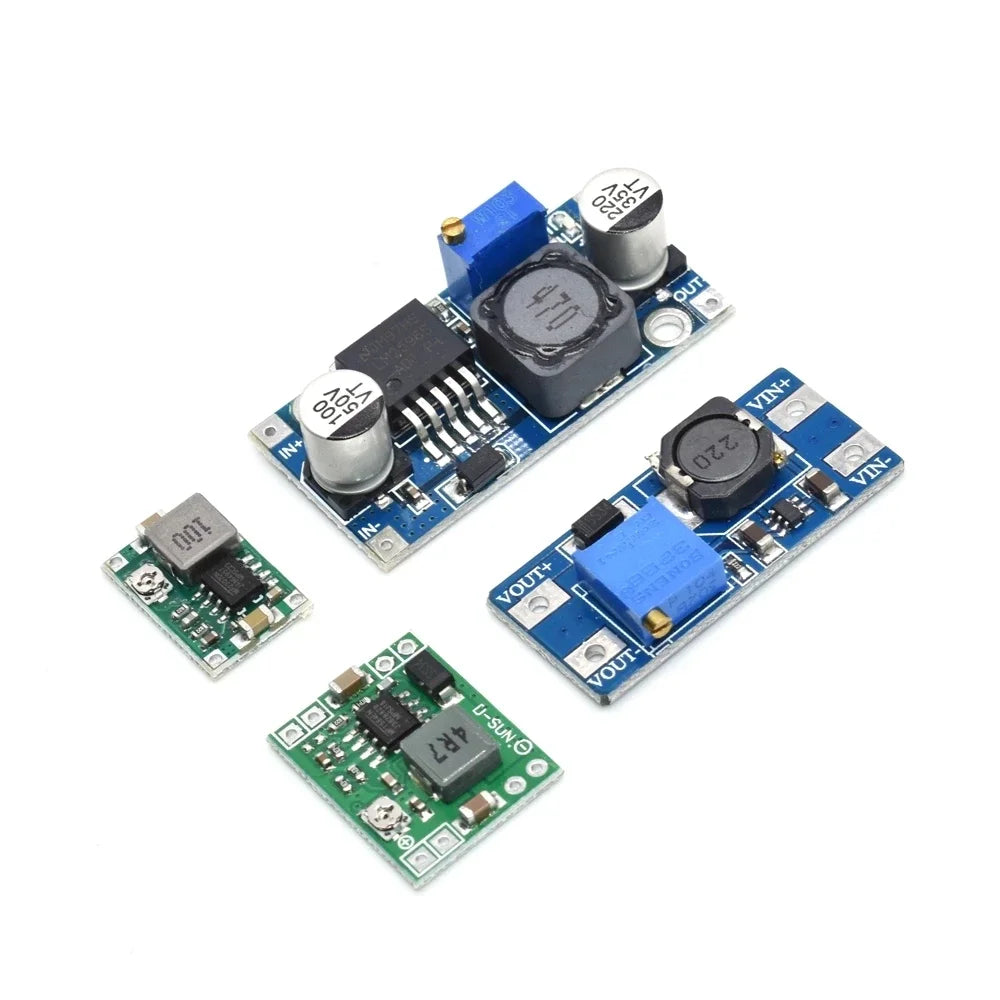

Take full control of your electronics projects with this versatile DC-DC Adjustable Voltage Regulator Module. Featuring three powerful converter ICs — LM2596S-ADJ, MT3608, and MP1584EN — this module gives you the flexibility to step voltage up (boost) or step it down (buck) to precisely the level your circuit requires. Perfect for hobbyists, engineers, and makers working on power supply design, robotics, Arduino/Raspberry Pi projects, battery charging systems, and more.
Why Choose This Voltage Regulator Module?
- Dual Functionality: Supports both boost (step-up) and buck (step-down) voltage conversion in one compact package.
- Adjustable Output: Fine-tune the output voltage to match your exact project requirements with the onboard trimmer potentiometer.

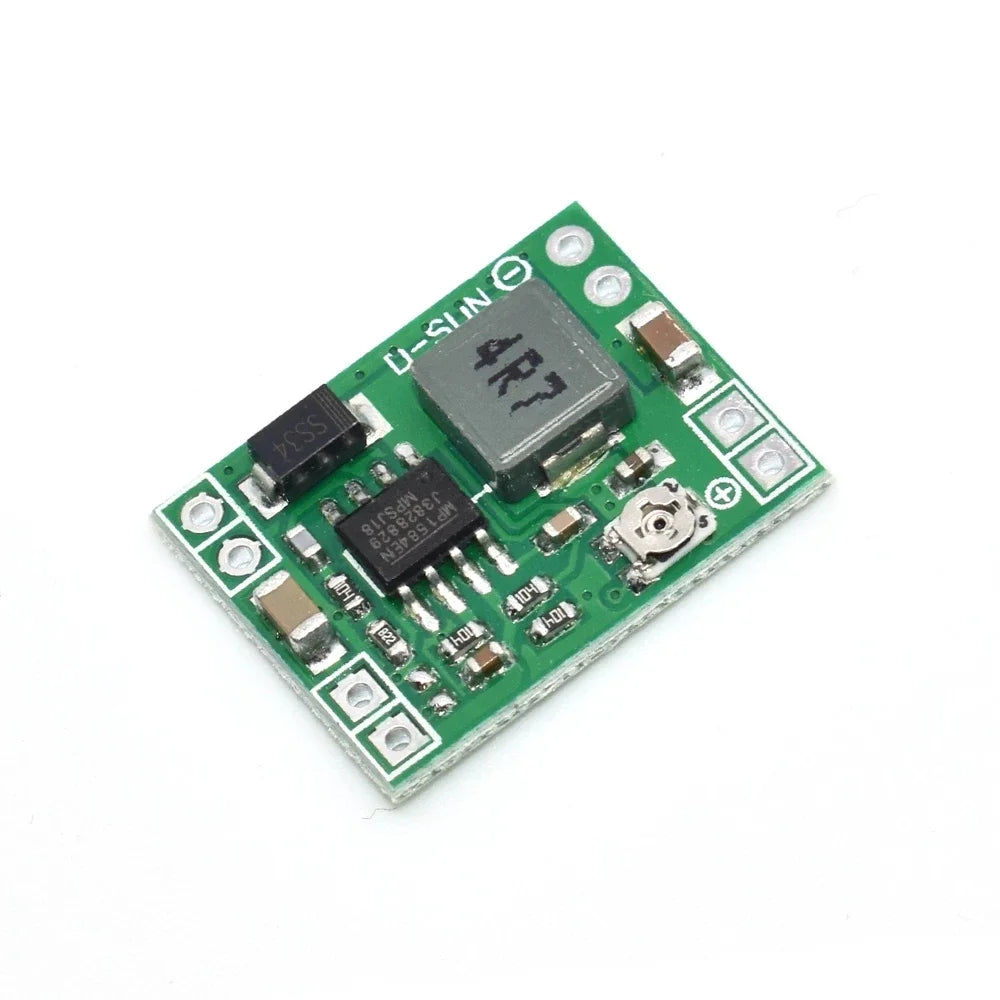

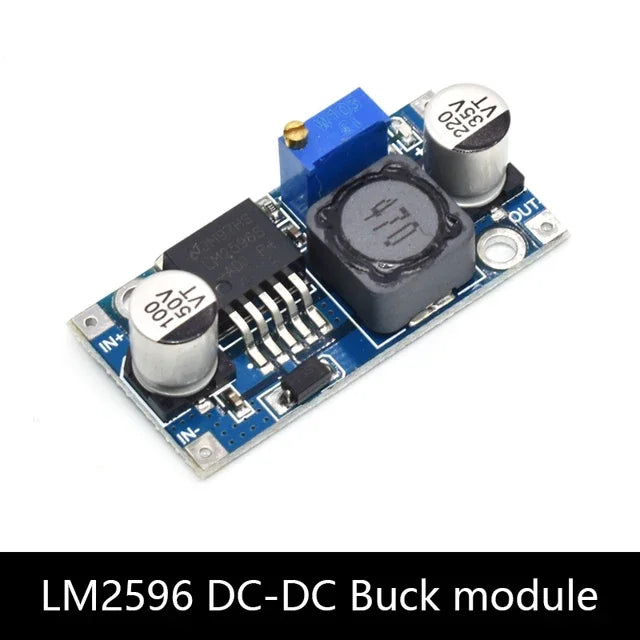

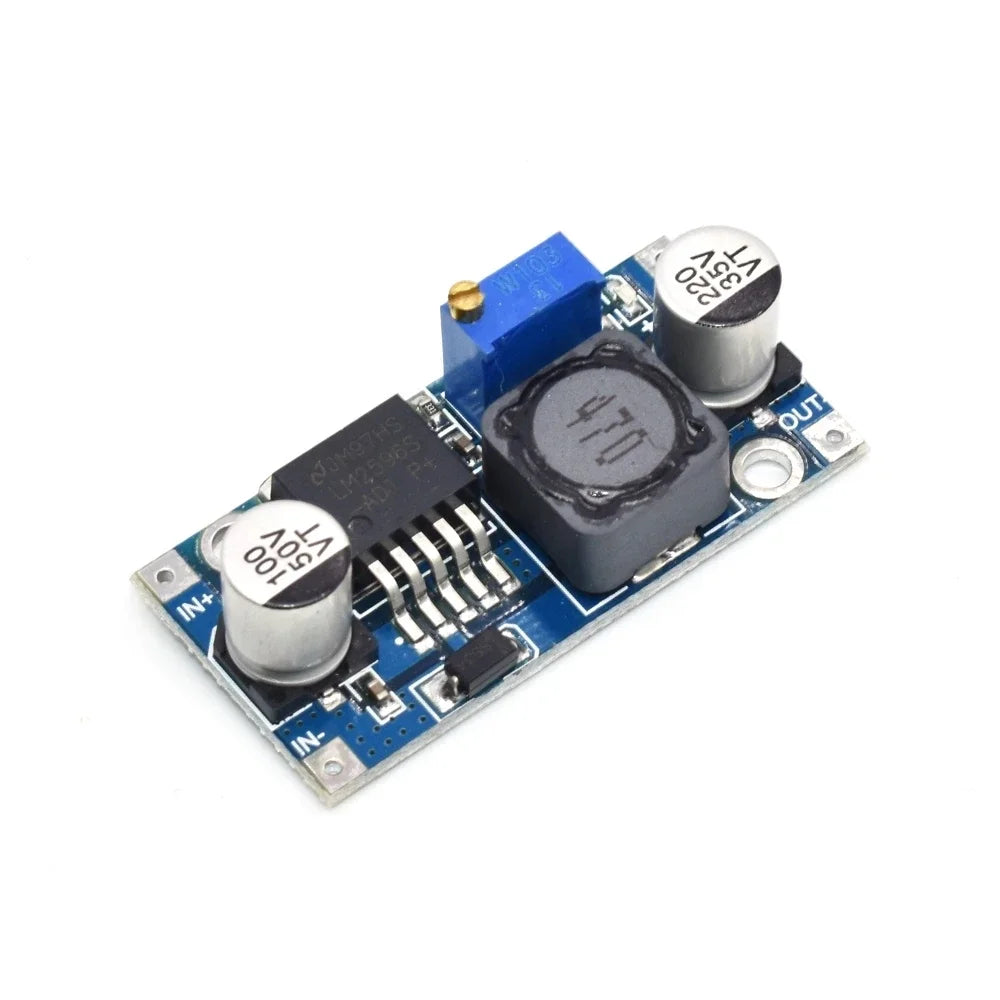

- Multi-Chip Options: Includes LM2596S-ADJ (buck), MT3608 (boost), and MP1584EN (buck) chipsets for maximum flexibility.
- High Efficiency: Switching regulator design delivers efficient power conversion, minimizing heat and energy waste.
- Compact & Lightweight: Small form factor fits easily into enclosures, breadboards, and PCB assemblies.
- Wide Input Voltage Range: Compatible with a broad range of input voltages, making it suitable for battery-powered and mains-adapted applications.
- Easy to Use: Simple screw terminal or pin connections for quick integration into any project.
- New Condition: Ships brand new, tested, and ready for immediate use.
Key Specifications
- Module Type: DC-DC Switching Voltage Regulator (Boost & Buck)
- Chipsets Included: LM2596S-ADJ, MT3608, MP1584EN
- Conversion Type: Adjustable step-up (boost) and step-down (buck)
- Customizable: Yes — adjustable output voltage
- Condition: New
- Country of Origin: Made in China
Common Applications
- DIY electronics & prototyping
- Arduino, Raspberry Pi, and microcontroller power supply
- Battery charging and management systems
- LED driver circuits
- Robotics and automation projects
- Solar power and energy harvesting systems
- Portable device power regulation
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the difference between the LM2596S-ADJ, MT3608, and MP1584EN modules?
A: The LM2596S-ADJ and MP1584EN are buck (step-down) DC-DC converter modules that reduce voltage from a higher input to a lower output. The MT3608 is a boost (step-up) converter that increases voltage from a lower input to a higher output. Together, they cover a wide range of voltage conversion needs for electronics projects.
Q: How do I adjust the output voltage on this DC-DC voltage regulator module?
A: Each module features an onboard trimmer potentiometer. Simply connect your input power source and use a small screwdriver to turn the potentiometer while monitoring the output voltage with a multimeter. Adjust until you reach your desired output voltage level.
Q: Is this voltage regulator module suitable for beginners?
A: Yes! This adjustable boost and buck voltage regulator module is designed to be beginner-friendly with straightforward connections and clear input/output terminals. It is widely used in DIY electronics, Arduino, and Raspberry Pi projects by makers of all skill levels.
Q: What input voltage range does this module support?
A: The supported input voltage range varies by chipset. Generally, the LM2596S-ADJ handles inputs from approximately 4V to 40V (buck), the MT3608 handles inputs from approximately 2V to 24V (boost), and the MP1584EN handles inputs from approximately 4.5V to 28V (buck). Always consult the datasheet for each IC for precise operating limits.
