5A DC-DC Boost Step-Up Power Module XL6019 3.3V-35V Converter
5A DC-DC Boost Step-Up Power Module XL6019 3.3V-35V Converter
5A DC-DC Step-Up Boost Power Module – XL6019 Voltage Converter

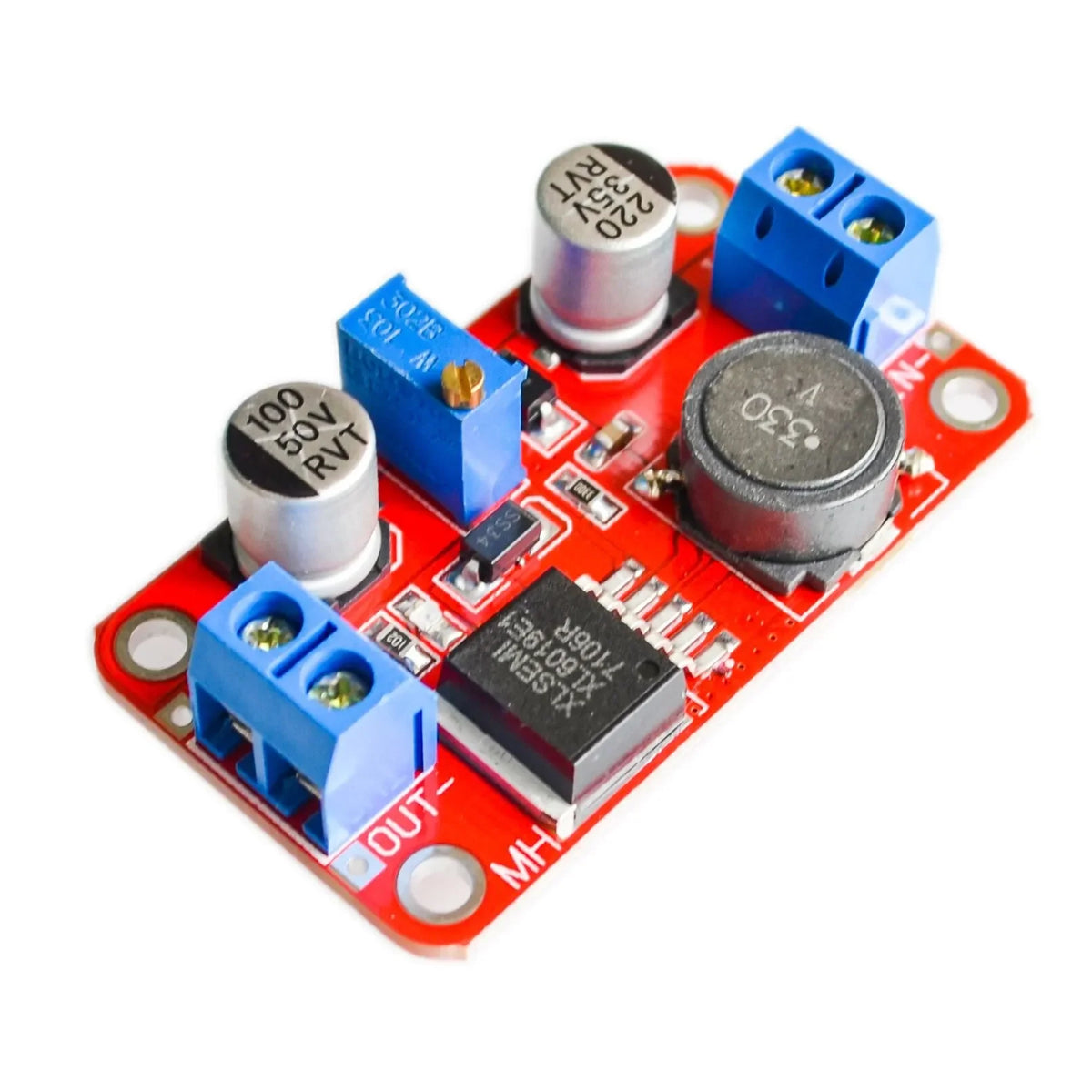

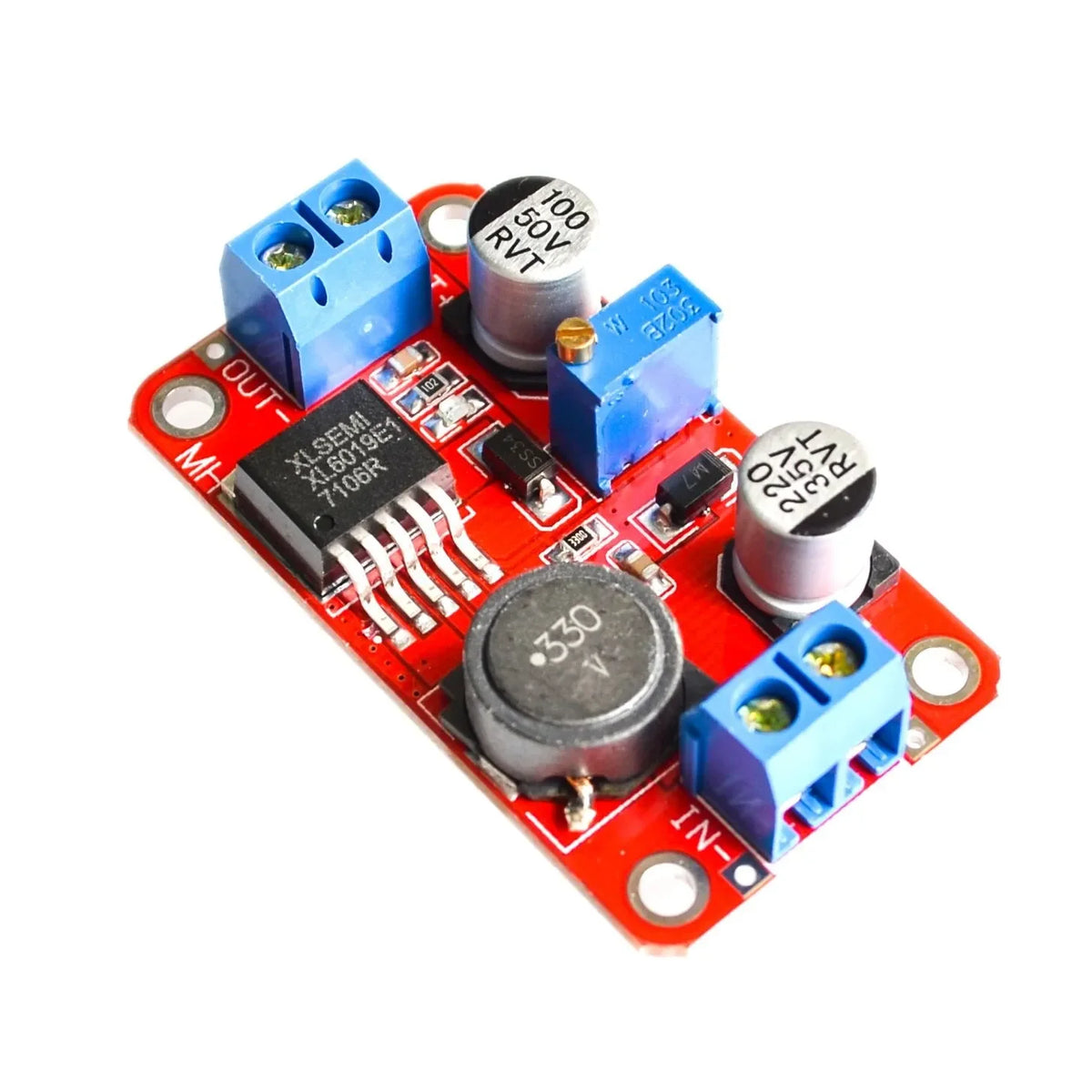

Upgrade your electronics projects with this high-performance 5A DC-DC Step-Up (Boost) Power Module built around the reliable XL6019 chip. Whether you're powering microcontrollers, custom circuits, or embedded systems, this versatile voltage converter steps up input voltages from 3.3V–35V to a stable, adjustable output of 5V, 6V, 9V, 12V, or 24V — making it ideal for engineers, hobbyists, and makers alike.
Key Features
- Wide Input Voltage Range: Accepts 3.3V to 35V DC input
- Adjustable Output Voltage: Set output to 5V, 6V, 9V, 12V, 24V or anywhere in between (up to 35V)
- High Output Current: Up to 5A continuous output for demanding applications
- XL6019 Controller IC: High-efficiency switching regulator for stable, regulated power
- Boost (Step-Up) Topology: Converts lower input voltages to higher output voltages with minimal energy loss
- Compact & Lightweight Design: Easy to integrate into existing circuits and enclosures
- Onboard Potentiometer: Fine-tune output voltage with a simple adjustment
- Built-In Protections: Overcurrent and thermal protection for safe, reliable operation
- New Condition: Brand new module, no high-concern chemicals
Technical Specifications
| Input Voltage | 3.3V – 35V DC |
| Output Voltage | 5V / 6V / 9V / 12V / 24V (adjustable) |
| Max Output Current | 5A |
| Controller IC | XL6019 |
| Module Type | Switch-mode DC-DC Boost Converter |
| Condition | New |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × XL6019 5A DC-DC Step-Up Boost Power Module
Ideal Applications
- Arduino, Raspberry Pi, and other microcontroller power supplies
- Battery-powered devices requiring higher output voltage
- DIY electronics and prototyping projects
- Solar panel power management circuits
- Automotive and portable electronics projects
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the input voltage range for the XL6019 DC-DC boost converter module?
A: The XL6019 step-up power module accepts an input voltage range of 3.3V to 35V DC, making it compatible with a wide variety of power sources including batteries, solar panels, and regulated power supplies.
Q: Can I adjust the output voltage of this boost converter module?
A: Yes! The module features an onboard potentiometer that allows you to fine-tune the output voltage. Common preset outputs include 5V, 6V, 9V, 12V, and 24V, but the output is continuously adjustable up to 35V to suit your specific project needs.
Q: Is this DC-DC boost module suitable for high-current applications?
A: Absolutely. The XL6019-based module supports up to 5A of continuous output current, making it well-suited for power-hungry electronics, motor drivers, and multi-component circuits. It also includes built-in overcurrent and thermal protection for added safety.
