DC PWM Motor Speed Controller — Precise, Adjustable Speed Control

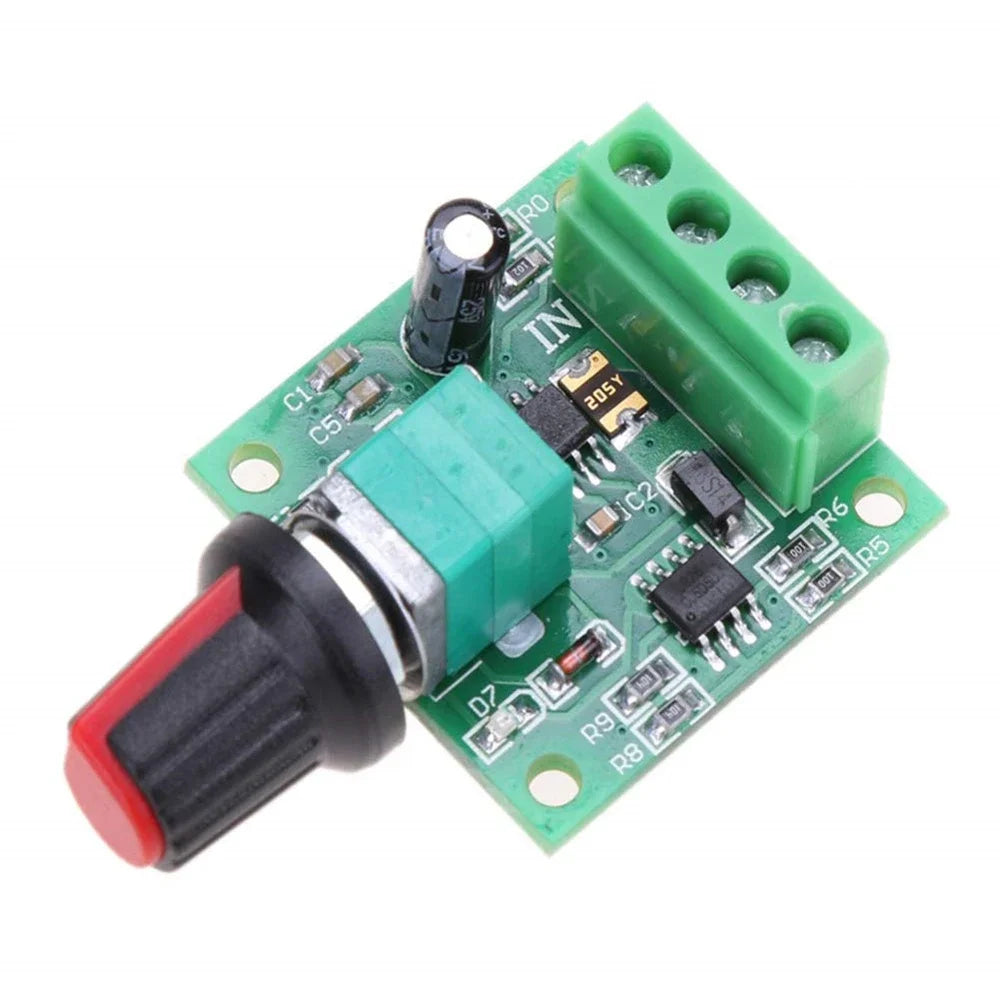

Take full command of your DC motor projects with this compact and versatile PWM Motor Speed Controller. Designed for a wide input voltage range of 1.8V to 15V DC and a continuous output current of 2A, this module delivers smooth, reliable speed regulation for motors, fans, pumps, and other DC loads. The fully adjustable duty cycle (0%–100%) lets you dial in exactly the speed you need — from a complete stop to full throttle.
Key Features
- Wide Voltage Compatibility: Works with 1.8V, 3V, 5V, 6V, 12V, and up to 15V DC power supplies.
- Full Duty Cycle Control: Smoothly adjustable from 0% to 100% via the onboard knob for precise speed management.
- 2A Continuous Output Current: Supports a maximum continuous current of 2A and a peak output power of 30W.

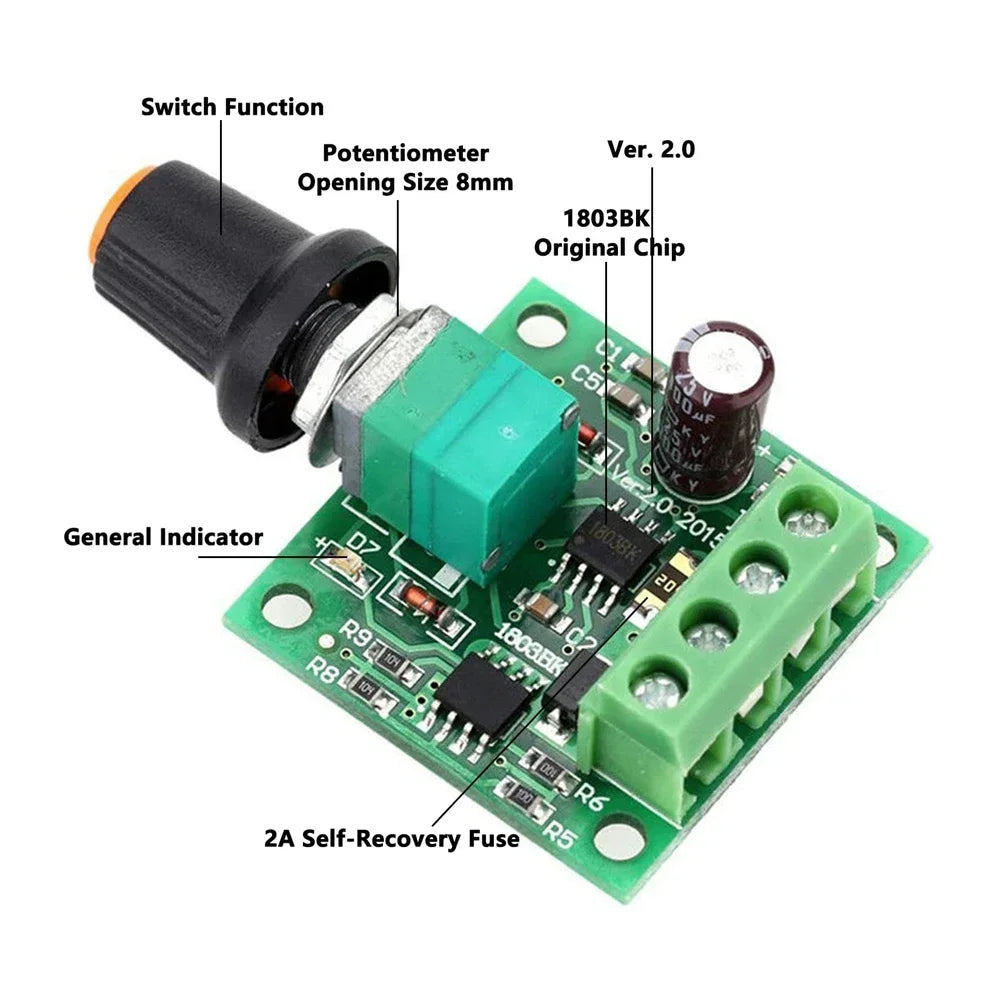

- Self-Recovery Fuse: Built-in 2A self-recovery (resettable) fuse protects your circuit from overcurrent events without needing fuse replacement.
- Power-On LED Indicator: Convenient LED light confirms the module is powered and operational at a glance.
- Compact Form Factor: Measures approximately 32 × 32 × 15 mm (1.25" × 1.25" × 0.59") — easy to integrate into tight enclosures and DIY builds.
- Pulse-Width Modulation (PWM) Technology: Delivers efficient, low-heat speed control that prolongs motor life and reduces energy waste.
- Versatile Applications: Ideal for DC motors, LED dimming, small fans, water pumps, and other DC load control projects.
Specifications
| Input Voltage | 1.8V – 15V DC |
| Max Output Power | 30W |
| Max Continuous Output Current | 2A |
| Duty Cycle | 0% – 100% (fully adjustable) |
| Dimensions | ~32 × 32 × 15 mm / 1.25" × 1.25" × 0.59" |
| Model | 1803BK |
| Country of Origin | Made in China |
Important Safety Note
This motor speed controller is designed for DC power supplies only. Do NOT connect it directly to household 220V or 110V AC mains power. Always use an appropriate DC power source within the rated voltage range.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the maximum voltage and current this PWM motor speed controller supports?
A: This DC PWM motor speed controller supports an input voltage range of 1.8V to 15V DC and a maximum continuous output current of 2A, with a peak output power of 30W. It is suitable for a wide range of low-voltage DC motors and loads.
Q: Can this PWM speed controller be used to dim LEDs or control fans?
A: Yes! In addition to controlling DC motor speed, this adjustable PWM drive module can be used for LED dimming, small fan speed regulation, water pump control, and other DC load applications — anywhere you need variable power output from a DC source.
Q: What does the self-recovery fuse do on this motor speed controller?
A: The built-in 2A self-recovery (resettable) fuse automatically trips and cuts the circuit if the current exceeds 2A, protecting your motor and module from damage. Unlike a standard fuse, it resets itself once the overcurrent condition is removed, so no fuse replacement is needed.
