DC 5V Electromagnetic Swing DIY Kit – Hands-On Electronic Circuit Assembly

Build your own electromagnetic swing from the ground up with this exciting DIY electronics kit! Powered by a standard USB-to-DC 5V supply, this electromagnetic swing kit is perfect for electronics enthusiasts, students, hobbyists, and educators who want to explore electromagnetic principles through hands-on assembly and experimentation. Complete with an acrylic shell, PCB, Hall sensor, magnetic levitation coil, and dazzling LED flow lighting, this kit delivers a genuinely rewarding build-and-display experience.

Made in Mainland China.

Key Features

  • Adjustable Swing Amplitude & Speed: Fine-tune the swing motion via the acrylic shell design — tilt the Hall sensor or adjust acrylic height to dial in the perfect arc and rhythm.
  • Energy-Efficient Operation: USB-powered at just DC 5V with ultra-low standby current (13–26 mA), making it highly efficient compared to traditional mechanical alternatives.
  • Dazzling LED Flow Lighting: Freely controllable flowing LED light effects add a spectacular visual dimension to your completed build.
  • Stable & Reliable: Validated through 24 hours of continuous uninterrupted testing — consistent, low-power performance you can count on.
  • Wide Learning Application: Ideal for understanding electromagnetic circuits, developing soldering and hands-on skills, school STEM projects, or self-directed electronics study.
  • Adaptable Design: Swing parameters can be customized to suit different user preferences and display environments.

Technical Specifications

Kit Name Electromagnetic Swing Kit
Working Power Supply USB to DC 5V
Working Voltage DC 5V
Standby Current 13–15 mA (LED off) / 22–26 mA (LED on)
Working Current 16–80 mA (LED off) / 25–100 mA (LED on) — varies with swing amplitude

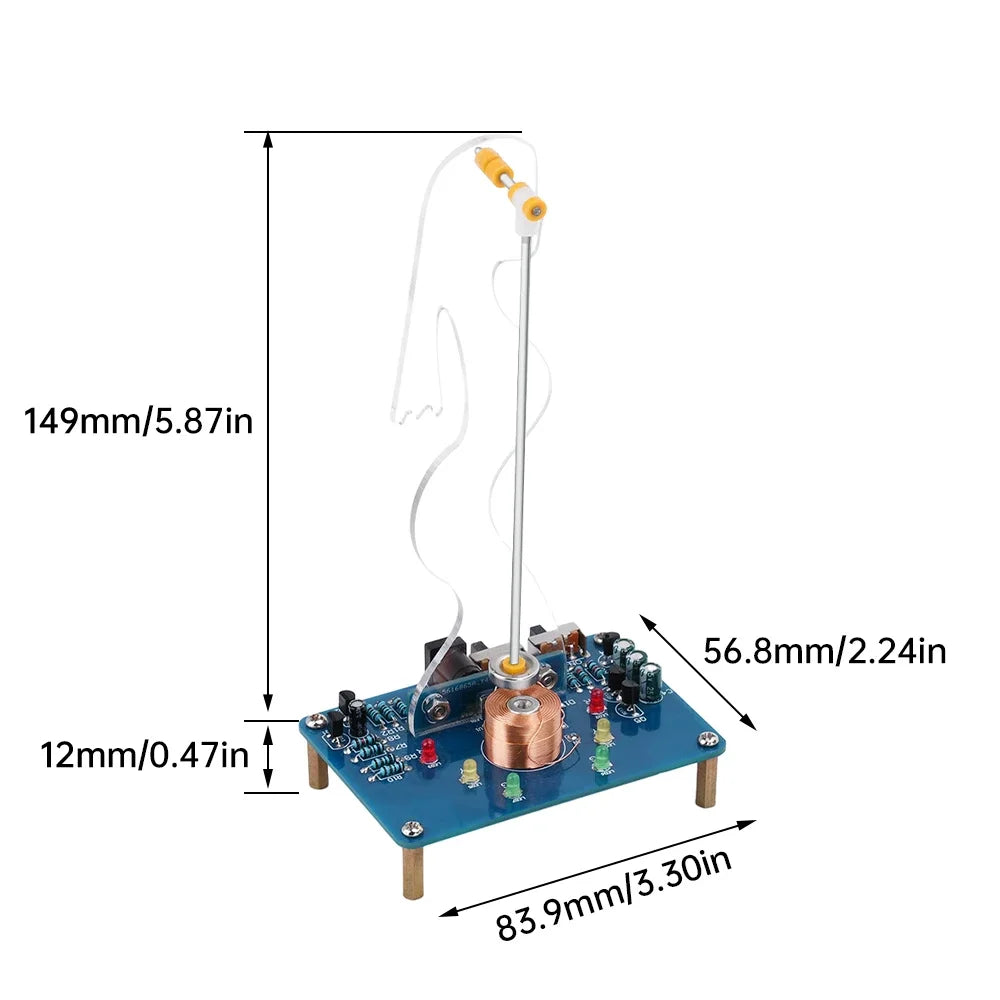

PCB Dimensions 56.8 × 83.9 mm + 40 × 14 mm
Type DIY Loose Parts Kit (requires assembly & soldering)
Brand GUANDO
Condition New

Assembly & Usage Instructions

This kit requires basic electronic knowledge and soldering skills. Please follow these steps for best results:

  1. Inspect all components and the PCB before beginning.
  2. Solder all components carefully — avoid cold joints, bridging, or virtual solder connections.
  3. Adjust the Hall sensor's forward tilt angle to optimize swing motion.
  4. Set the correct acrylic height and magnet-to-Hall-sensor distance.
  5. Verify magnet polarity orientation and correct wiring of the magnetic levitation coil.
  6. Ensure the iron shaft fixed to the acrylic plate is secure and not loose.
  7. Connect USB power and fine-tune as needed for your desired swing amplitude.

⚠ Important: Do not place the magnet on top of the coil for extended periods while powered on without the swing in motion. Doing so can cause continuous Hall conduction and risk damage to components. Always power off before troubleshooting.

What's in the Box

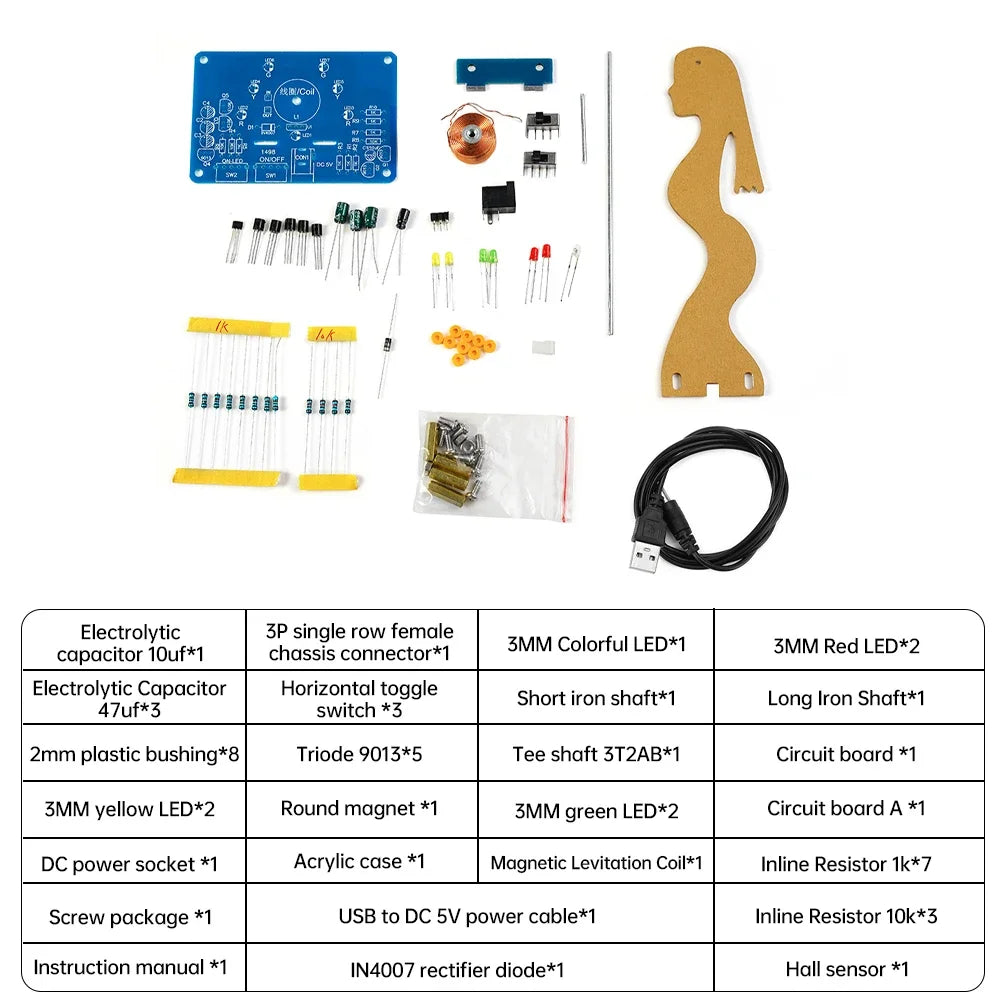

  • 1× Electromagnetic Swing DIY Kit (loose parts, unassembled)

Note: This is a DIY kit — the finished assembled swing is not included. Assembly, soldering, and basic electronics knowledge are required.
