Digital Thermostat Socket – Intelligent Temperature Controller with Timer Switch
Take full control of your environment with this versatile Digital Temperature Controller Socket. Whether you're managing a greenhouse, aquarium, refrigerator, aquaculture setup, or home heating system, this smart thermostat outlet delivers precise, automated temperature regulation at the touch of a button. Made in Mainland China.
Key Features
- Wide Temperature Range: Detects and controls temperatures from -40°C to 120°C with ±1% accuracy.
- Dual Mode Operation: Easily switch between Heating Mode (start temp < stop temp) and Cooling/Refrigeration Mode (start temp > stop temp) to suit any application.
-
4 Flexible Timer Modes:
- F01: Cycling timing – continuous ON/OFF cycling based on your set intervals.
- F02: Countdown ON – delays power-on by a set duration.
- F03: Countdown OFF – turns on immediately, then shuts off after a set delay.
- F04: Countdown ON + OFF – delays start, then shuts off after a second countdown.

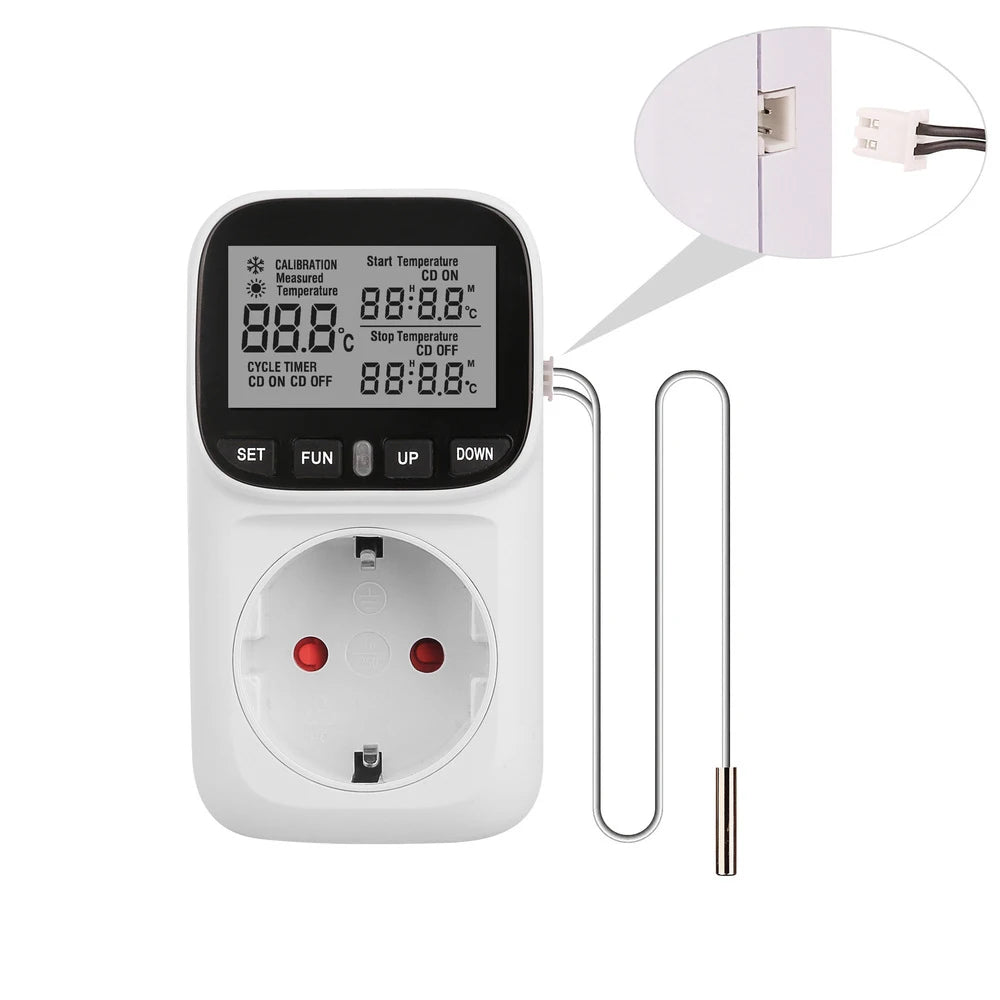

- External Temperature Sensor: Comes with a 1m probe cable for accurate ambient or immersed readings.
- Temperature Correction: Fine-tune sensor readings by ±9.9°C for pinpoint accuracy.
- Screen Lock & RESET: Prevents accidental changes; one-press RESET restores factory settings.
- Memory After Power Off: Retains your settings even after a power interruption.
- Error Alerts: Displays "E1" for open circuit / below range and "E2" for short circuit / above range.
Technical Specifications
| Input Voltage | 110V–230V AC, 50/60Hz |
| EU/FR Plug Rating | 16(2)A, 230V, Max 3680W |
| US Plug Rating | 15(2)A, 120V, Max 1800W |
| Temperature Range | -40°C to 120°C |
| Temperature Accuracy | ±1% |
| Timing Accuracy | Max ±10 minutes |
| Display Size | Under 1.9 Inches LCD |
| Cable Length | 1 metre (sensor probe) |
| Battery Required | No |
| Country of Origin | Made in Mainland China |
Ideal Applications
- Aquariums & aquaculture tanks
- Greenhouse climate management
- Refrigerator & wine cooler control
- Carbon heating panels & electric heaters
- Home brewing, fermentation, and incubation
- General household temperature automation
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Can this digital thermostat socket be used for both heating and cooling devices?
A: Yes! The digital temperature controller socket supports both Heating Mode and Cooling/Refrigeration Mode. Simply set your desired start and stop temperatures — in Heating Mode the device powers on when the temperature drops below your set point, while in Cooling Mode it activates when the temperature rises above it.
Q: What timer modes are available on this thermostat socket?
A: The socket includes four timer modes: F01 (continuous ON/OFF cycling), F02 (countdown before power-on), F03 (countdown before power-off), and F04 (countdown ON then countdown OFF). These modes allow flexible scheduling for any automated temperature or timing task.
Q: Will my settings be lost if the power goes out?
A: No. This digital thermostat controller features a built-in memory function that retains all your temperature and timer settings after a power interruption, so your system resumes exactly as configured when power is restored.
Q: What does the EU plug rating mean for my appliances?
A: The EU plug version is rated at 16A / 230V with a maximum load of 3680W, making it suitable for a wide range of household and aquaculture heating or cooling appliances. Always ensure your connected device does not exceed the stated wattage limit.
