Take your electronics hobby to the next level with this DC 3V Electromagnetic Launcher DIY Kit. Designed for electronics enthusiasts, hobbyists, students, and anyone who loves hands-on soldering projects, this upgraded electromagnetic transmitter kit gives you a fully functional coil-gun launcher you assemble yourself — complete with charging circuit, voltage converter module, and LED charge-level indicator.
Why You'll Love This Kit
- Upgraded Charging Circuit: Charges faster and delivers a longer range and quicker emission compared to basic kits.
- LED Level Indicator: A built-in charge-level indicator circuit lets you monitor charging status at a glance — green LED on startup, blue LED at half charge, red LED at full charge.

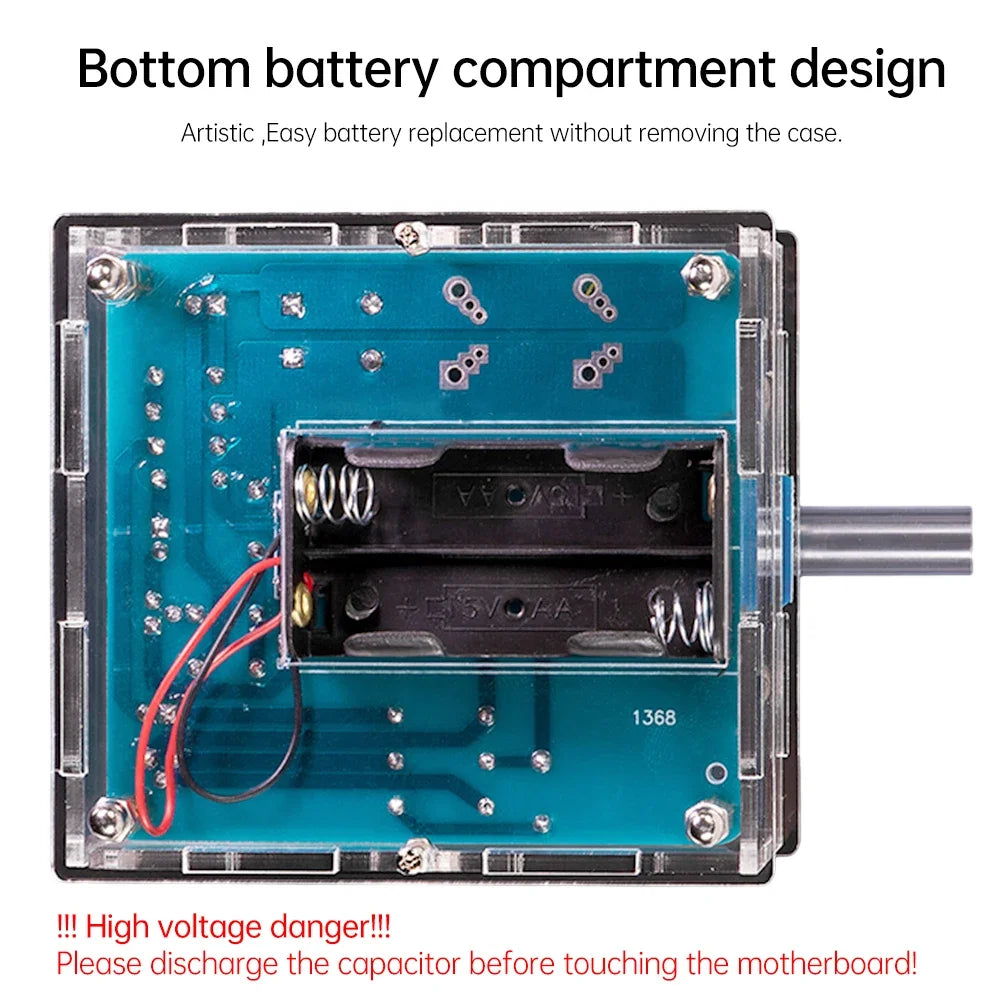

- Bottom Battery Box Design: Stylish and practical — swap out your AA batteries without ever opening the main shell.

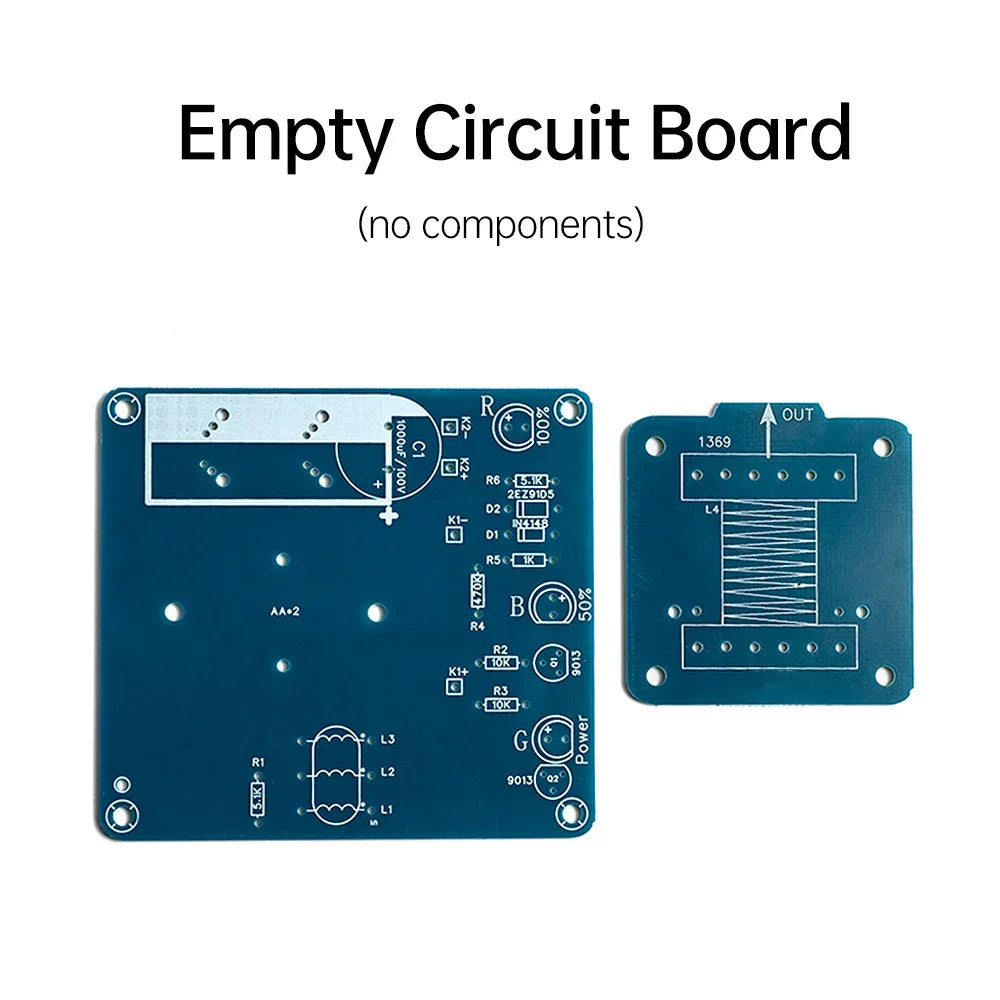

- Dual-Board PCB System: A-board (85×78mm) handles the main control functions; B-board (50×53mm) manages the voltage converter module.
- Great for Learning: Perfect for soldering practice, electronic experiments, STEM education, and creative DIY builds.
Technical Specifications

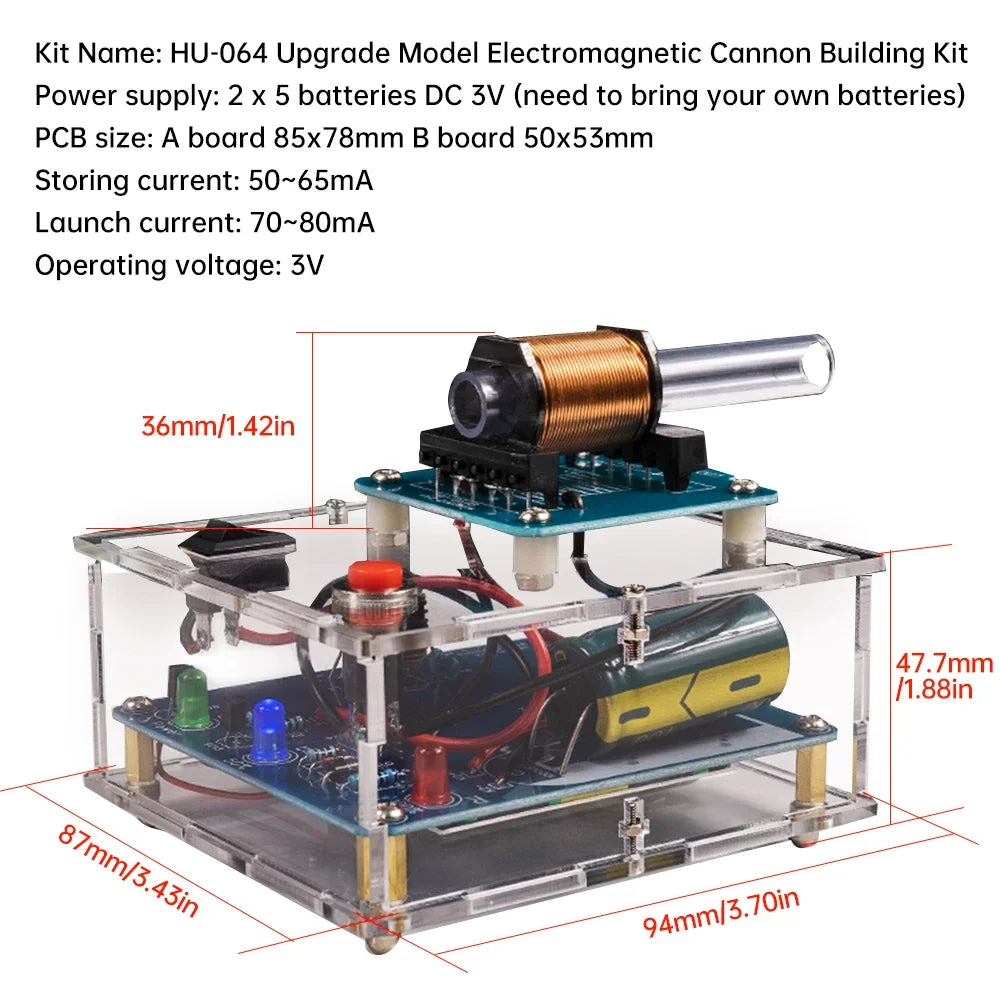

- Working Voltage: DC 3V
- Power Supply: 2 × AA (No. 5) batteries — batteries not included
- Accumulated Current: 50–65 mA
- Emission Current: 70–80 mA
- PCB Size: A-board 85×78mm | B-board 50×53mm
- Country of Origin: Made in Mainland China
How to Use
- Turn on the power switch (ship-type switch K1) — the green LED will light up.
- Wait approximately 10–30 seconds. The blue LED indicates charge energy has accumulated to roughly half capacity.
- Insert the projectile into the rear of the barrel.
- Press the launch button (circular button K2) — the projectile fires from the barrel.
Note: When fully charged, the red LED will light up. If battery power is low, the red light may not activate; the blue light is sufficient to launch.
Key Technologies Inside

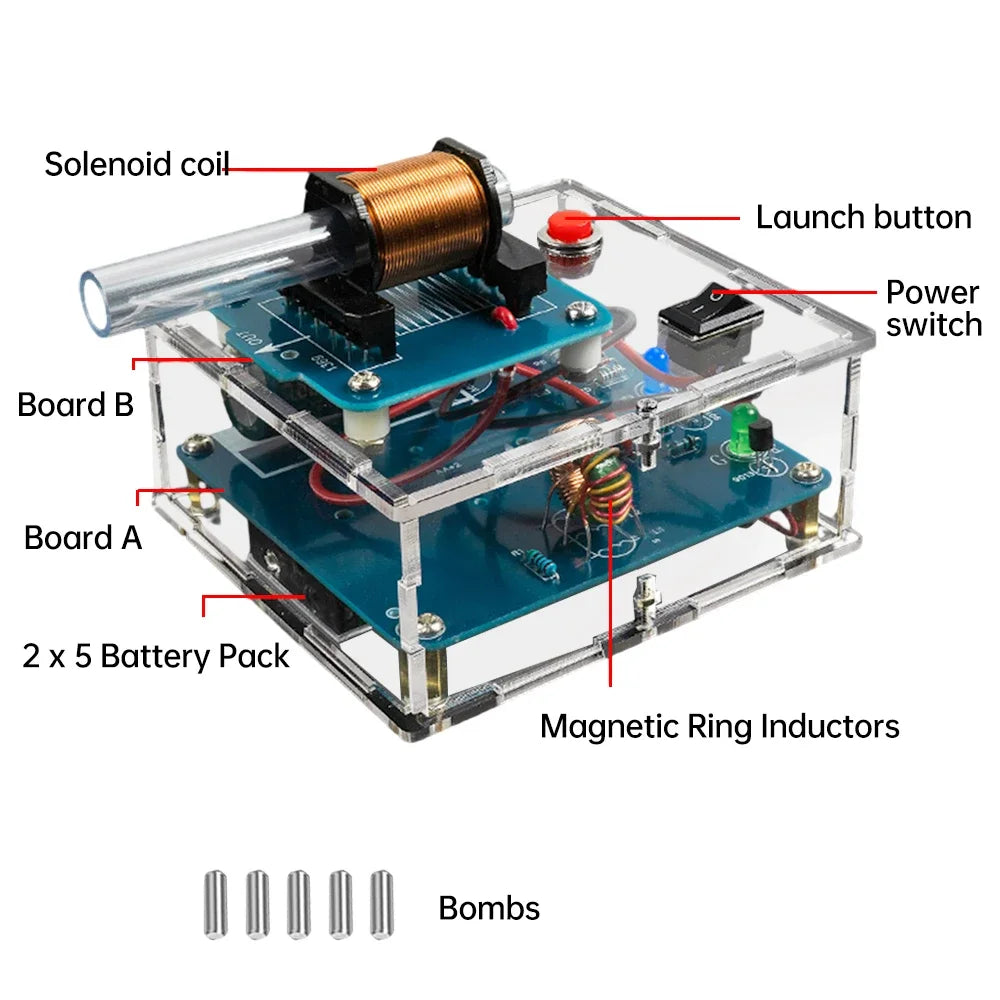

- Power System: Capacitor-based high-voltage supply generates the electromagnetic force needed for launching.
- Electromagnetic Accelerator: A coil-and-bracket assembly generates a strong magnetic field to accelerate the projectile.
- Control System: Precise triggering and monitoring of the firing sequence.
⚠️ Important Safety Warnings
- High-voltage components are present. Always discharge the capacitor before soldering or handling it. Use an insulated wire with exposed copper tips — hold the plastic portion and touch both capacitor pins to safely discharge before any work.
- Do not aim at people, animals, or fragile objects.
- Do not touch metal parts while the unit is powered on.
- Adult supervision recommended. This kit requires self-assembly with soldering tools (not included).
- Detailed installation video tutorials available — required for assembly.
What's in the Box

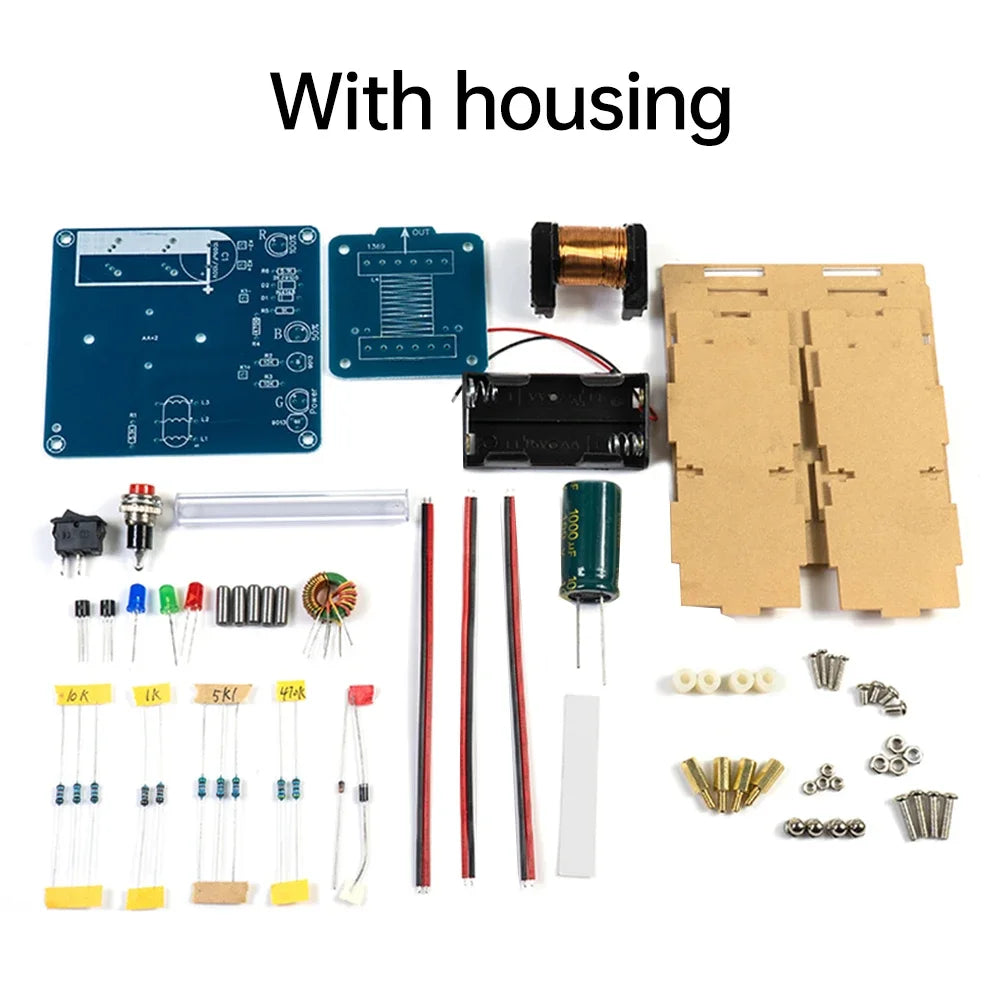

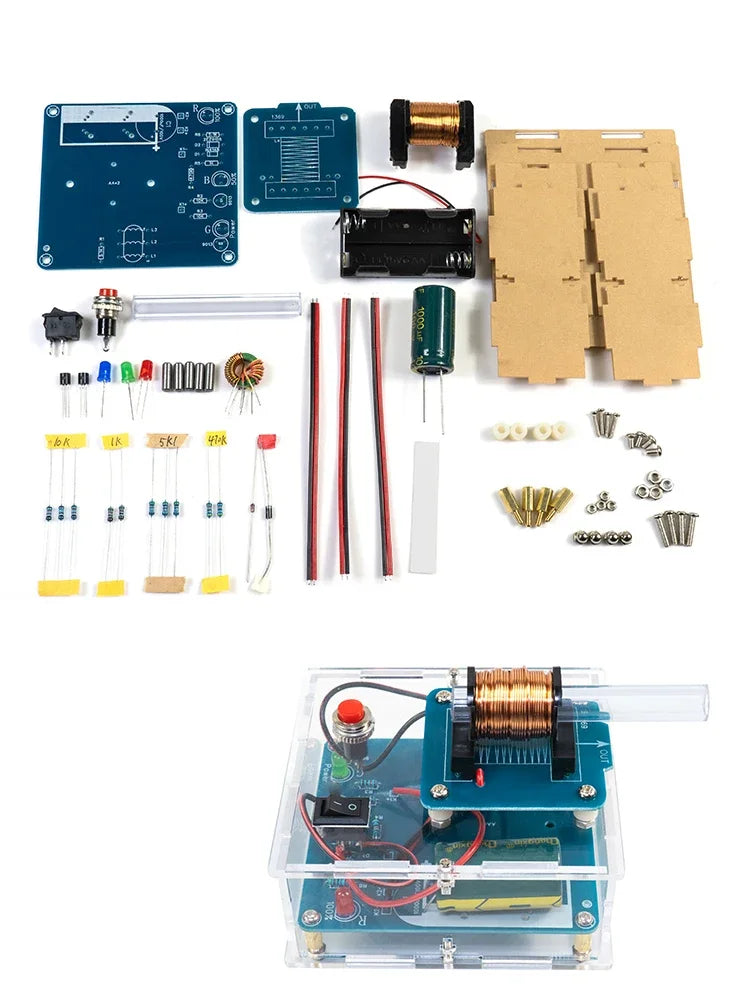

- 1 × DIY Electromagnetic Launcher Kit (PCB boards, components, and hardware)
- Casing optional — check listing variant for casing option
- Batteries, soldering iron, and solder NOT included
