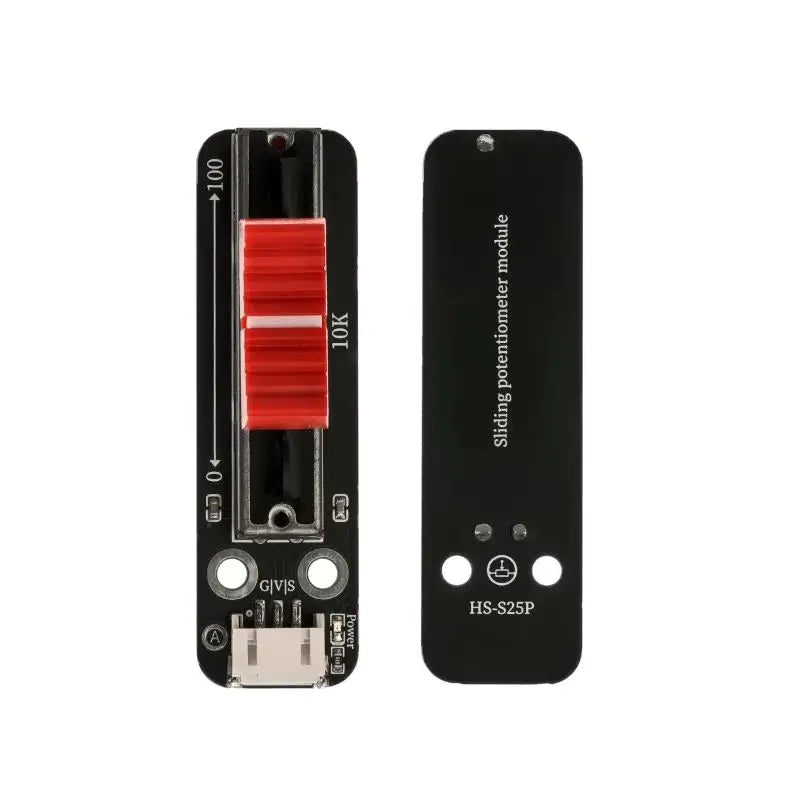

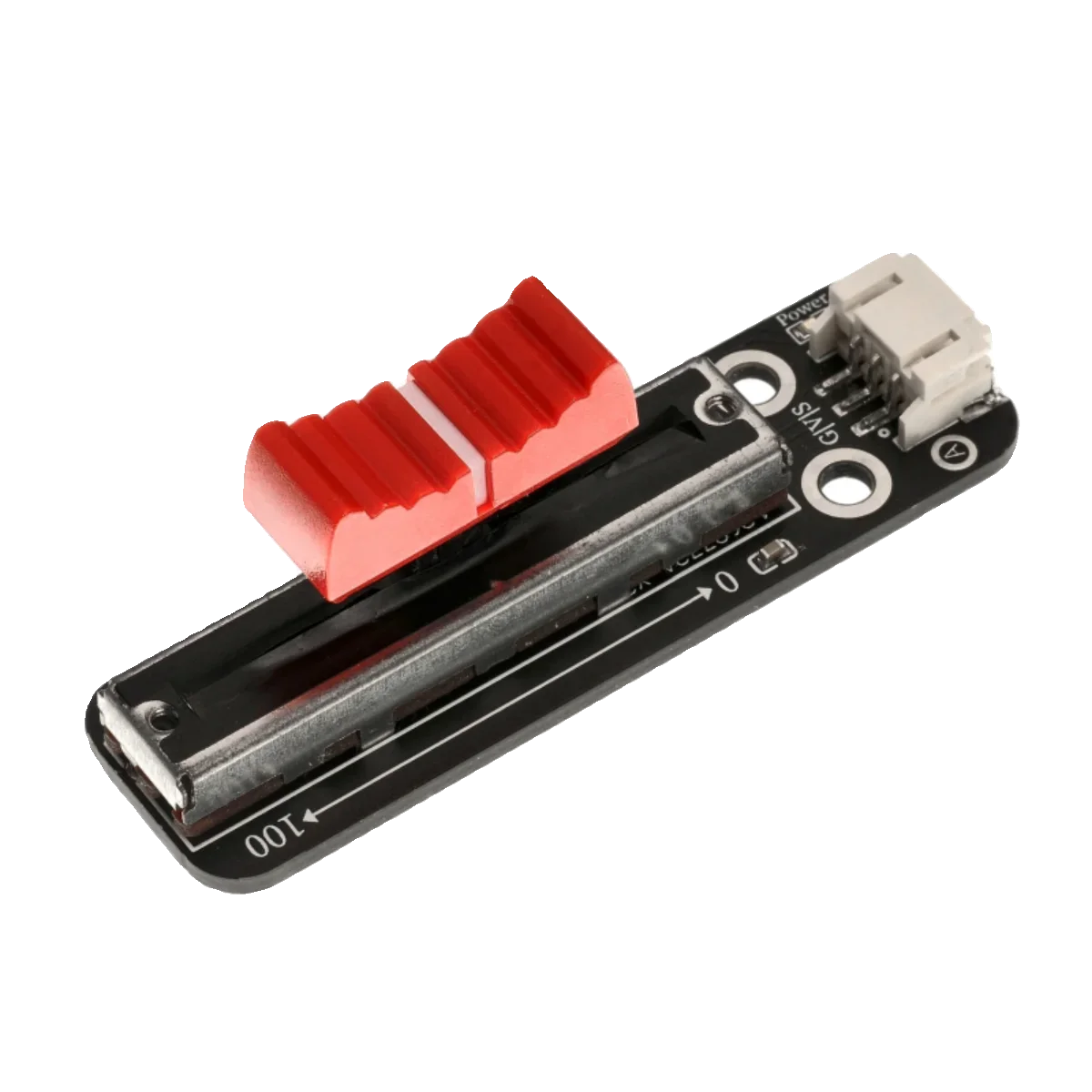

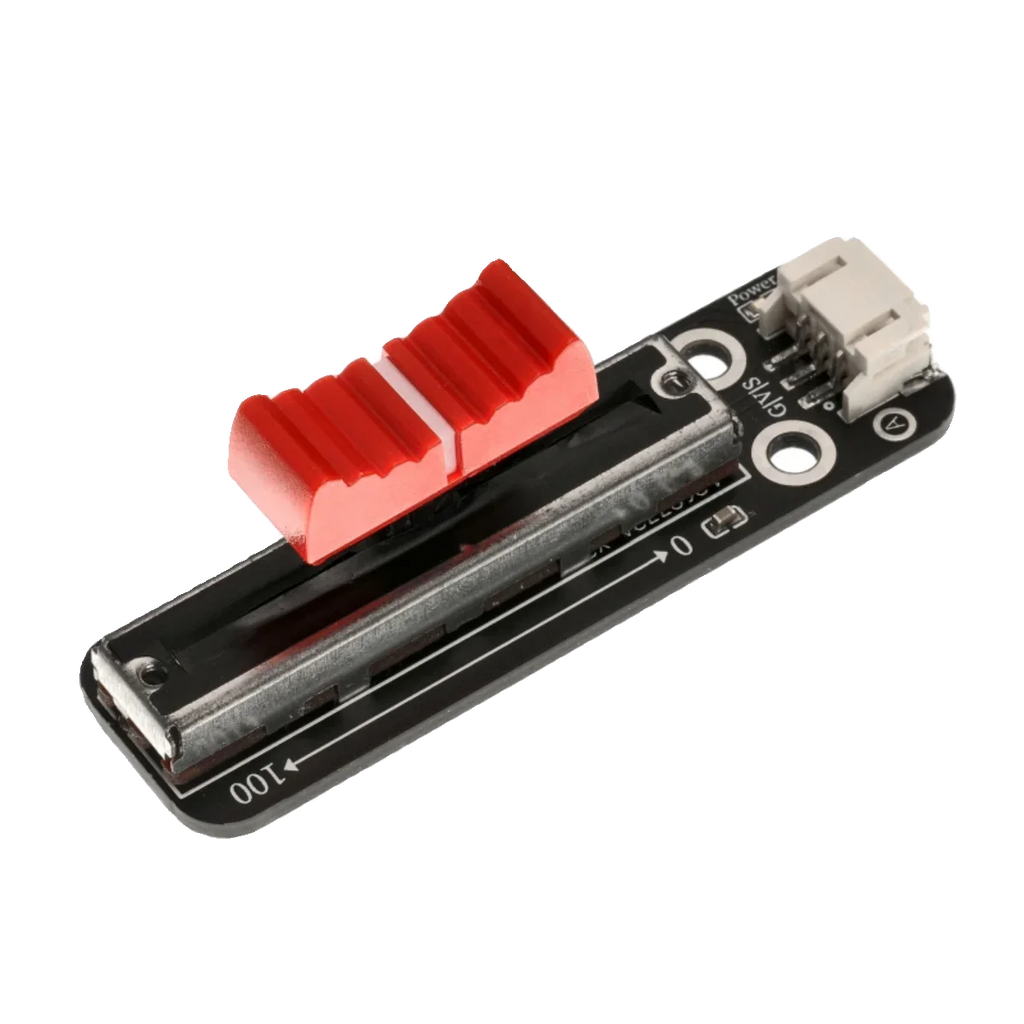

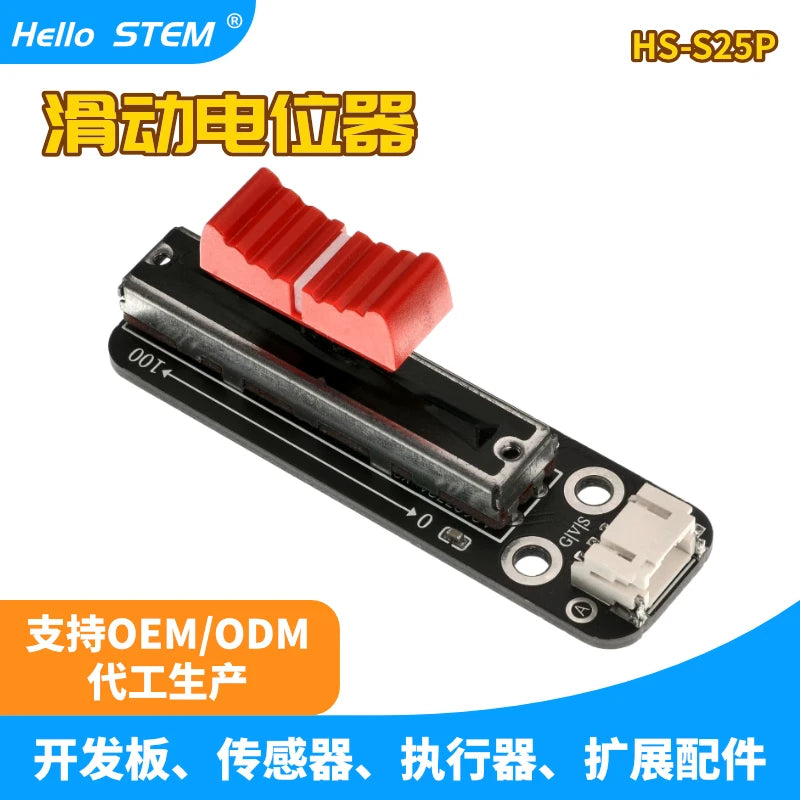

Dual Analog Sliding Potentiometer Module with PH2.0 Interface
Take precise control of your electronics projects with this Dual Analog Sliding Potentiometer Module. Designed as a plug-and-play electronic building block, this module features two independent sliding adjustable resistors connected via a convenient PH2.0 interface — making it ideal for makers, hobbyists, students, and engineers who need reliable, repeatable analog input in their circuits.
Key Features
- Dual-channel design: Two independent sliding potentiometers on a single compact module for simultaneous analog control of two variables.
- PH2.0 connector interface: Secure, standardized PH2.0 connection for easy integration with microcontrollers, development boards, and robotics platforms.
- Smooth linear travel: Each slider offers smooth, consistent resistance adjustment from minimum to maximum, ensuring accurate and repeatable analog readings.
- Electronic building block format: Modular design snaps into your project workflow without complex wiring or soldering.
- Wide compatibility: Works seamlessly with Arduino, Raspberry Pi, ESP32, and other popular microcontroller and development platforms.
- Compact & lightweight: Space-saving PCB form factor fits neatly inside project enclosures, robot chassis, and breadboard setups.
- No high-concern chemicals: Manufactured without declared high-concern substances.
Typical Applications
- Volume / brightness control prototypes
- Joystick axis simulation and robotics control
- STEM education and electronics learning kits
- DIY synthesizers and audio mixing projects
- Variable motor speed or LED dimming circuits
- Game controller and HID device prototyping

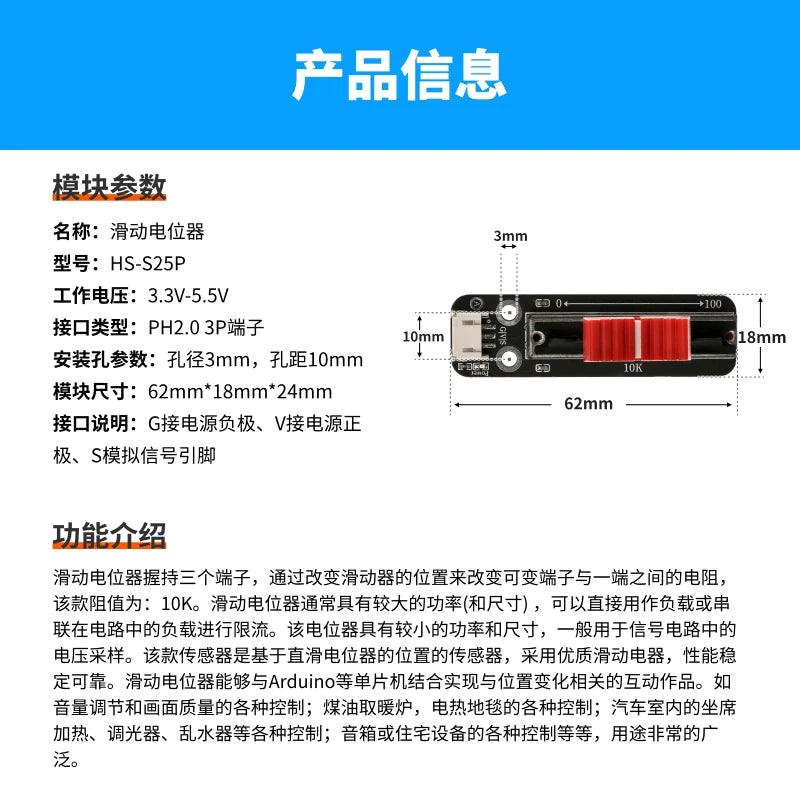

Specifications
| Module Type | Dual Analog Sliding Potentiometer |
| Interface | PH2.0 |
| Number of Channels | 2 (Dual) |
| Adjustment Type | Linear Sliding |
| High-Concern Chemicals | None |
| Country of Origin | Made in Mainland China |
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What microcontrollers are compatible with this dual sliding potentiometer module?
A: This dual analog sliding potentiometer module is broadly compatible with any microcontroller that has analog input (ADC) pins, including Arduino Uno/Nano/Mega, ESP32, ESP8266, Raspberry Pi Pico, STM32, and similar development boards. The PH2.0 interface makes connections quick and secure.
Q: What does the PH2.0 interface mean, and do I need an adapter?
A: PH2.0 refers to a JST-PH style connector with a 2.0 mm pitch between pins. Many maker and robotics development boards use this standard connector natively. If your board uses a different connector type, a simple PH2.0 adapter cable or pigtail wire can be used to connect it without soldering.
Q: Can I use both slider channels independently at the same time?
A: Yes. Each of the two sliding potentiometers operates as a fully independent adjustable resistor channel. You can connect each output to a separate analog input pin on your microcontroller and read both values simultaneously for dual-axis or multi-parameter control in your project.
Q: Is any soldering required to use this module?
A: No soldering is required. The PH2.0 connector interface allows for tool-free plug-and-play connectivity, making this module accessible to beginners and convenient for rapid prototyping.
