Electric Diaphragm Pump 24V 160W – Pipeline Pressure & Leak Test
Electric Diaphragm Pump 24V 160W – Pipeline Pressure & Leak Test
Electric Diaphragm Pump for Pipeline Pressure Testing & Leak Detection

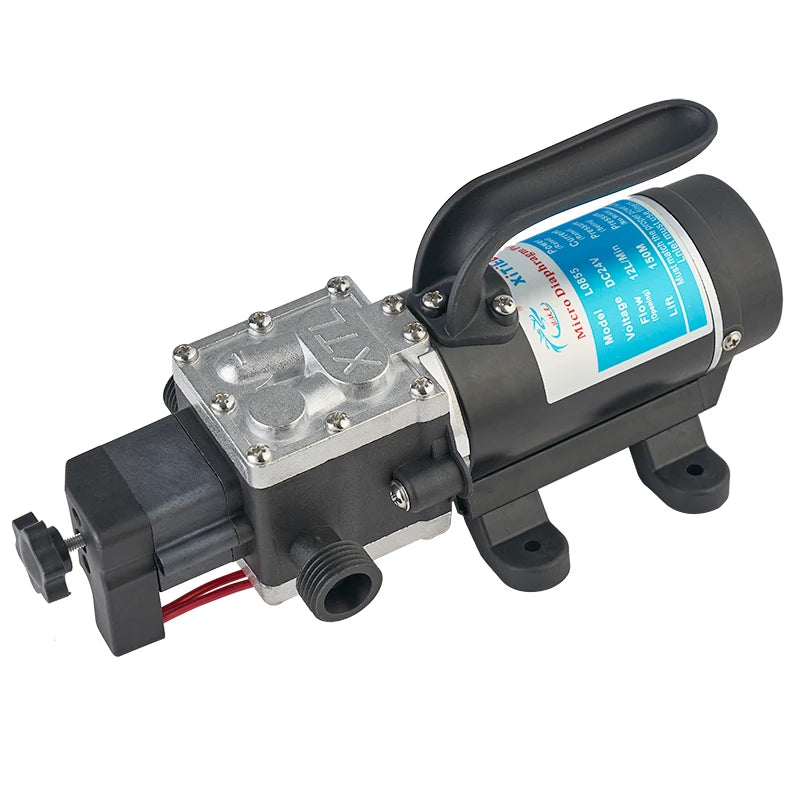

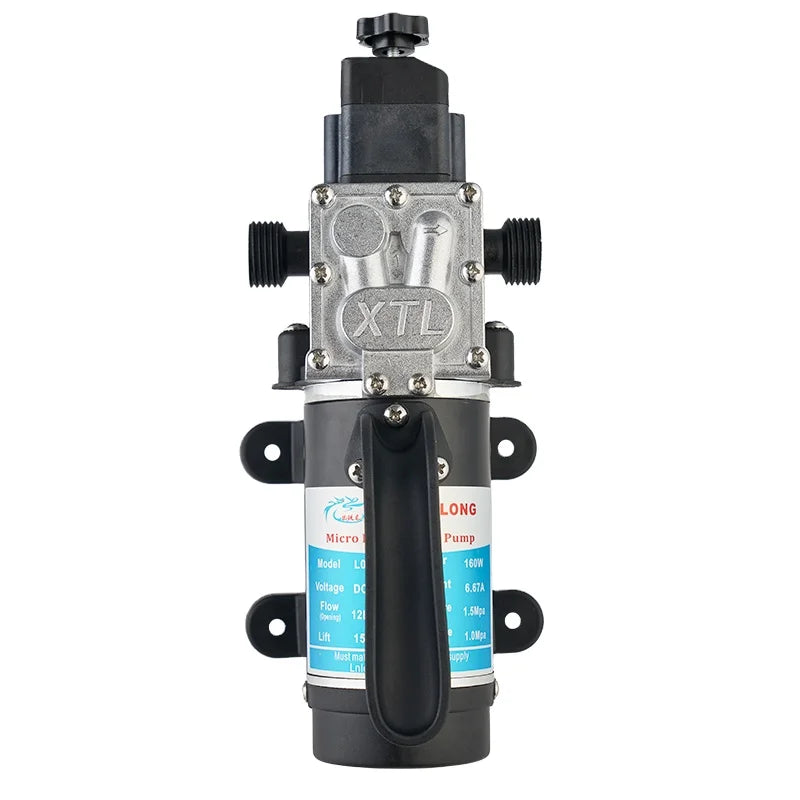

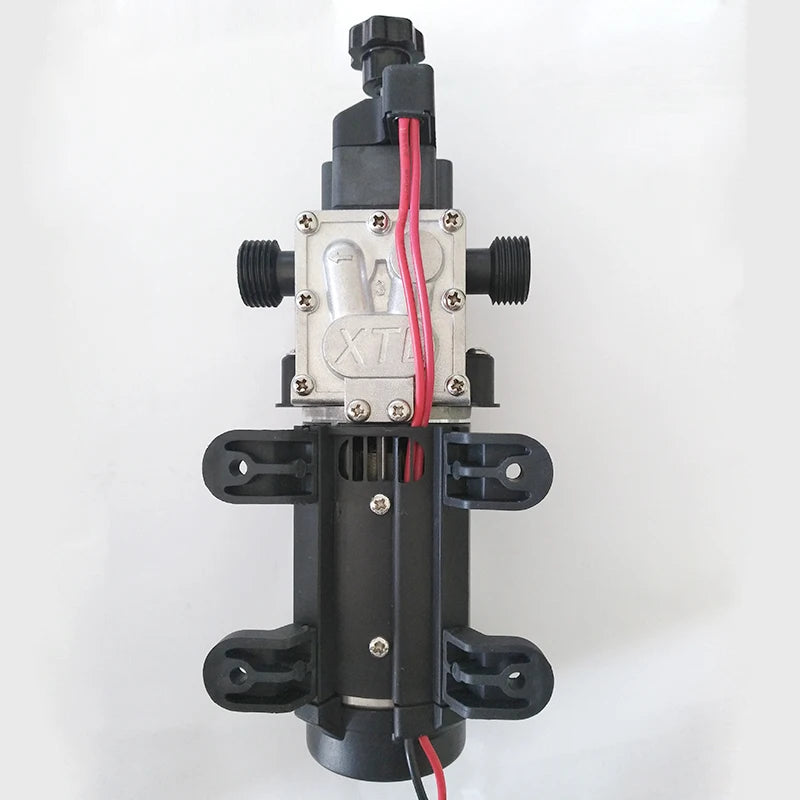

The Quake L0855YD-24-160FS Electric Diaphragm Pump is a professional-grade solution engineered for pipeline pressure testing, leak detection, and cleaning of residential and commercial plumbing systems — including floor heating circuits and small household appliance pipelines. With a robust 160W motor running on 24V DC, this pump delivers up to 1.5 MPa of pressure and a maximum flow rate of 12 L/min, making it a reliable workhorse for technicians and contractors alike.
Made in Zhejiang, China.
Please Note: Every unit undergoes a water-function test prior to shipment to verify full operational performance. Minor water residue or water stains may be present upon arrival — your pump is guaranteed brand new.
Key Features
- Diaphragm Sealing Design: Durable diaphragm construction ensures a secure, leak-resistant seal compatible with clean water applications.
- High-Pressure Capability: Reaches up to 1.5 MPa maximum pressure — ideal for thorough pipeline integrity checks.
- Efficient Flow Rate: Up to 12 L/min keeps testing and cleaning jobs moving quickly.
- Compact & Lightweight: Weighing just 1,200 g, it's easy to transport and position on job sites.
- Versatile Applications: Suitable for floor heating system cleaning, residential pipe pressure testing, pipeline leak detection, and small appliance plumbing circuits.
- Standard Outlet: 1/2" (4-min) external thread outlet fits common piping fittings for hassle-free hookup.
Product Specifications
| Model | L0855YD-24-160FS |
| Voltage | 24V DC |
| Max Power | 160W |
| Max Pressure | 1.5 MPa |
| Max Flow Rate | 12 L/min |
| Sealing Type | Diaphragm |
| Compatible Liquid | Clean Water |
| Outlet Size | 1/2" (4-min) External Thread |
| Weight | 1,200 g |
| Origin | Zhejiang, China |
Applications
- Residential and commercial pipeline pressure testing
- Floor heating system flushing and cleaning
- Pipeline leak detection in household appliances
- Small plumbing circuit maintenance
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What type of liquid is this diaphragm pump compatible with?
A: The Quake L0855YD-24-160FS diaphragm pump is designed for use with clean water only. It is not intended for use with chemicals, abrasive fluids, or other liquids that could damage the diaphragm sealing material.
Q: What is the maximum pressure this electric diaphragm pump can achieve for pipeline pressure testing?
A: This pump achieves a maximum operating pressure of 1.5 MPa, making it well-suited for thorough pressure testing of residential and light commercial pipelines, floor heating circuits, and small household appliance plumbing systems.
Q: Why does my pump arrive with some water residue inside?
A: Each unit is individually water-tested at the factory before shipment to confirm it is fully operational. Any moisture or water stains you notice upon unboxing are a result of this quality-assurance process — your pump is brand new and ready for use.
Q: What outlet size does this pump use, and what fittings are compatible?
A: The pump features a 1/2" (4-min) external thread outlet, which is a standard size that connects easily to most common piping fittings and hoses used in residential and light commercial plumbing work.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
