ESP32 38-Pin Type-C Dev Board – Dual-Core WiFi & Bluetooth
ESP32 38-Pin Type-C Dev Board – Dual-Core WiFi & Bluetooth
ESP32 ESP-WROOM-32 38-Pin Type-C USB Development Board
Take your embedded projects to the next level with this powerful ESP32 ESP-WROOM-32 Development Board. Featuring a Type-C USB interface, dual-core processing, 2.4GHz Wi-Fi, and Bluetooth 4.2, this compact 38-pin board is the ideal platform for IoT, automation, robotics, and wireless communication projects.
Made in Mainland China.
Key Features

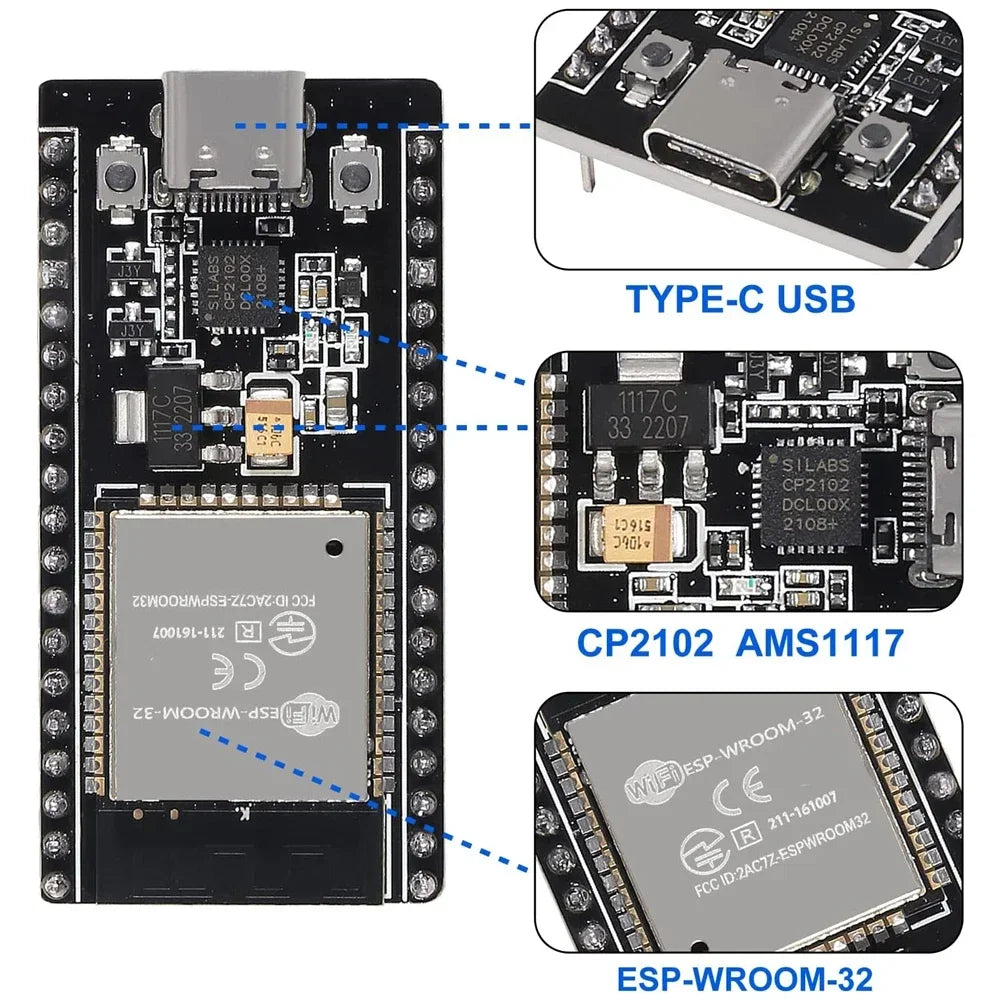

- Type-C USB Interface: Modern, reversible connector for easy programming and power delivery (5V input).

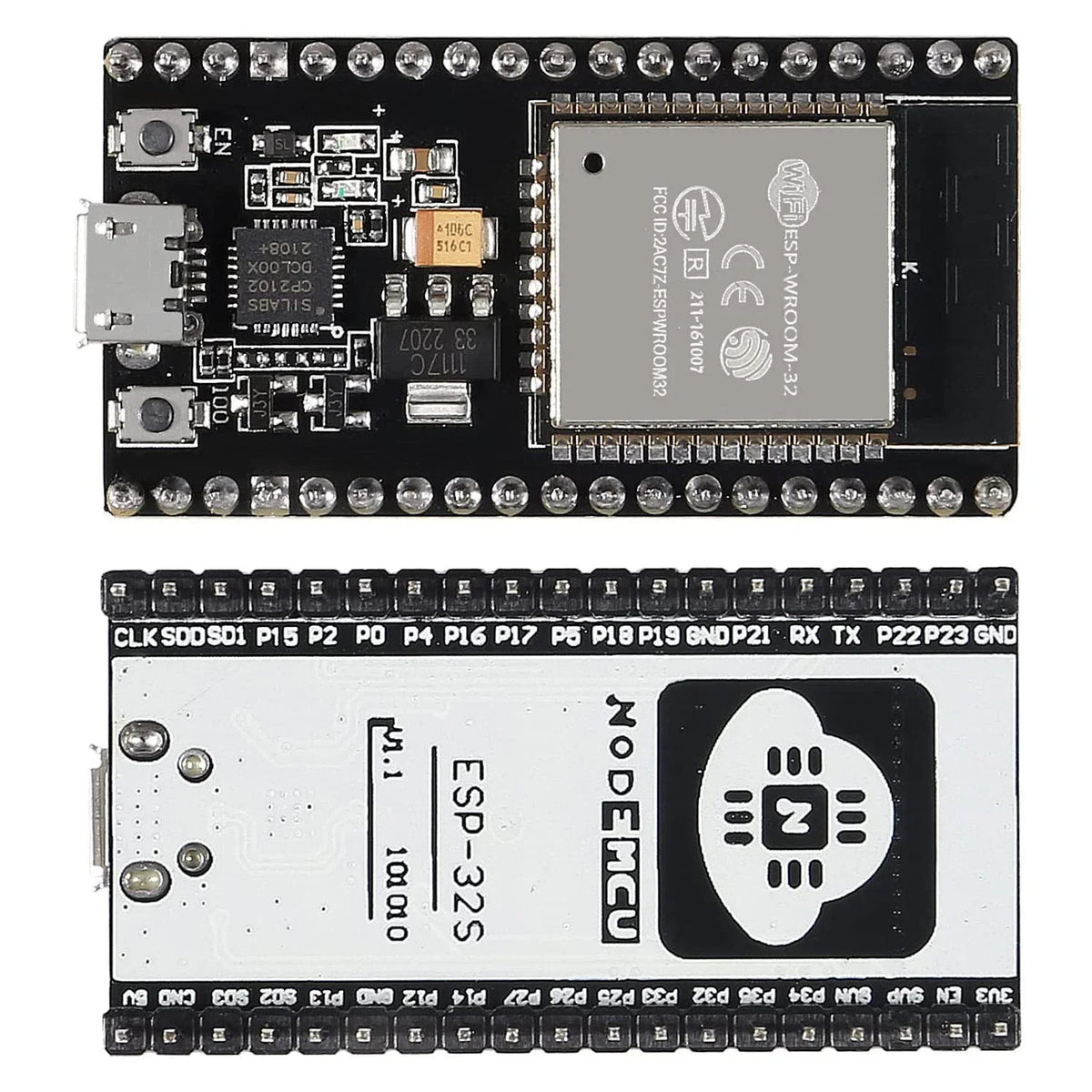

- 38-Pin Layout: More GPIO and features than a standard 30-pin module, yet narrow enough to be fully breadboard-compatible.
- Dual-Core CPU: Powered by two Tensilica LX6 cores clocked at up to 240 MHz for fast, responsive performance.
- 2.4GHz Dual-Mode Wireless: Supports Wi-Fi 802.11 b/g/n (STA / AP / STA+AP modes) and Bluetooth 4.2 BR/EDR + BLE — all on one chip.
- Low Power Consumption: Built on TSMC 40nm ultra-low-power technology for energy-efficient operation.
- Integrated RF Components: Onboard antenna switches, RF balun, power amplifiers, low-noise amplifiers, filters, and power management — minimal PCB footprint.
- Reset & Boot Buttons: Easily flash new firmware without any additional hardware.
- Rich Peripheral Support: Interfaces include UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, and DAC.
- Security: WPA / WPA2 / WPA2-Enterprise / WPS supported.
Technical Specifications
| Model | ESP32 / ESP-WROOM-32 |
| CPU | Dual-Core Tensilica LX6, up to 240 MHz |
| SRAM | 512 KB |
| SPI Flash | 32 Mbit (default) |
| Wi-Fi | 802.11 b/g/n, 2.4GHz |
| Bluetooth | 4.2 BR/EDR & BLE |
| USB Interface | Type-C (5V power supply) |
| Power Consumption | 300mA @ 3.3V |

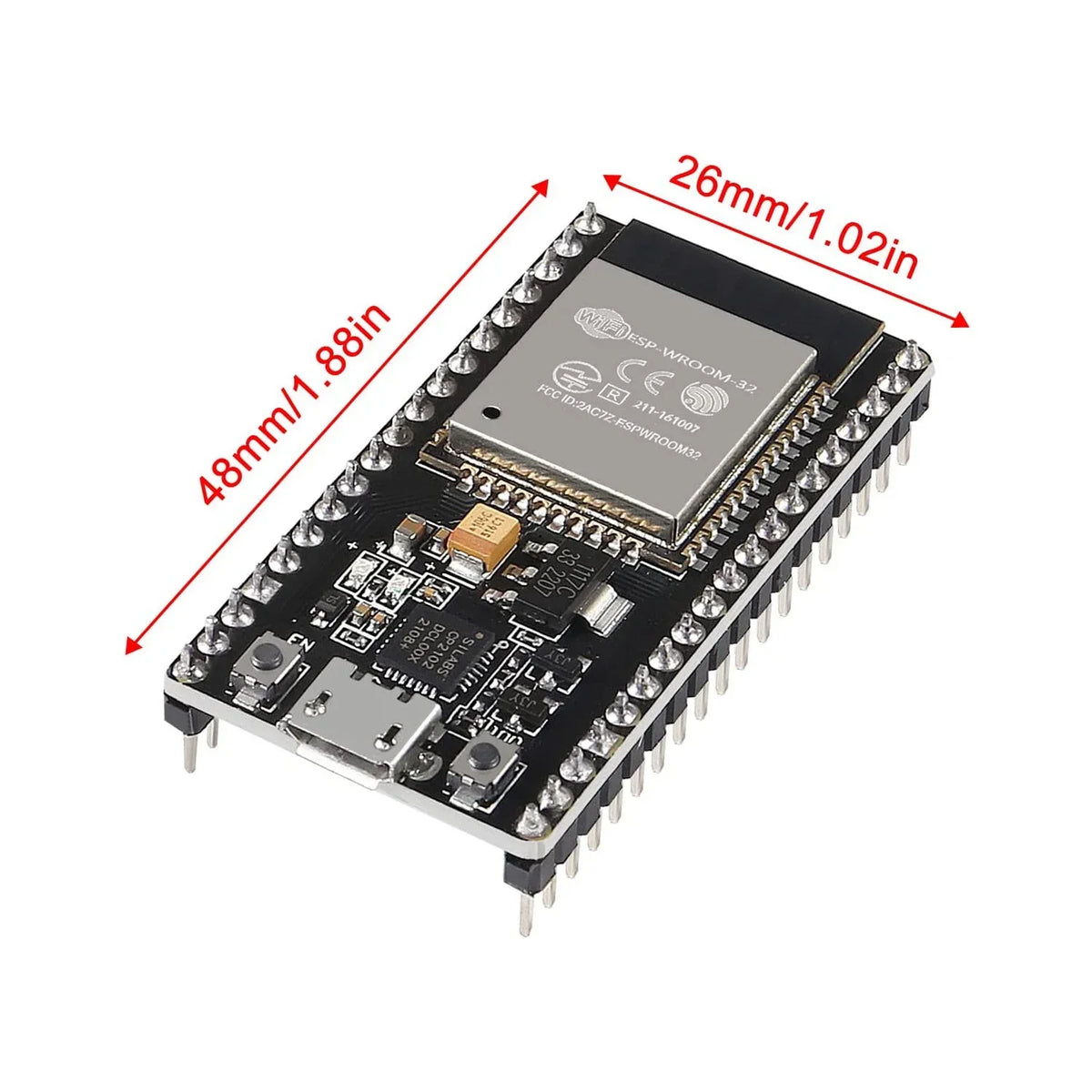

| Board Dimensions | 28.5mm × 51.8mm |
| Pin Count | 38 pins |
| Interfaces | UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC |
Transmission Power
- 802.11b: 17 ±2 dBm @ 11 Mbps
- 802.11g: 14 ±2 dBm @ 54 Mbps
- 802.11n: 13 ±2 dBm @ MCS7
Receiving Sensitivity
- CCK 1 Mbps: -90 dBm
- CCK 11 Mbps: -85 dBm
- 6 Mbps (1/2 BPSK): -88 dBm
- 54 Mbps (3/4 64-QAM): -70 dBm
- MCS7 (65/72.2 Mbps): -67 dBm
What's in the Box
- 1× ESP32 38-Pin Type-C USB Development Board
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What makes the 38-pin ESP32 development board better than a 30-pin version?
A: The 38-pin ESP32 board offers more GPIO pins and expanded peripheral access compared to the standard 30-pin module, giving you greater flexibility for complex projects. Despite having more pins, it features a narrower form factor that is fully compatible with standard breadboards, making prototyping easier and more organized.
Q: What wireless protocols does this ESP32 development board support?
A: This ESP32 board supports 2.4GHz Wi-Fi (802.11 b/g/n) with STA, AP, and STA+AP modes, as well as Bluetooth 4.2 BR/EDR and Bluetooth Low Energy (BLE). Both wireless technologies operate simultaneously on the same chip, making it ideal for IoT and smart home applications.
Q: Is this ESP32 board compatible with the Arduino IDE or MicroPython?
A: Yes. The ESP32 ESP-WROOM-32 is widely supported by the Arduino IDE (using the ESP32 board package), MicroPython, and ESP-IDF. The onboard reset and boot buttons make flashing new firmware quick and straightforward without any additional hardware.
Q: What power supply does this board require?
A: The board is powered via its Type-C USB connector at 5V. It operates internally at 3.3V and draws approximately 300mA at 3.3V during normal operation. The integrated power management module handles voltage regulation onboard.
