ESP32-C3 SuperMini IoT Dev Board – WiFi & Bluetooth 5
ESP32-C3 SuperMini IoT Dev Board – WiFi & Bluetooth 5
ESP32-C3 SuperMini IoT Development Board – WiFi & Bluetooth 5
Meet the ESP32-C3 SuperMini — a compact, high-performance IoT development board built around Espressif's powerful ESP32-C3 (ESP32C3FN4) chip. Packing a 32-bit RISC-V single-core processor running at up to 160 MHz, dual-mode WiFi + Bluetooth 5.0 LE connectivity, and an ultra-low deep-sleep current of just ~43 µA, this thumb-sized board is the ideal foundation for wearables, smart sensors, wireless automation, and countless other IoT projects. Made in Mainland China.
Key Features
- Powerful 32-bit RISC-V CPU: ESP32-C3 processor with FPU for 32-bit single-precision operations, clocked up to 160 MHz for snappy, reliable performance.
- Dual Wireless Connectivity: IEEE 802.11b/g/n WiFi at 2.4 GHz (Station, SoftAP, SoftAP+Station, and mixed modes) plus Bluetooth 5.0 LE for versatile wireless communication.
- Ultra-Low Power Consumption: Deep-sleep current of approximately 43 µA makes this board perfect for battery-powered and energy-conscious designs.
- Generous On-Board Memory: 400 KB SRAM, 384 KB ROM, and an integrated 4 MB Flash — plenty of space for your firmware and application data.
- Advanced Hardware Security: AES-128/256 encryption, SHA hash accelerators, RSA, HMAC, digital signatures, and secure boot protect your IoT solutions at the hardware level.
- Rich Interface Options: 11× GPIO (all PWM-capable), 4× ADC, 1× I2C, 1× SPI, 2× UART — flexible enough for almost any peripheral or sensor.
- Thumb-Sized Footprint: Just 22.52 × 18 mm (PCB) with a single-sided, surface-mount component layout and an onboard blue LED on GPIO8.
- Arduino & IDE Compatible: Programs seamlessly with the Arduino IDE and other popular development environments.
- Reset & Boot Buttons: Dedicated reset button and bootloader mode button for easy flashing and development.
Technical Specifications
| Chip Model | ESP32C3FN4 (Espressif) |
| CPU | 32-bit RISC-V single-core, up to 160 MHz |
| WiFi | 802.11 b/g/n, 2.4 GHz |
| Bluetooth | Bluetooth 5.0 LE |
| SRAM / ROM / Flash | 400 KB / 384 KB / 4 MB |
| Deep Sleep Current | ~43 µA |
| GPIO (PWM) | 11 pins |
| ADC Pins | 4 pins |
| Interfaces | 1× I2C, 1× SPI, 2× UART |
| Onboard LED | Blue LED on GPIO8 |

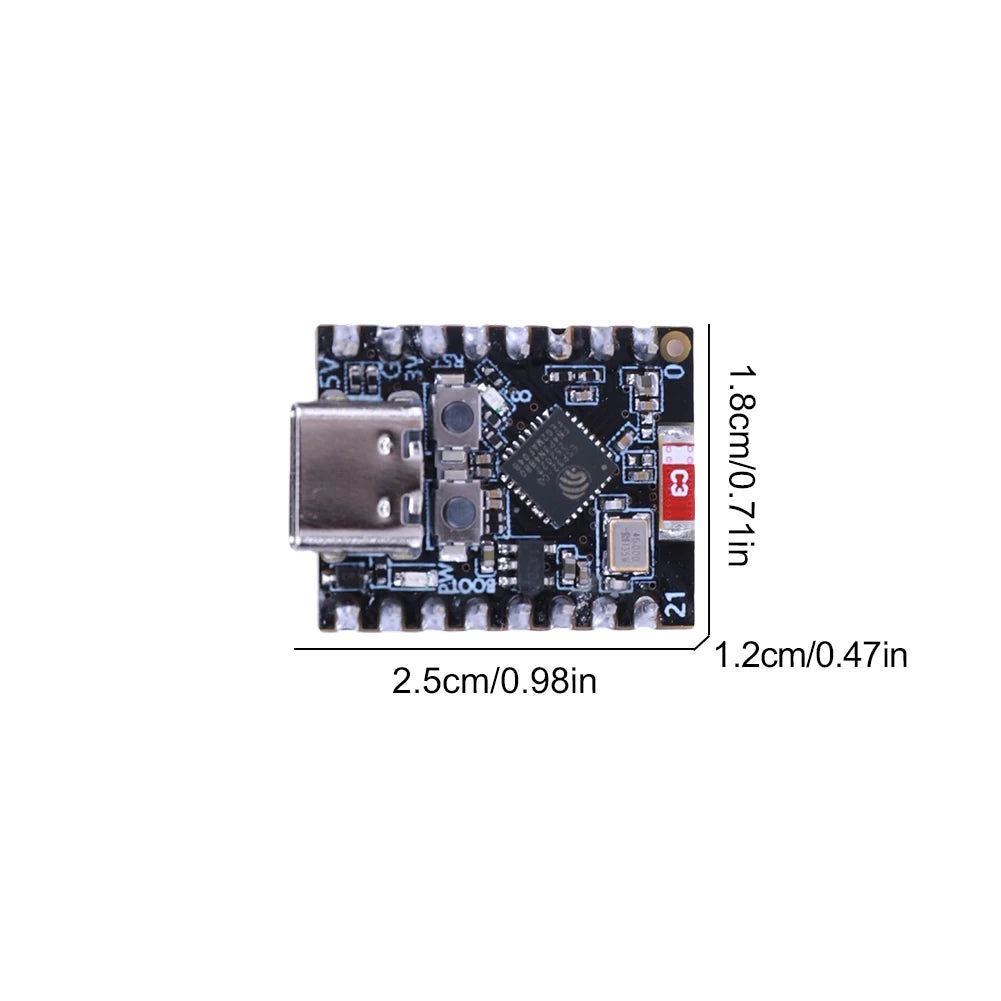

| PCB Size | 22.52 × 18 mm |
| Product Size (with pins) | 25.00 × 18.00 × 12.00 mm |
| Origin | Made in Mainland China |
What's in the Box?
- 1× ESP32-C3 SuperMini Development Board
(Choose: Soldered Pins or Unsoldered Pins)
Ideal For
- IoT sensor nodes and smart home automation
- Wearable electronics and compact embedded projects
- Wireless data loggers and remote monitoring devices
- Battery-powered edge computing applications
- Arduino-compatible prototyping and maker projects
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is the ESP32-C3 SuperMini compatible with the Arduino IDE?
A: Yes! The ESP32-C3 SuperMini development board is fully compatible with the Arduino IDE. Simply add the Espressif ESP32 board package to your IDE, select the appropriate ESP32-C3 board profile, and you can start uploading sketches via USB just like any other Arduino-compatible board.
Q: What is the difference between the Soldered Pins and Unsoldered Pins versions?
A: The Soldered Pins version comes with header pins already attached, making it immediately ready for use on a breadboard or in a prototype circuit. The Unsoldered Pins version ships with loose headers so you can solder them yourself — ideal if you need a lower profile or a custom pin configuration for your specific project.
Q: How low is the power consumption in deep sleep mode?
A: The ESP32-C3 SuperMini draws approximately 43 µA in deep sleep mode, making it extremely well-suited for battery-powered IoT devices and wireless wearable applications where extended battery life is a priority.
Q: Does the board have built-in security features?
A: Absolutely. The ESP32-C3 chip includes hardware-accelerated AES-128/256 encryption, SHA hashing, RSA, HMAC, digital signature support, and secure boot functionality — all at the silicon level — ensuring robust security for your IoT applications without sacrificing performance.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
