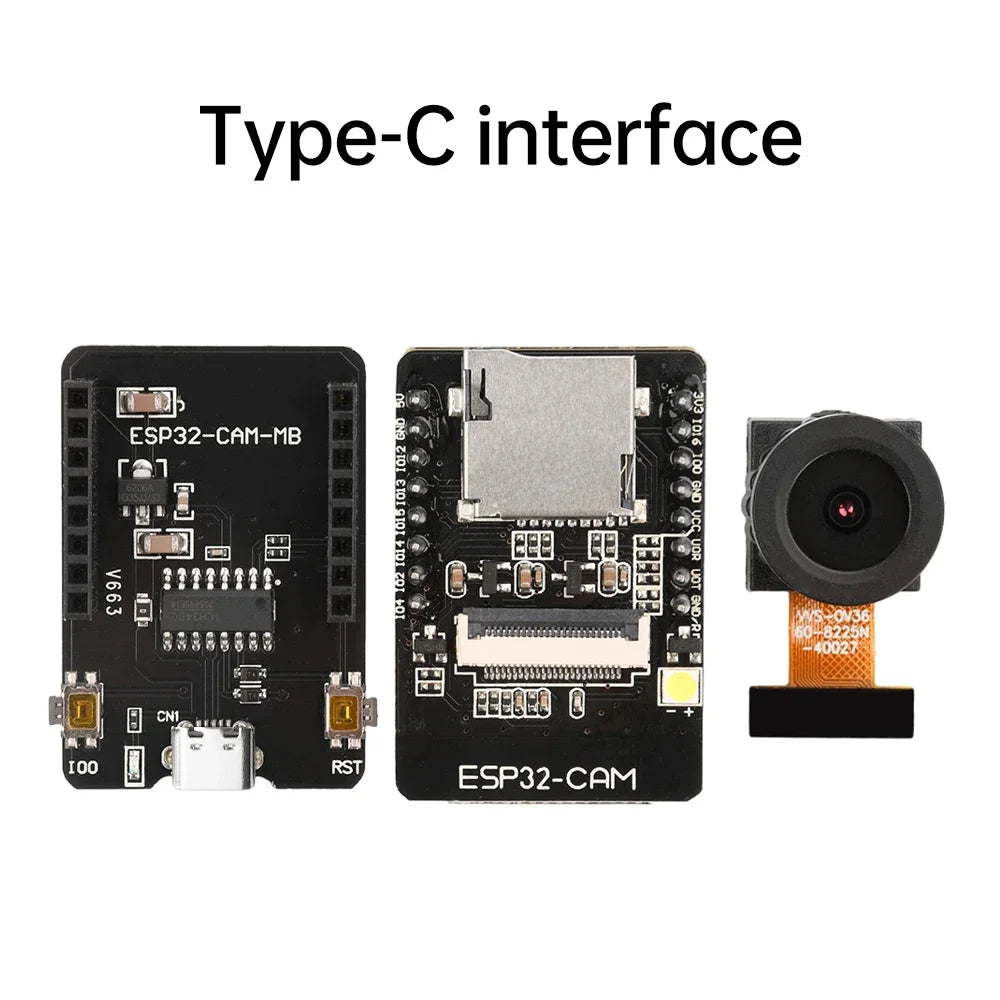

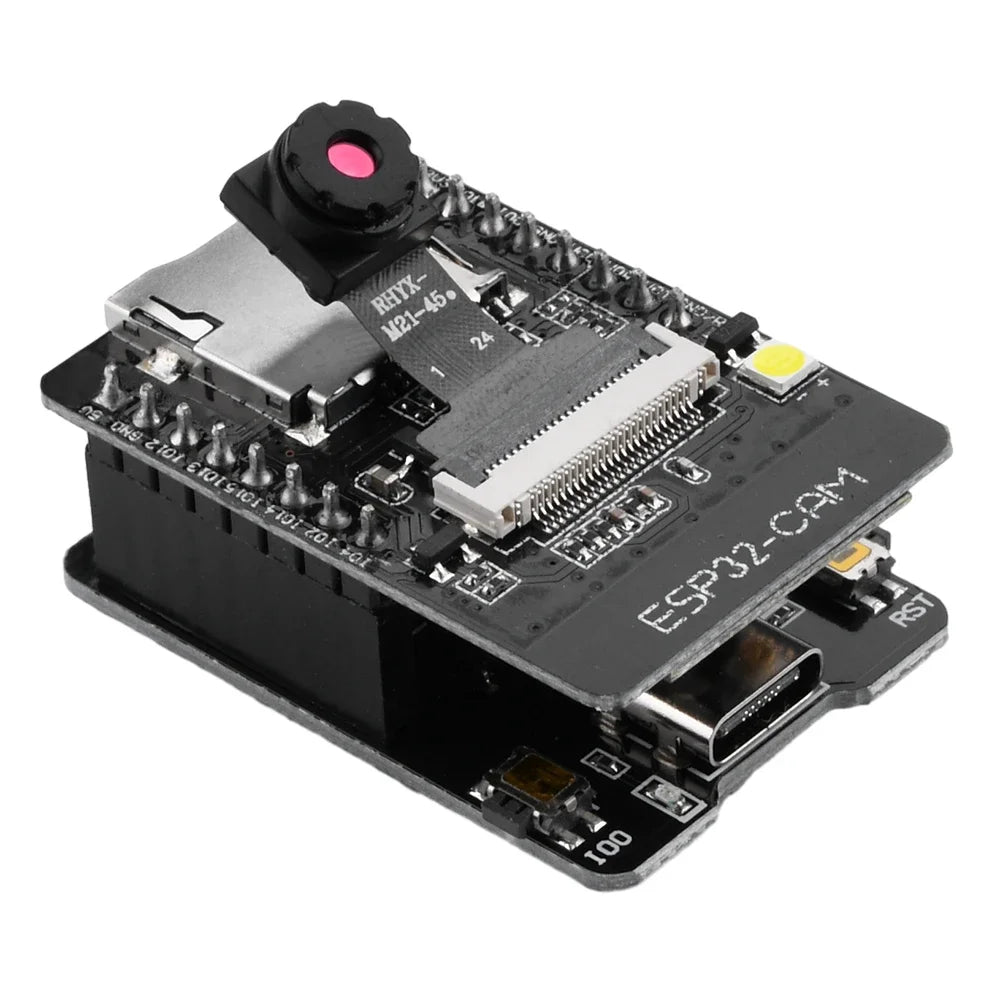

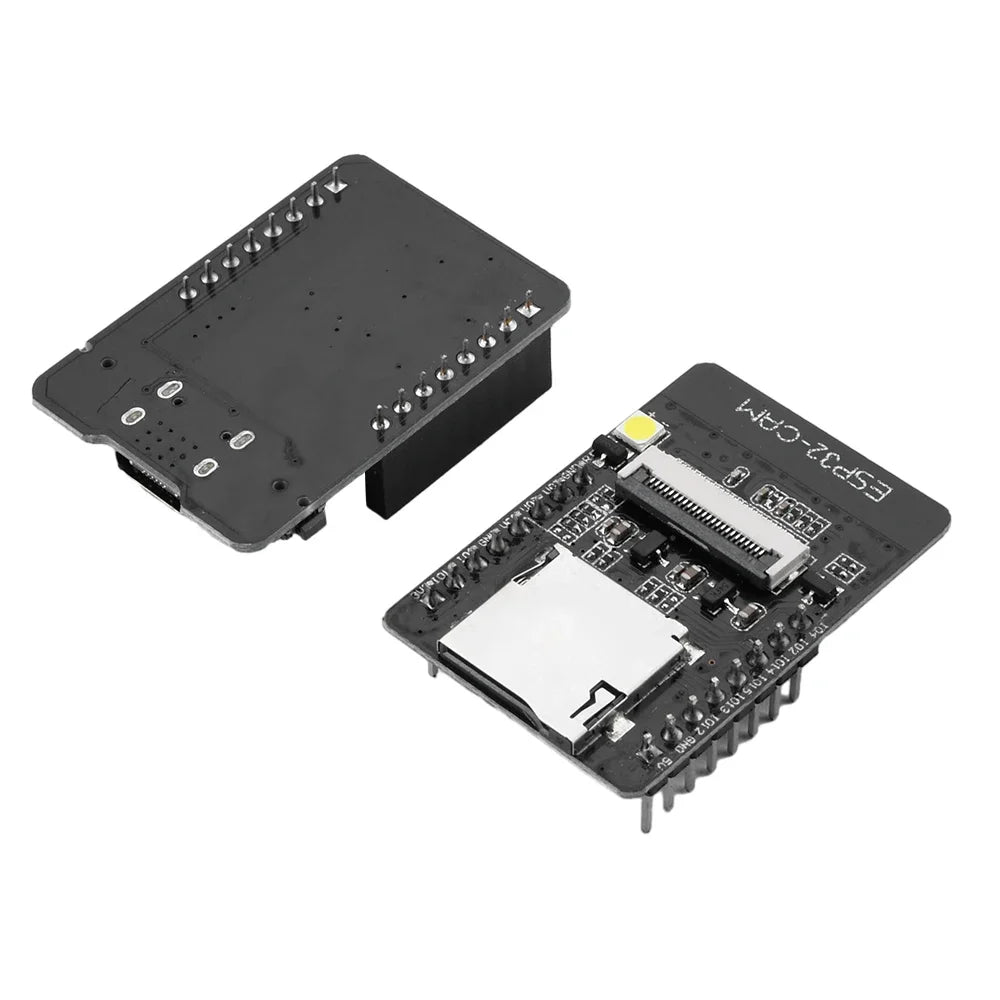

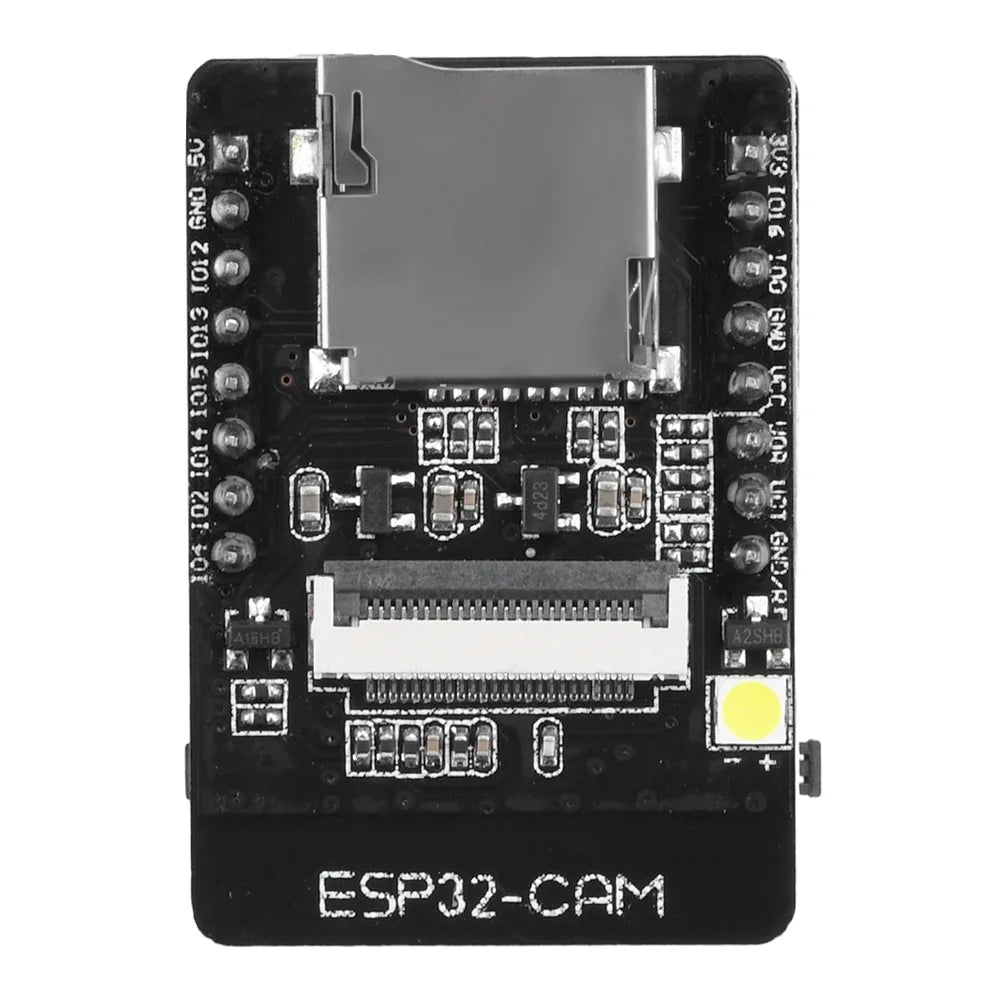

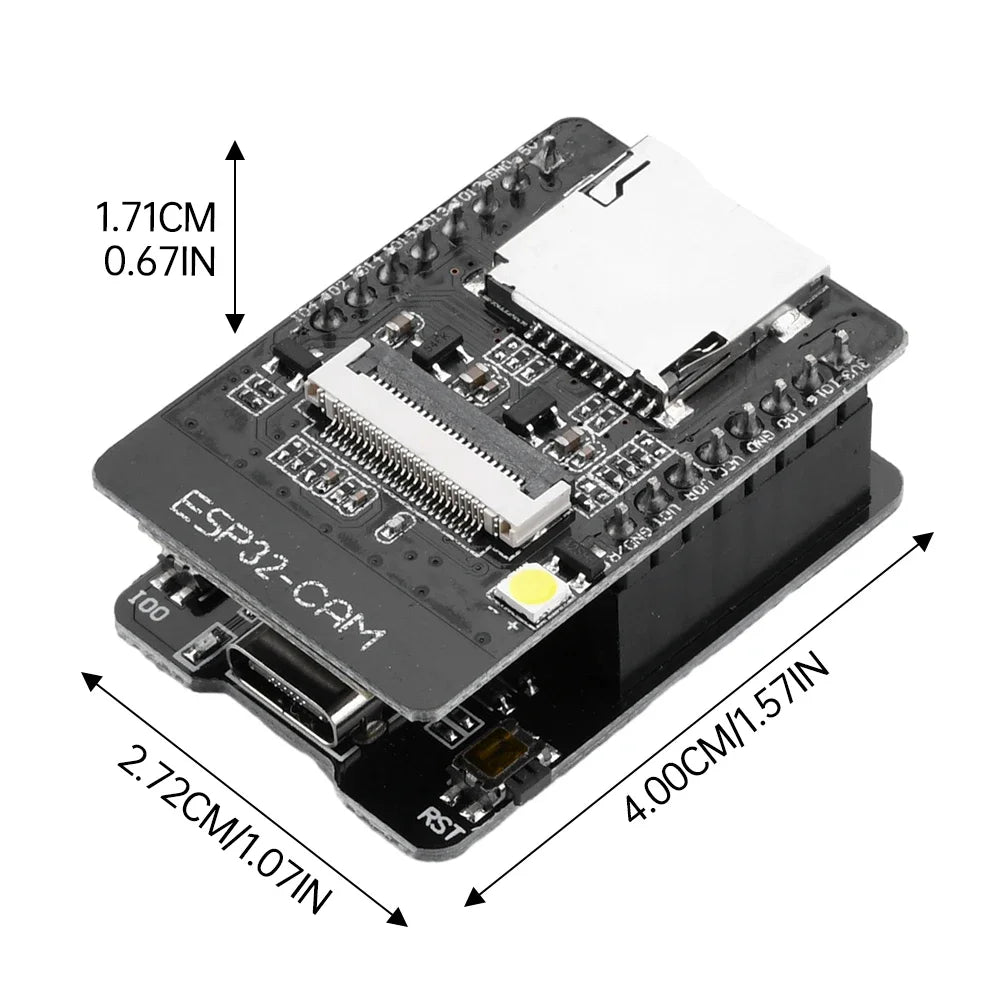

ESP32-CAM WiFi & Bluetooth Development Board with OV2640 2MP Camera Module
Take your IoT projects to the next level with the ESP32-CAM Development Board, a compact yet powerful Wi-Fi + Bluetooth dual-mode module featuring the OV2640 2.0MP camera. Designed for makers, engineers, and hobbyists, this ultra-low-power board is one of the smallest self-contained camera systems on the market — perfect for smart home automation, wireless monitoring, industrial control, and a wide range of IoT applications.
Made in China.
Key Features
- Compact, All-in-One Design: Functions as a fully independent mini system — no extra microcontroller required.
- WiFi + Bluetooth Dual-Mode: 802.11b/g/n Wi-Fi and BT 4.2 BR/EDR + BLE built right in with an integrated PCB antenna (2dBi gain).
- OV2640 2MP Camera: Supports JPEG, BMP, and Grayscale image output formats for versatile image capture.
- Ultra-Low Power Consumption: Deep sleep current as low as 6mA @ 5V — ideal for battery-powered or energy-sensitive IoT deployments.
- MicroSD Card Support: Store captured images locally on TF/microSD cards up to 4GB.
- Multiple Interface Support: UART, SPI, I2C, and PWM interfaces at up to 2Mbps for easy peripheral connectivity.
- Plug-and-Play Ready: Simply plug into your motherboard and start building.
Technical Specifications
| Working Voltage | 4.75–5.25V (5V recommended) |
| SPI Flash | 32Mbit (default) |
| RAM | Internal 520KB |
| Wi-Fi Standard | 802.11 b/g/n/e/i |
| Bluetooth | BT 4.2 BR/EDR & BLE |
| Spectrum Range | 2400–2483.5 MHz |
| Antenna | Integrated PCB, 2dBi gain |
| IO Ports | 9 |
| Serial Port Speed | 115200bps (default) |
| TF Card Support | Up to 4GB |
| Image Output Formats | JPEG (OV2640 only), BMP, Grayscale |
| Power – Flash Off | 180mA @ 5V |
| Power – Flash On (Max) | 310mA @ 5V |
| Deep Sleep Current | As low as 6mA @ 5V |
| Modern Sleep | Min. 20mA @ 5V |
| Light Sleep | Min. 6.7mA @ 5V |
| Security | WPA/WPA2/WPA2 Enterprise/WPS |
| Working Temperature | -20°C to 70°C |
| Storage Environment | -40°C to 125°C, <90% RH |
Transmission Power
- 802.11b: 17 ± 2dBm @ 11Mbps
- 802.11g: 14 ± 2dBm @ 54Mbps
- 802.11n: 13 ± 2dBm @ MCS7
Receiving Sensitivity
- CCK, 1Mbps: -90dBm
- CCK, 11Mbps: -85dBm
- 6Mbps (1/2BPSK): -88dBm
- 54Mbps (3/4 64-QAM): -70dBm
- MCS7 (65–72.2Mbps): -67dBm
Application Scenarios
- Smart home device image transmission
- Wireless monitoring systems
- Smart agriculture solutions
- Wireless QR code recognition
- Wireless positioning and navigation systems
- Industrial wireless control
- General IoT development and prototyping
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What programming environment is compatible with the ESP32-CAM development board?
A: The ESP32-CAM development board is compatible with the Arduino IDE (using the ESP32 board package), as well as ESP-IDF (Espressif's official framework) and MicroPython. Most developers use the Arduino IDE for quick prototyping, making it accessible even for beginners.
Q: Does the ESP32-CAM WiFi BT board require a separate programmer to upload code?
A: Yes, the ESP32-CAM board does not have a built-in USB-to-serial programmer. You will need an external FTDI or CP2102 USB-to-serial adapter to upload sketches. Connect TX, RX, GND, and 5V accordingly, and pull GPIO0 to GND before flashing.
Q: What microSD card format and size does the ESP32-CAM OV2640 module support?
A: The ESP32-CAM supports standard TF (microSD) cards formatted as FAT32, with a maximum supported capacity of 4GB. This is used primarily to store JPEG images captured by the OV2640 camera locally without requiring a network connection.
Q: Can the ESP32-CAM be used for live video streaming over WiFi?
A: Yes! The ESP32-CAM with OV2640 camera is capable of MJPEG streaming over Wi-Fi. Using the CameraWebServer example sketch available in the Arduino IDE, you can set up a local web server and view a live stream from any browser on the same network.
