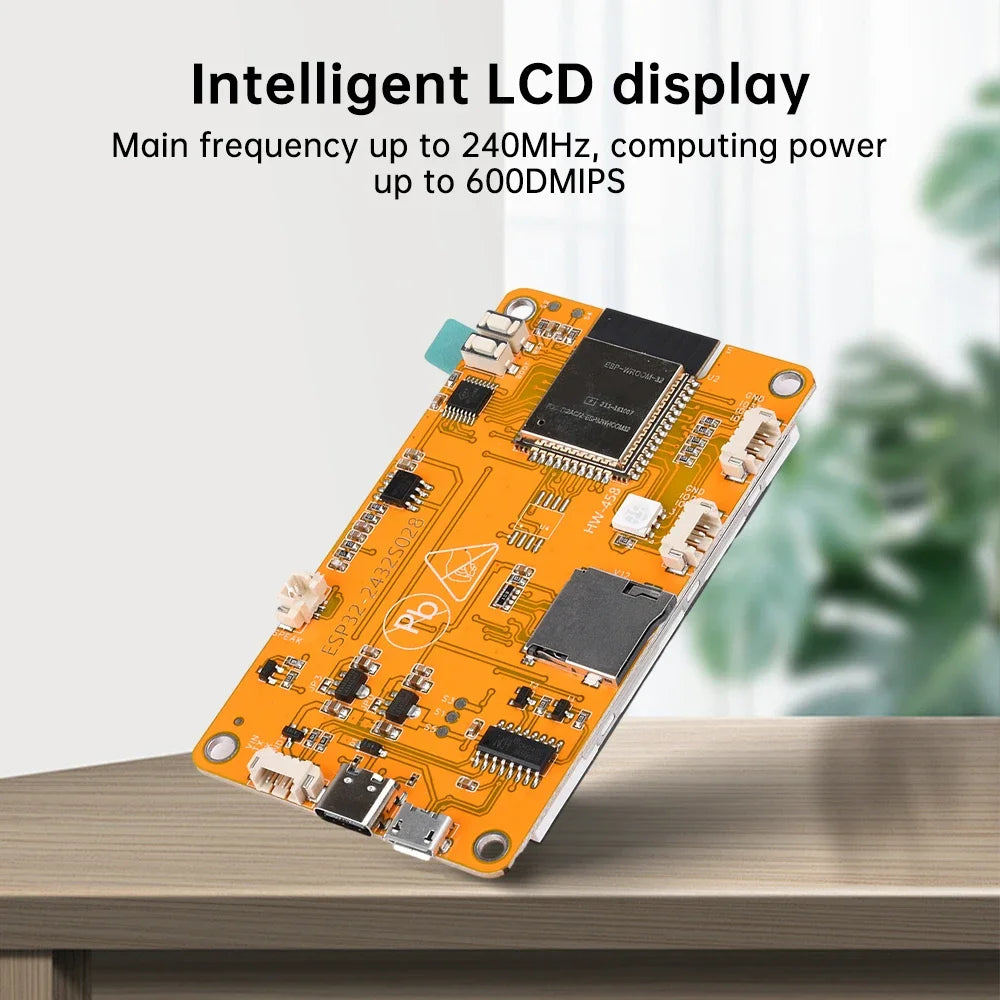

ESP32 WiFi + Bluetooth Dual-Mode Development Board with 2.8" TFT LCD Touch Screen
Take your IoT and embedded projects to the next level with this powerful ESP32 WiFi & Bluetooth Dual-Mode Development Board featuring a vibrant 2.8-inch TFT LCD touchscreen display. Whether you're a hobbyist, student, or professional engineer, this all-in-one development platform delivers wireless connectivity, vivid color graphics, and an intuitive touch interface — all in one compact board. Made in Mainland China.
Why You'll Love This Board
- Dual Wireless Connectivity: Built-in WiFi (802.11b/g/n) and Bluetooth 4.2 BR/EDR + BLE let you connect to networks and devices wirelessly without any extra modules.

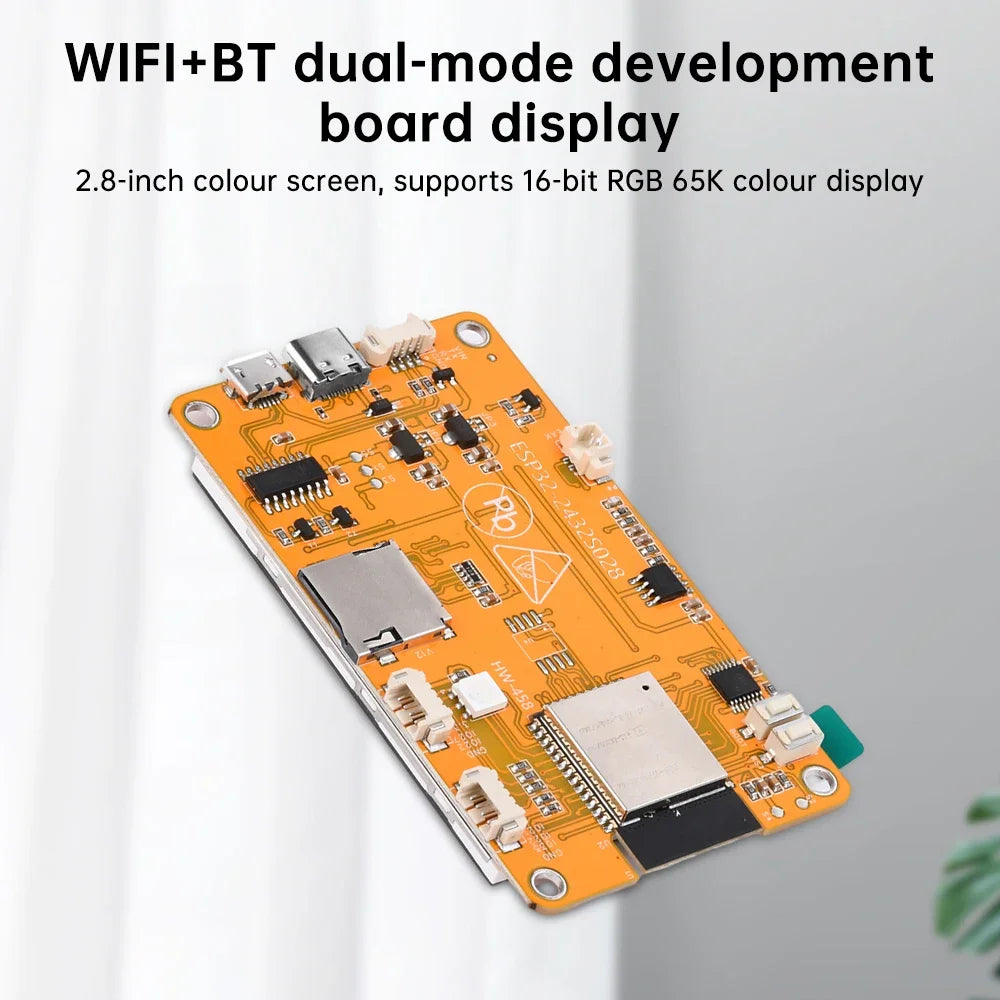

- Vivid 2.8" TFT Display: The ILI9341-driven screen delivers a sharp 320×240 resolution with RGB 65K colors across a 43.2×57.6mm visible area — perfect for dashboards, menus, and data visualization.

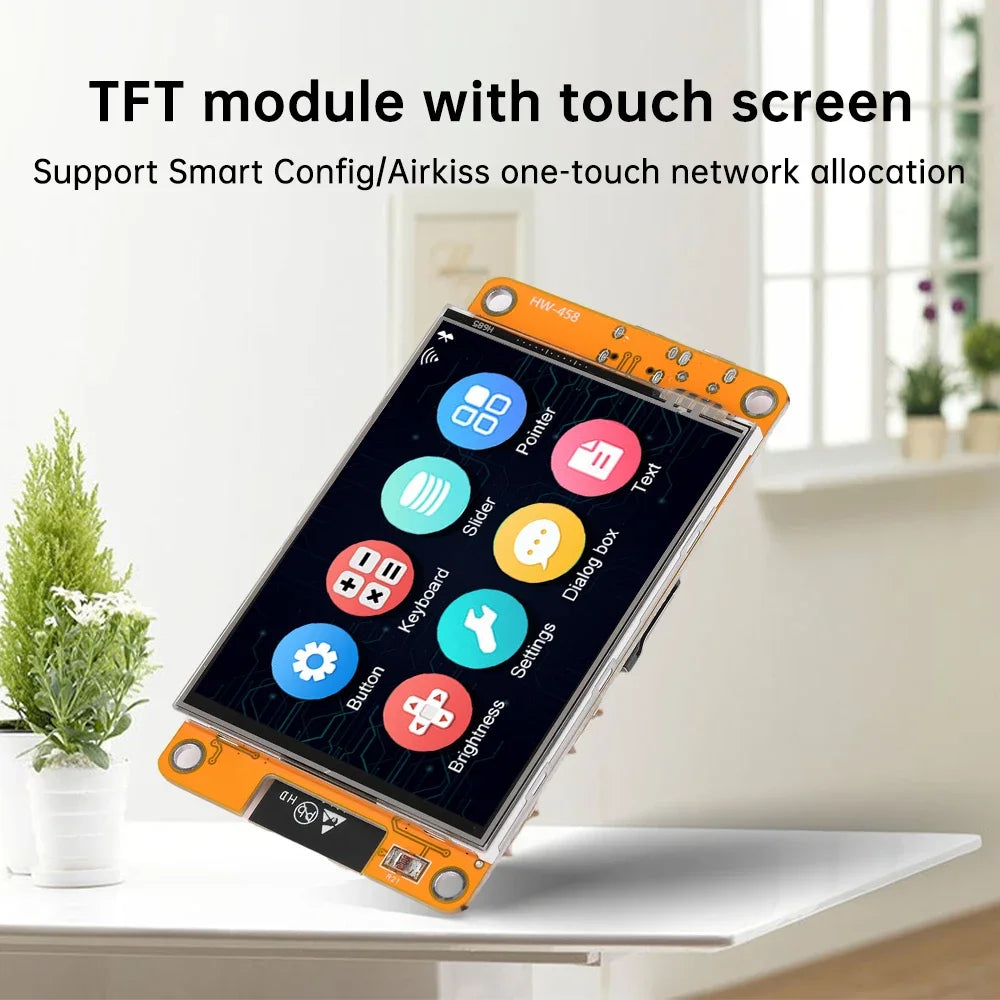

- Responsive Touch Input: The integrated touch panel enables intuitive user interaction for your projects, included stylus pen makes navigation precise and easy.
- Wide Interface Support: With 22 I/O ports and support for UART, SPI, SDIO, I2C, IR, ADC, DAC, and PWM, this board interfaces with virtually any sensor or peripheral you need.
- Flexible Power: Operates at 5V with a USB Type-C connection for modern, convenient power and data transfer.

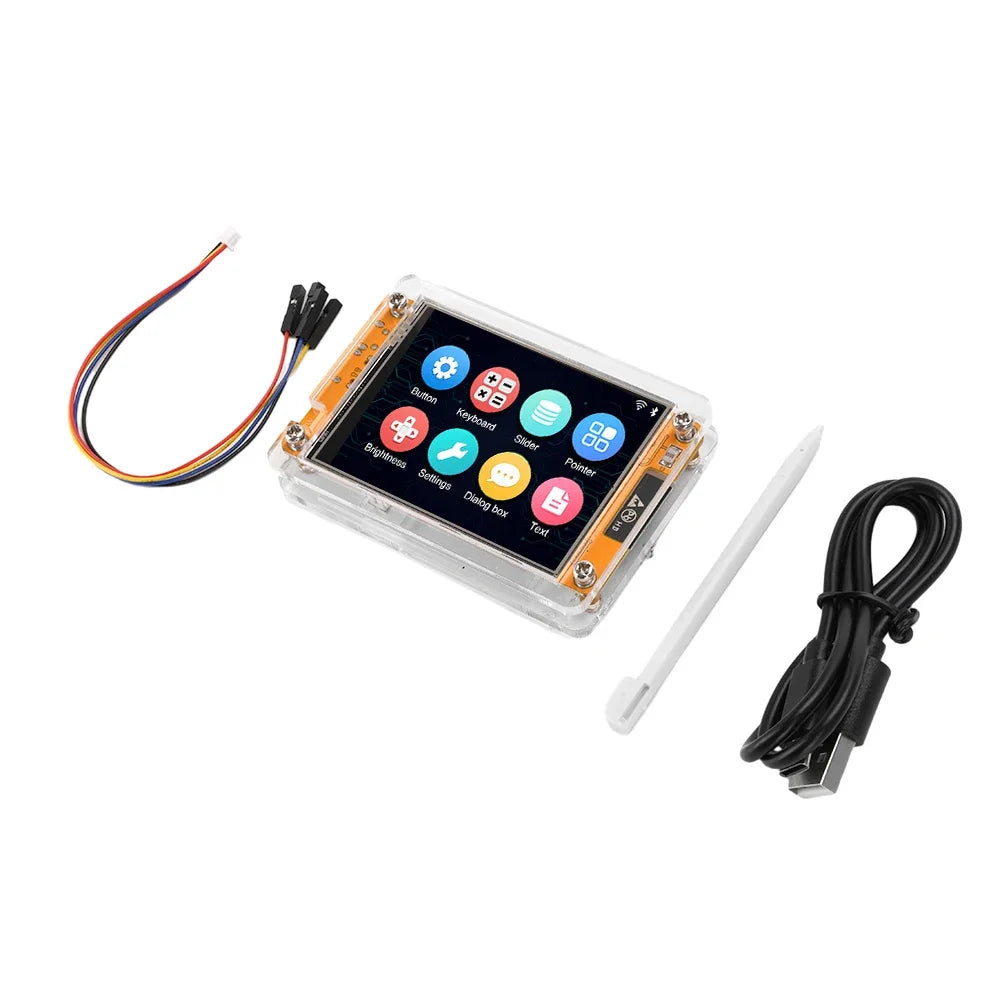

- Optional Casing: Available with or without a protective shell — choose the configuration that suits your build.
Full Technical Specifications
| Model | ESP32 |
| Display Size | 2.8 inches |
| Display Type | TFT |
| Driver Chip | ILI9341 |
| Resolution | 320 × 240 pixels |
| Display Color | RGB 65K Color |
| Visible Area | 43.2 × 57.6 mm |
| Viewing Angle | >60° |
| Operating Voltage | 5V (USB Type-C) |
| Power Consumption | 115 mA |
| Working Temperature | -20°C to 70°C |
| WiFi Standard | 802.11 b/g/n |
| WiFi Spectrum | 2412–2484 MHz |
| WiFi Security | WPA / WPA2 / WPA2 Enterprise / WPS |
| Antenna | Onboard PCB Antenna, 2 dBi Gain |
| Bluetooth | Bluetooth 4.2 BR/EDR and BLE |

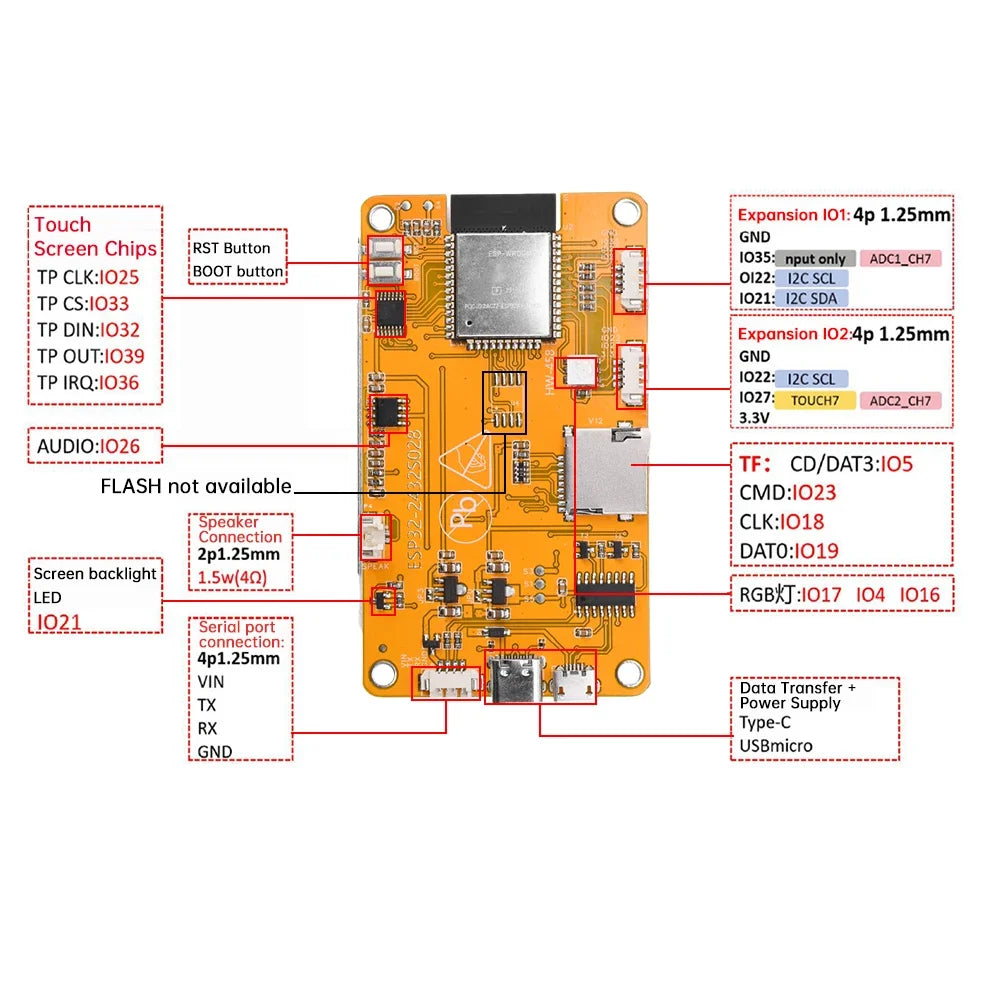

| I/O Ports | 22 |
| Interfaces | UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM |
| Serial Port Speed | Default 115200 bps |
| Country of Origin | Made in Mainland China |
RF Sensitivity Reference
- CCK 1 Mbps: -90 dBm
- CCK 11 Mbps: -85 dBm
- 6 Mbps (1/2 BPSK): -88 dBm
- 54 Mbps (3/4 64-QAM): -70 dBm
- MCS7 (65 Mbps / 72.2 Mbps): -67 dBm

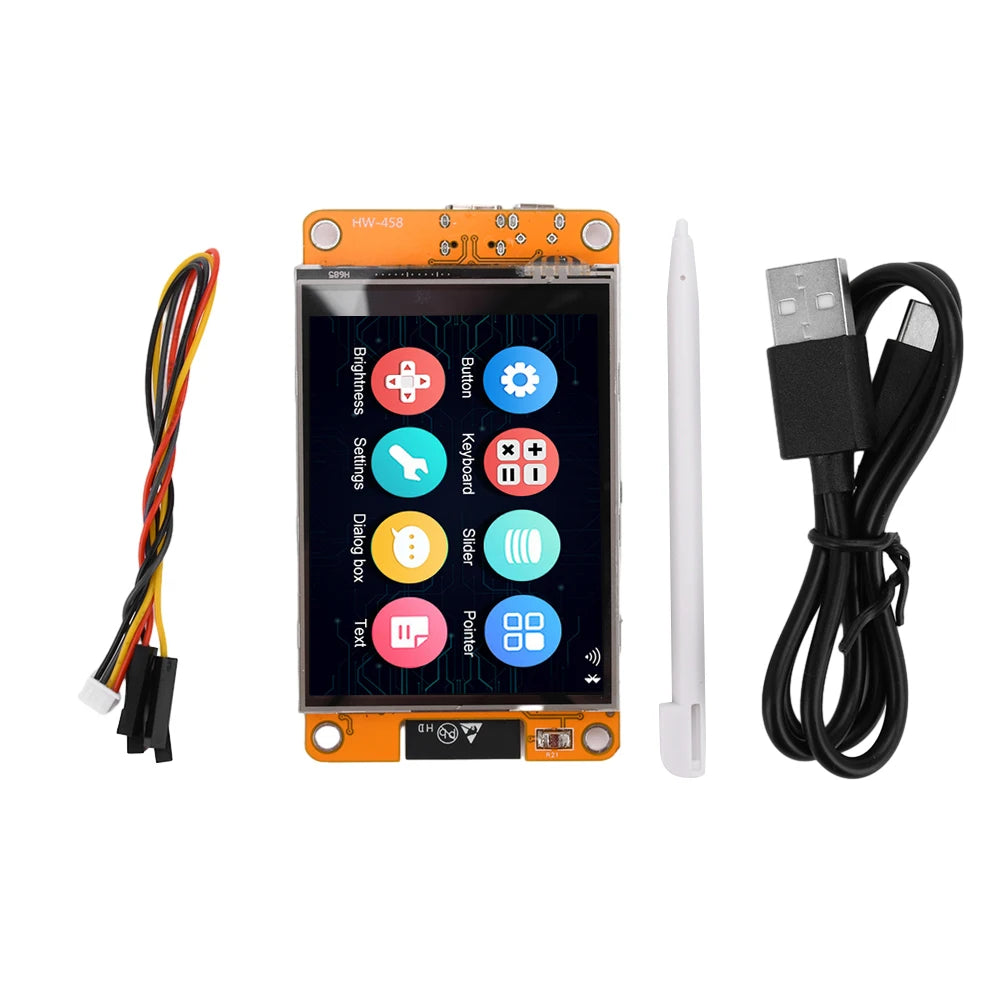

What's in the Box
- ESP32 TFT LCD Development Board × 1
- Touch Stylus Pen × 1
- USB Type-C Data Cable × 1
- 4-Pin Terminal to Dupont Wire × 1
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this ESP32 development board compatible with the Arduino IDE?
A: Yes! The ESP32 is fully supported by the Arduino IDE. You can install the ESP32 board package via the Boards Manager and program the board using familiar Arduino libraries, including TFT display libraries such as TFT_eSPI which works great with the ILI9341 driver chip on this 2.8-inch TFT LCD module.
Q: Does this board support both WiFi and Bluetooth at the same time?
A: Yes, the ESP32 chip supports dual-mode wireless operation — you can run WiFi (802.11b/g/n) and Bluetooth 4.2 (Classic BR/EDR and BLE) simultaneously, making it ideal for IoT projects that require multiple wireless protocols at once.
Q: Does it come with a protective casing?
A: This ESP32 development board is available in two configurations — with a protective shell or without a shell. Please select your preferred option at the time of purchase.
Q: What interfaces are supported for connecting external sensors and peripherals?
A: The board exposes 22 I/O ports with support for UART, SPI, SDIO, I2C, IR, ADC, DAC, and PWM interfaces, giving you broad compatibility with a wide range of sensors, actuators, and expansion modules.
