Fiber Optic Transmitter Receiver for Drones FPV – 25km Range
Fiber Optic Transmitter Receiver for Drones FPV – 25km Range
Take your drone's FPV link to the next level with this industrial-grade Fiber Optic Transmitter & Receiver Module. Engineered for long-range aerial operations, this system leverages single-mode fiber optics to deliver stable, low-latency video and control signals over distances of up to 25 km — completely free from electromagnetic interference and signal blockage.
Whether you're piloting a long-range FPV drone or managing a professional UAV platform, this module provides a rock-solid communications backbone that standard RF links simply can't match.
Key Features

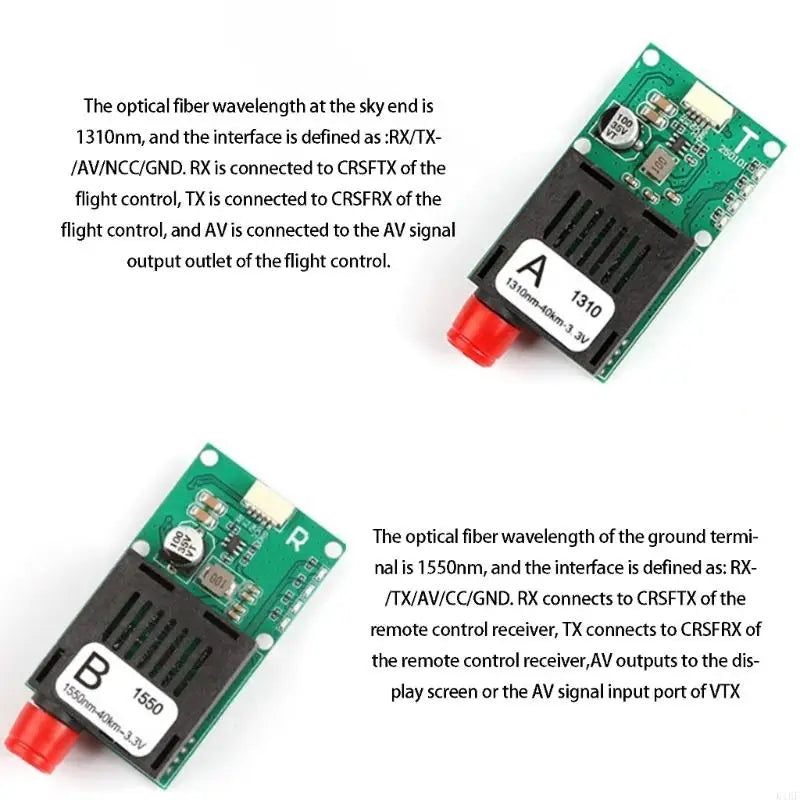

- Dual Wavelength Fiber Technology: Operates at 1310nm (air terminal) and 1550nm (ground terminal) for stable, interference-free transmission over up to 25 km via single-mode fiber.

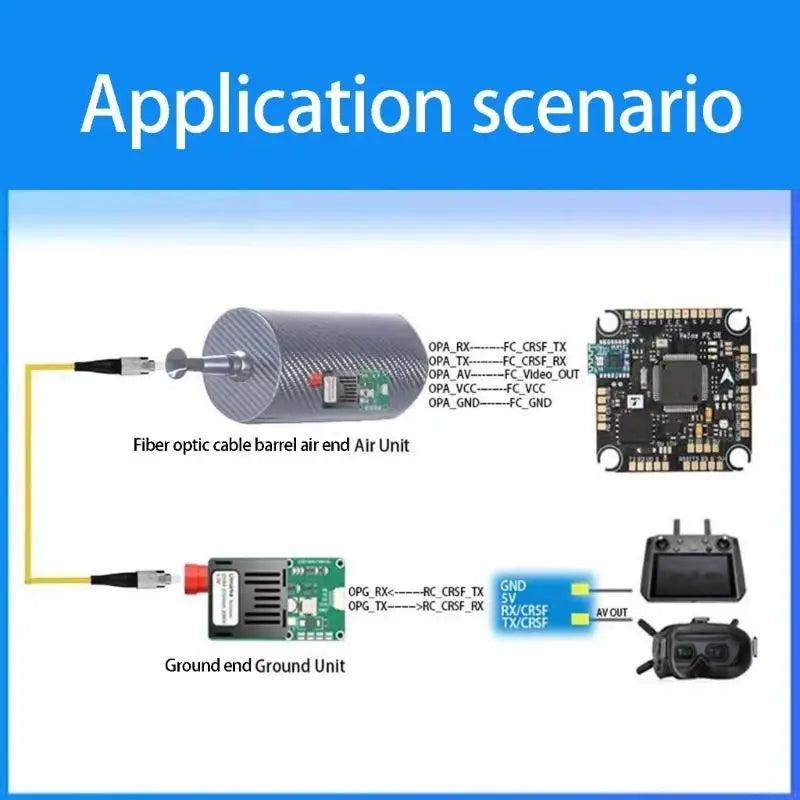

- CRSF Protocol + Analog Video Support: Combines control signals (CRSF protocol) and analog video signals into a single fiber link — bridging your flight controller, remote commands, and FPV camera in one complete solution.
- Wide Voltage Input (5.5V–26V): Compatible with a broad range of drone battery packs and ground power sources; module core operates at 3.3V for efficiency and reliability.

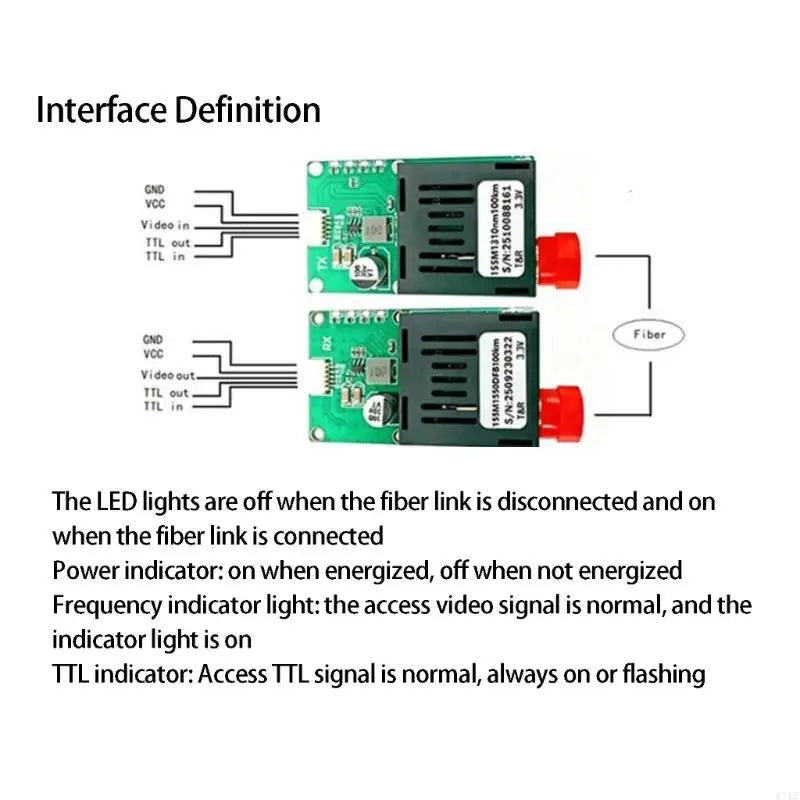

- 4 LED Status Indicators: Quick-reference LED indicators for fast on-site troubleshooting and system status monitoring during pre-flight checks and in-flight monitoring.

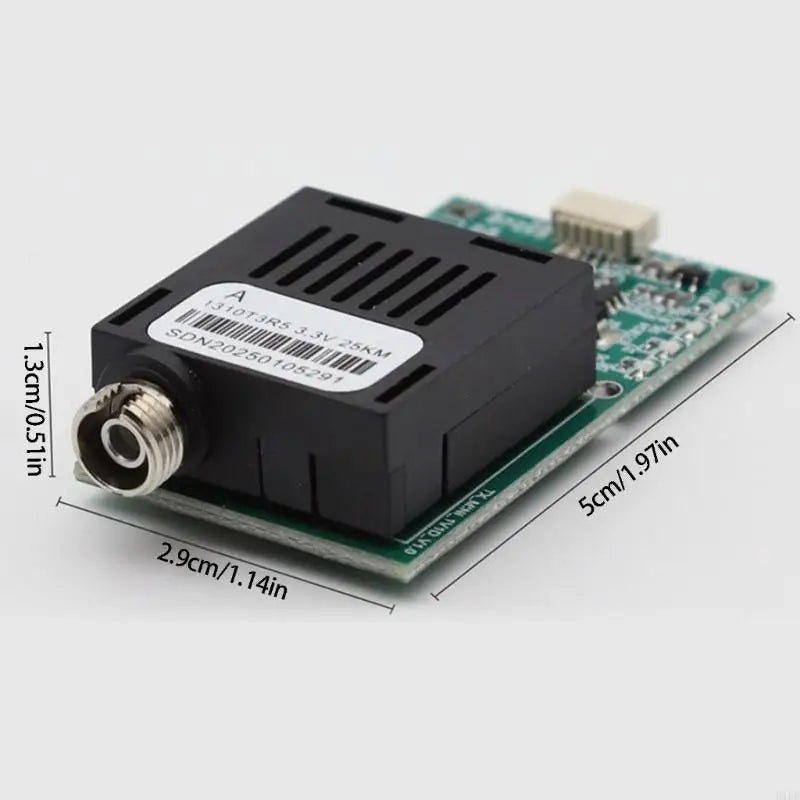

- Compact & Lightweight: Measuring just 50 × 29 × 13 mm, it installs easily without affecting your drone's balance or aerodynamics.
- Industrial-Grade ABS Construction: Built tough for outdoor and professional UAV operations in demanding environments.
Specifications
| Material | Industrial-grade ABS |
| Dimensions | 50 × 29 × 13 mm (approx. 1.97 × 1.14 × 0.51 in) |
| Transmission Distance | Up to 25 km (single-mode fiber) |
| Working Wavelengths | Air terminal: 1310 nm | Ground terminal: 1550 nm |
| Power Input | 5.5V – 26V wide voltage input; core operating voltage: 3.3V |
| Supported Protocols | CRSF (control signals) + Analog Video |
| Available Configurations | Air Unit / Ground Unit / Air & Ground Pair (Optional) |
| Country of Origin | Made in China |
What's in the Box
- 1 pc or 1 Pair Fiber Optic Receiver Module (configuration selectable at purchase)
Important Notes
- Please allow ±1–2 cm variance due to manual measurement.
- Actual product color may vary slightly from images due to monitor differences.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What is the maximum transmission distance of this fiber optic drone module?
A: This fiber optic transmitter and receiver module supports transmission distances of up to 25 km using single-mode fiber cable, making it ideal for long-range FPV drone operations and professional UAV applications.
Q: What control protocols does the fiber optic drone link support?
A: The module supports CRSF (Crossfire) control protocols for flight controller and remote command signals, as well as standard analog video signals from FPV cameras, combining both into a single fiber optic transmission line.
Q: Is this module compatible with my drone's battery voltage?
A: Yes. The module accepts a wide voltage input range of 5.5V to 26V, which covers most 2S–6S LiPo drone battery configurations as well as standard ground station power sources. The internal module core runs at a regulated 3.3V.
Q: Do I need to purchase the air unit and ground unit separately?
A: You have the flexibility to choose. The module is available as an Air Unit only, a Ground Unit only, or as a matched Air & Ground Pair — simply select your preferred configuration at checkout.
