FPV Flight Controller Board 36×36mm | ELRS Ready | 45A Current Class

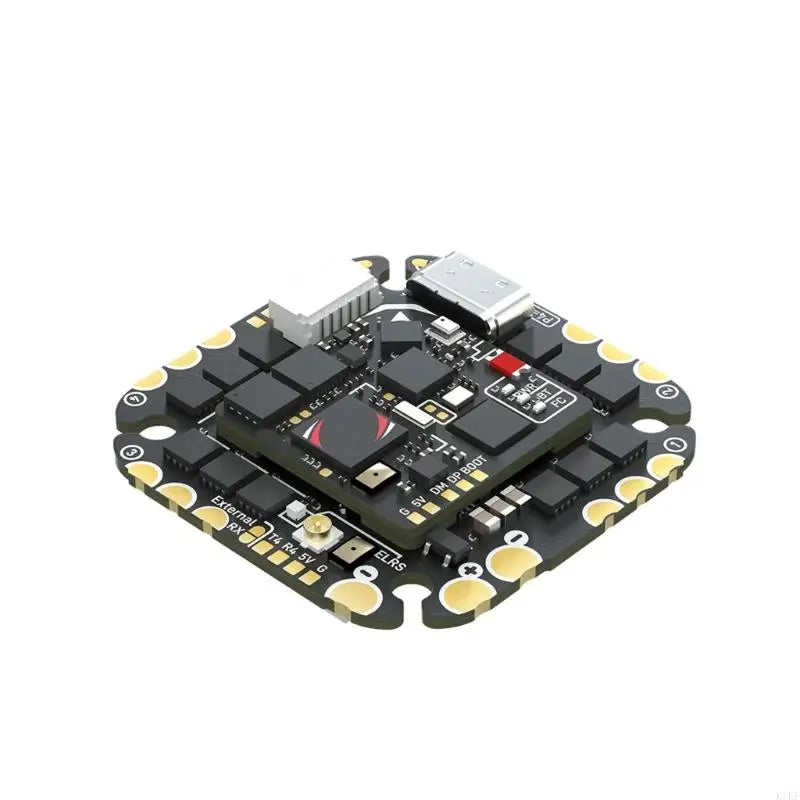

Take your FPV build to the next level with this compact, all-in-one 36×36mm FPV Flight Controller Board. Designed for efficiency and ease of assembly, this board integrates control electronics, power distribution, and an ELRS receiver-ready area into a single clean layout — perfect for new builds, stack replacements, or repair projects.
Key Features
- Integrated Board Layout: Combines flight control electronics, power distribution structure, and a receiver-ready design in one compact board for cleaner stack planning during assembly or replacement work.

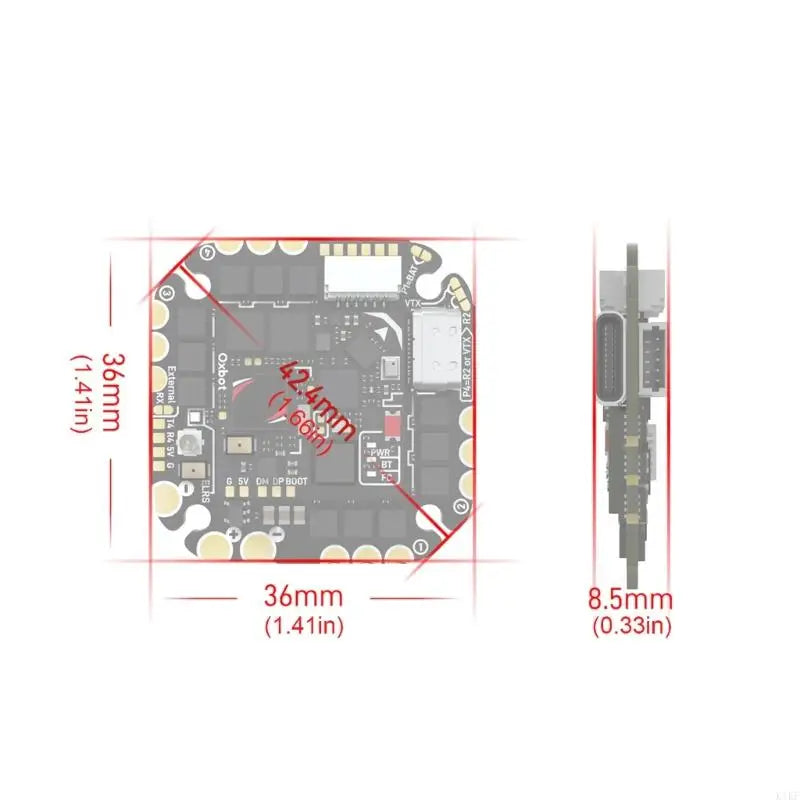

- 36×36mm Mounting Footprint: The 3.60×3.60×0.85 cm (approx. 1.42×1.42×0.33 inch) profile gives builders a precise size reference for stack placement, wiring space, and fit checks in compatible FPV setups.

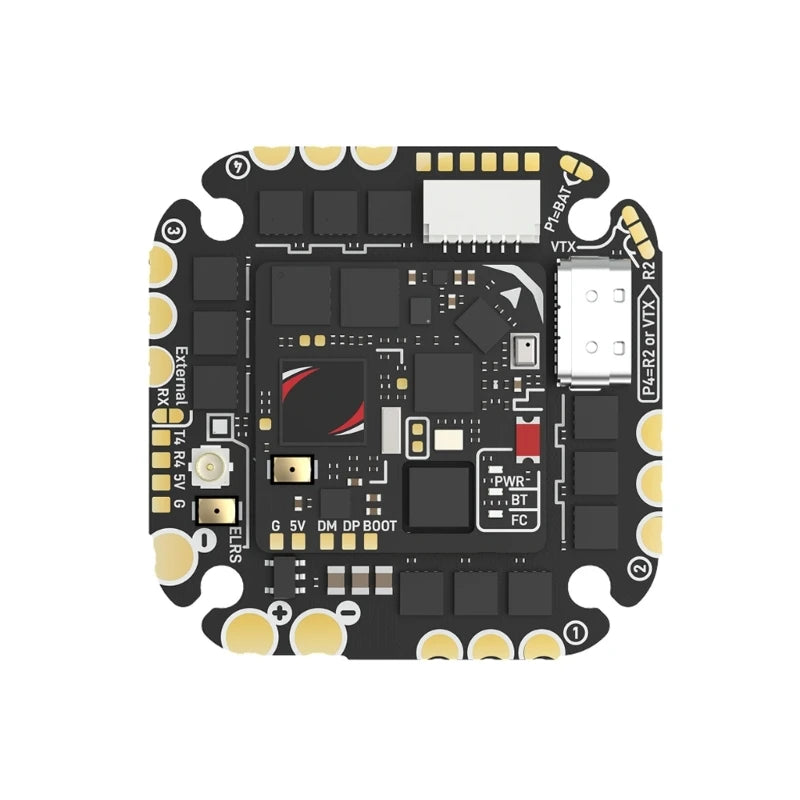

- Labeled Connection Pads: Clearly marked battery input, video transmitter (VTX), and external receiver pads help you identify wiring points quickly during setup, tuning, or service work — reducing build time and errors.

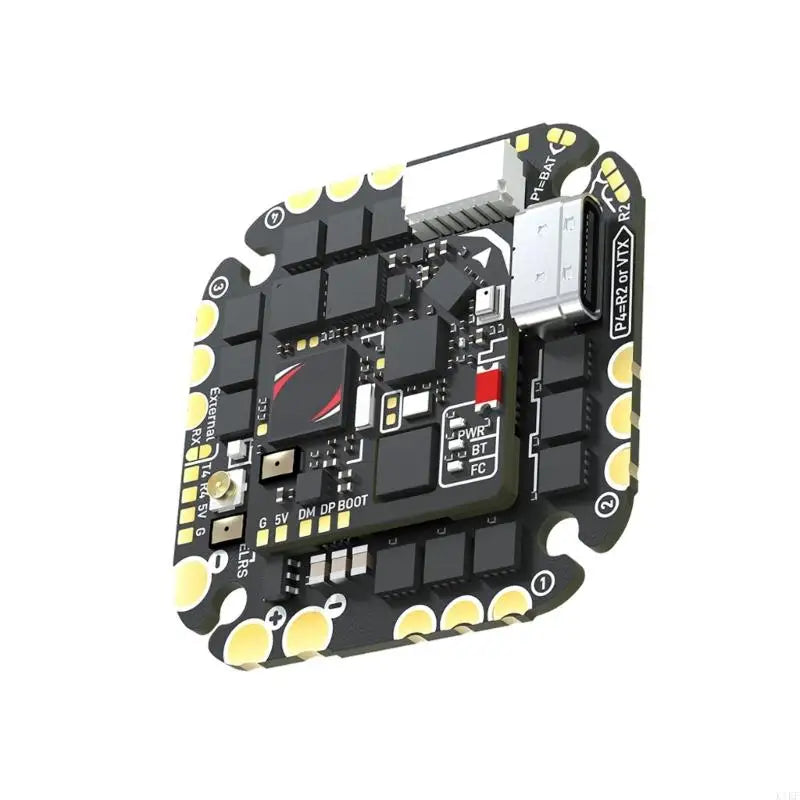

- ELRS Receiver-Ready Design: Features a dedicated ELRS-labeled receiver area and integrated antenna connection layout, ideal for FPV builds that require a receiver-ready control board format.
- 45A Current Class: Rated for up to 45A, providing ample headroom for high-performance FPV drone configurations.
- Service Port Access: Convenient service port access makes tuning, firmware updates, and maintenance straightforward without full disassembly.
- Single Board Package: Includes 1 flight controller board for assembly or direct replacement use — easy to source without unconfirmed accessories or software add-ons.
Specifications
| Size | Approx. 3.60 × 3.60 × 0.85 cm / 1.42 × 1.42 × 0.33 inch |
| Current Rating | 45A |
| Mounting Pattern | 36 × 36 mm |
| Color | Black |
| Quantity | 1 Piece |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × FPV Flight Controller Board
Important Notes
- Please allow 1–2 cm tolerance due to manual measurement. Verify dimensions before ordering.
- Colors may vary slightly due to differences between monitor settings and actual product appearance.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the mounting hole pattern for this FPV flight controller board?
A: This FPV flight controller board uses a standard 36×36mm mounting footprint, which is a widely compatible size for many FPV drone frames and stacks. Always verify your frame's stack spacing before ordering to ensure a proper fit.
Q: Is this board compatible with ELRS (ExpressLRS) receivers?
A: Yes. The board features a dedicated ELRS receiver-ready area with an integrated antenna connection layout, making it suitable for FPV builds that use ExpressLRS receivers for low-latency control links.
Q: What current rating does this flight controller board support?
A: This board is rated for a 45A current class, which provides suitable headroom for a range of high-performance FPV drone builds. Always verify that your motors, ESCs, and battery are matched to this rating during your build planning.
Q: Does this board come with any additional accessories or software?
A: The package includes 1 flight controller board only. No additional accessories, cables, or software are included. This makes it a straightforward replacement or build component without unconfirmed extras.
