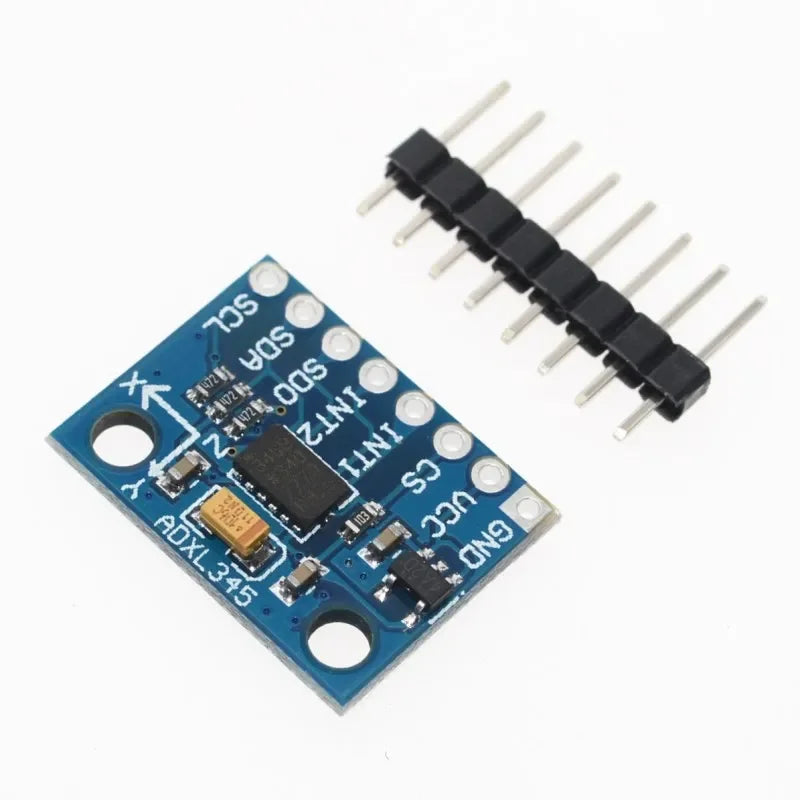

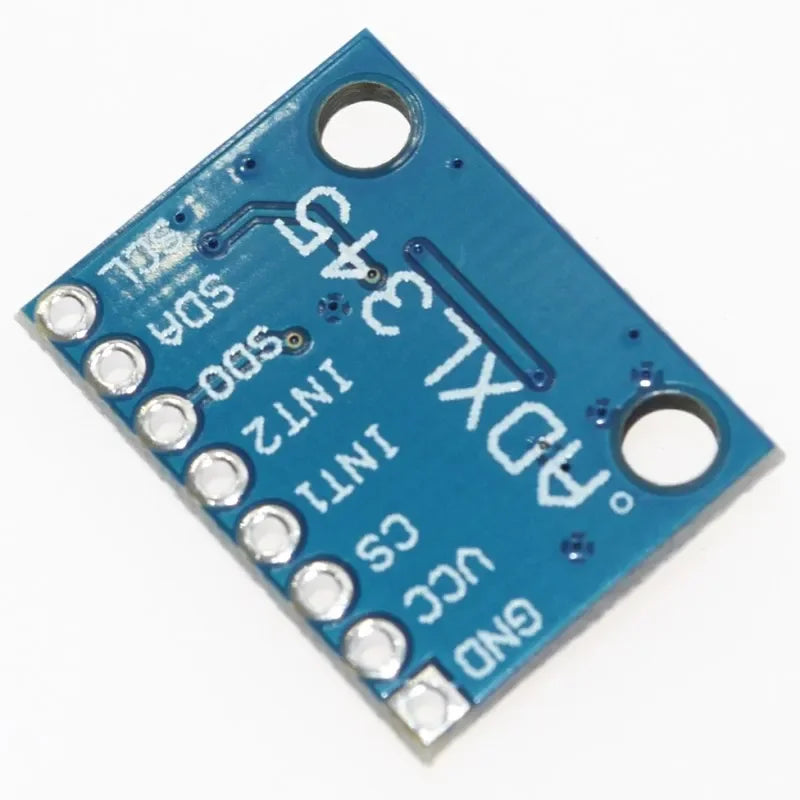

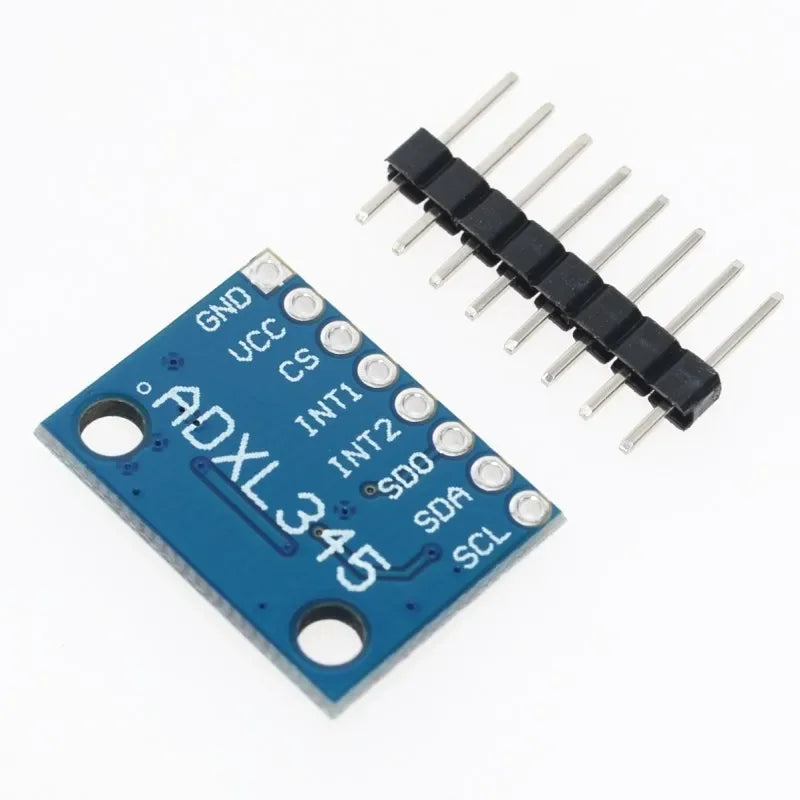

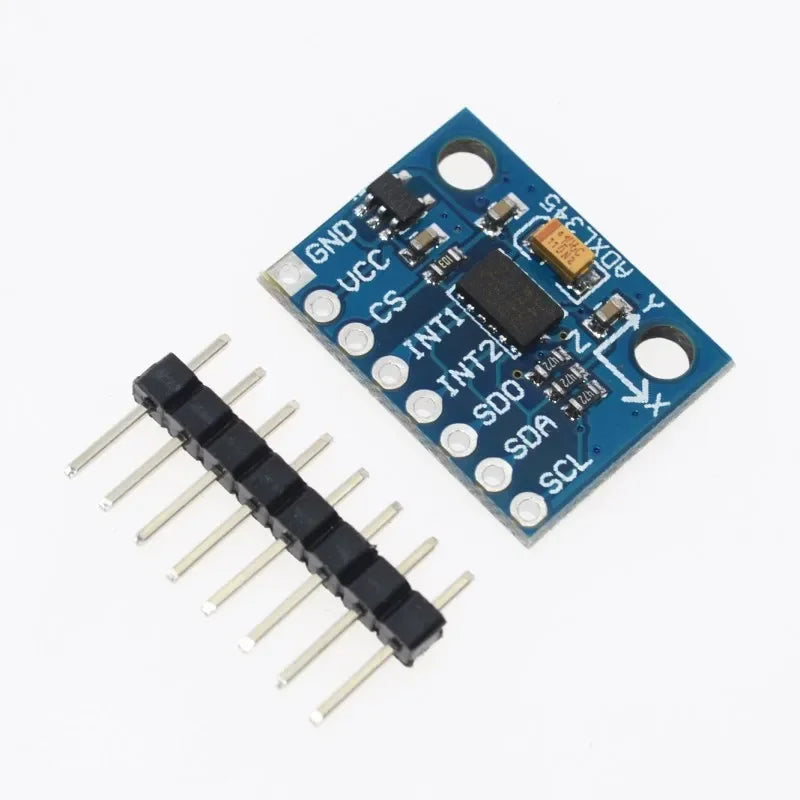

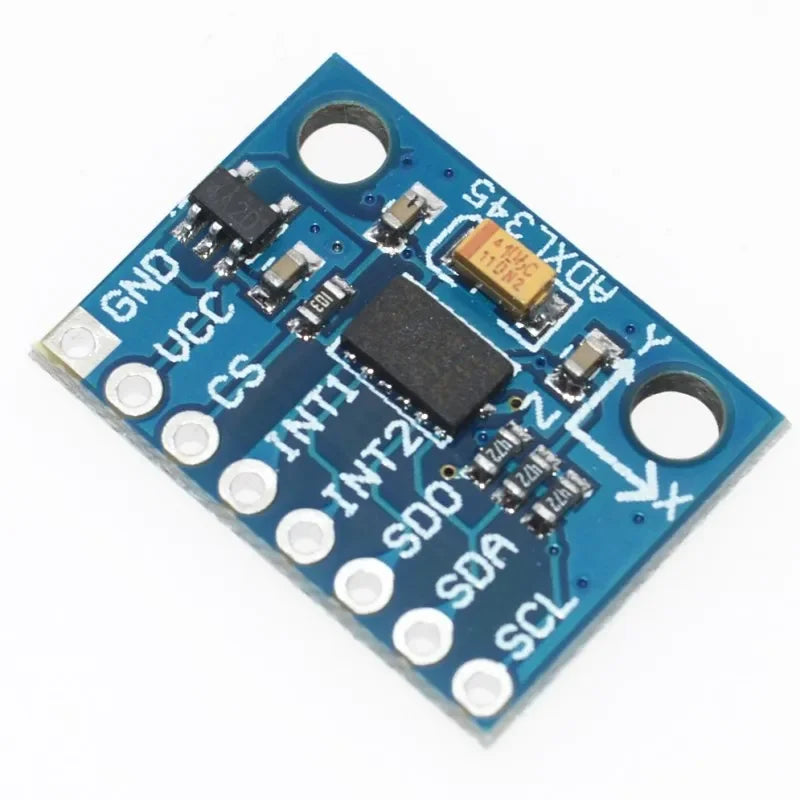

GY-291 ADXL345 3-Axis Digital Accelerometer Module — IIC / SPI
The GY-291 ADXL345 is a compact, ultra-low-power 3-axis digital accelerometer module designed for makers, engineers, and hobbyists who need precise motion, tilt, and vibration sensing in their projects. Whether you're building robotics, drones, wearable electronics, or data-logging systems, this module delivers high-resolution 13-bit acceleration data over the widely supported IIC (I²C) or SPI communication interface.
Made in Mainland China.
Why Choose the ADXL345 Accelerometer Module?
The ADXL345 chip at the heart of this module is an industry-standard MEMS accelerometer renowned for its precision and versatility. With a selectable measurement range of ±2g to ±16g and a resolution of 3.9 mg/LSB, it can detect tilt angle changes as small as 1.0°. Its 16-bit two's complement digital output eliminates the need for an external ADC, saving board space and reducing overall system cost.
Key Features
- 3-Axis Sensing: Simultaneous X, Y, and Z acceleration measurement
- High Resolution: 13-bit measurement at up to ±16g (3.9 mg/LSB)
- Dual Interface Support: IIC (I²C) and SPI (3-wire or 4-wire) — choose what your project needs
- Wide Supply Voltage: 3V – 5V compatible, works with Arduino, Raspberry Pi, ESP32, and more
- Selectable Measurement Range: ±2g, ±4g, ±8g, or ±16g
- 16-Bit Two's Complement Digital Output — no ADC required
- 32-Level FIFO Buffer: Reduces host processor load and lowers system power consumption
- Smart Motion Detection: Activity / inactivity sensing, single- and double-tap detection, free-fall detection
- Low Power Modes: Intelligent motion-based power management for battery-sensitive applications
- Two Interrupt Output Pins: Map any detection function to INT1 or INT2
- Compact Module Form Factor: Easy to integrate into any PCB layout
Technical Specifications
| Model | GY-291 (ADXL345) |
| Supply Voltage | 3V – 5V DC |
| Communication Protocol | IIC (I²C) / SPI (3-wire or 4-wire) |
| Measurement Range | ±2g, ±4g, ±8g, ±16g (selectable) |
| Resolution | 13-bit (3.9 mg/LSB) |
| Output Format | 16-bit two's complement |
| FIFO Buffer | 32-level |
| Condition | New |
| Origin | Mainland China |
Ideal Applications
- Tilt and orientation sensing for robotics and drones
- Motion gesture recognition
- Vibration and shock monitoring systems
- Wearable and fitness tracking devices
- Data logging and IoT sensor nodes
- Gaming controllers and input devices
- Free-fall and drop detection systems
Compatible Platforms
Works seamlessly with Arduino, Raspberry Pi, ESP8266/ESP32, STM32, and virtually any microcontroller or single-board computer with I²C or SPI support.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What communication protocols does the GY-291 ADXL345 accelerometer module support?
A: The GY-291 ADXL345 module supports both IIC (I²C) and SPI (3-wire or 4-wire) digital communication protocols. This flexibility makes it compatible with a wide range of microcontrollers and single-board computers, including Arduino, Raspberry Pi, and ESP32, allowing you to select the interface that best suits your project design.
Q: What is the measurement range of the ADXL345 3-axis accelerometer?
A: The ADXL345 offers a user-selectable measurement range of ±2g, ±4g, ±8g, or ±16g. Its 13-bit resolution at up to ±16g provides 3.9 mg/LSB sensitivity, enabling the detection of tilt angle changes smaller than 1.0°, making it suitable for both fine-grained tilt sensing and high-impact shock detection.
Q: What voltage is required to power the GY-291 module?
A: The GY-291 ADXL345 module is designed to operate with a supply voltage of 3V to 5V DC, making it directly compatible with both 3.3V and 5V systems. No additional level shifter is required for most common microcontroller development boards.
Q: What special motion detection functions does the ADXL345 offer?
A: The ADXL345 includes several built-in detection functions: activity and inactivity sensing (comparing acceleration against user-set thresholds), single- and double-tap detection, and free-fall detection. These events can be mapped to two dedicated interrupt output pins (INT1 and INT2), simplifying firmware design for motion-triggered applications.
