HC-SR04 Ultrasonic Ranging Module for Arduino Kit

HC-SR04 Ultrasonic Ranging Module for Arduino Kit

$36.26 $43.51
ColorA
Ships FromChina Mainland

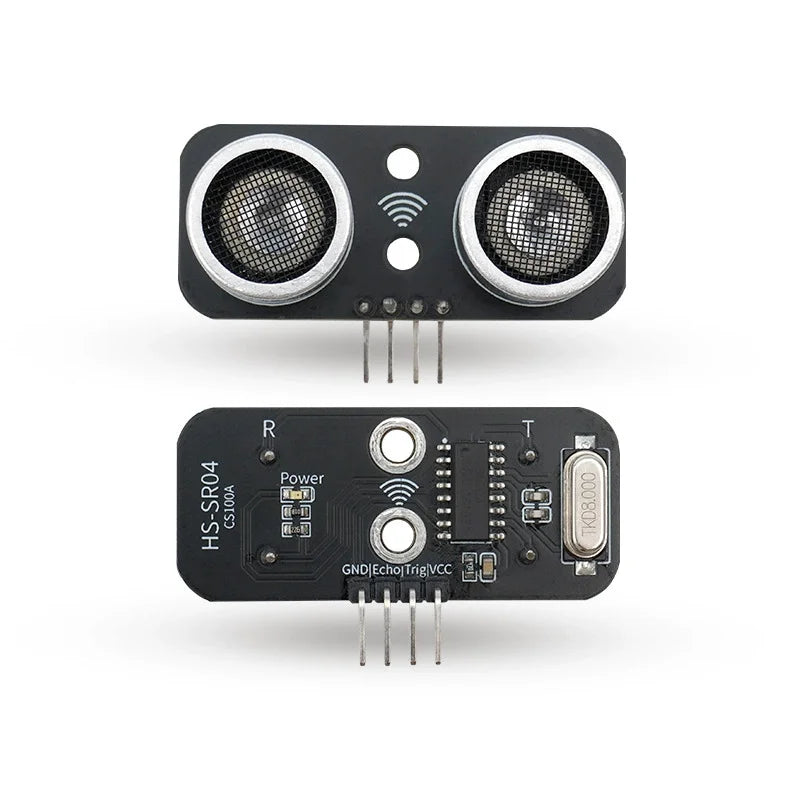

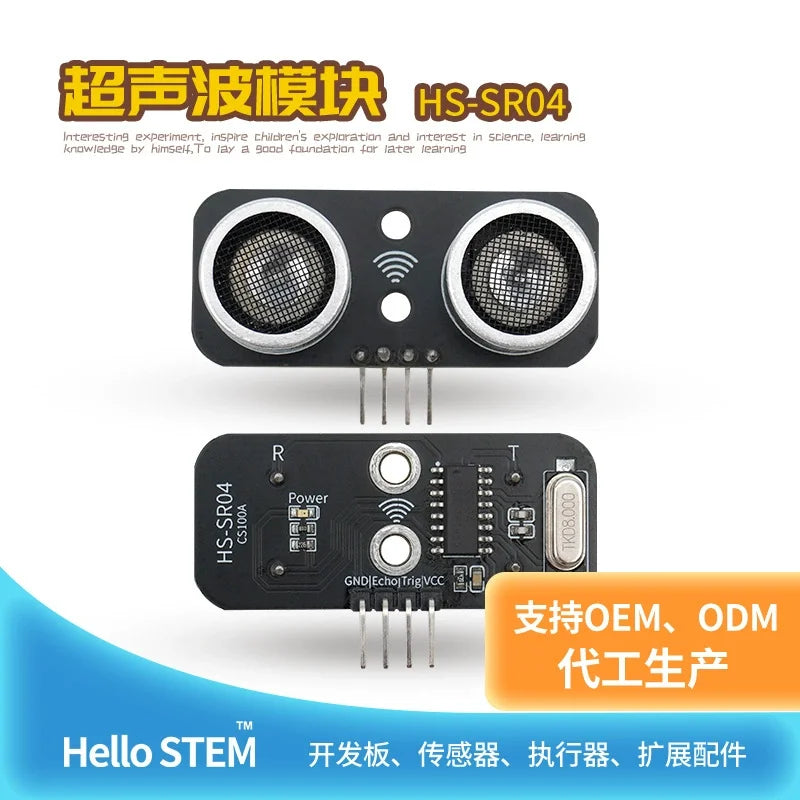

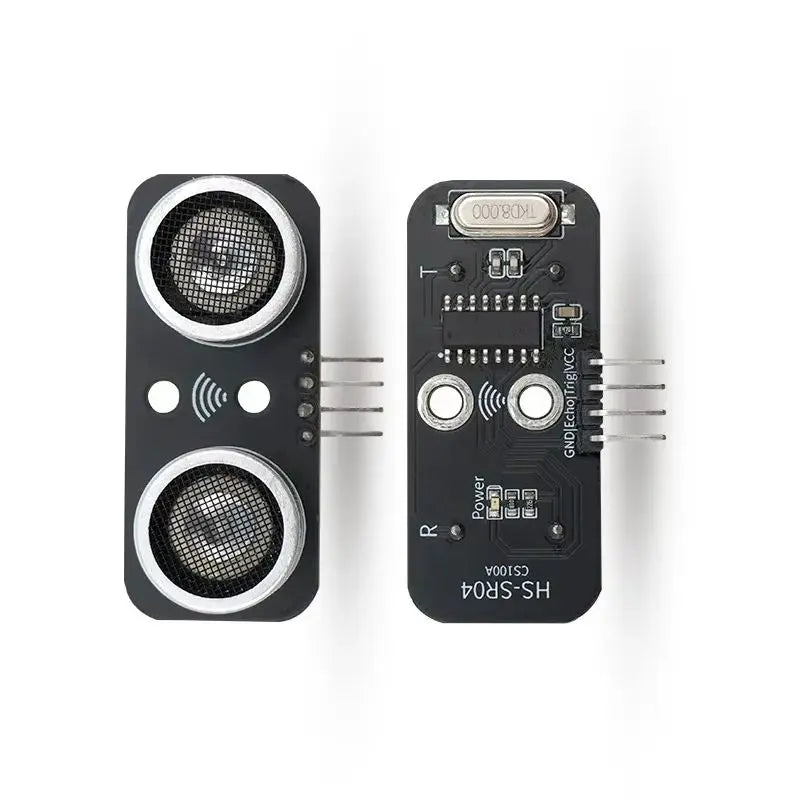

HC-SR04 Compatible Ultrasonic Ranging Module for Arduino

Take your Arduino projects to the next level with this high-precision ultrasonic ranging module, fully compatible with the popular HC-SR04 ultrasonic sensor. Whether you're building robots, obstacle-detection systems, automated vehicles, or DIY smart devices, this module delivers fast and accurate distance measurements every time.

Key Features

  • HC-SR04 Compatible: Drop-in replacement and fully compatible with the HC-SR04 standard — works seamlessly with existing Arduino libraries and code.
  • Wide Measurement Range: Accurately measures distances from approximately 2 cm to 400 cm (0.8 inches to 157 inches).
  • High Accuracy: Provides precise distance readings with minimal error, making it ideal for robotics, automation, and interactive projects.
  • Easy Integration: Simple 4-pin interface (VCC, Trig, Echo, GND) — plug directly into your Arduino development board with no soldering required.
  • Low Power Consumption: Operates at 5V DC with very low standby current, making it efficient for battery-powered builds.

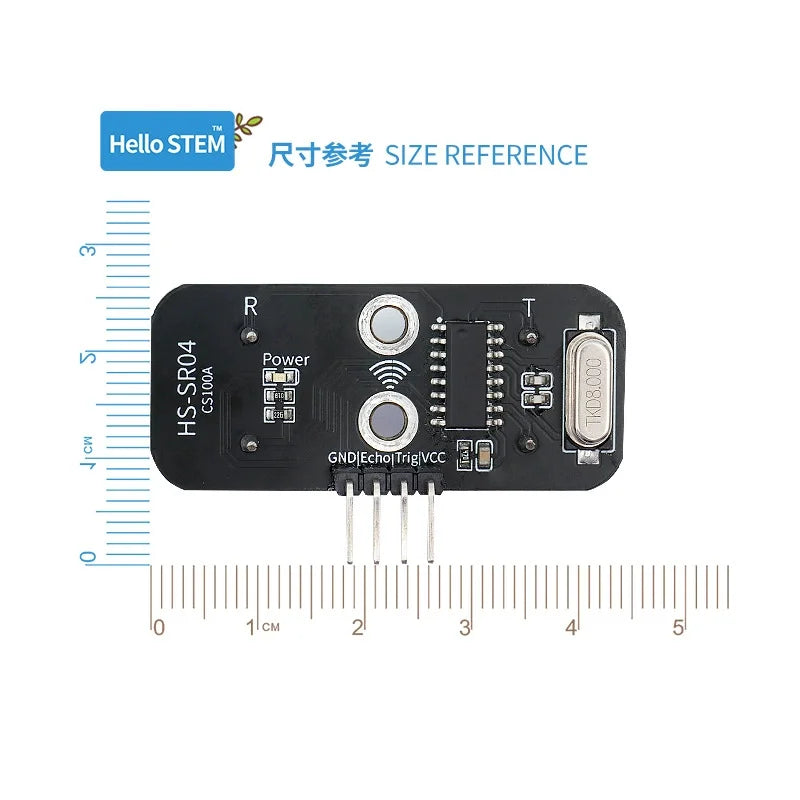

  • Compact Design: Lightweight and small form factor fits into virtually any project enclosure or prototype build.
  • Stable Performance: Ultrasonic sensing technology provides consistent, interference-resistant readings in most indoor environments.

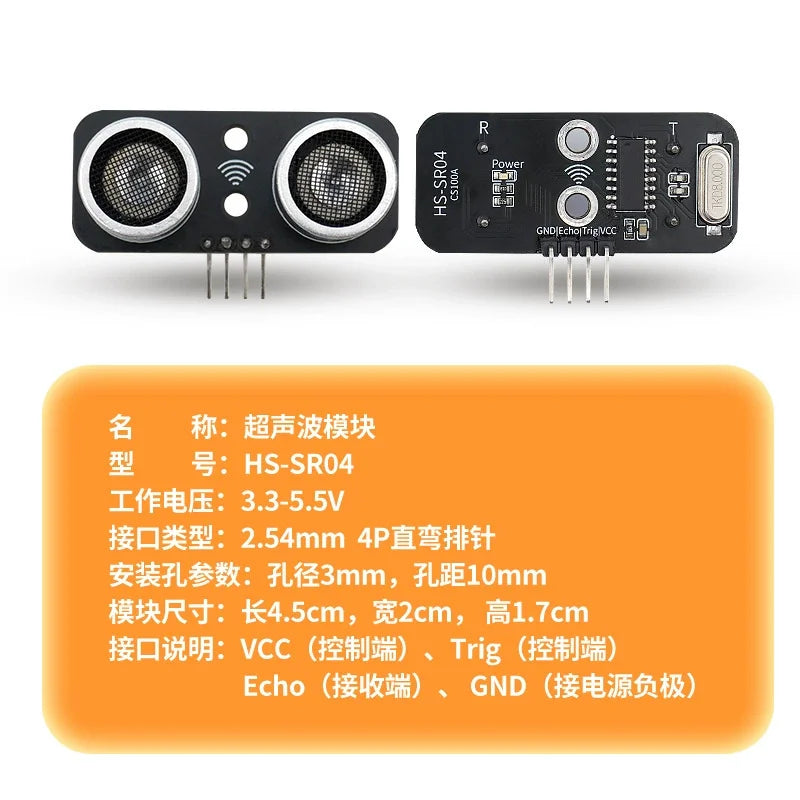

Technical Specifications

  • Operating Voltage: 5V DC
  • Measuring Range: 2 cm – 400 cm
  • Sensing Angle: ≤ 15°
  • Trigger Input Signal: 10µs TTL pulse
  • Interface: 4-pin (VCC, Trig, Echo, GND)
  • Compatibility: Arduino Uno, Mega, Nano, and most Arduino-compatible development boards
  • Country of Origin: Made in Mainland China

What's in the Box

  • 1 × HC-SR04 Compatible Ultrasonic Ranging Module

Who Is This For?

This ultrasonic sensor module is perfect for students, hobbyists, makers, and engineers looking to add distance-sensing capability to their Arduino projects. From beginner robotics kits to advanced automation systems, this module is an essential component for any electronics toolkit.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Is this ultrasonic ranging module fully compatible with the HC-SR04 sensor for Arduino?

A: Yes! This module is designed to be fully compatible with the HC-SR04 ultrasonic sensor standard. It works with all standard HC-SR04 Arduino libraries and requires no code modifications — simply connect and use.

Q: What Arduino boards is this ultrasonic module compatible with?

A: This module is compatible with a wide range of Arduino development boards including the Arduino Uno, Mega, Nano, and most other Arduino-compatible microcontroller boards that operate at 5V logic.

Q: What is the maximum distance this ultrasonic sensor can measure?

A: The module can measure distances from approximately 2 cm up to 400 cm (about 157 inches or 13 feet), making it suitable for a broad range of distance-sensing applications in robotics and automation projects.

Q: Do I need any special tools or soldering to connect this module?

A: No special tools or soldering are required. The module features a standard 4-pin interface (VCC, Trig, Echo, GND) that connects directly to your Arduino board using standard jumper wires.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
