2-Pack Hinge Drilling Locator – Cabinet Door Positioning Template
2-Pack Hinge Drilling Locator – Cabinet Door Positioning Template
Hinge Hole Drilling Guide Locator – 2-Pack
Take the guesswork out of hinge installation with this 2-Pack Hinge Drilling Locator. Crafted from durable ABS plastic, this compact positioning template makes it fast and easy to mark perfectly aligned hinge holes on cabinet doors, furniture panels, and more — every single time. Whether you're a seasoned woodworker or a weekend DIY enthusiast, this tool delivers professional-grade accuracy without the complexity.
Key Features
- Precision Positioning: Built-in specification markings guide you to the exact screw hole locations for both the hinge cup and base plate — no measuring tape required.
- Compatible with 35mm & 40mm Drill Bits: Works seamlessly with standard cemented carbide forstner bits for clean, accurate holes every time.
- Lightweight ABS Construction: Tough yet light, the ABS plastic body withstands repeated jobsite use while staying easy to handle and carry.
- Compact & Portable: At just 62 × 69 mm (2.44 × 2.72 in), these locators slip easily into a tool bag or apron pocket.
- Easy to Use: Simple 4-step process — mark your center line, position the template, mark screw holes, drill, and install. No complicated setup needed.
- Versatile Application: Ideal for kitchen cabinets, wardrobes, furniture doors, and any project requiring concealed euro-style hinges.
Specifications
| Material | ABS Plastic |
| Color | Blue |
| Compatible Drill Bit Diameter | 35 mm / 40 mm |

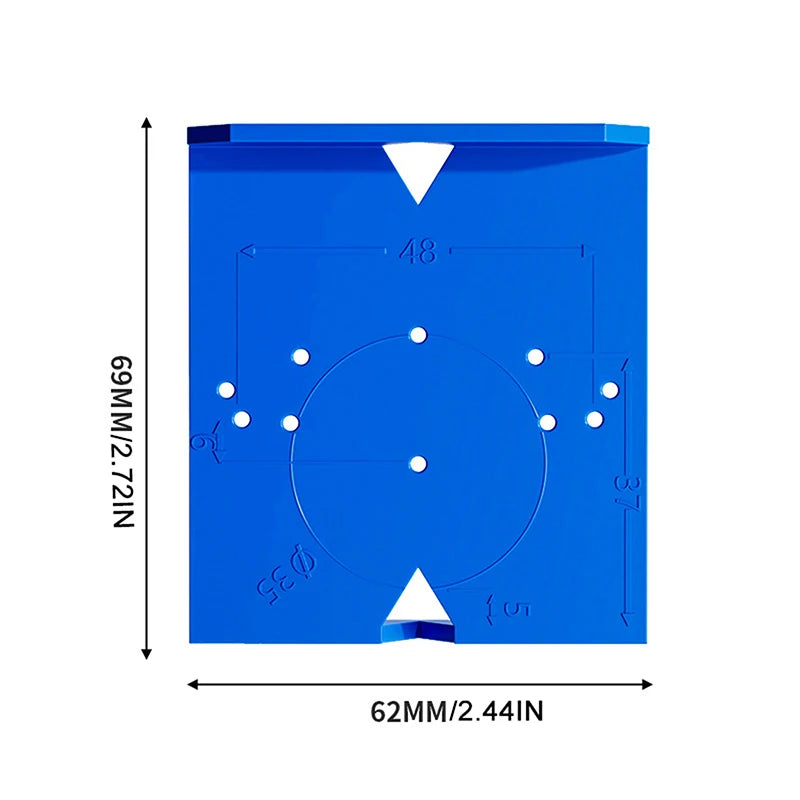

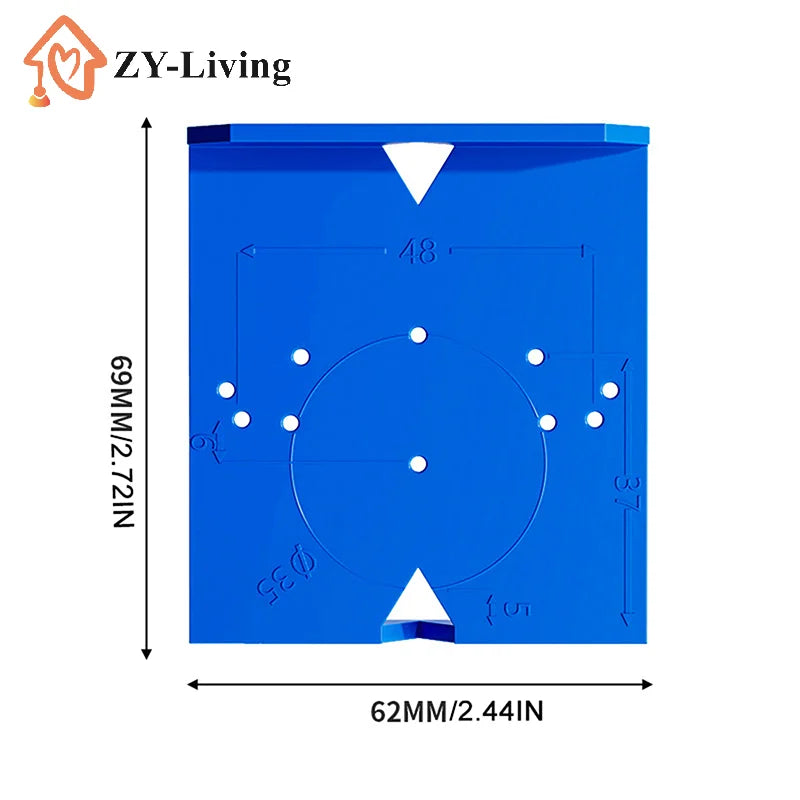

| Dimensions | 62 × 69 mm (2.44 × 2.72 in) |
| Package Contents | 2 × Hinge Hole Drilling Locators |
| Country of Origin | Made in Mainland China |
How to Use
- Determine the desired hinge position and draw a center connecting line across both boards.
- Place the hinge drilling locator on the door edge, aligning it with your center line.
- Use the built-in markings to mark the screw hole positions on both the door panel and the cabinet frame.
- Drill your holes at the marked positions and install the hinges — perfectly aligned every time.
Notes
- Product photos are for illustration purposes; please refer to the specifications above for exact dimensions.
- Minor differences due to manual measurement may occur — please allow a small tolerance.
- Actual color may vary slightly from monitor to monitor.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What drill bit sizes are compatible with this hinge drilling locator?
A: This hinge hole drilling guide is compatible with standard 35 mm and 40 mm cemented carbide forstner or cup-hinge drill bits, which are the most commonly used sizes for concealed euro-style cabinet hinges.
Q: Can this hinge positioning template be used on both the door panel and the cabinet frame?
A: Yes! The template is designed to mark accurate hole positions on both the door panel (for the hinge cup) and the cabinet frame or body (for the base plate mounting screws), ensuring perfect alignment when the door is hung.
Q: Is this locator suitable for beginners doing DIY cabinet projects?
A: Absolutely. The 4-step process is straightforward and the built-in specification markings eliminate the need for complex measuring. It's a great woodworking auxiliary tool for beginners and professionals alike.
Q: How many locators come in the package?
A: Each order includes 2 hinge drilling locators, giving you one to use and one as a spare — or to work on two locations simultaneously to speed up your project.
