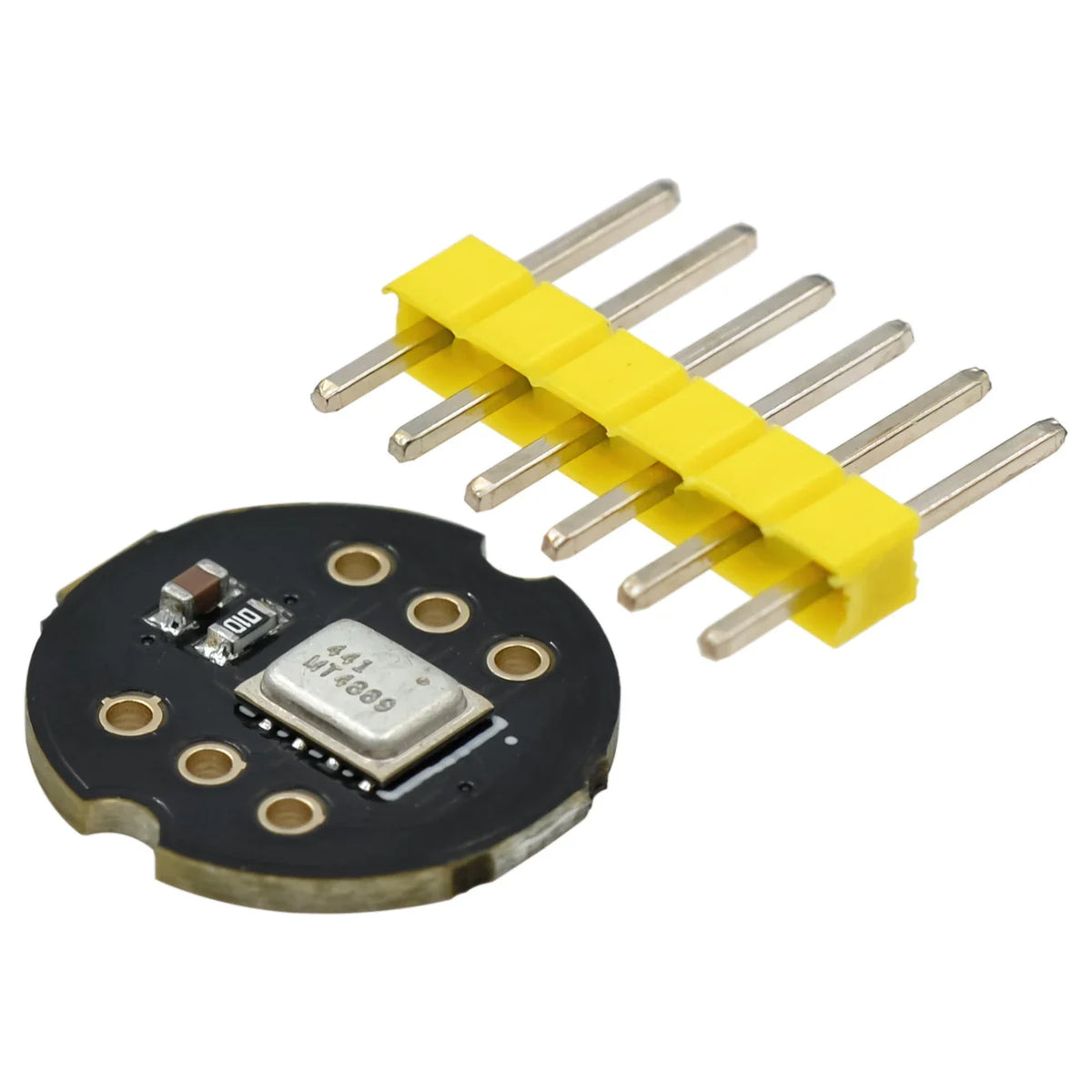

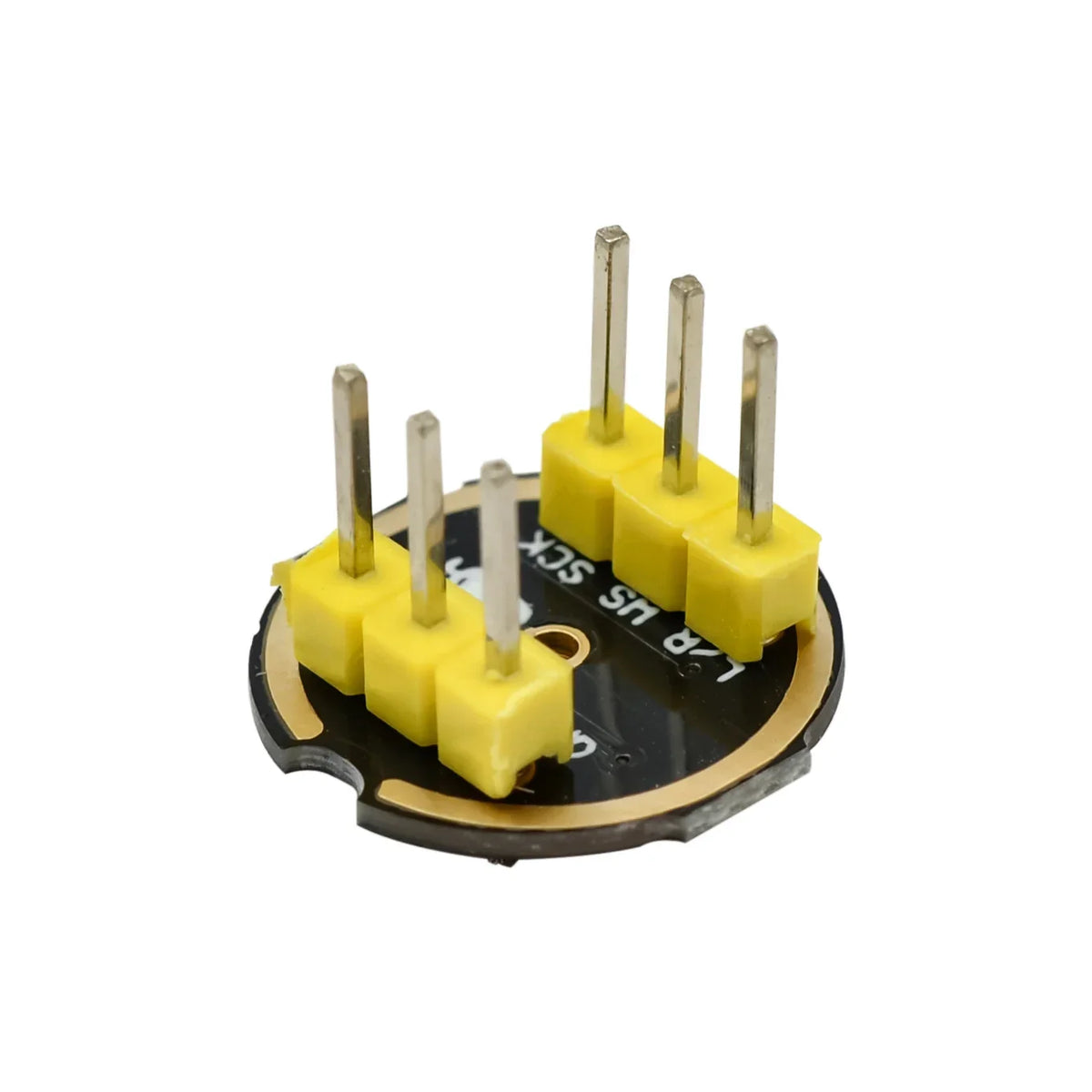

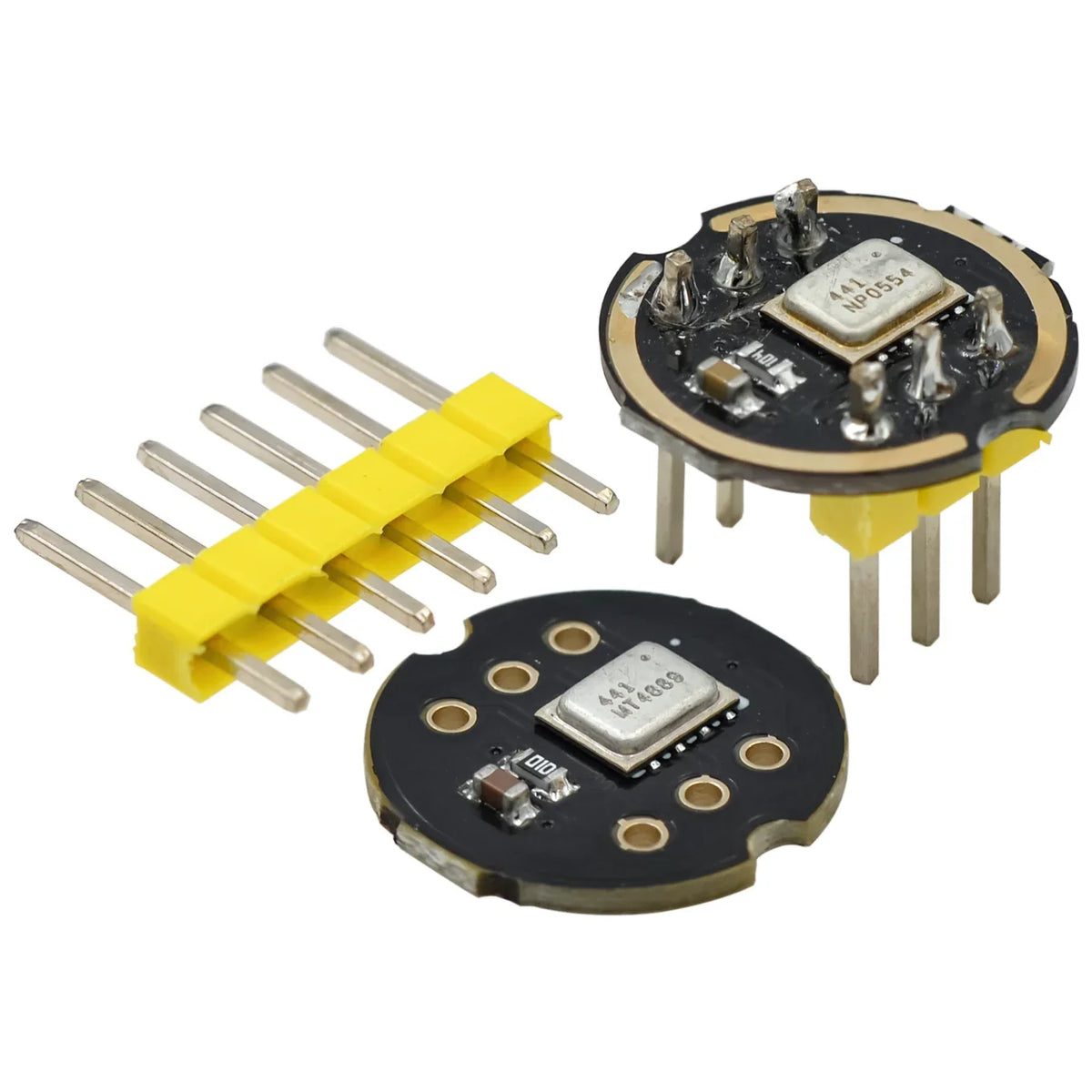

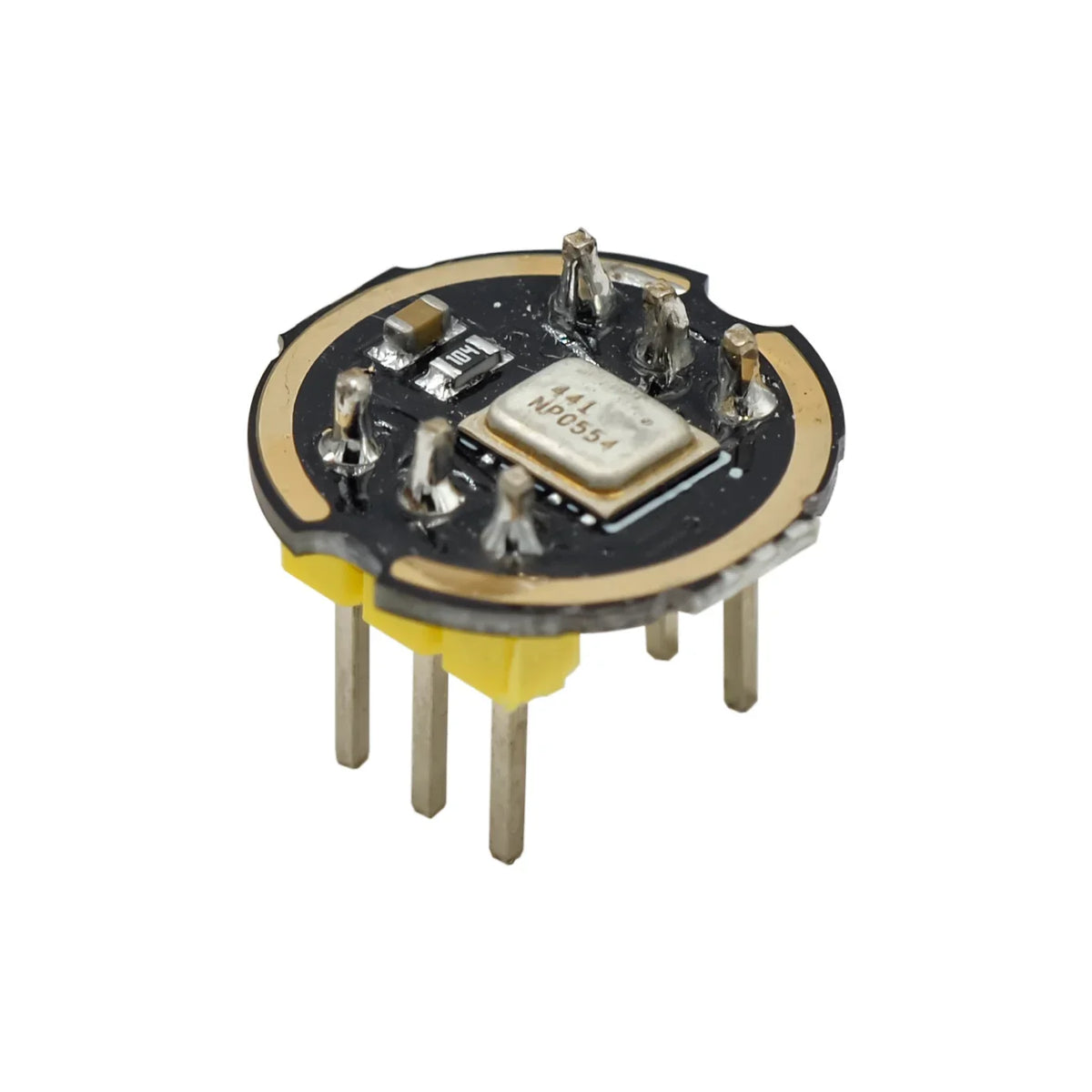

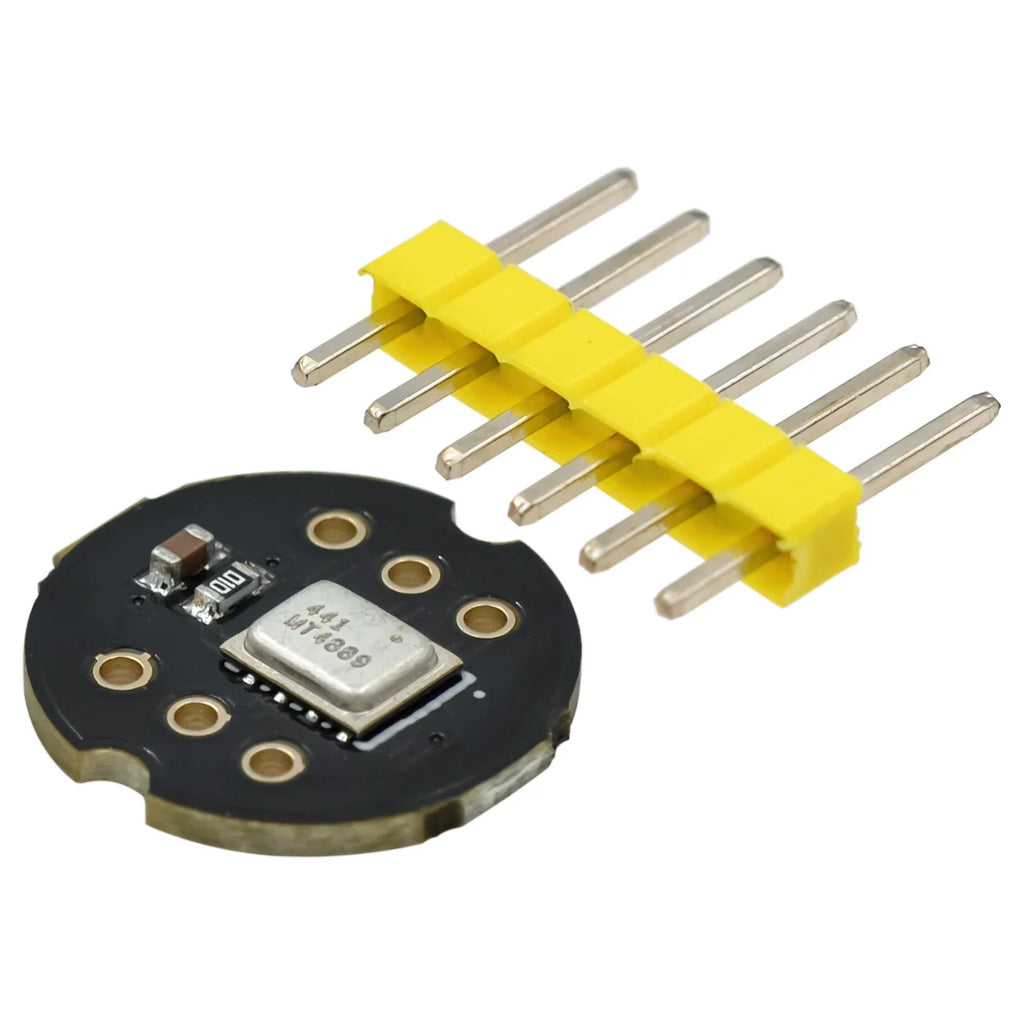

INMP441 MEMS I2S Omnidirectional Microphone Module for ESP32
INMP441 MEMS I2S Omnidirectional Microphone Module for ESP32
INMP441 MEMS I2S Omnidirectional Microphone Module for ESP32
Capture clear, wide-field audio with the INMP441 MEMS Omnidirectional Microphone Module. Featuring a high-precision 24-bit digital I2S interface, this ultra-compact module is engineered for makers, hobbyists, and engineers who need reliable, high-fidelity audio capture in IoT projects, voice-recognition systems, and embedded applications — especially those built around the ESP32 platform.
Made in Mainland China.
Why Choose the INMP441 Microphone Module?
The INMP441 integrates a MEMS sensor, signal conditioning, analog-to-digital conversion, anti-aliasing filter, and power management all in one tiny footprint. Its industry-standard I2S interface lets you connect directly to DSPs and microcontrollers — no external audio codec required.
Key Features
- 24-Bit High-Precision I2S Interface — Clean, high-resolution digital audio output
- High Signal-to-Noise Ratio: 61 dBA — Excellent clarity even in ambient environments
- High Sensitivity: -26 dBFS — Picks up audio from multiple directions with ease
- Flat Wideband Frequency Response: 60 Hz – 15 kHz — Natural, true-to-life sound reproduction
- Ultra-Low Power Consumption: 1.4 mA — Ideal for battery-powered and energy-efficient designs
- High Power Supply Rejection: -75 dBFS — Minimizes noise from power supply interference
- Omnidirectional Pickup Pattern — Captures audio from all angles, perfect for meetings, remote collaboration, and multi-user scenarios

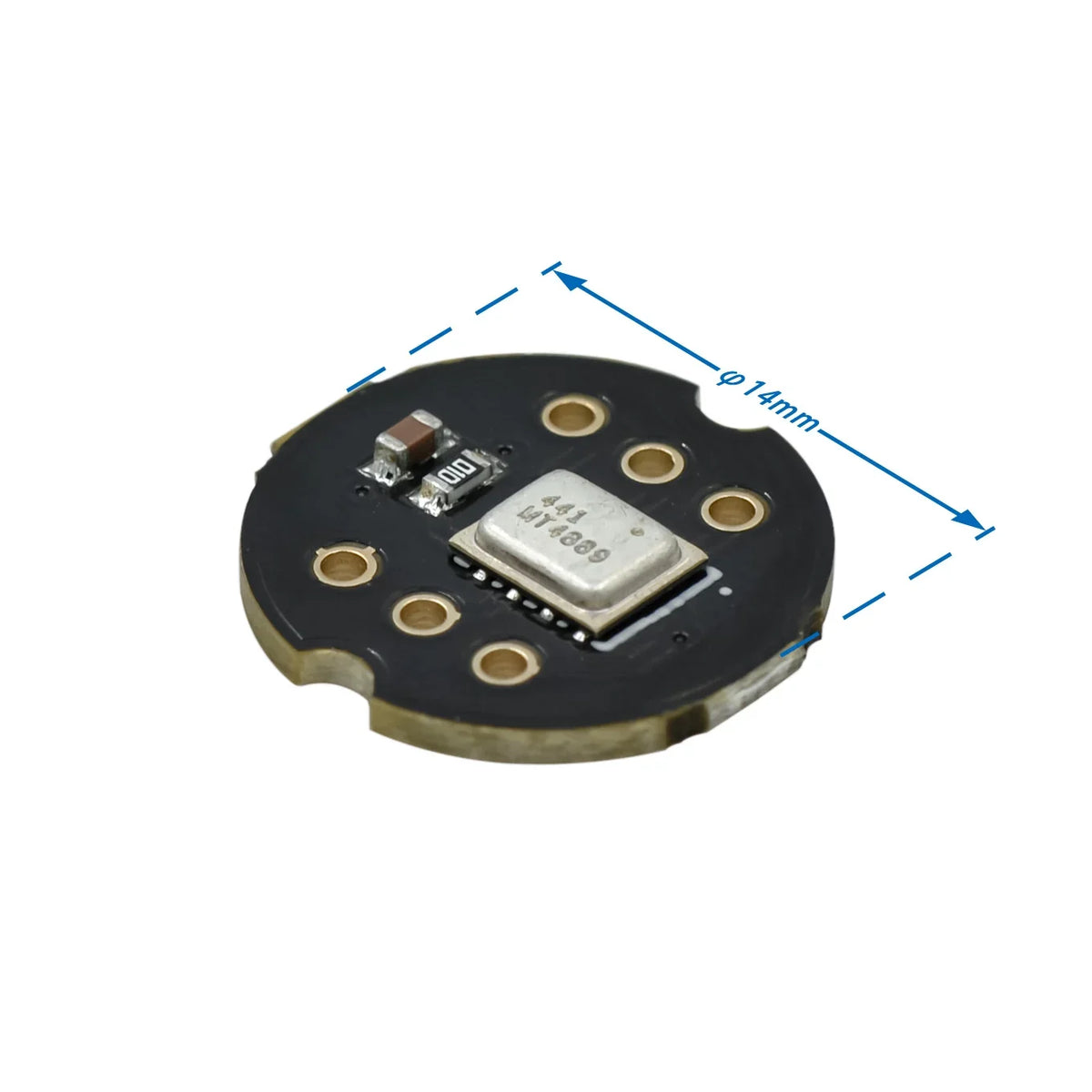

- Ultra-Compact Form Factor — Easy to integrate into space-constrained enclosures

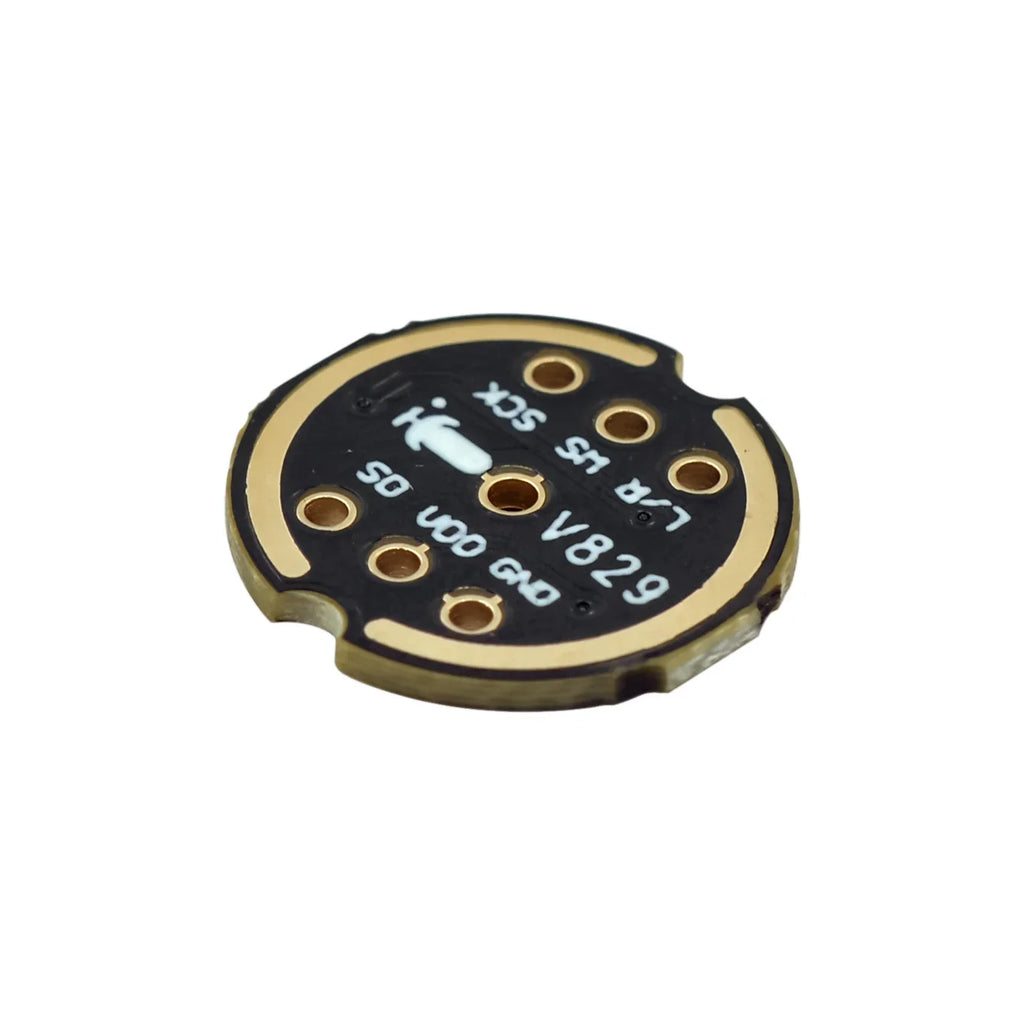

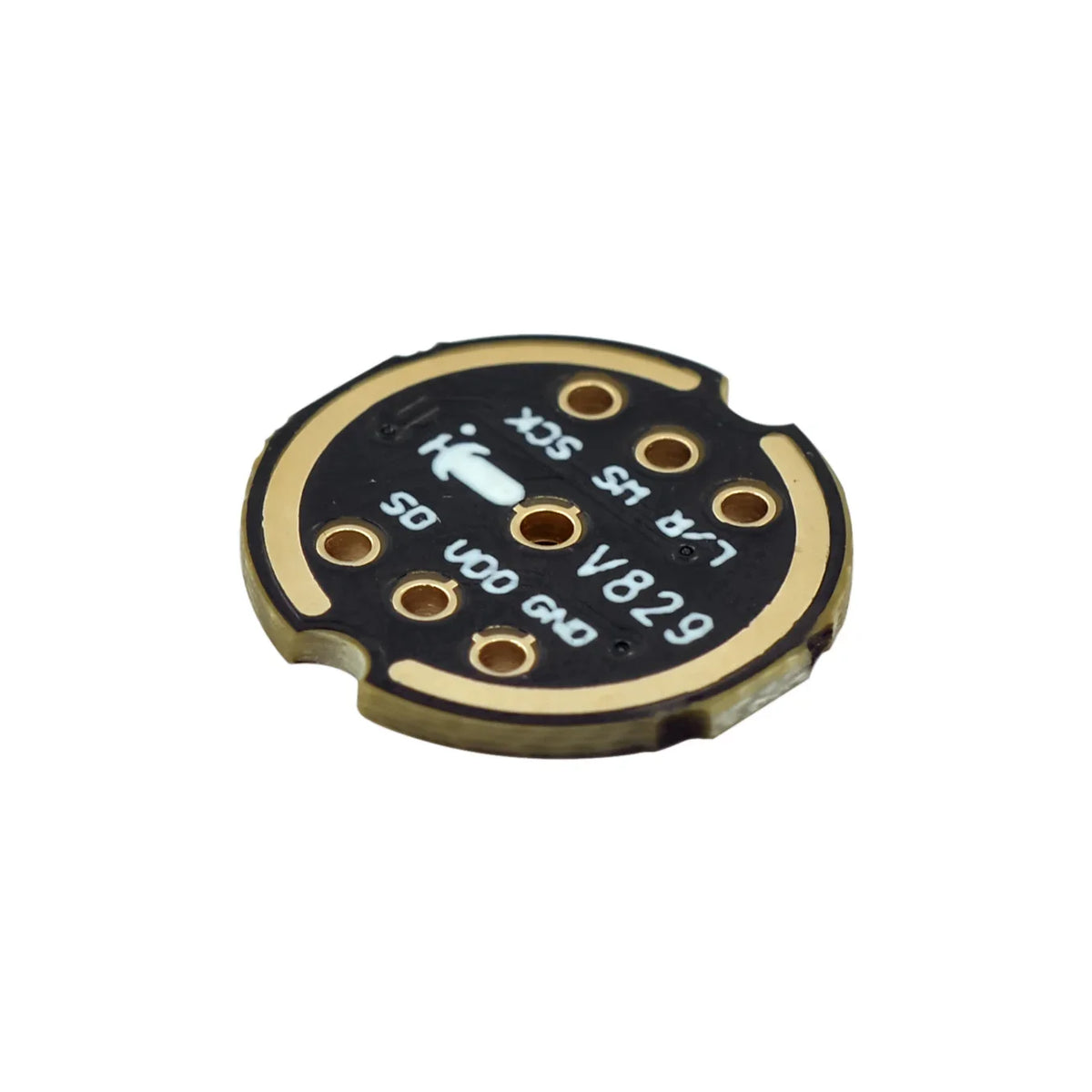

Interface Pin Definitions
| Pin | Description |
|---|---|
| SCK | Serial data clock for I2S interface |
| WS | Word selection (left/right channel) for I2S interface |
| L/R | Channel selection — LOW = left channel, HIGH = right channel |
| SD | Serial data output of the I2S interface |
| VCC | Input power: 1.8V to 3.3V |
| GND | Power ground |
ESP32 Wiring Guide
Connect the INMP441 to your ESP32 using the following pin mapping:
| INMP441 Pin | ESP32 GPIO |
|---|---|
| SCK | GPIO14 |
| SD | GPIO32 |
| WS | GPIO15 |
| L/R | GND |
| GND | GND |
| VDD | 3.3V |
Omnidirectional vs. Directional Microphones — Which Is Right for You?
Directional microphones are designed for single-user, close-range pickup (typically within 30 cm). They excel at isolating one voice and delivering very focused audio quality — great for personal recording or broadcasting.
Omnidirectional microphones like the INMP441 offer a much wider pickup radius (1–5+ meters), making them ideal for group settings such as small meetings, remote discussions, ad-hoc conferences, or IoT environments where multiple sound sources are present. The tradeoff is increased ambient noise pickup, which is why proper noise-reduction algorithms are recommended in critical applications.
Technical Specifications
- Interface: Digital I2S (24-bit)
- SNR: 61 dBA
- Sensitivity: -26 dBFS
- Frequency Response: 60 Hz – 15 kHz
- Current Consumption: 1.4 mA
- Power Supply Rejection: -75 dBFS
- Supply Voltage: 1.8V – 3.3V
- Compatible With: ESP32, DSPs, and other I2S-capable microcontrollers
- Origin: Made in Mainland China
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is the INMP441 MEMS microphone module compatible with the ESP32?
A: Yes, the INMP441 is fully compatible with the ESP32's I2S peripheral. Simply connect SCK to GPIO14, SD to GPIO32, WS to GPIO15, L/R to GND, GND to GND, and VDD to the 3.3V pin on your ESP32 board. Tutorials are available for getting started quickly.
Q: What supply voltage does the INMP441 microphone module require?
A: The INMP441 operates on a supply voltage between 1.8V and 3.3V, making it directly compatible with 3.3V logic microcontrollers like the ESP32 without any additional level-shifting circuitry.
Q: What is the difference between the INMP441 omnidirectional microphone and a standard directional microphone?
A: An omnidirectional microphone like the INMP441 captures audio from all directions across a wide pickup radius (1–5+ meters), making it excellent for group conversations, IoT voice interfaces, and meeting applications. A directional microphone focuses on a single source at close range. The choice depends on your use case — omnidirectional for wide-area capture, directional for single-voice isolation.
Q: Does this module require an external audio codec to work?
A: No. The INMP441 integrates MEMS sensing, signal conditioning, analog-to-digital conversion, and an I2S digital output all on one module. It connects directly to any I2S-capable processor — no external audio codec is needed.
