JDY-40 2.4G Wireless Serial Port Transceiver & Remote Communication Module
The JDY-40 2.4G Wireless Serial TTL Module is a compact, easy-to-integrate DIY electronic module designed for makers, engineers, and hobbyists who need reliable short-range wireless serial communication. Built on 2.4GHz technology, it delivers a transmission range of up to 120 meters with a standard TTL serial interface — so integration into your existing project is fast and straightforward. If you already know how to work with a serial port, you're ready to deploy the JDY-40.
Made in Mainland China.
Key Features
- 2.4GHz Frequency Band — Stable, widely-supported wireless frequency for DIY and industrial applications
- Up to 120-Meter Transmission Range — Ideal for room-to-room, floor-to-floor, or outdoor short-range projects
- Standard TTL Serial Interface — Plug into any microcontroller, Arduino, Raspberry Pi, or UART-enabled device with ease
- Ultra-Low Sleep Current (5µA) — Battery-friendly design for low-power and IoT applications
- Max Transmission Power: 12dBm — Strong signal output for dependable wireless links
- Wide Operating Temperature: -40°C to 80°C — Suitable for both indoor and demanding outdoor environments

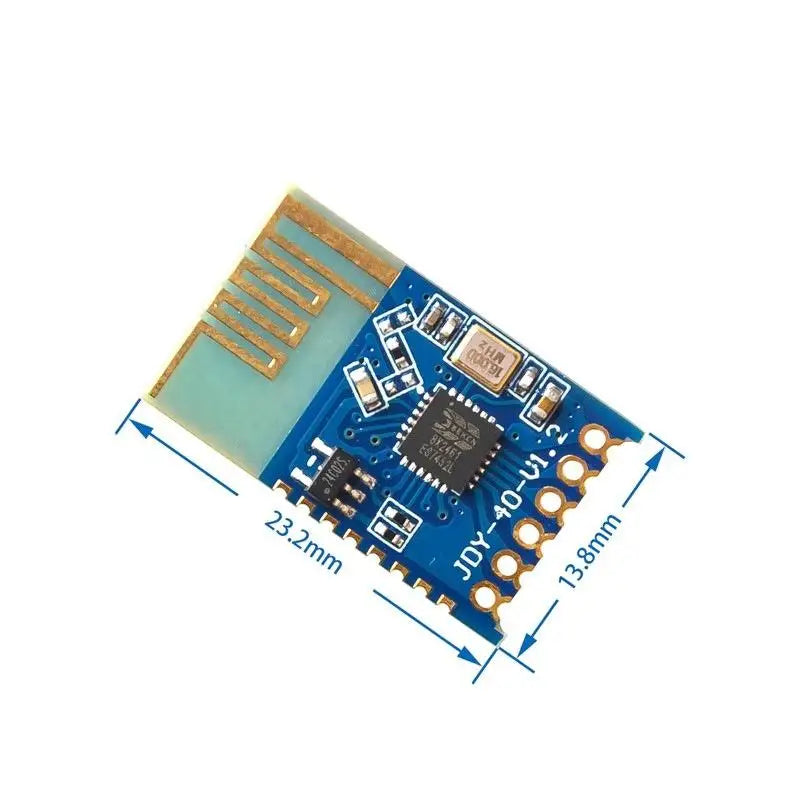

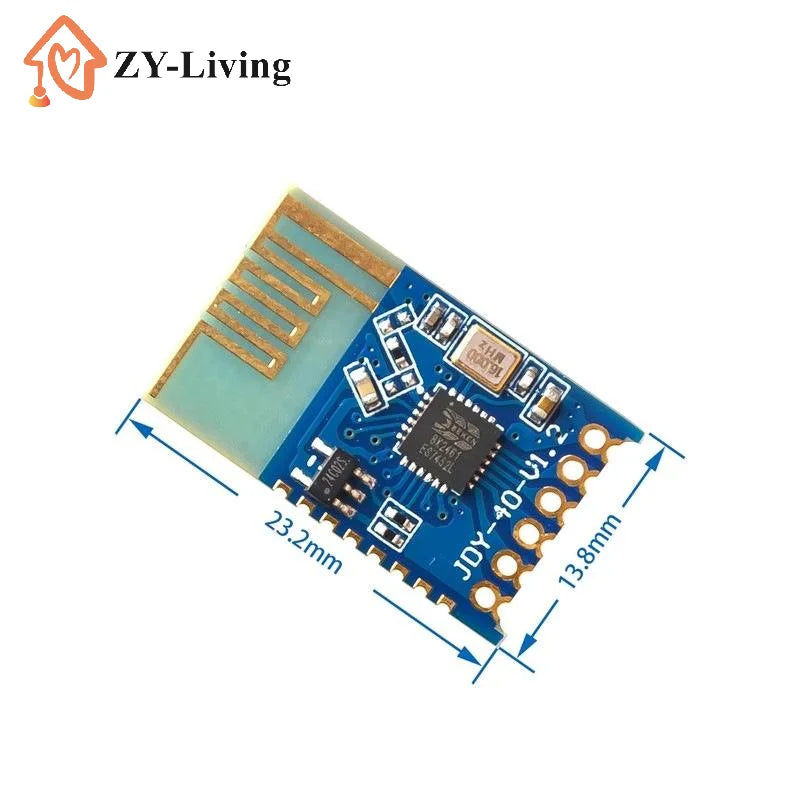

- Compact Size: 23.2 × 13.8mm — Fits into tight PCB layouts and enclosures without trouble
- Plastic + Metal Construction — Durable everyday build quality

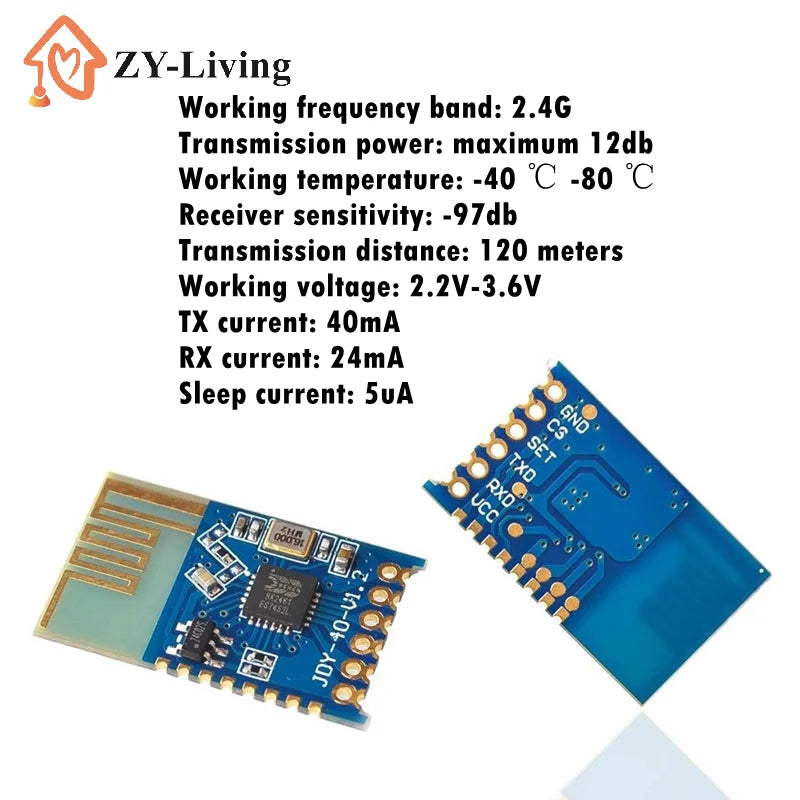

Full Specifications
| Working Frequency Band | 2.4GHz |
| Transmission Power | Max 12dBm |
| Receiver Sensitivity | -97dBm |
| Transmission Distance | Up to 120 meters |
| Working Voltage | 2.2V – 3.6V |
| TX Current | 40mA |
| RX Current | 24mA |
| Sleep Current | 5µA |
| Communication Interface | Standard TTL Serial Port |
| Operating Temperature | -40°C to 80°C |
| Material | Plastic + Metal |
| Dimensions | 23.2 × 13.8mm |
| Package Contents | 1 × JDY-40 Module |
Application Scenarios
- 2.4G panel switches and button controls
- 2.4G remote controllers
- Transparent data transmission between devices
- One-to-many device control via smartphone
- IO switching and digital control systems
- 2.4G wireless toys and RC devices
- Smart home automation systems
- Industrial automation and sensor networks
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What microcontrollers is the JDY-40 2.4G wireless module compatible with?
A: The JDY-40 uses a standard TTL serial (UART) interface, making it compatible with virtually any microcontroller that supports serial communication — including Arduino, ESP8266, ESP32, Raspberry Pi, STM32, and similar platforms. No special library is required; simply connect TX/RX pins and communicate via your standard serial port.
Q: What is the effective wireless transmission range of the JDY-40 module?
A: The JDY-40 2.4G wireless serial module supports a transmission distance of up to 120 meters in open-air conditions. Range may vary depending on obstacles, interference, and the environment in which it is deployed.
Q: Can the JDY-40 be used for battery-powered or low-power IoT projects?
A: Yes. The JDY-40 features an ultra-low sleep current of just 5µA, making it an excellent choice for battery-operated wireless projects, IoT sensor nodes, and any application where minimizing power consumption is a priority.
Q: What voltage does the JDY-40 2.4G transceiver module operate at?
A: The JDY-40 operates at a working voltage of 2.2V to 3.6V. It is a 3.3V logic-level device. If connecting to a 5V microcontroller (such as a standard Arduino Uno), a logic level converter is recommended to protect the module.
