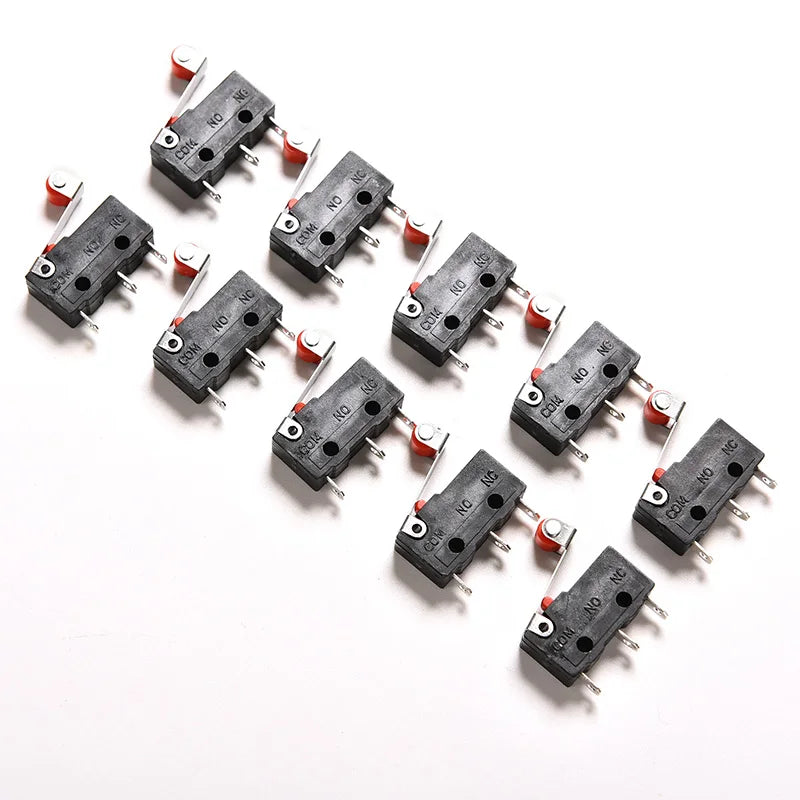

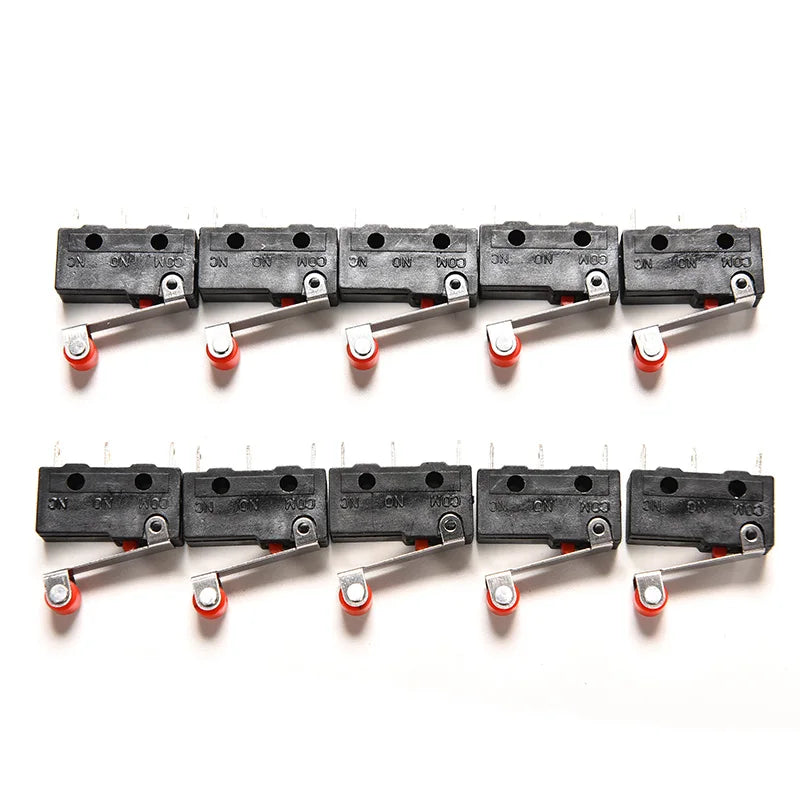

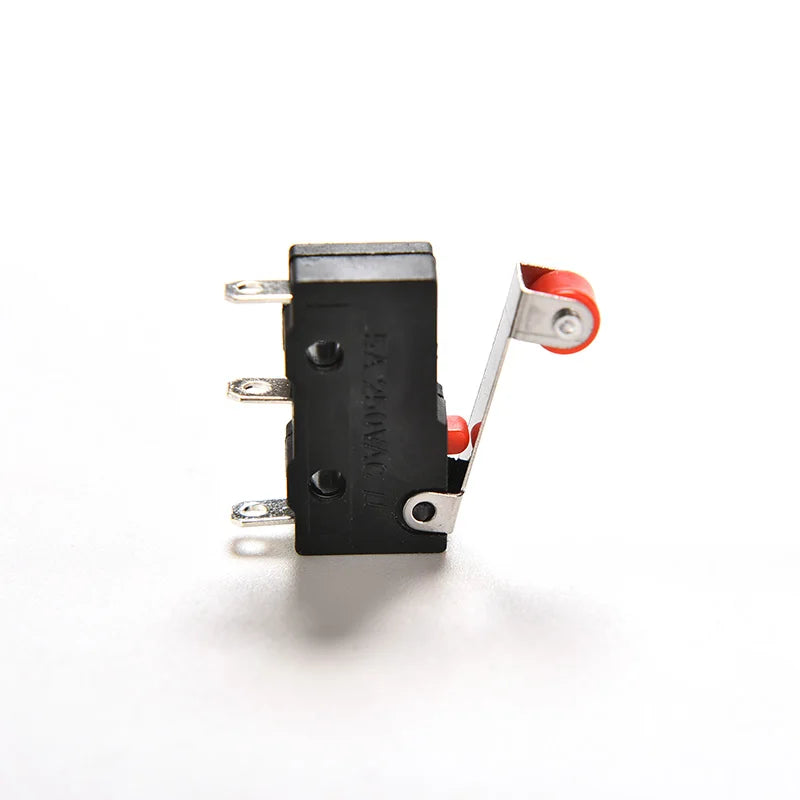

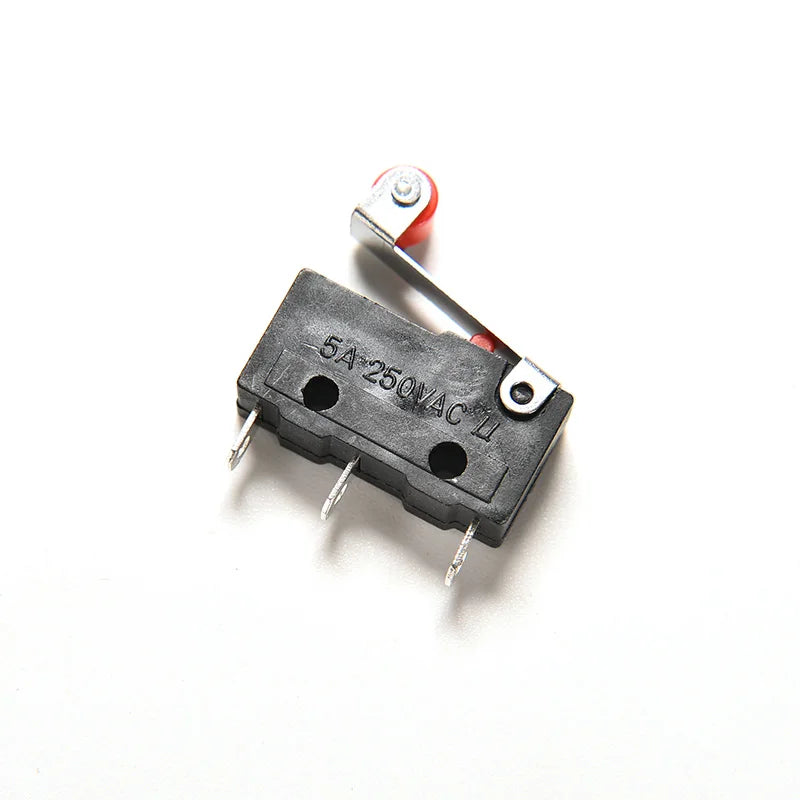

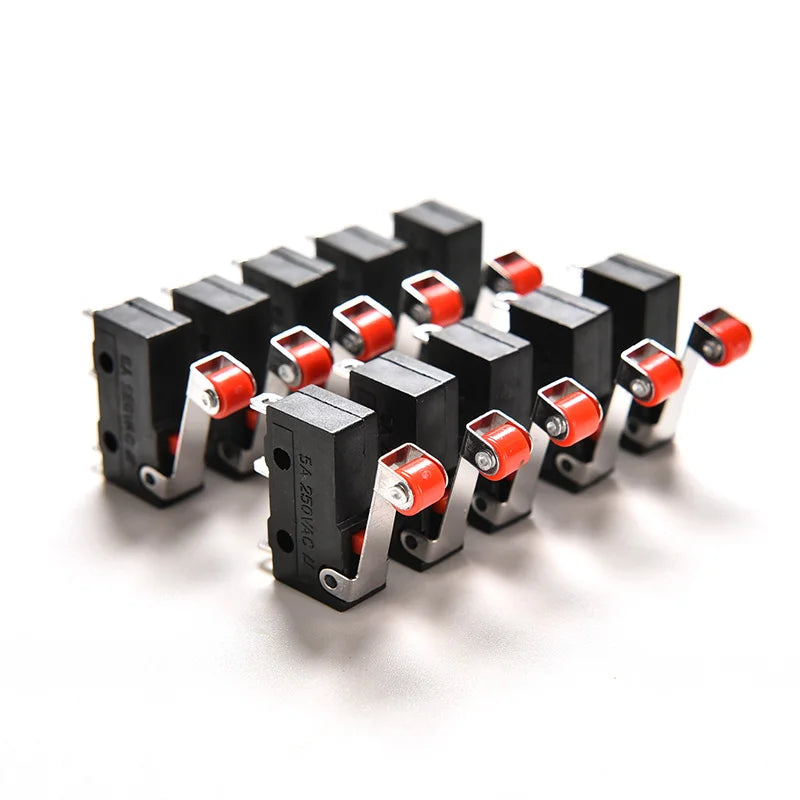

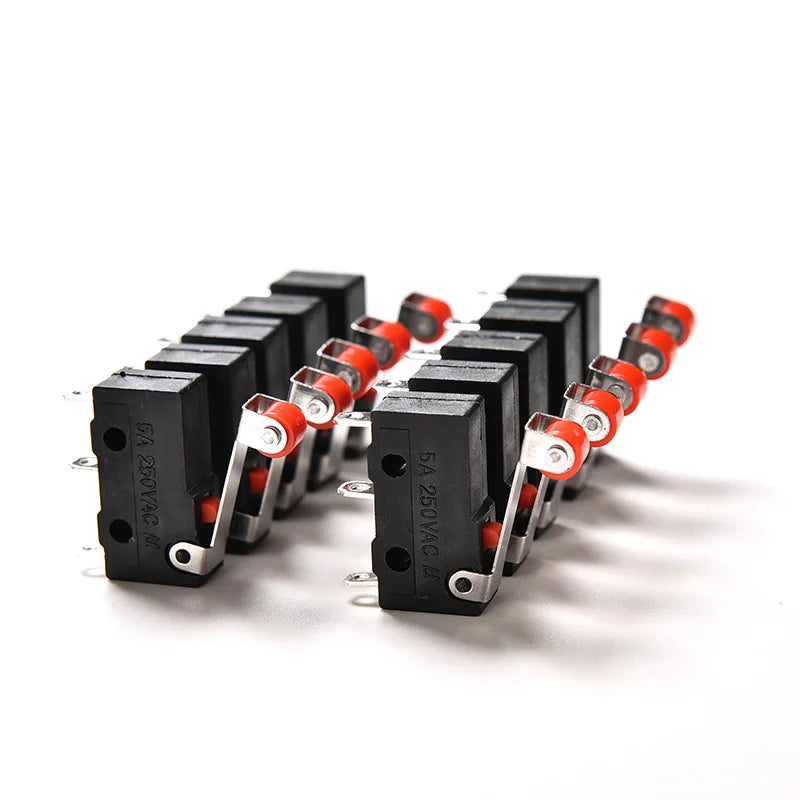

10Pcs KW12-3 Micro Roller Lever Limit Switch PCB Microswitch

10Pcs KW12-3 Micro Roller Lever Arm Limit Switch – PCB Microswitch

Get reliable, snap-action switching in a compact package. This pack of 10 KW12-3 micro roller lever limit switches delivers fast, precise open/close triggering for a wide range of electronics, automation, and DIY projects. Built with PCB-mount terminals, these microswitches are easy to integrate into circuit boards and deliver consistent performance across thousands of cycles.

Made in Mainland China.

Key Features

• Roller Lever Actuator: Smooth, consistent actuation via the roller lever arm for accurate positional triggering
• Snap-Action Mechanism: Instantaneous contact make/break action ensures fast, clean switching with minimal bounce
• PCB Terminal Design: Solder-ready PCB terminals for straightforward circuit board integration
• Wide Operating Temperature: Rated for -40°C to 70°C — suitable for demanding environments
• AC Rated: Handles AC 125V–250V at up to 5A current for versatile use
• Compact Form Factor: Measures just 20 × 10 × 6 mm (L × W × H) — fits tight enclosures with ease
• Value Pack: Comes with 10 switches so you always have spares on hand

Technical Specifications

How It Works

The KW12-3 uses a spring-loaded reed mechanism. When an external mechanical force (via roller, lever, or pin) acts on the actuator and reaches its critical travel point, the reed snaps instantaneously — making or breaking the circuit contact in a fraction of a second. When the force is removed, the spring reverses the action, resetting the switch. This snap-action design provides short stroke actuation, small contact spacing, and fast switching performance.

Common Applications

• Computer mice and pointing devices
• Automotive and vehicle electronics
• Communications and test equipment
• Small home appliances (microwave ovens, rice cookers)
• Gas water heaters and gas burners
• Floating ball and fluid-level equipment
• Medical and laboratory instruments
• Building automation and control systems
• Electric power tools
• 3D printers and CNC machines (end-stop switches)

What's in the Box

• 10 × KW12-3 Micro Roller Lever Limit Switches

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the KW12-3 micro roller lever limit switch used for?

A: The KW12-3 PCB microswitch is widely used as a position/limit sensor in electronics, automation systems, home appliances, 3D printers, CNC machines, and more. Its roller lever arm detects mechanical movement and triggers an instantaneous open or close circuit action.

Q: Are these switches compatible with 3D printer end-stops?

A: Yes. The KW12-3 roller lever microswitch is one of the most popular choices for 3D printer end-stop and homing switches. Its compact size and PCB-mount terminals make it straightforward to install on most printer control boards.

Q: What voltage and current do these microswitches support?

A: Each KW12-3 switch is rated for AC 125V–250V at up to 5A. This makes them suitable for a broad range of low-to-medium power electronic and automation applications.

Q: How do I mount the KW12-3 microswitch?

A: The KW12-3 features PCB (printed circuit board) terminals, meaning you can solder them directly onto a circuit board. The compact 20 × 10 × 6 mm body also allows panel or bracket mounting using the pre-drilled holes on the switch body.
