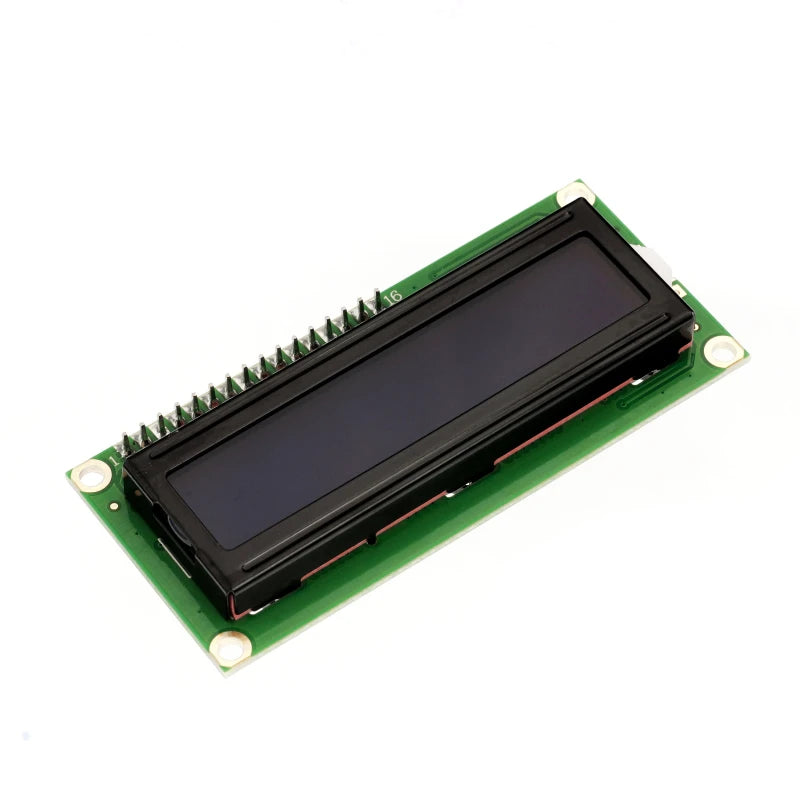

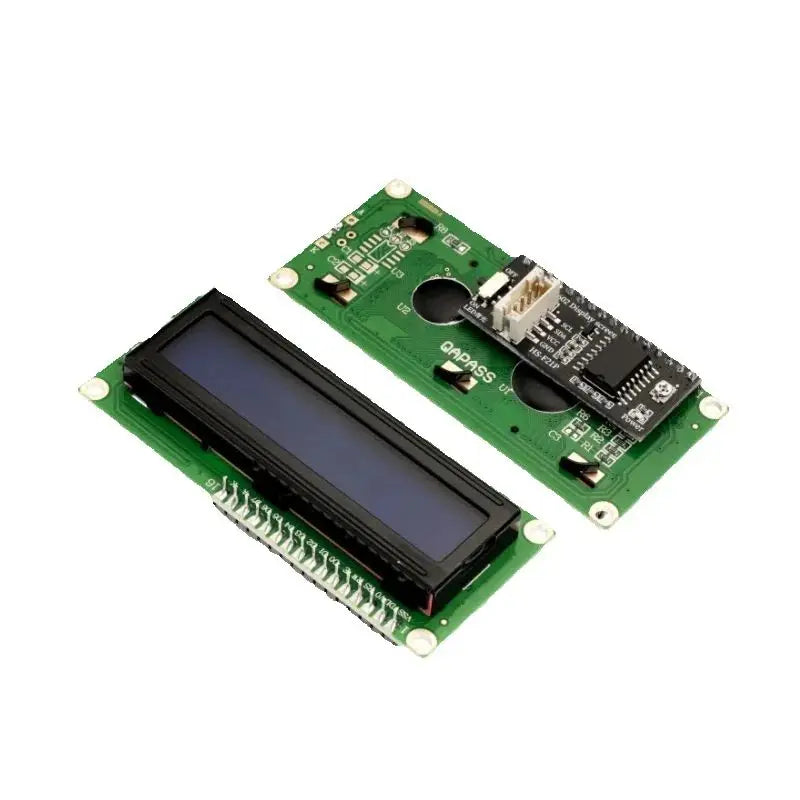

LCD-1602 Blue Screen LCD Module with I2C/IIC Interface Adapter Board
Upgrade your electronics projects with the LCD-1602 Blue Screen LCD Module — a compact, easy-to-use display solution featuring a built-in IIC/I2C serial interface adapter board. Designed for makers, hobbyists, and engineers alike, this module simplifies wiring dramatically, reducing your connections from 16 pins down to just 4 (VCC, GND, SDA, SCL). The convenient PH2.0 anti-reverse connector ensures you never accidentally plug it in backwards, protecting your components every time.
Key Features
- I2C/IIC Serial Interface: Minimizes wiring complexity — only 4 wires needed to connect to your microcontroller (Arduino, Raspberry Pi, ESP32, and more).
- Blue Backlight with White Characters: High-contrast blue LCD screen with crisp white text for easy readability in a variety of lighting conditions.

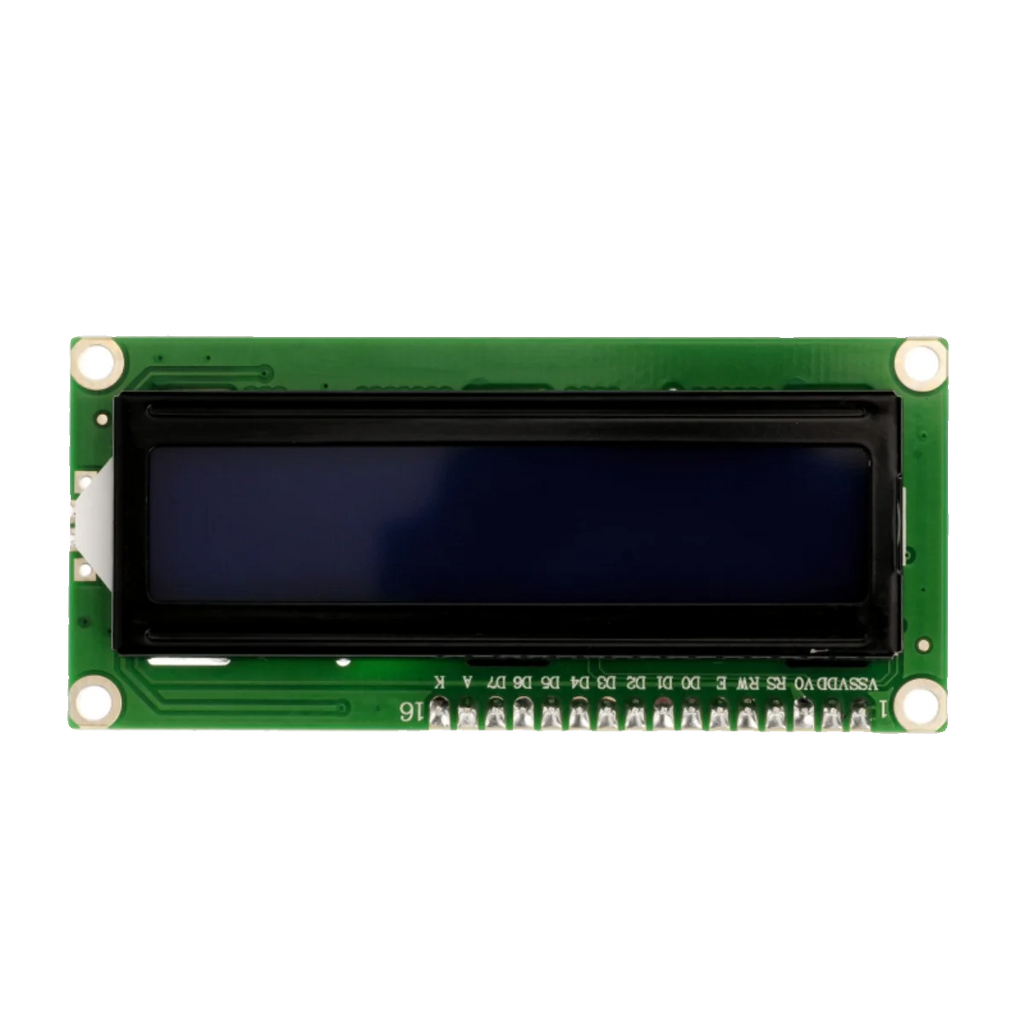

- 16x2 Character Display: Displays up to 2 rows of 16 characters each — perfect for sensor readings, status messages, menus, and more.
- 5V Operating Voltage: Standard 5V power supply compatible with most development boards and microcontrollers.
- PH2.0 Anti-Reverse Connection: Built-in anti-reverse connector prevents accidental miswiring, safeguarding your circuit and components.
- Onboard Potentiometer: Adjustable contrast control for optimal display visibility right out of the box.
- Compact & Breadboard-Friendly: Small form factor fits neatly into project enclosures and breadboard setups.
- New Condition: Brand new module, ready to integrate into your next build.
- Made in Mainland China.

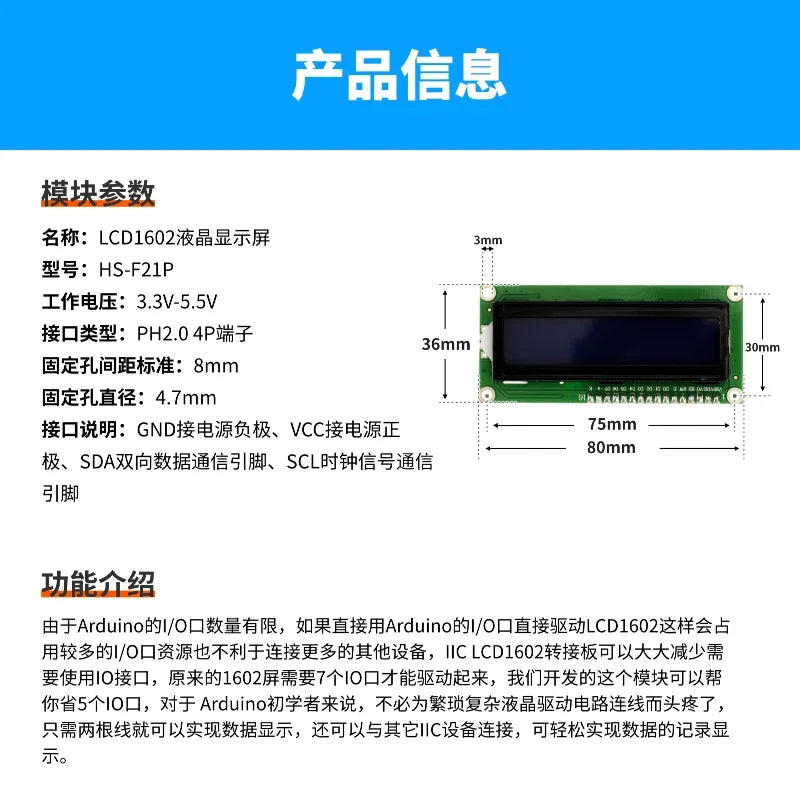

Specifications
- Display Type: LCD 16x2 Characters
- Backlight Color: Blue
- Interface: IIC / I2C Serial
- Operating Voltage: 5V DC
- Connector Type: PH2.0 Anti-Reverse
- Condition: New
- Origin: Mainland China
What's in the Box?
- 1 × LCD-1602 Blue Screen LCD Module with I2C Adapter Board
Who Is This For?
Whether you're building a DIY weather station, a custom Arduino project, a robotics display, or an IoT device, the LCD-1602 I2C module is the reliable, plug-and-play display solution you need. Its anti-reverse connector makes it especially beginner-friendly, while the I2C interface keeps your GPIO pins free for other sensors and components.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is the LCD-1602 I2C module compatible with Arduino and Raspberry Pi?
A: Yes! The LCD-1602 with I2C interface adapter board is compatible with Arduino (Uno, Mega, Nano, etc.), Raspberry Pi, ESP32, ESP8266, and most other microcontrollers that support the I2C/IIC serial protocol. Simply use the standard LiquidCrystal_I2C library for Arduino or the smbus library for Raspberry Pi.
Q: What does the PH2.0 anti-reverse connection feature do?
A: The PH2.0 anti-reverse connector is a keyed connector that physically prevents you from plugging the cable in the wrong way. This protects both the LCD module and your microcontroller from accidental reverse-polarity connections, making it especially useful for beginners or rapid-prototyping environments.
Q: How many wires do I need to connect this LCD module to my microcontroller?
A: Thanks to the integrated I2C adapter board, you only need 4 wires: VCC (power), GND (ground), SDA (data), and SCL (clock). This is a major advantage over standard LCD modules that require up to 16 connections.
Q: What is the operating voltage of the LCD-1602 I2C module?
A: This module operates at 5V DC, making it directly compatible with 5V microcontroller boards like the Arduino Uno and Mega. For 3.3V boards, a level shifter may be required.
