LCD 2004/12864 Smart Controller Display — Compatible with Ramps 1.4, 1.5, 1.6 for RepRap Mendel 3D Printers
Upgrade your 3D printer's usability with this versatile LCD 2004/12864 Smart Controller Display. Designed to work seamlessly with Ramps 1.4, 1.5, and 1.6 boards, this control panel gives you full hands-on control of your RepRap Mendel printer — no PC required once your print is running. The crisp blue backlit screen and intuitive rotary encoder knob make navigating menus, adjusting settings, and monitoring print progress effortless.
Key Features

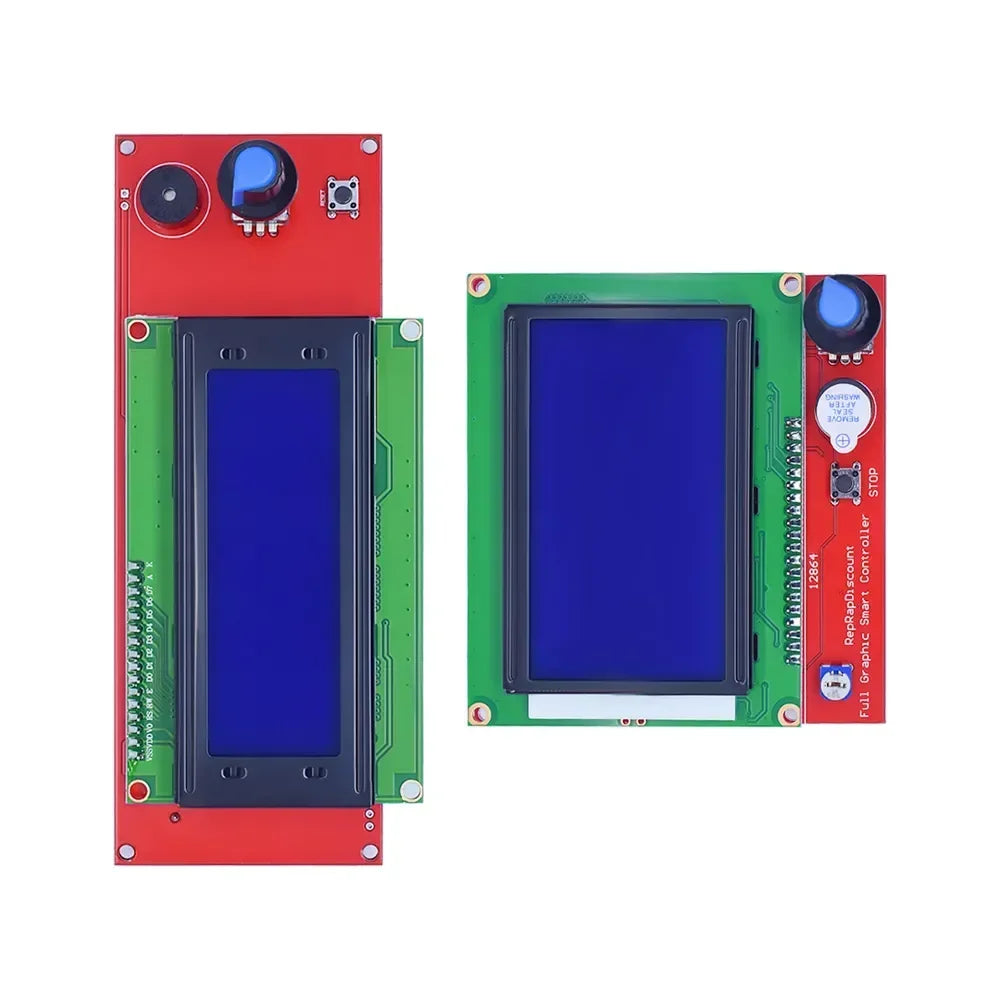

- Dual Display Mode: Supports both 20×4 (2004) character LCD and 128×64 (12864) graphical LCD modes for flexible use.

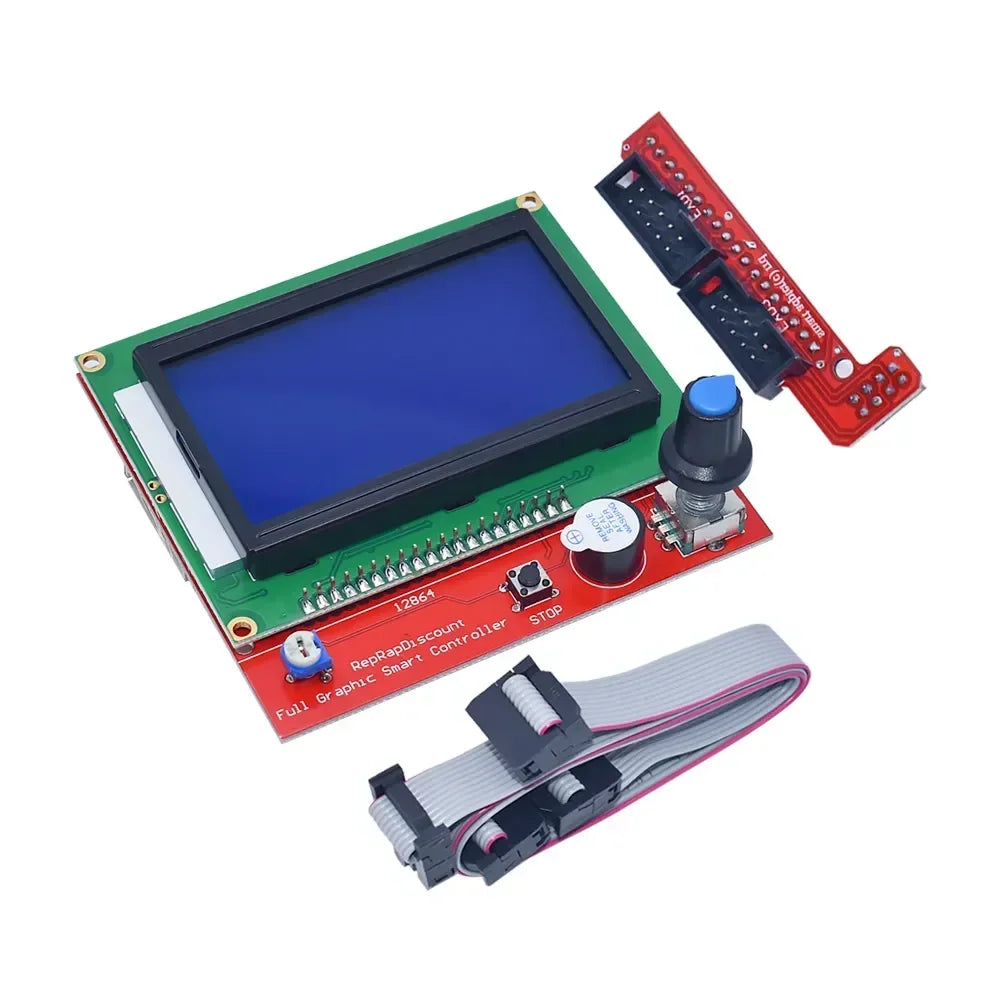

- 128×64 Resolution: Sharp, high-contrast graphical display for clear readout of print status, temperatures, and settings.
- Wide Compatibility: Plug-and-play with Ramps 1.4, 1.5, and 1.6 control boards — a staple of the RepRap Mendel ecosystem.
- Standalone Printing: Print directly from an SD card without a computer connection, giving you full independence at the printer.
- Rotary Encoder Control: Navigate menus and adjust parameters quickly with a single click-and-turn knob.
- Blue Backlit Screen: Clearly readable in any lighting environment, even in dimly lit workshop or studio settings.

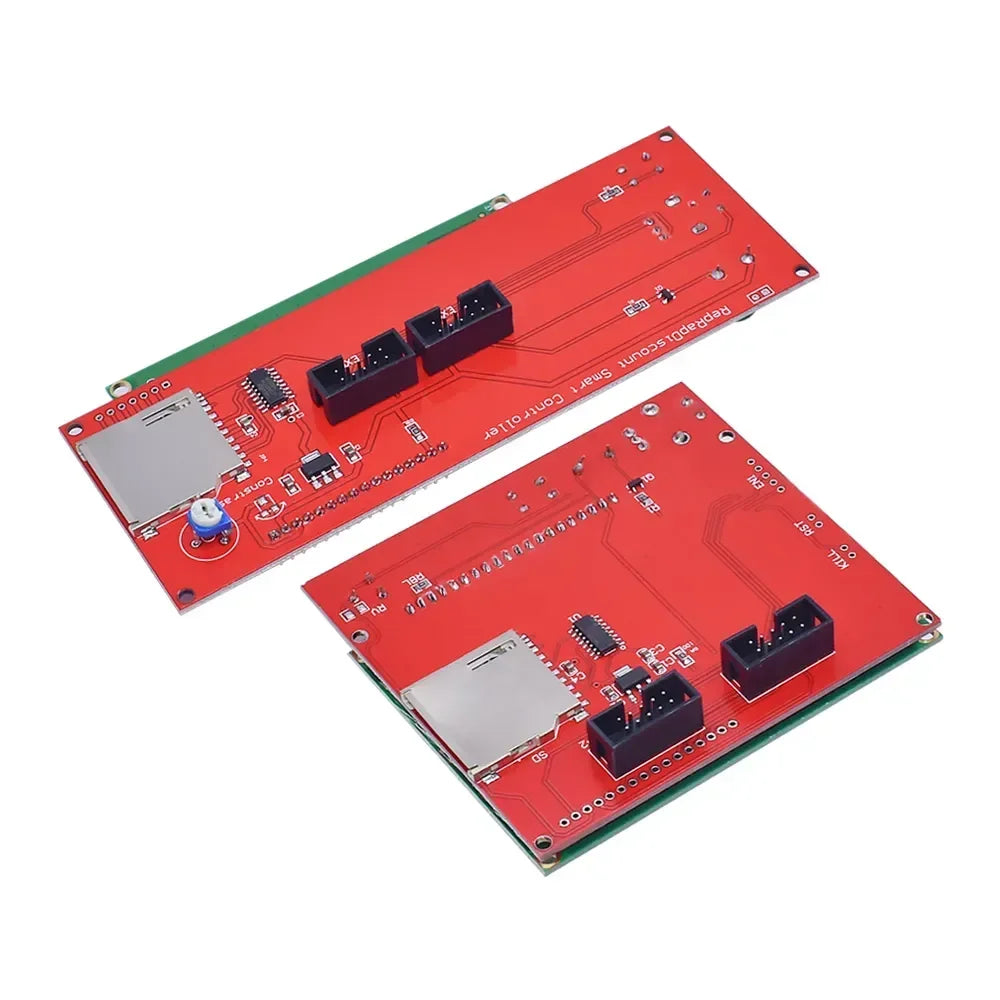

- Easy Installation: Standard EXP1/EXP2 connector interface for straightforward connection to compatible boards.
Specifications
| Model | 2004 / 12864 LCD Control Panel |
| Resolution | 128 × 64 |
| Display Type | Blue Backlit LCD |
| Compatible Boards | Ramps 1.4, 1.5, 1.6 |
| Compatible Printers | RepRap Mendel and similar open-source 3D printers |
| Interface | EXP1 / EXP2 Connectors |
| Brand | GUANDO |
| Country of Origin | Made in Mainland China |
What's in the Box?

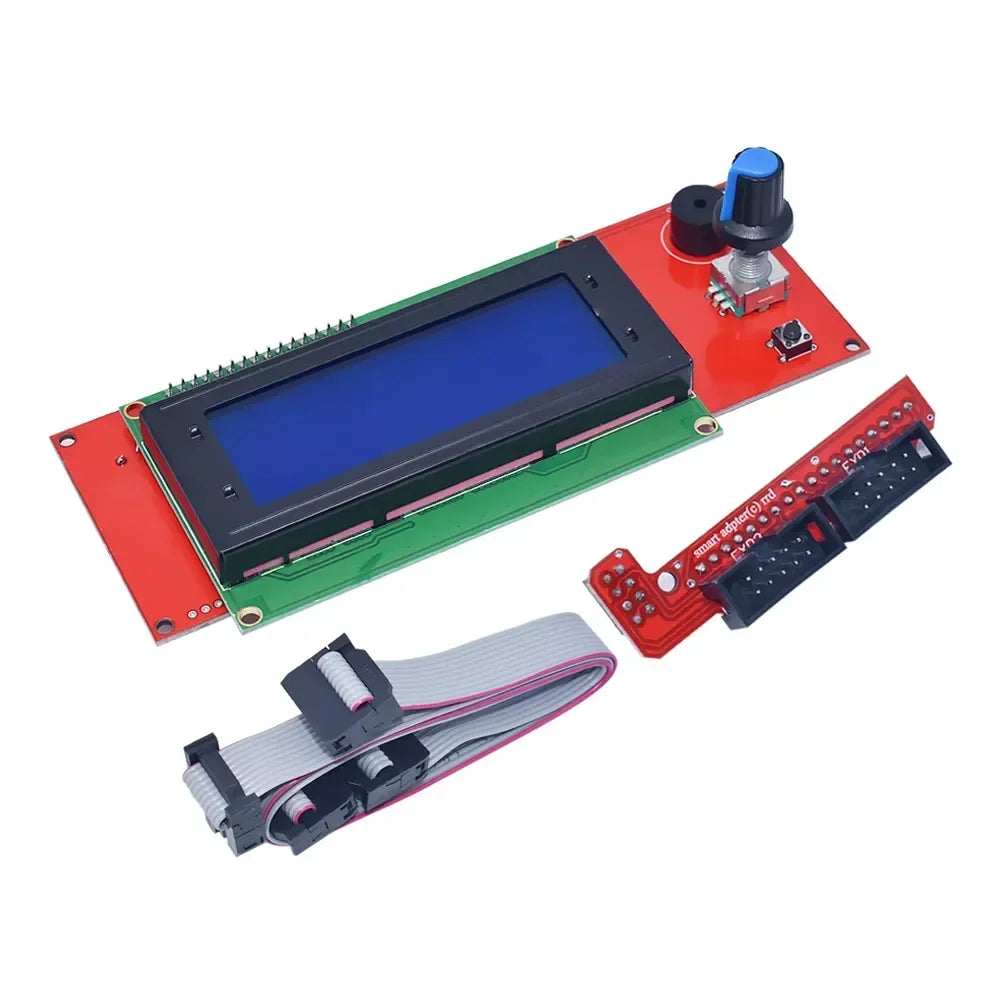

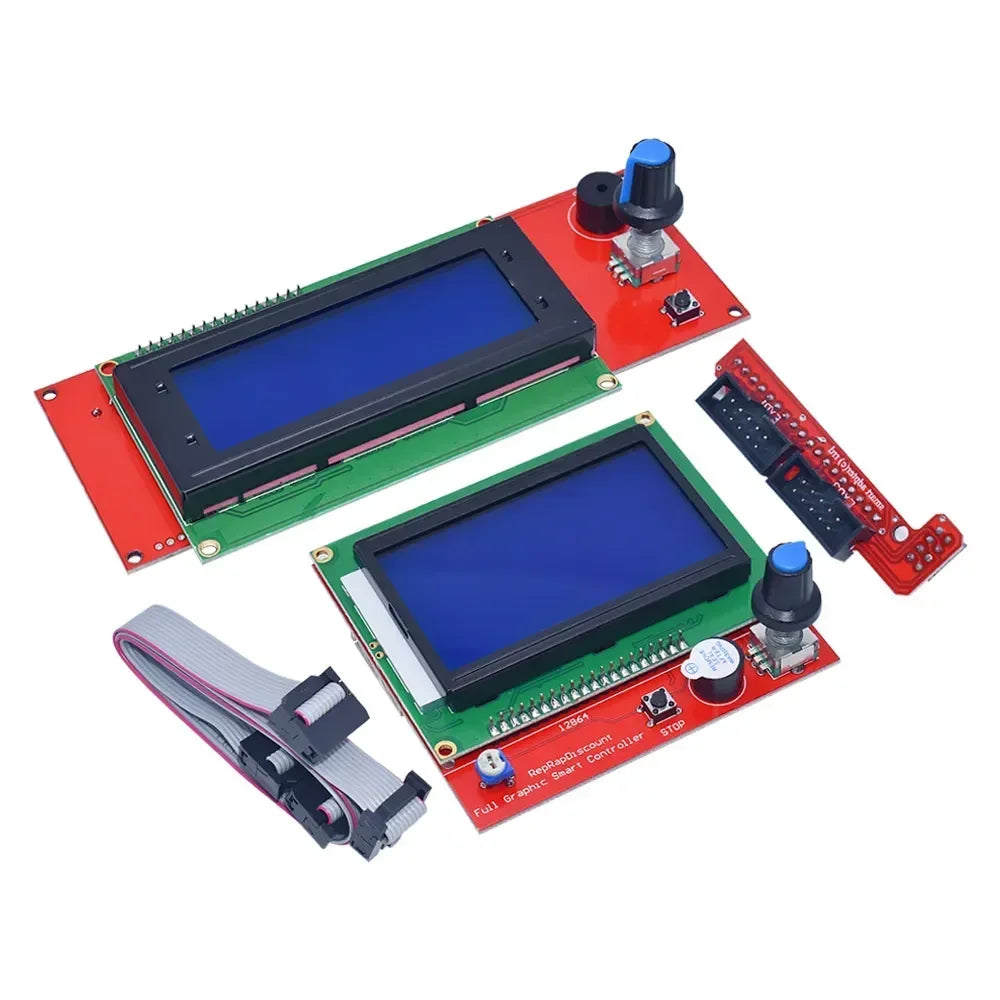

- 1 × LCD 2004/12864 Smart Controller Display Panel
- Connector cables for EXP1 and EXP2 ports
Who Is This For?
Whether you're a maker, hobbyist, or seasoned 3D printing enthusiast, this smart controller display is an essential upgrade for any RepRap-based printer build. Gain real-time feedback on your nozzle and bed temperatures, control print speed, and manage files from your SD card — all from the display itself. It's ideal for those building or upgrading a RepRap Mendel, Prusa, or similar open-source 3D printer.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this LCD smart controller compatible with Ramps 1.4, 1.5, and 1.6 boards?
A: Yes, this LCD 2004/12864 smart controller display is fully compatible with Ramps 1.4, 1.5, and 1.6 boards. It connects via standard EXP1 and EXP2 connectors, making installation straightforward on all supported boards.
Q: Can I print directly from an SD card using this controller?
A: Absolutely. This smart controller features a built-in SD card slot, allowing you to print files directly from an SD card without needing a connected computer. Simply navigate to your file using the rotary encoder and start your print from the display.
Q: Does this display support both 2004 and 12864 LCD modes?
A: Yes, this controller panel is designed to support both the 20×4 character display (2004) mode and the 128×64 graphical display (12864) mode, offering flexibility depending on your firmware configuration and preferences.
Q: What firmware is compatible with this LCD smart controller?
A: This controller is compatible with popular open-source 3D printer firmware such as Marlin, which is widely used in the RepRap Mendel community. Ensure your Marlin configuration has the appropriate LCD type enabled for full functionality.
