LCD1602 Display Module with I2C Interface & Backlight – 2×16 Characters, 5V
Upgrade your microcontroller projects with this versatile LCD1602 Display Module. Featuring a crisp 2-line × 16-character display with an adjustable backlight, this module integrates seamlessly with Arduino, Raspberry Pi, and compatible boards via a convenient I2C serial interface — drastically reducing the number of wiring pins required.
Key Features

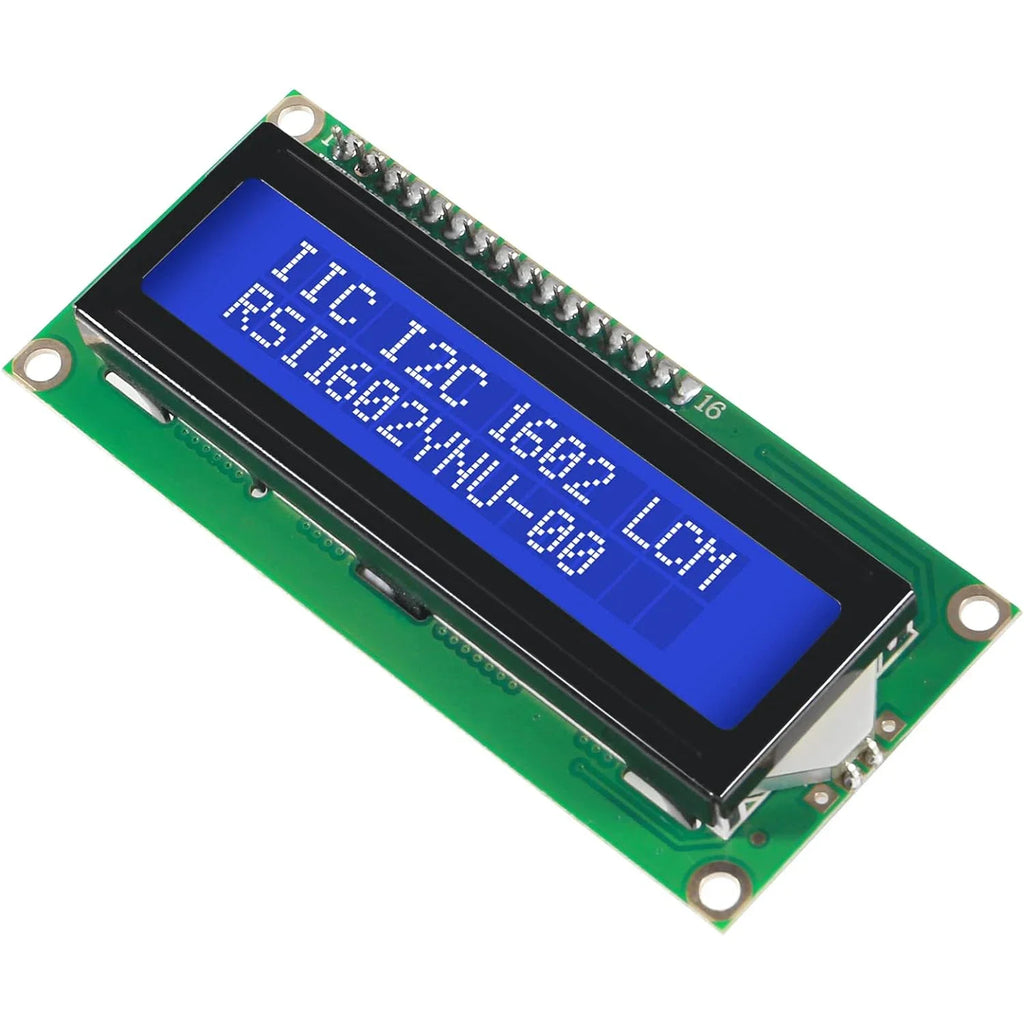

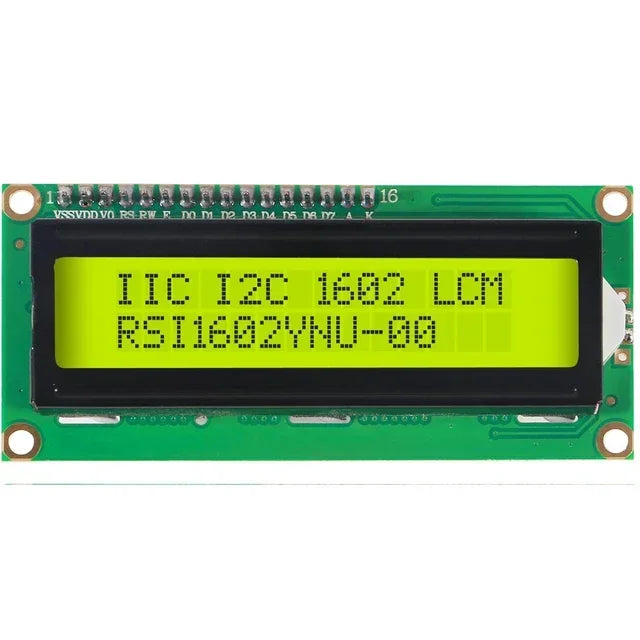

- 2×16 Character Display: Green/blue backlit LCD screen capable of showing 2 lines of up to 16 characters each — perfect for text, numbers, real-time clock readouts, temperature, humidity, and more.

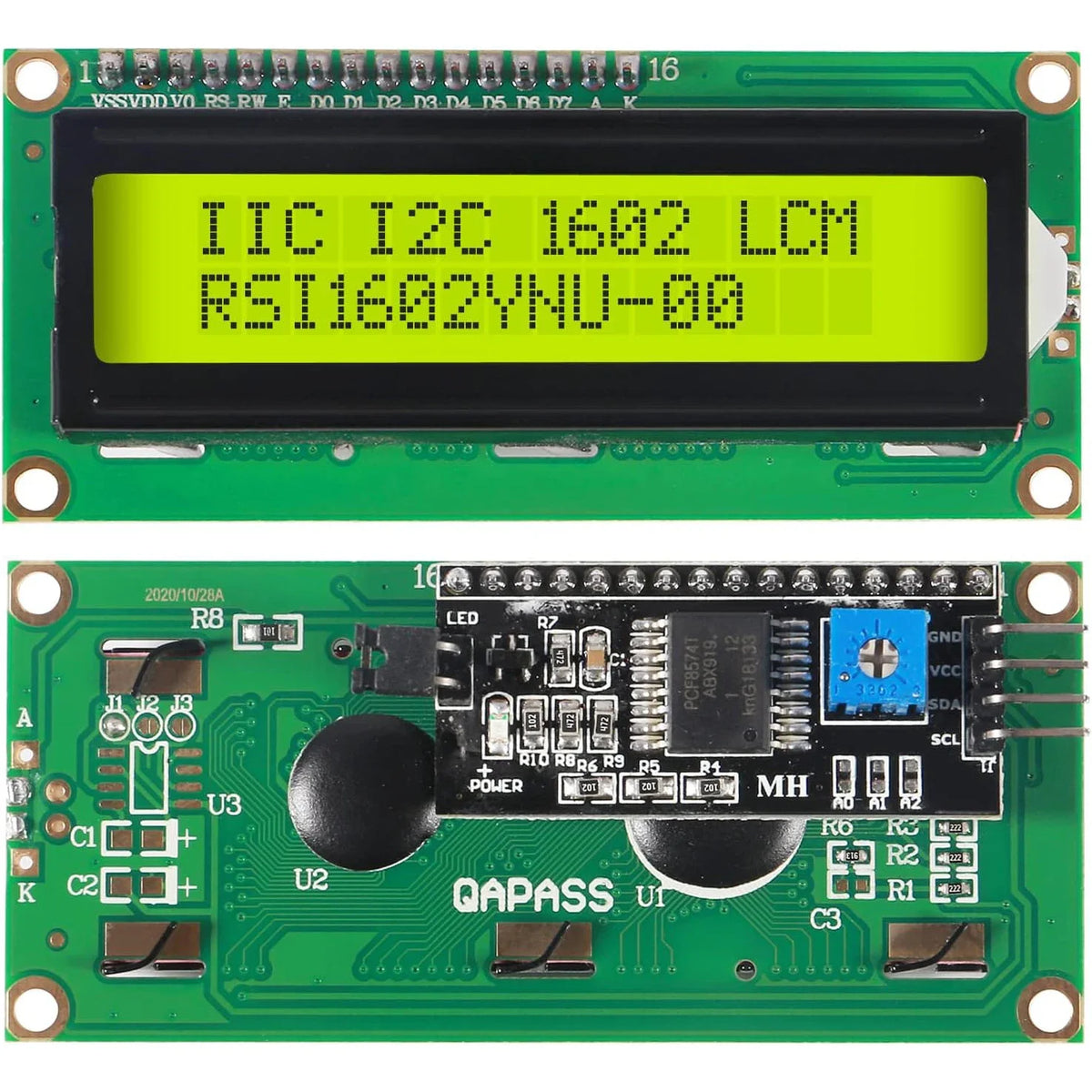

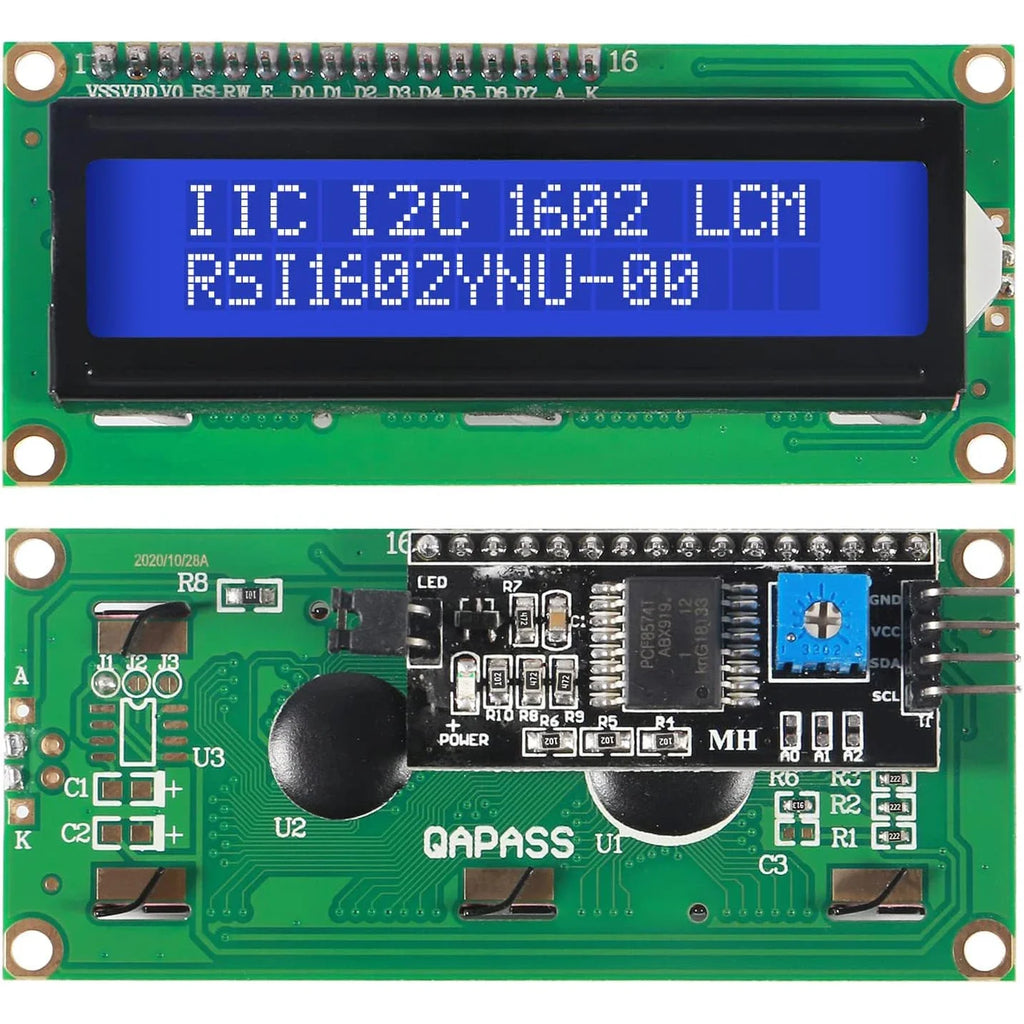

- I2C Serial Interface Backpack: Built-in I2C adapter (PCF8574T or PCF8574AT chip) simplifies wiring to just 4 pins: GND → GND, VCC → VCC, SDA → A4, SCL → A5.
- Default I2C Addresses: 0x27 for PCF8574T chip; 0x3F for PCF8574AT chip. Check your chip before uploading code. (Download the I2C library from GitHub before use.)
- Wide Compatibility: Works with Arduino Duemilanove, UNO R3, MEGA, and Raspberry Pi. Operating voltage: 5V DC.

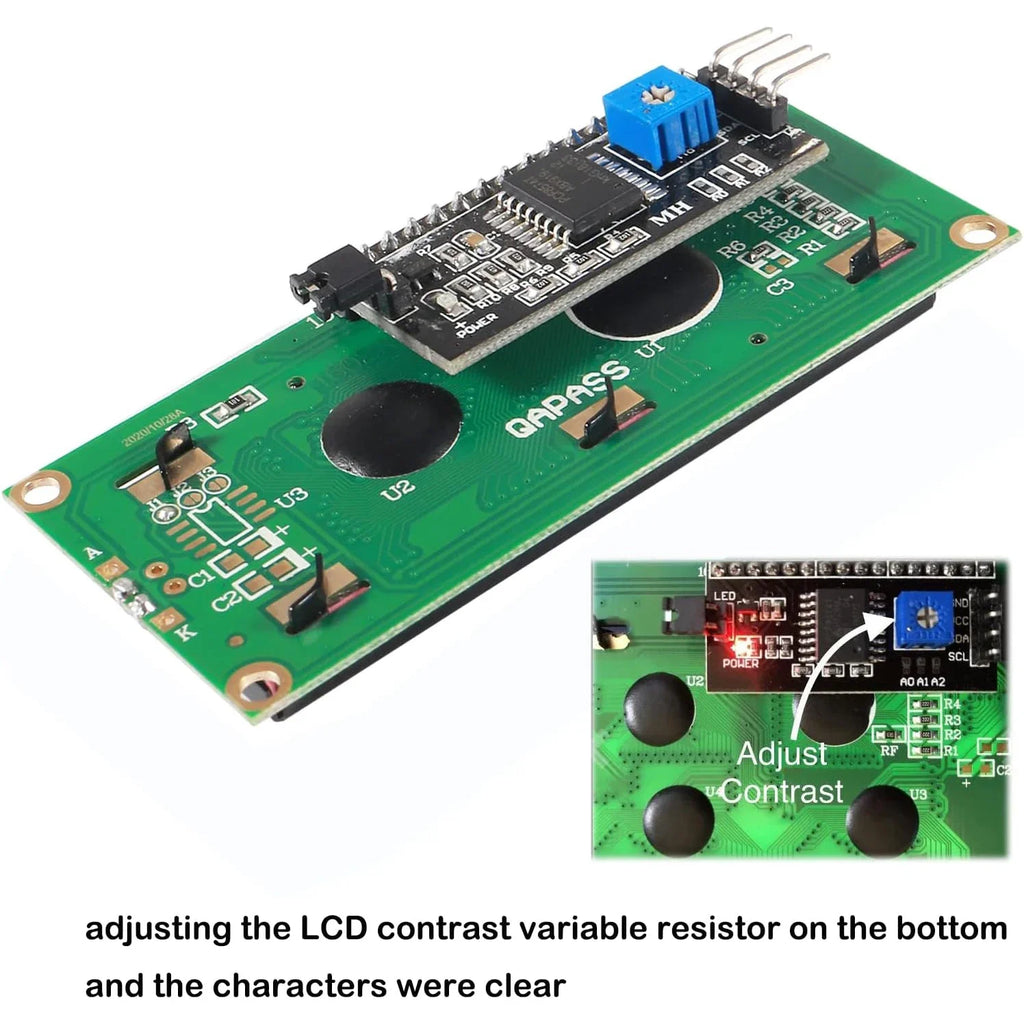

- Adjustable Contrast & Backlight: Onboard potentiometer lets you fine-tune both contrast and backlight brightness for optimal readability in any environment.
- Versatile Applications: Display real-time clocks, temperature sensors, humidity readings, custom messages, menus, and alphanumeric data in your DIY electronics projects.
Specifications
| Display Type | LCD, 2 Lines × 16 Characters |
| Interface | I2C (with backpack adapter) |
| Operating Voltage | 5V DC |
| Default I2C Address | 0x27 (PCF8574T) / 0x3F (PCF8574AT) |
| Wiring | GND, VCC, SDA (A4), SCL (A5) |
| Compatible Boards | Arduino UNO R3, MEGA, Duemilanove, Raspberry Pi |
| Condition | New |
| Origin | Made in China |
What's in the Box

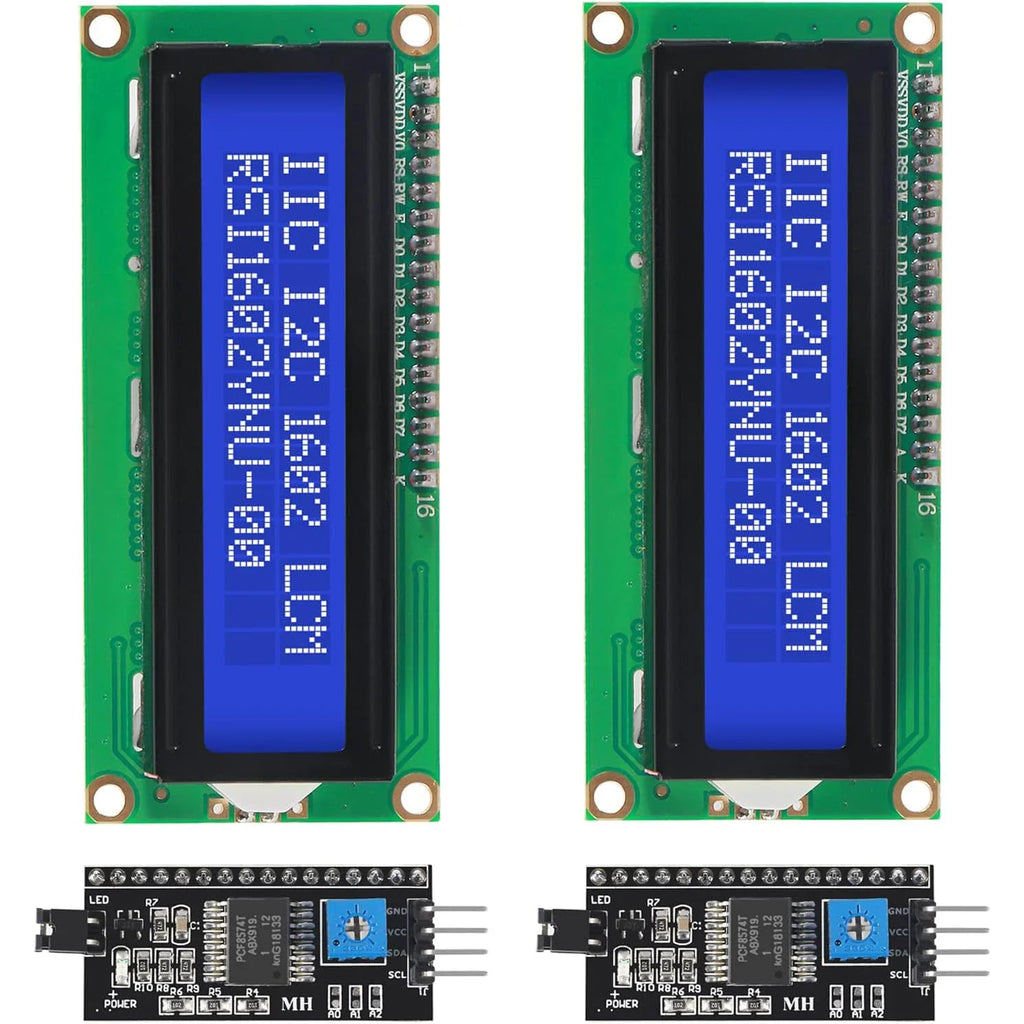

- 1× LCD1602 Display Module with I2C backpack
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is this LCD1602 display module compatible with Arduino UNO R3 and Raspberry Pi?
A: Yes! The LCD1602 display module with I2C interface is fully compatible with Arduino boards (UNO R3, MEGA, Duemilanove) as well as Raspberry Pi. Simply connect GND to GND, VCC to VCC, SDA to A4, and SCL to A5 on your Arduino board.
Q: How do I adjust the contrast and backlight on the LCD1602 module?
A: The module includes an onboard potentiometer. Turn it gently to adjust the display contrast and backlight brightness until characters are clearly visible. No additional components are required.
Q: Do I need a special library to use the LCD1602 I2C module with Arduino?
A: Yes. Before uploading your sketch, download and install the I2C LCD library (available on GitHub). Once installed, use the standard LiquidCrystal_I2C library functions to initialize and write to the display. Make sure to set the correct I2C address — 0x27 for PCF8574T or 0x3F for PCF8574AT — matching the chip on your board.
Q: What can I display on this LCD1602 module?
A: The LCD1602 module can display letters, numbers, symbols, real-time clock data, temperature, humidity readings, and custom alphanumeric messages — making it ideal for a wide range of Arduino and embedded system projects.
