LXW20-11/M Micro Limit Switch Push Plunger Silver Contact

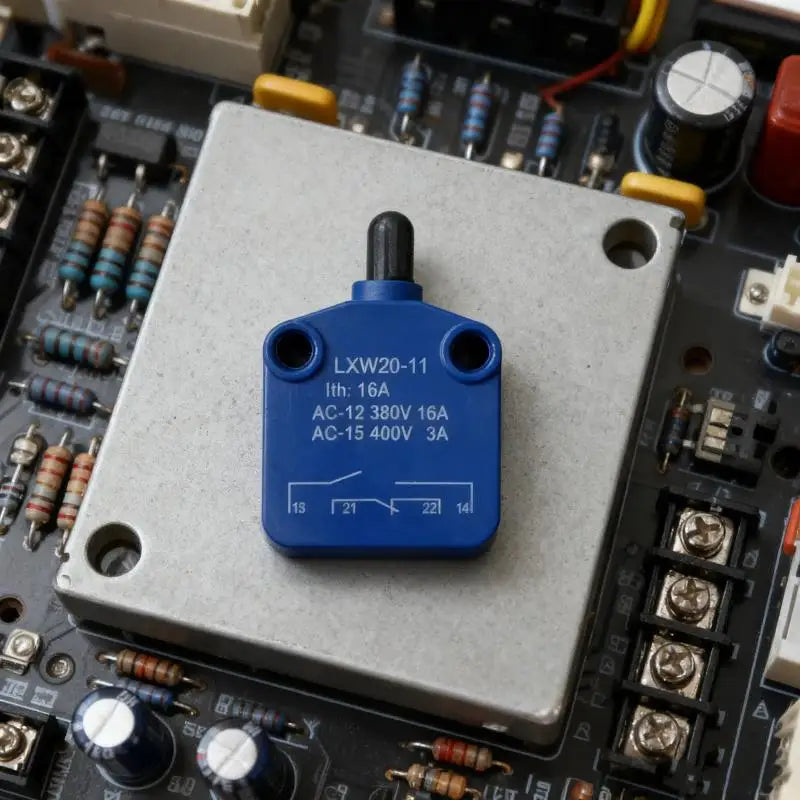

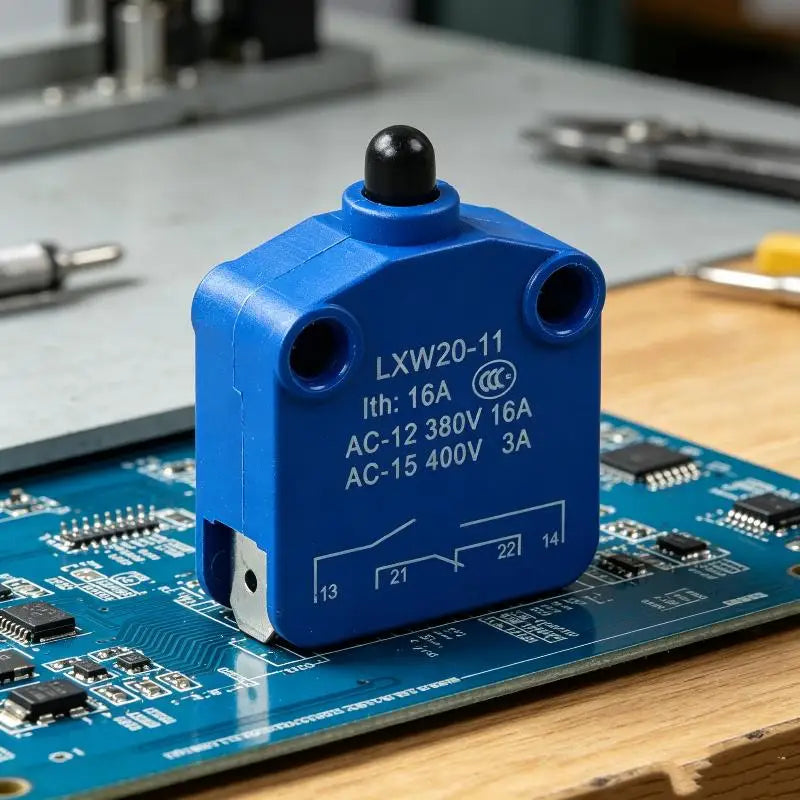

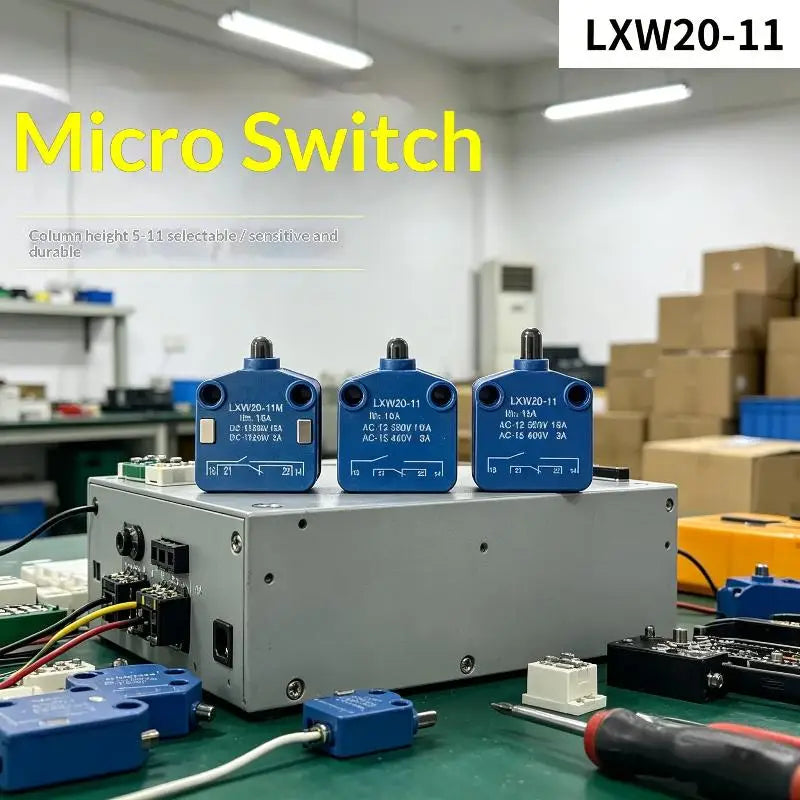

LXW20-11/M Micro Limit Switch — Push Plunger Type with Silver Alloy Contact

The LXW20-11/M Micro Limit Switch is a high-sensitivity, push-plunger circuit control component engineered for precision position sensing in industrial automation, household appliances, and electronic equipment. With a silver alloy contact and flame-retardant ABS housing, this compact switch delivers fast, reliable circuit switching action in demanding environments.

Key Features

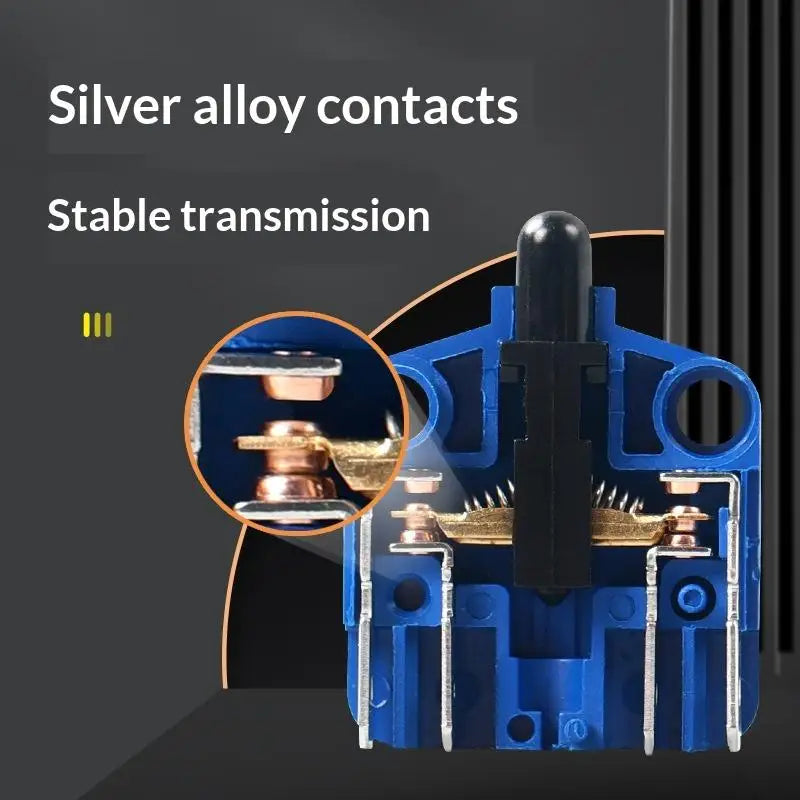

• Ultra-Sensitive Trigger Response: High-purity silver alloy conductive contacts combined with a low contact-resistance structure deliver millisecond-level circuit switching, minimizing false triggering and maximizing operational stability.
• Flame-Retardant Impact-Resistant Housing: High-grade flame-retardant ABS engineering plastic shell with excellent insulation and corrosion resistance protects against electrical leakage and fire risk in both industrial and daily-use environments.
• Wide Load Compatibility: Thickened pure copper internal conductors support up to AC 380V / 16A and DC 250V / 5A, fitting a broad range of circuit control requirements without additional parameter adjustment.
• Stable, Easy-to-Install Design: Pre-drilled standard-size mounting holes with reinforced edges ensure firm, displacement-free installation, simplifying assembly for equipment manufacturers and technicians.

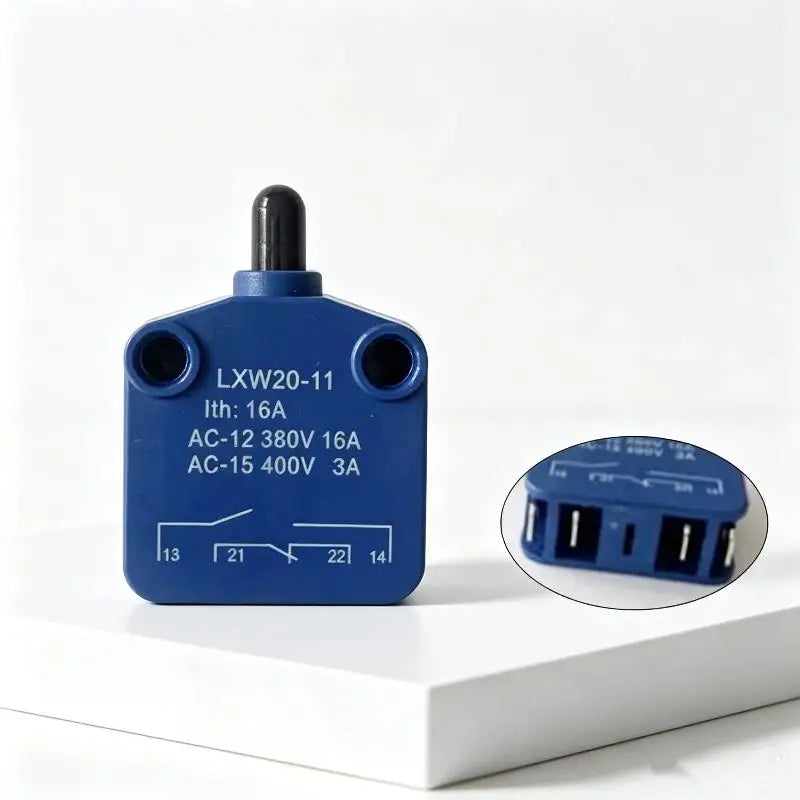

• Permanent Laser-Engraved Markings: Non-fading parameter labels and circuit diagrams laser-engraved on the shell provide clear rated load and wiring instructions at a glance, reducing wiring errors during installation and maintenance.

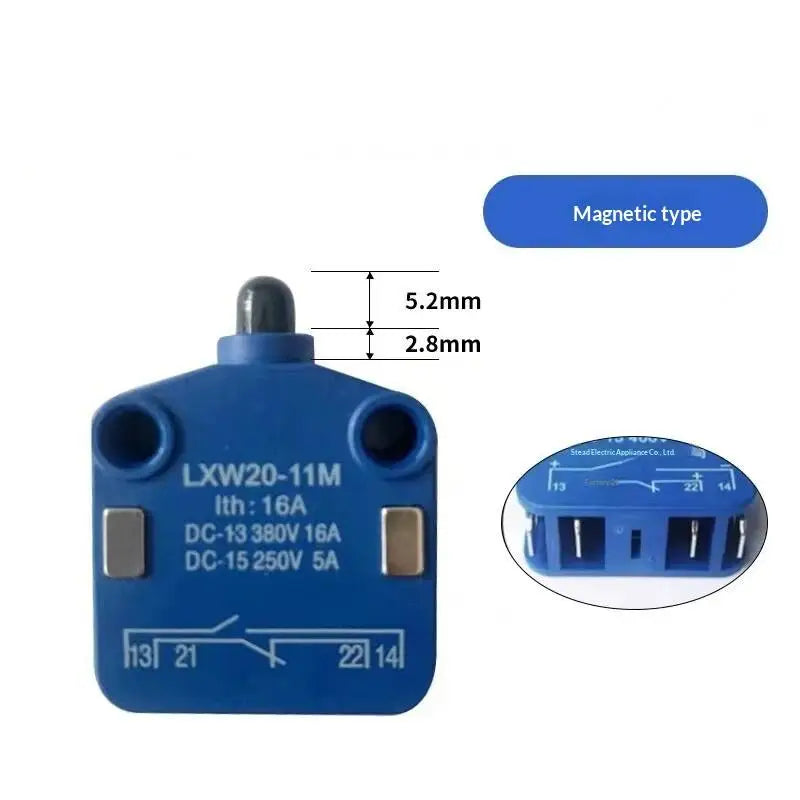

• Rubber-Coated Metal Plunger: The push-type actuator features a rubber-coated metal plunger for smooth, repeatable actuation and extended mechanical service life.

Specifications

Applications

• Industrial automation equipment & conveyor position sensing
• Household appliances (washing machines, refrigerators, ovens)
• Vending machines & dispensing equipment
• Access control & security devices
• Electronic instruments & test equipment
• Mechanical position limit control systems
• CNC machinery & robotics end-stop sensing

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the maximum load rating for the LXW20-11/M micro limit switch?

A: The LXW20-11/M micro limit switch supports up to AC 380V / 16A and DC 250V / 5A, making it compatible with a wide range of industrial and household circuit control applications without requiring additional adapters or parameter changes.

Q: What type of actuator does the LXW20-11/M use?

A: This switch uses a push plunger (slug column) actuator with a rubber-coated metal plunger. The rubber coating provides smooth, consistent actuation and helps protect the mechanism from wear, ensuring long-term repeatable performance.

Q: Is the LXW20-11/M micro limit switch suitable for harsh industrial environments?

A: Yes. The flame-retardant ABS housing offers strong insulation and corrosion resistance, making it suitable for challenging industrial environments. The laser-engraved parameter markings also remain clear over time, aiding maintenance in tough conditions.

Q: How is the LXW20-11/M installed?

A: The switch features pre-drilled standard-size mounting holes with reinforced edges for secure, firm installation. Simply align with the mounting surface and fasten — the reinforced design prevents displacement and poor contact even after extended use.
