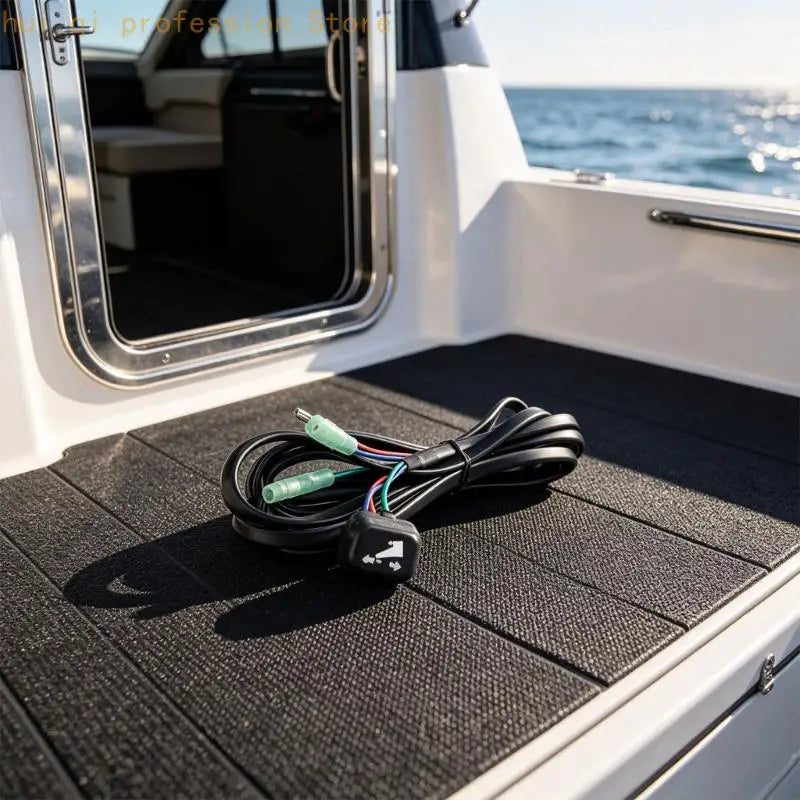

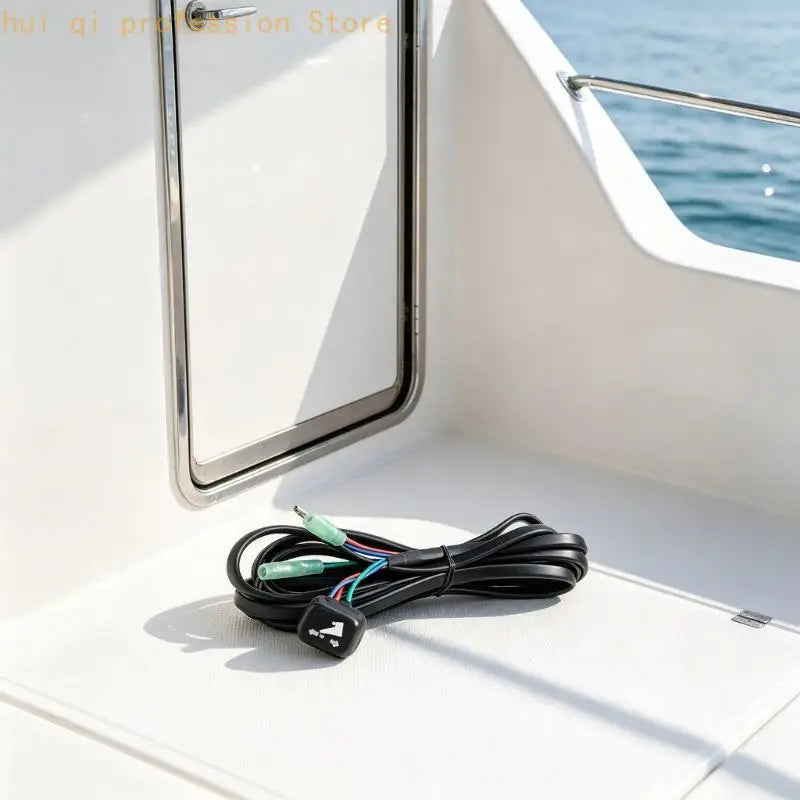

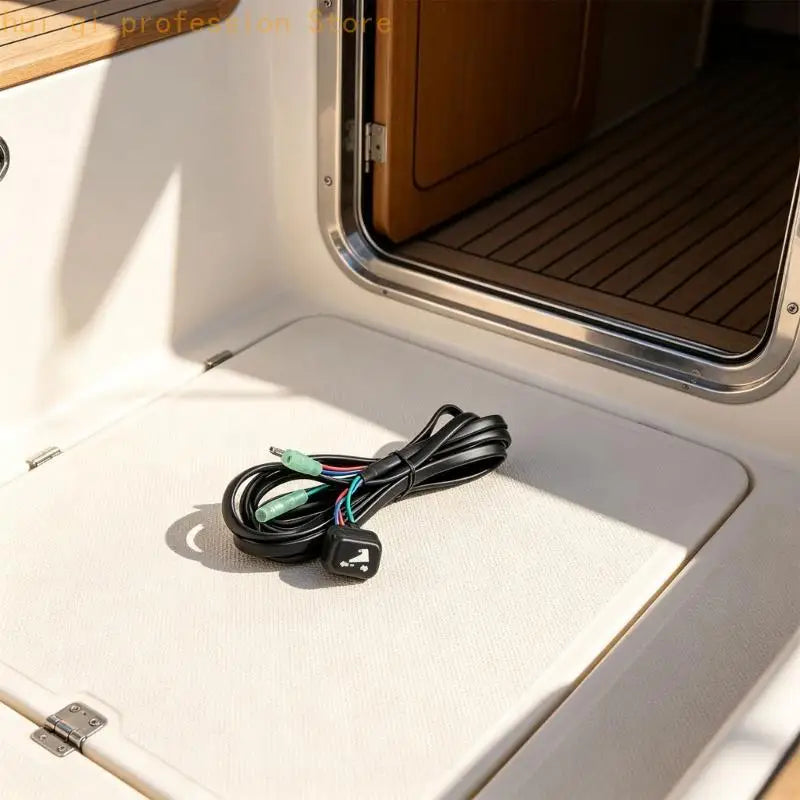

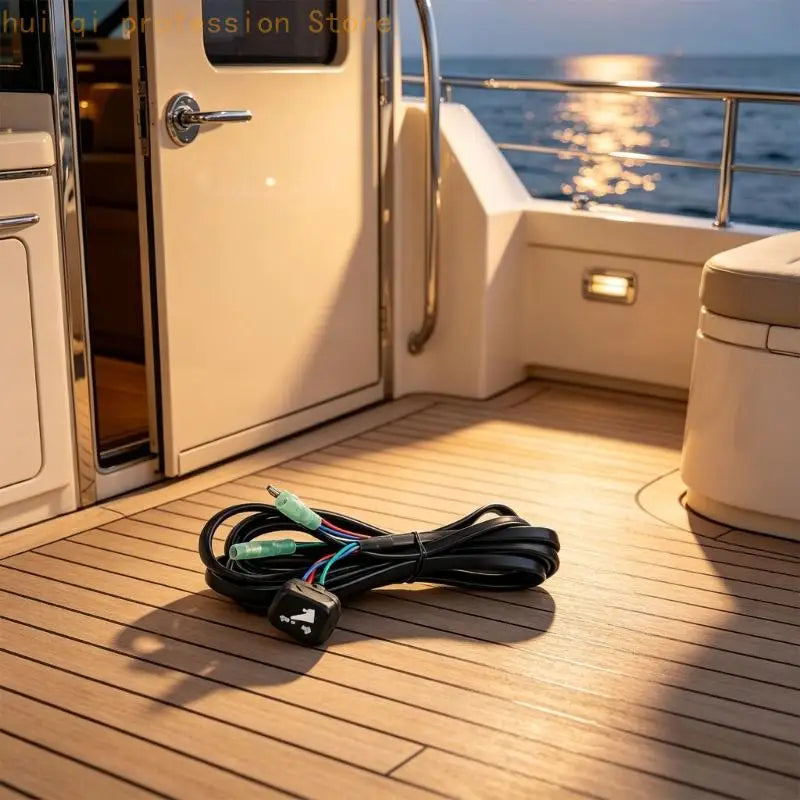

Marine Remote Trim Tilt Control Assembly — Direct Replacement Part
Keep your boat's trim and tilt system running smoothly with this direct-replacement Remote Trim Tilt Control Button Assembly. Designed to fit 2001–2015 single marine control boxes, this plug-and-play component makes routine repair and maintenance straightforward — no cutting, splicing, or guesswork required.
Key Features
- Exact-Fit Replacement: Compatible with OEM Number 704-82563-40-00 and replacement numbers 704-82563-41-00 and 704-82563-42-00, making part verification simple and accurate.

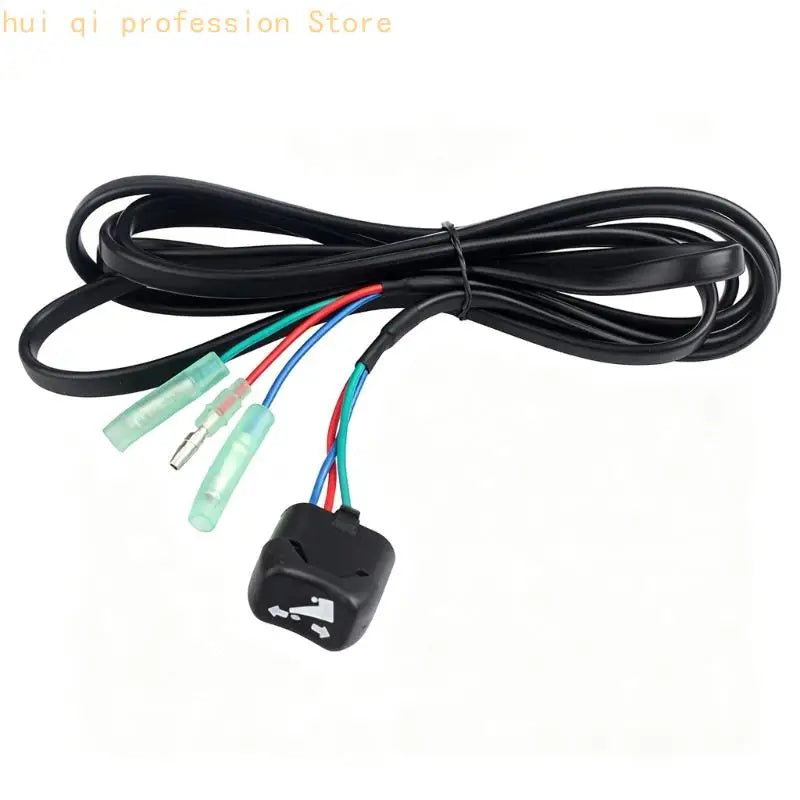

- Pre-Connected Wire Harness: Comes with an attached wire harness featuring 3 connector terminals, so you can compare connection layout and terminal arrangement before and during installation.

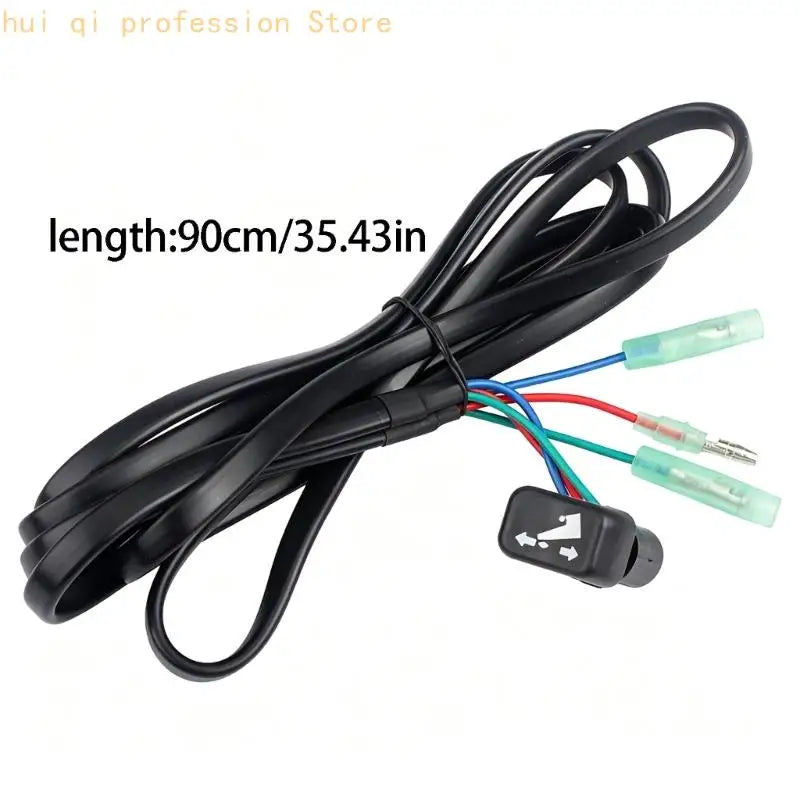

- Generous Cable Length: A 90 cm (35.4 inch) cable provides ample routing flexibility within your marine control box setup.
- Durable Metal + Plastic Construction: The compact housing features metal terminal contacts for reliable electrical connectivity and long-lasting performance on the water.
- Plug-and-Play Install: Designed as a direct replacement — simply disconnect the old unit and connect the new one for a clean, efficient repair.
- Single-Piece Package: Includes 1 remote trim tilt control assembly, so you know exactly what you're getting before your order arrives.
Specifications
| OEM Number | 704-82563-40-00 |
| Replacement Numbers | 704-82563-41-00, 704-82563-42-00 |
| Compatibility | 2001–2015 Single Marine Control Box |
| Cable Length | Approx. 90 cm / 35.43 inches |
| Terminals | 3 Connector Terminals |
| Material | Metal + Plastic |
| Installation Type | Direct Replacement / Plug and Play |
| Package Contents | 1 × Remote Trim Tilt Control Assembly |
| Country of Origin | Made in China |
Installation Notes
- Please allow ±1–2 cm variance due to manual measurement. Verify all dimensions and OEM/replacement numbers against your existing part before ordering.
- Colors in product images may vary slightly from the actual item due to monitor settings and lighting conditions.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What marine control boxes is this trim tilt button assembly compatible with?
A: This remote trim tilt control assembly is designed to fit 2001–2015 single marine control boxes. It replaces OEM part number 704-82563-40-00 as well as replacement numbers 704-82563-41-00 and 704-82563-42-00. Always cross-reference the OEM number on your existing part to confirm compatibility before purchasing.
Q: Does this assembly come with the wire harness and terminals pre-attached?
A: Yes. The assembly arrives with a pre-connected wire harness and 3 connector terminals already attached. This makes it easy to compare the connection layout with your current setup and ensures a clean plug-and-play installation without the need for additional wiring work.
Q: How long is the cable included with the marine trim tilt control assembly?
A: The assembly includes a cable measuring approximately 90 cm (35.43 inches), providing sufficient length for flexible routing within most marine single control box installations.
