MAX7219 4-in-1 Dot Matrix Display Module with 5P Line
MAX7219 4-in-1 Dot Matrix Display Module with 5P Line
MAX7219 4-in-1 Dot Matrix Display Module with 5P Line

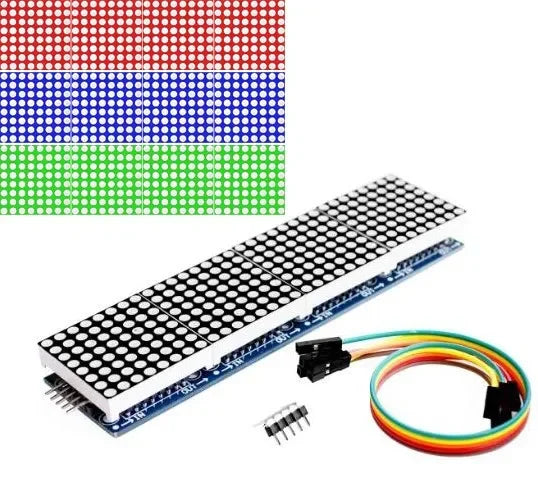

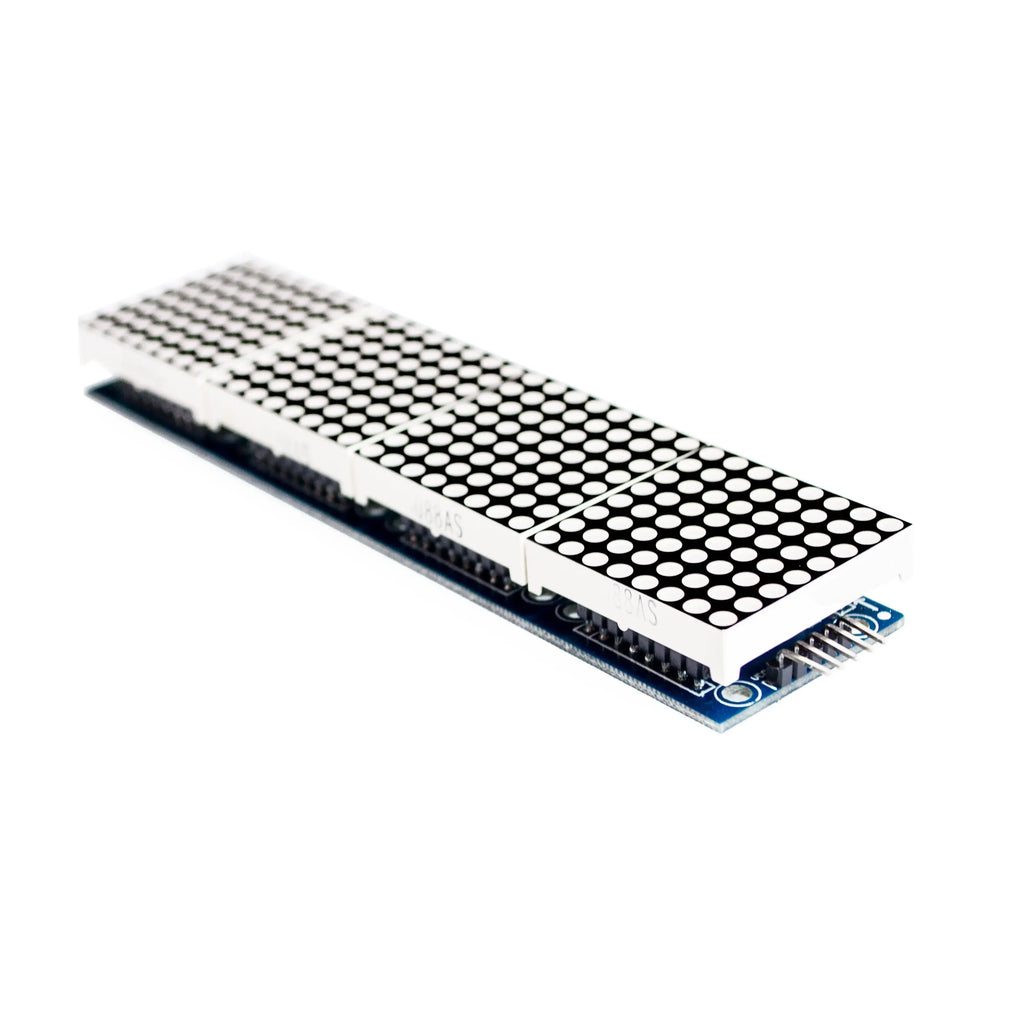

Take your microcontroller projects to the next level with this versatile MAX7219 4-in-1 Dot Matrix Display Module. Featuring four cascaded 8×8 LED dot matrix panels and a convenient 5-pin interface, this module is perfect for makers, hobbyists, students, and engineers building scrolling text displays, clocks, counters, or any custom visual readout project.
Key Features
- 4-in-1 Cascaded Design: Four 8×8 common cathode dot matrix panels linked in series for a wider, more versatile display area.

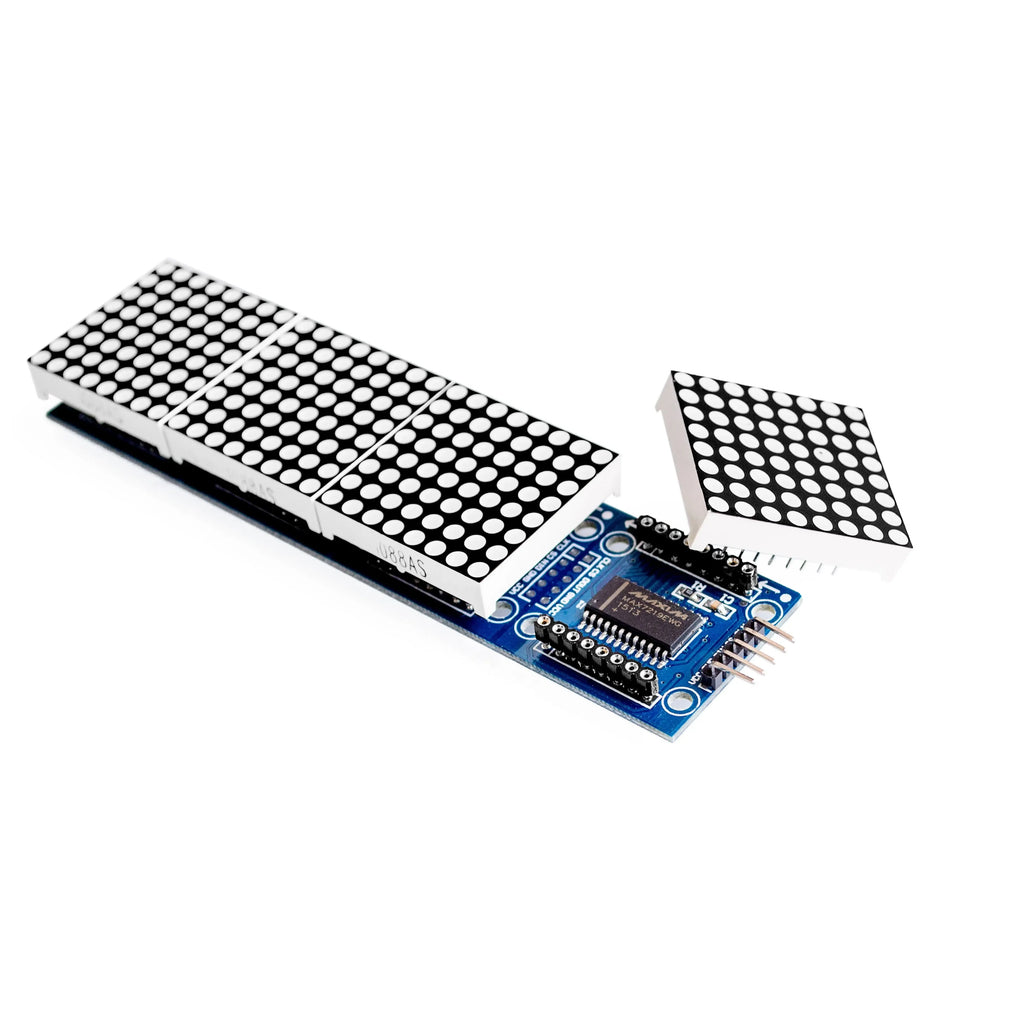

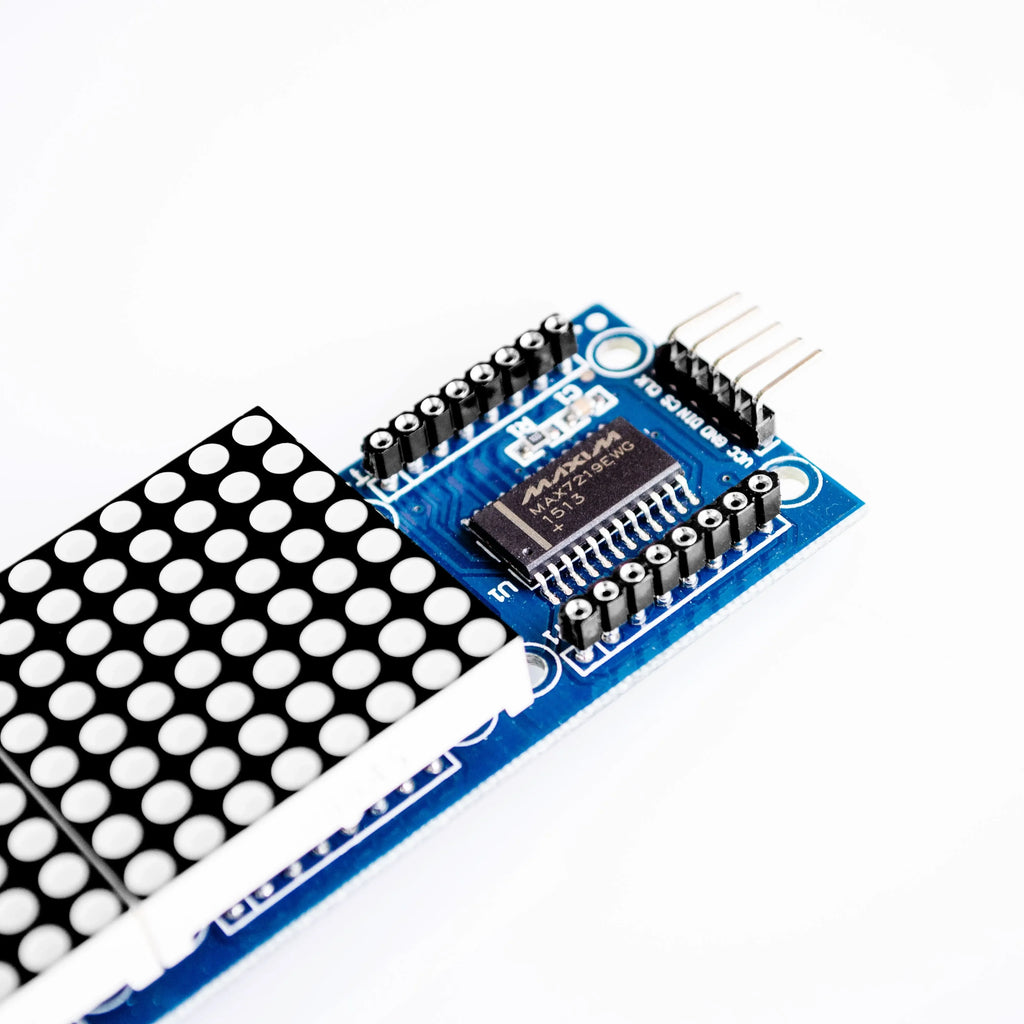

- MAX7219 Driver IC: Industry-standard LED driver chip with SPI-compatible serial interface for easy microcontroller integration.

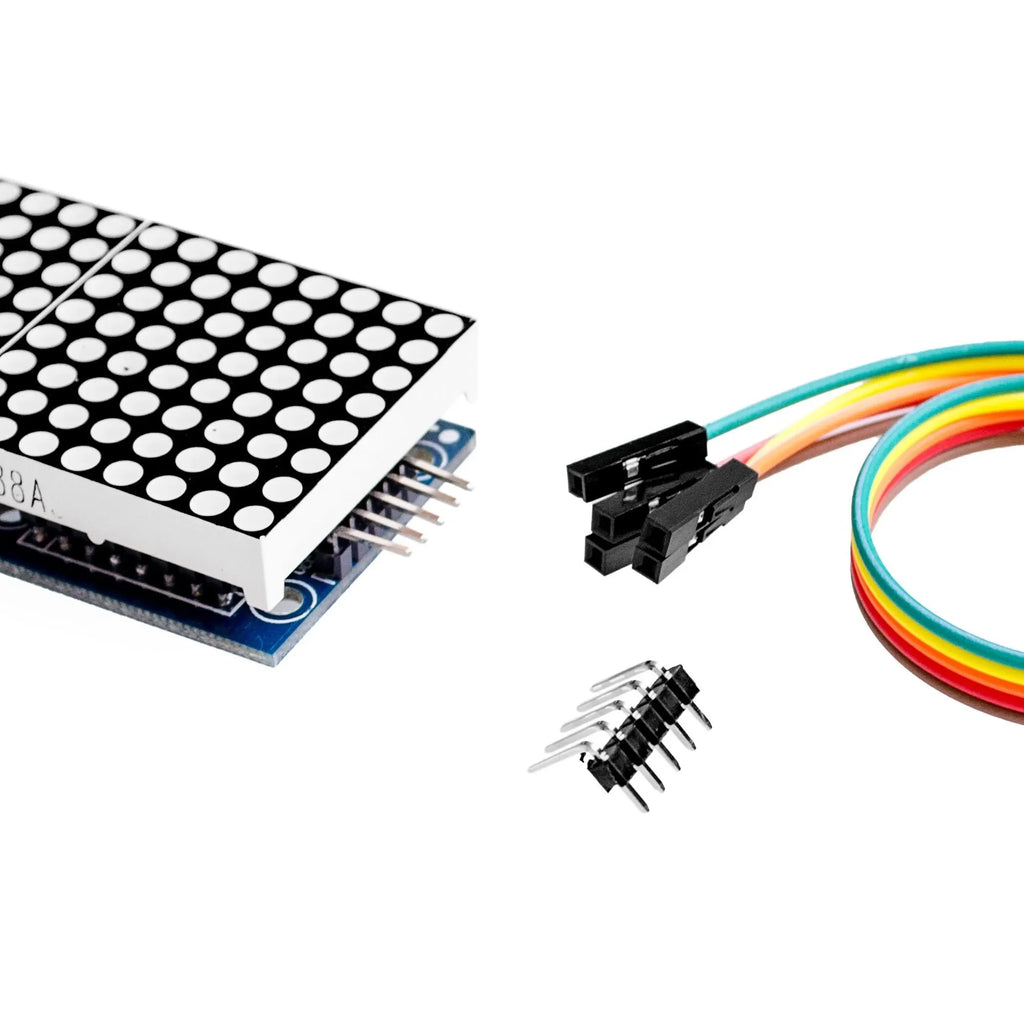

- 5-Pin Interface (5P Line): Simple 5-wire connection — VCC, GND, DIN, CS, and CLK — for quick and clean wiring.
- Operating Voltage: 5V DC — compatible with Arduino, 51 MCU, Raspberry Pi, and other popular development boards.
- Cascadable: Input and output ports on each module allow you to chain multiple units together for even larger displays.
- Mounting Holes: 64 mounting holes (3mm diameter) for secure, professional installation in enclosures or project boards.
- Compact Dimensions: 12.8 × 12.8 × 1.3 cm — easy to fit into a wide variety of project builds.
Wiring Guide (51 MCU Example)
| Module Pin | MCU Pin |
|---|---|
| VCC | 5V |
| GND | GND |
| DIN | P2.2 |
| CS | P2.1 |
| CLK | P2.0 |
Cascading Multiple Modules
Each module features a dedicated input port (left side) and output port (right side). When using a single module, connect only the input port to your CPU. When cascading multiple modules, connect the output of the first module to the input of the second, the output of the second to the input of the third, and so on. Connect the first module's input and the last module's output to your CPU.
Specifications
- Driver IC: MAX7219
- Matrix Type: 8×8 common cathode (4 panels)
- Operating Voltage: 5V
- Interface: SPI (5-pin: VCC, GND, DIN, CS, CLK)
- Dimensions: 12.8 × 12.8 × 1.3 cm (±0–2 cm manual measurement tolerance)
- Mounting Holes: 64 × 3mm diameter
- Condition: New
- Country of Origin: Made in Mainland China
What's in the Box?
- 1 × MAX7219 4-in-1 Dot Matrix Display Module with 5P Line
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Is the MAX7219 4-in-1 dot matrix module compatible with Arduino?
A: Yes! The MAX7219 4-in-1 dot matrix display module is fully compatible with Arduino boards. Simply connect VCC to 5V, GND to GND, and wire DIN, CS, and CLK to your chosen digital pins. Popular Arduino libraries such as LedControl or MD_MAX72XX make programming the display straightforward.
Q: Can I connect more than four MAX7219 dot matrix modules together?
A: Absolutely. Each module supports cascading via its input and output ports. You can chain as many modules as your microcontroller's SPI interface and power supply can support, making it easy to build wide scrolling LED displays for signs, clocks, or scoreboards.
Q: What is the operating voltage of this dot matrix display module?
A: This MAX7219 dot matrix module operates at 5V DC, making it compatible with a wide range of development boards including Arduino Uno, Arduino Mega, 51 MCU, and similar 5V microcontroller platforms.
Q: Does this module support scrolling text or animations?
A: Yes. With the right microcontroller code or library (such as MD_Parola for Arduino), you can display scrolling text, static characters, custom animations, and more across all four 8×8 panels of this MAX7219 module.
